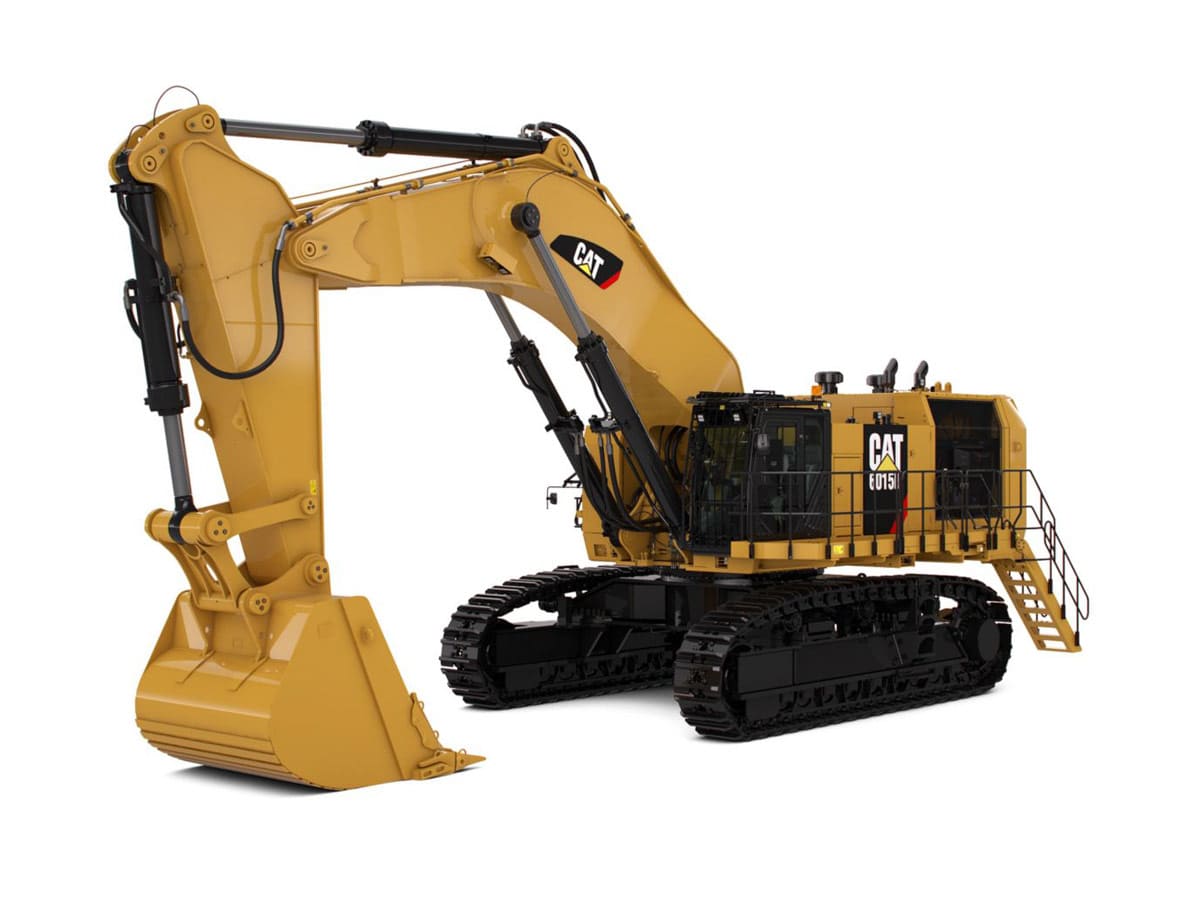

CAT® Hydraulic Shovel 6015B for Surface Mining
The new Cat® 6015B Hydraulic Shovel meets your need to move more material at a lower cost, so you can achieve production targets, deliver on your commitments, meet deadlines and maximize your profitability. Load more, make more.
Share
Overview
The new Cat® 6015B Hydraulic Shovel meets your need to move more material at a lower cost, so you can achieve production targets, deliver on your commitments, meet deadlines and maximize your profitability. Load more, make more.
-
Engine Output – SAE J1995
606 kW (813 hp) -
Standard Bucket Capacity
Backhoe (heaped 1:1) 8.1 m3 (10.6 yd3)
-
Operating Weight
140 tonnes (154 tons) -
Operating Weight
140 tonne -
Ground Pressure
16.3 N/cm² -
Operating Weight
140 tonne
-
Note
700 mm (28 in) track shoes, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick
-
Equipped with:
Emergency stop -
Equipped with:
Quick couplings for: – Diesel fuel – Grease -
Feature
Accessible from ground level
-
Engine Model
Cat® C27 ACERT™ -
Gross Power – SAE J1995
606 kW -
Net Power – SAE J1349
556 kW -
Standard Bucket Capacity – Backhoe (Heaped 1:1)
8.1 m3 -
Bucket Payload
14.6 tonne -
Maximum Digging Reach
13.9 m -
Maximum Digging Height
13.2 m -
Bucket Digging Force (SAE)
501 kN -
Stick Digging Force (SAE)
439 kN -
Emissions
U.S. EPA Tier 4 Final, Tier 2 Equivalent or Tier 1 Equivalent -
Gross Power – SAE J1995
606 kW (813 hp 1,800 min-1) -
Net Power – SAE J1349
556 kW (746 hp 1,800 min-1) -
Number of Cylinders
12 -
Bore
137.2 mm -
Stroke
152.4 mm -
Displacement
27 L -
Maximum Altitude without Deration above Sea Level (a.s.l.)
3048 m -
Gross Power – SAE J1995
606 kW (813 hp 1,800 min-1) -
Net Power – SAE J1349
556 kW (746 hp 1,800 min-1) -
Number of Cylinders
12 -
Bore
137.2 mm -
Stroke
152.4 mm -
Displacement
27 L -
Aspiration
Turbocharged and aftercooled -
Maximum Altitude without Deration above Sea Level (a.s.l.)
4420 m -
Standard
700 mm -
Wide
900 mm -
Extra Wide
1000 mm -
Number of Shoes (each side)
46 -
Number of Track Rollers (each side)
9 -
Number of Carrier Rollers (each side)
3 -
Track Pads
Double grouser -
Travel Speed (two stages): 1st Stage (maximum)
2.3 km/h -
Travel Speed (two stages): 2nd Stage (maximum)
3.3 km/h -
Maximum Drawbar Pull (Forward)
858 kN -
Maximum Drawbar Pull (Reverse)
983 kN -
Gradeability of Travel Drives
Approximately 42% -
Hydraulic Track Tensioning
With accumulator -
Swing Drive
9 L -
Grease Tank
68 L -
Main Pumps
3 × variable swash plate pumps -
Main Pumps: Maximum Total Oil Flow
1544 L/min -
Main Pumps: Maximum Pressure, Attachment
320 bar -
Main Pumps: Maximum Pressure, Travel
320 bar -
Swing Pump
1 × variable swash plate pump -
Swing Pump: Maximum Flow, Swing
479 L/min -
Swing Pump: Maximum Pressure, Swing
365 bar -
Pilot Pump
1 × gear pump -
Pilot Pump: Maximum Flow, Pilot
153 L/min -
Pilot Pump: Maximum Pressure, Pilot
95 bar -
Engine Fan Pump
1 × variable swash plate pump -
Engine Fan Pump: Maximum Flow, Engine Fan
201 L/min -
Engine Fan Pump: Maximum Pressure, Engine Fan
220 bar -
Hydraulic Fan Pump
1 × variable swash plate pump -
Hydraulic Fan Pump: Maximum Flow, Hydraulic Fan
86 L/min -
Hydraulic Fan Pump: Maximum Pressure, Hydraulic Fan
135 bar -
Hydraulic Oil Cooling: Maximum Flow
1075 L/min -
Hydraulic Oil Cooling: Diameter of Fan
1016 mm -
Filters:
Full-flow high-pressure filters (200 ?m) for main pumps -
Filters:
Full-flow filters (20 ?m) for complete return circuit -
Filters:
Pressure filters (16 ?m) for servo circuit -
Filters:
Full-flow filters (6 ?m) for engine cooling return circuit -
Filters:
Swing charge filter (15 ?m) -
Filters:
Pump case return screens (125 ?m) -
Features
All raceways and the internal gearing of swing ring supplied by automatic central lubrication system -
Capacity of Grease Barrel
68 L -
Maximum Dump Height
8.7 m -
Bucket Digging Force (ISO)
586 kN -
Stick Digging Force (ISO)
458 kN -
Maximum Drawbar Pull (Forward)
858 kN -
Gradeability of Travel Drives
Approximately 42% -
Maximum Drawbar Pull (Reverse)
983 kN -
Hydraulic Track Tensioning
With accumulator -
Number of Shoes (each side)
46 -
Travel Speed (two stages): 1st Stage (maximum)
2.3 km/h -
Travel Speed (two stages): 2nd Stage (maximum)
3.3 km/h -
Features
Closed-loop swing circuit with speed control -
Features
Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking
-
Maximum Digging Depth
7.9 m -
Type
Grease refill service point accessible from ground -
Type
Boom and stick torsion-resistant with welded box design -
Type
High-tensile steel with solid steel castings at pivot areas -
Type
Boom and stick stress-relieved after welding -
Type
Float valve for boom down function -
Type
Central bank lubrication system -
Type
Grease is automatically applied to all attachment pivot points (except bucket linkage) and slew bearing -
Type
Standard grease reel on machine for bucket linkage
-
Fuel Tank
1700 L -
Cooling System
165 L -
Engine Oil
87 L -
Hydraulic System (including tank)
1752 L -
Hydraulic Tank
956 L
-
Components
One (1) light for machine deck/service -
Components
One (1) beacon light on cabin roof -
Components
Audible travel alarm -
Components
Emergency stop in cabin, engine module, pump room and on service station accessible from ground level -
Components
All around lighting -
Components
Four (4) lights on attachment -
Components
Five (5) lights for front -
Components
Forged double-grouser track pads -
Components
Chain links connected by hardened pins and bushings -
Components
Cat D11 Track-Type Tractor links -
Components
All running surfaces of sprockets, idlers, rollers and track chain links hardened -
Components
Fully hydraulic self-adjusting track tensioning system with accumulator -
Components
Automatic hydraulic retarder valve to prevent overspeed on downhill travel -
Components
Pressurized operator station with positive filtration -
Components
Mirror package -
Components
Sliding upper door window (left-hand cab door) -
Components
Glass-breaking safety hammer -
Components
Removable lower windshield with in cab storage bracket -
Components
Coat hook -
Components
Beverage holder -
Components
Literature holder -
Components
AM/FM radio -
Components
Radio with MP3 auxiliary audio port -
Components
Two stereo speakers -
Components
Storage shelf suitable for lunch or toolbox -
Components
Color LCD display with warning, filter/fluid change, and working hour information -
Components
Adjustable armrest -
Components
Height-adjustable joystick consoles -
Components
Neutral lever (lock out) for all controls -
Components
Travel control pedals with removable hand levers -
Components
Two power outlets, 10 amp (total) -
Components
Laminated glass front upper window and tempered other windows
-
Capacity 1:1
8.1 m3 -
Total Width
2682 mm -
Number of Teeth
5 -
Weight Including Standard Wear Package
7528 kg -
Maximum Material Density (loose)
1.8 t/m³
-
System Voltage
24V -
Batteries
4 × 200Ah (12V each) -
Alternator Rating
150A (24V)
-
Buckets equipped with:
– Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds
-
Number of Track Rollers (per side)
9 -
Number of Carrier Rollers (per side)
3
-
Maximum Swing Speed
4.9 rpm -
Parking Brake
Wet multiple disc brake, spring-loaded/hydraulically released -
Swing Drives
Two (2) compact planetary transmissions with axial piston motors -
Swing Ring
Cross roller bearing with sealed internal gearing
