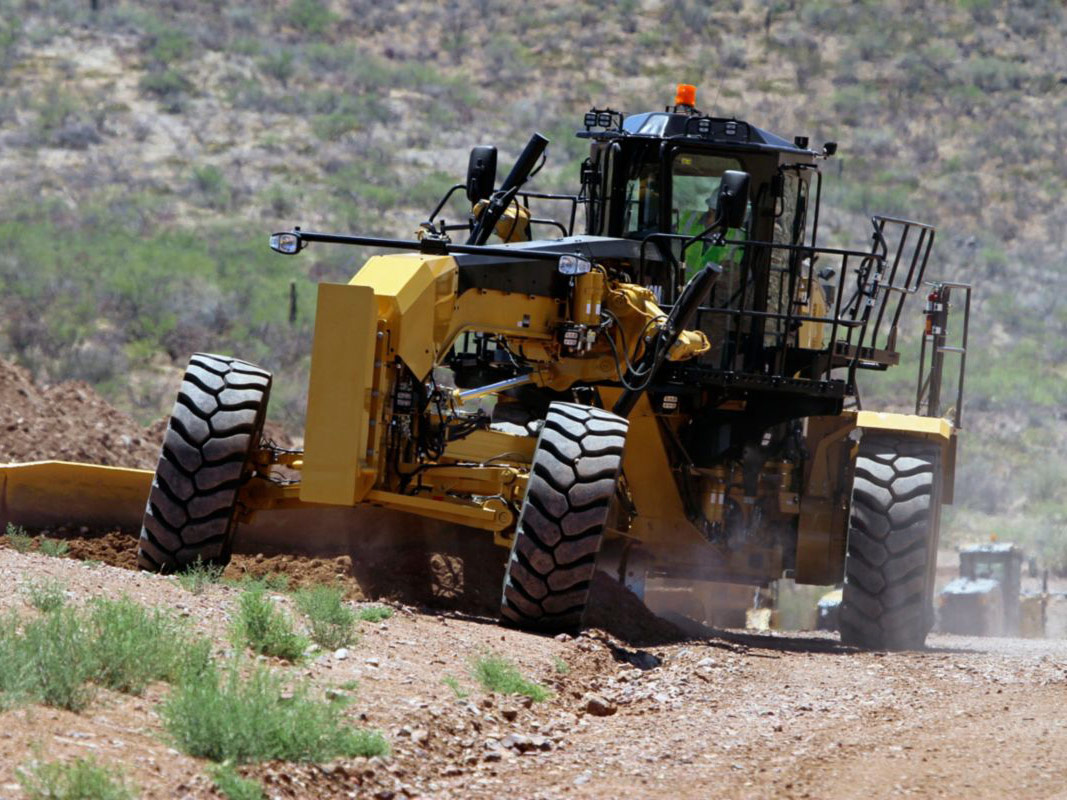

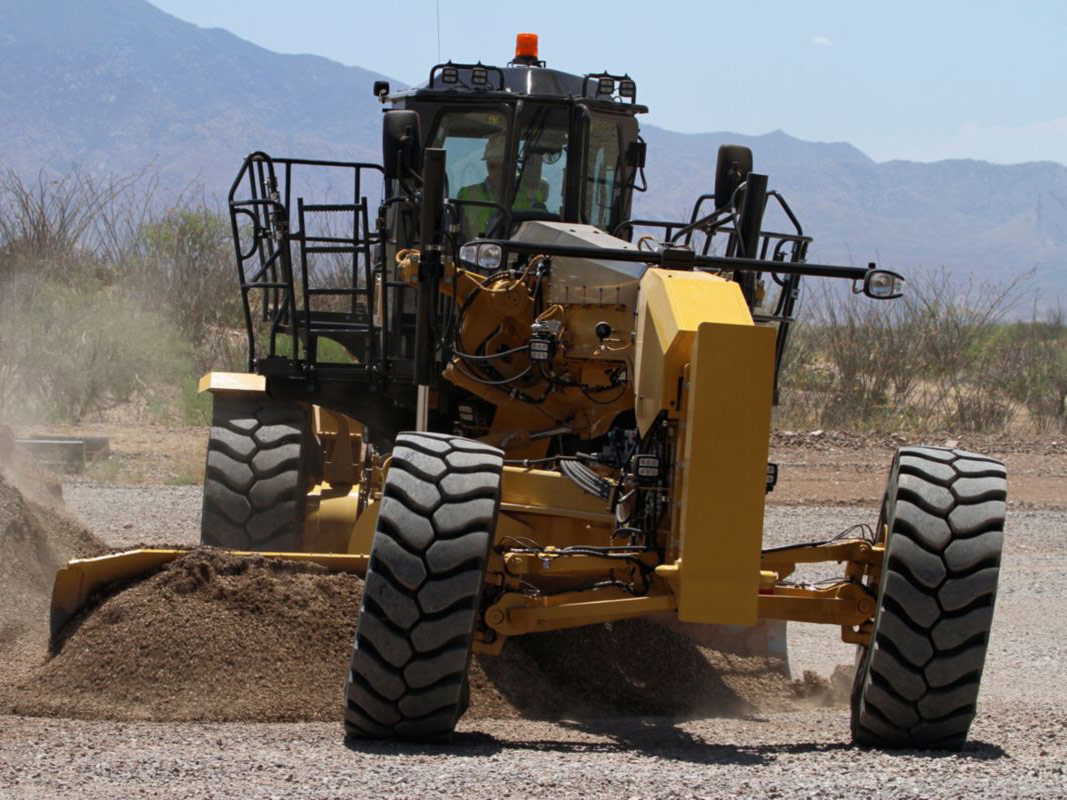

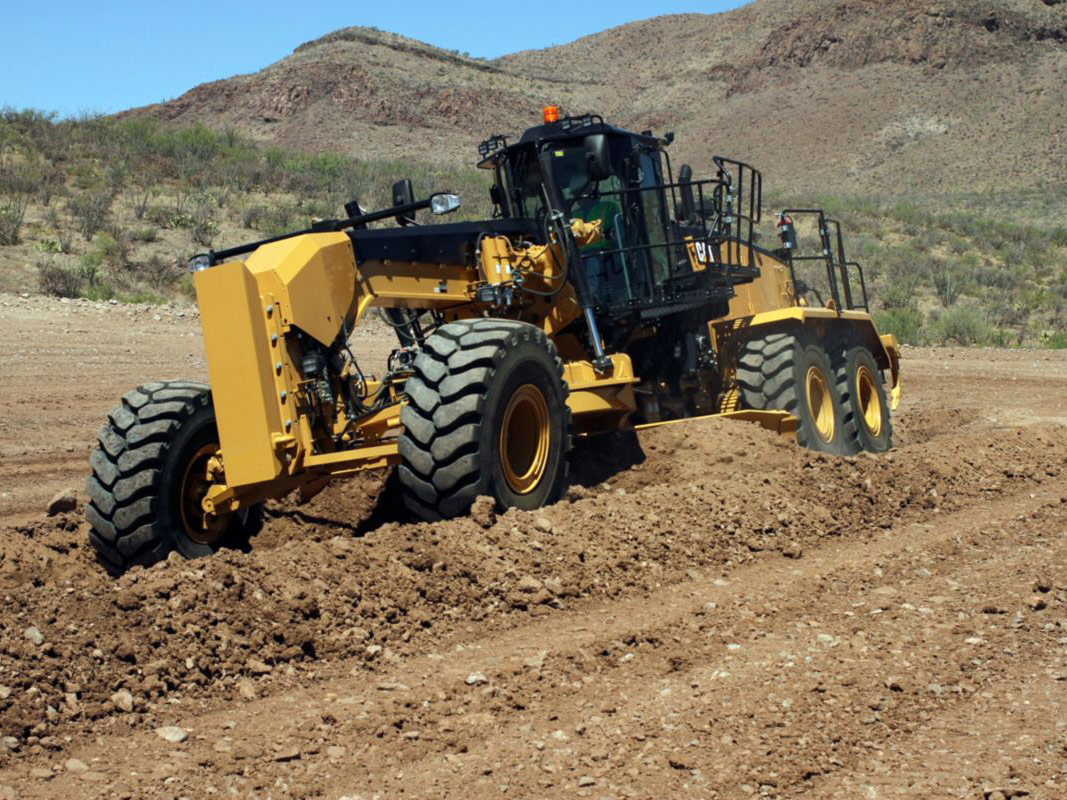

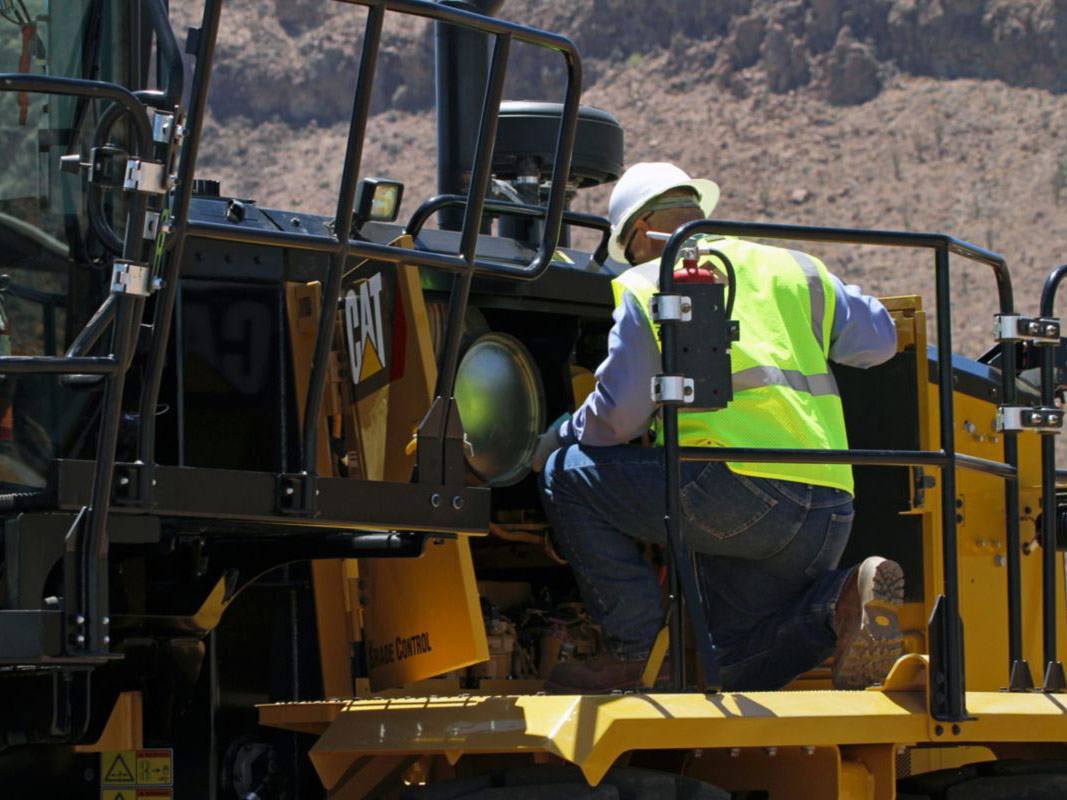

CAT® Motor Grader 16M3 for Surface Mining and Haul Road Maintenance
The 16M3 Motor Grader will have a direct impact on mine site productivity and costs. The haul road is either the mine’s greatest asset or greatest liability. When haul roads are kept in top condition, trucks live longer and run faster. Good road conditions are key on extending truck life, reducing maintenance, lowering fuel costs and reducing tire damage, as a result, cycle times are improved and more ore is produced at a lower cost. The 16M3 is ideal fit for:
- Small to medium size mining operations which run 150 ton or smaller hauling trucks.
- As a complement to a 24M size motor grader fleet in large mining operations where additional versatility is required for ditch and berm building and cleaning, maintenance of secondary narrower roads or side/bank slope work.
The 16M3 includes features that provide large benefits on operating cost reduction, uptime & performance improvements as well as enhanced safety.
Share
Overview
The 16M3 Motor Grader will have a direct impact on mine site productivity and costs. The haul road is either the mine’s greatest asset or greatest liability. When haul roads are kept in top condition, trucks live longer and run faster. Good road conditions are key on extending truck life, reducing maintenance, lowering fuel costs and reducing tire damage, as a result, cycle times are improved and more ore is produced at a lower cost. The 16M3 is ideal fit for:
- Small to medium size mining operations which run 150 ton or smaller hauling trucks.
- As a complement to a 24M size motor grader fleet in large mining operations where additional versatility is required for ditch and berm building and cleaning, maintenance of secondary narrower roads or side/bank slope work.
The 16M3 includes features that provide large benefits on operating cost reduction, uptime & performance improvements as well as enhanced safety.
-
Base Power (1st gear) - Net
216 kW -
Engine Model
Cat® C13 ACERT™ VHP -
Bore
130 mm -
Stroke
157 mm -
Speed @ Rated Power
2,000 rpm -
Base Power (1st gear) – Net (metric)
216 kW -
Emissions
U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final) -
Emissions
Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards – depending on emission standards of specific country -
Emissions
Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards – depending on emission standards of specific country -
VHP Range – Net
216-259 kW (290-348 hp) -
Torque Rise: Tier 4/Stage IV/Japan 2014 (Tier 4)
43% -
Torque Rise: Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
39% -
VHP Range – Net (metric)
216-259 kW (294-353 hp) -
Torque Rise: Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
39% -
Maximum Torque ISO 9249: Tier 4/Stage IV/Japan 2014 (Tier 4)
1771 N?m -
Maximum Torque ISO 9249: Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
1721 N?m -
Maximum Torque ISO 9249: Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
1721 N?m -
Derating Altitude: Tier 4/Stage IV/Japan 2014 (Tier 4)
3810 m -
Derating Altitude: Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
3711 m -
Derating Altitude: Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
3954 m -
Displacement
12.5 L -
Number of Cylinders
6 -
Standard – Fan Speed: Minimum
550 rpm -
Standard – Ambient Capability
50 ° C -
Optimized VHP Range – Net
216-259 kW (290-348 hp) -
Gear: Forward – 1st
216 kW -
Gear: Forward – 2nd
216 kW -
Gear: Forward – 3rd
222 kW -
Gear: Forward – 4th
227 kW -
Gear: Forward – 5th
232 kW -
Gear: Forward – 6th
239 kW -
Gear: Forward – 7th
244 kW -
Gear: Forward – 8th
259 kW -
Gear: Reverse – 1st
216 kW -
Gear: Reverse – 2nd
216 kW -
Gear: Reverse – 3rd-6th
222 kW -
Gear: Forward – 1st
216 kW -
Gear: Forward – 2nd
216 kW -
Gear: Forward – 3rd
222 kW -
Gear: Forward – 4th
227 kW -
Gear: Forward – 5th
232 kW -
Gear: Forward – 6th
239 kW -
Gear: Forward – 7th
244 kW -
Gear: Forward – 8th
259 kW -
Gear: Reverse – 1st
216 kW -
Gear: Reverse – 2nd
216 kW -
Gear: Reverse – 3rd-6th
222 kW -
Shank Holder Spacing – Maximum
500 mm -
Wheel Group: 19.5×25 MP
Tires: 23.5R25 Bridgestone VKT 2 Star -
Wheel Group: 19.5×25 MP
Tires: 23.5R25 Bridgestone VKT 1 Star -
Wheel Group: 19.5×25 MP
Tires: 23.5R25 Bridgestone VJT 1 Star -
Wheel Group: 19.5×25 MP
Tires: 23.5R25 Michelin XHA 2 Star -
Wheel Group: 19.5×25 MP
Tires: 23.5R25 Michelin XLDD 2 Star L5
-
Standard – Fan Speed: Maximum
1,450 rpm -
Operating Weight - Typically Equipped
32411 kg -
Gross Vehicle Weight – Typically Equipped: Total
32411 kg -
Gross Vehicle Weight – Typically Equipped: Front Axle
8733 kg -
Gross Vehicle Weight – Typically Equipped: Rear Axle
23678 kg -
Gross Vehicle Weight – Base**: Total
28816 kg -
Gross Vehicle Weight – Base**: Front Axle
8134 kg -
Gross Vehicle Weight – Base**: Rear Axle
20682 kg -
Gross Vehicle Weight – Maximum Tested: Total
38500 kg -
Gross Vehicle Weight – Maximum Tested: Front Axle
11850 kg -
Gross Vehicle Weight – Maximum Tested: Rear Axle
26650 kg
-

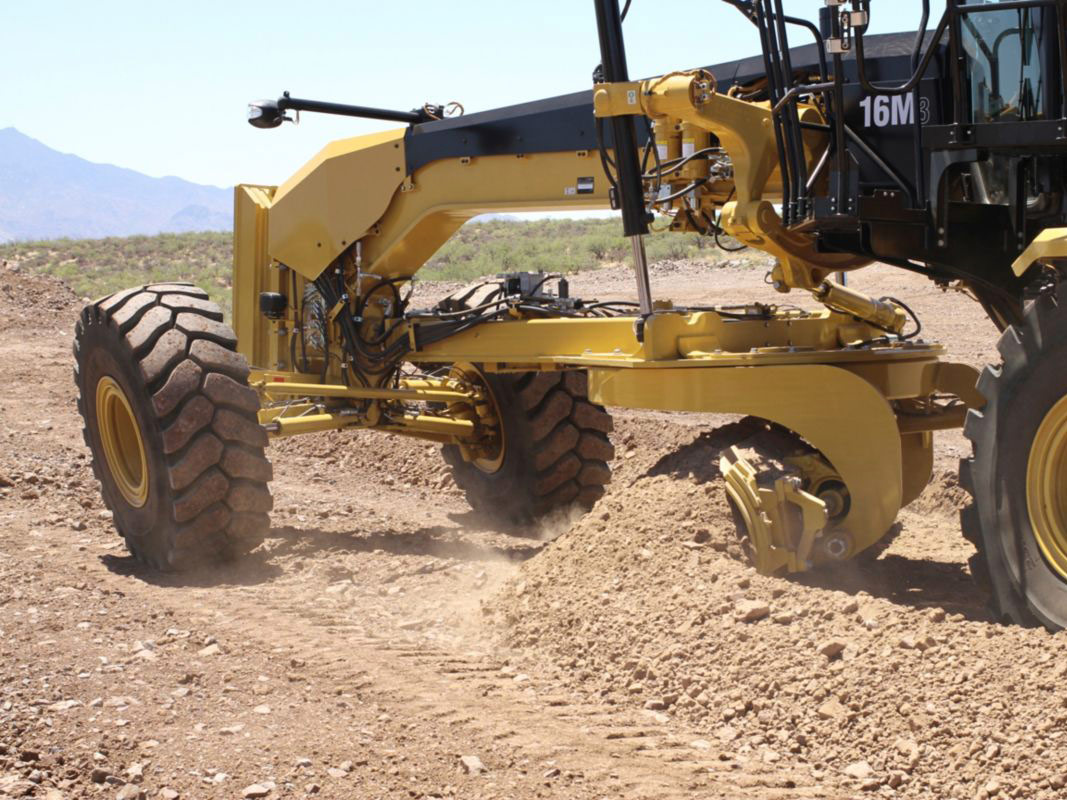

Blade Width
4.9 m -
Thickness
25 mm -
Arc Radius
413 mm -
Cutting Edge – Width
203 mm -
Cutting Edge – Thickness
25 mm -
End Bit – Width
152 mm -
End Bit – Thickness
19 mm -
Blade Pull* – Base GVW
18615 kg -
Blade Pull* – Maximum GVW
23985 kg -
Down Force – Base GVW
13945 kg -
Down Force – Maximum GVW
19895 kg -
Width
4.9 m -
Width
236 mm
-
Height
787 mm -
Shank Holder Spacing – Minimum
445 mm -
Ripping Depth – Maximum
452 mm -

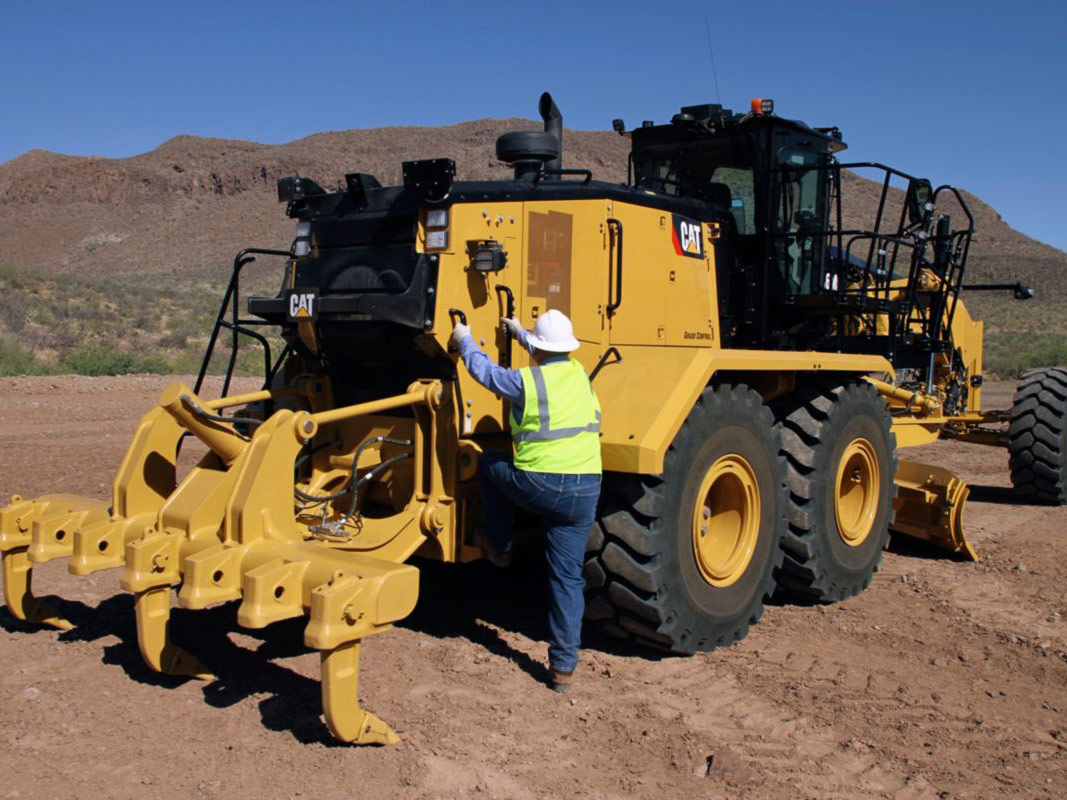

Ripper Shank Holders
7 -
Penetration Force
13749 kg -
Pryout Force
19822 kg -
Machine Length Increase, Beam Raised
1610 mm -
Height
648 mm
-
Throat Clearance
126 mm
-
Height – Top of Cab
3719 mm -
Height – Front Axle Center
733 mm -
Length – Between Tandem Axles
1841 mm -
Length - Front Axle to Moldboard
3066 mm -
Length - Front Axle to Mid Tandem
7365 mm -
Length - Front Tire to Rear of Machine (includes tow hitch)
10593 mm -
Length - Counterweight to Ripper
12051 mm -
Ground Clearance at Rear Axle
396 mm -
Height to Top of Cylinders
3088 mm -
Height to Exhaust Stack
3557 mm -
Width - Tire Center Lines
2703 mm -
Width - Outside Rear Tires
3411 mm -
Width - Outside Front Tires
3411 mm
-
Top Speed – Forward
51.7 km/h -
Top Speed – Reverse
40.8 km/h -
Turning Radius (outside front tires)
9.3 m -
Steering Range – Left/Right
47.5° -
Articulation Angle – Left /Right
20° -
Reverse – 1st
3.6 km/h -
Reverse – 2nd
6.6 km/h -
Reverse – 3rd
9.7 km/h -
Reverse – 4th
15.0 km/h -
Reverse – 5th
28.0 km/h -
Reverse – 6th
40.8 km/h
-
Fuel Capacity
496 L -
Hydraulic System – Total
146 L -
Hydraulic System – Tank
70 L -
Transmission/Differential/Final Drives
98.5 L -
Tandem Housing (each)
129 L -
Front Wheel Spindle Bearing Housing
0.9 L -
Circle Drive Housing
10 L
-
Cooling System
70 L -
DEF Tank
16 L -
Engine Oil
36 L -
Transmission
Direct drive, power shift, countershaft
-
Forward/Reverse Gears
8 Forward/6 Reverse -
Brakes – Service
Oil-actuated, oil disc -
Brakes – Dynamic Brake Torque per Wheel
36701 N?m -
Brakes – Parking
Spring applied, hydraulically released -
Brakes – Secondary
Oil-actuated, oil-disc
-
Circuit Type
Electro-hydraulic load sensing, closed center -
Pump Type
Variable piston -
Pump Output*
280 L/min -
Maximum System Pressure
24750 kPa -
Standby Pressure
5900 kPa
-
Note
*Pump output measured at 2,150 rpm. -
Note
Calculated with no slip and 23.5 R25 L-3 tires. -
Note
*Blade pull calculated at 0.9 traction coefficient, which is equal to ideal no-slip conditions, and Gross Machine Weight. -
Note
*For machines not equipped with Tier 4 Final emission engine, subtract 150 kg (331 lb) from rear axle weight and total weight. -
Note
**Base operating weight calculated on standard machine configuration with 23.5 R25 tires, full fuel tank operator and ROPS cab. -
Note
The dynamic spectator sound power level is 109 dB(A) for Stage IV certified configurations and 109 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the -
Note
The dynamic operator sound pressure level is 71 dB(A) for Stage IV certified configurations and 72 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the
-
Drawbar – Width
76 mm -
Circle – Diameter
1822 mm -
Circle – Blade Beam Thickness
50 mm -
Drawbar – Height
203 mm -
Front Frame Structure – Thickness
14 mm -
Front Frame Structure – Height
460 mm -
Front Frame Structure – Width
356 mm -
Front Axle – Height to Center
670 mm -
Front Axle – Wheel Lean
18° Left/17° Right -
Front Axle – Total Oscillation per Side
35°
-
Circle Centershift – Right
560 mm -
Circle Centershift – Left
690 mm -
Moldboard Sideshift – Right
790 mm -
Moldboard Sideshift – Left
740 mm -
Maximum Blade Position Angle
65° -
Blade Tip Range – Forward
40° -
Blade Tip Range – Backward
5° -
Maximum Shoulder Reach Outside of Tires – Right
2311 mm -
Maximum Shoulder Reach Outside of Tires – Left
2311 mm -
Maximum Lift Above Ground
400 mm -
Maximum Depth of Cut
470 mm
-
ROPS/FOPS
ISO 3471:2008/ISO 3449:2005 -
Steering
ISO 5010:2007 -
Brakes
ISO 3450:2011 -
Sound
ISO 6394:2008/ISO 6395:2008/ISO 6396:2008
-
Sidewall Thickness – Inner
22 mm -
Sidewall Thickness – Outer
22 mm -
Tandem Oscillation – Front Up
15° -
Tandem Oscillation – Front Down
25°
