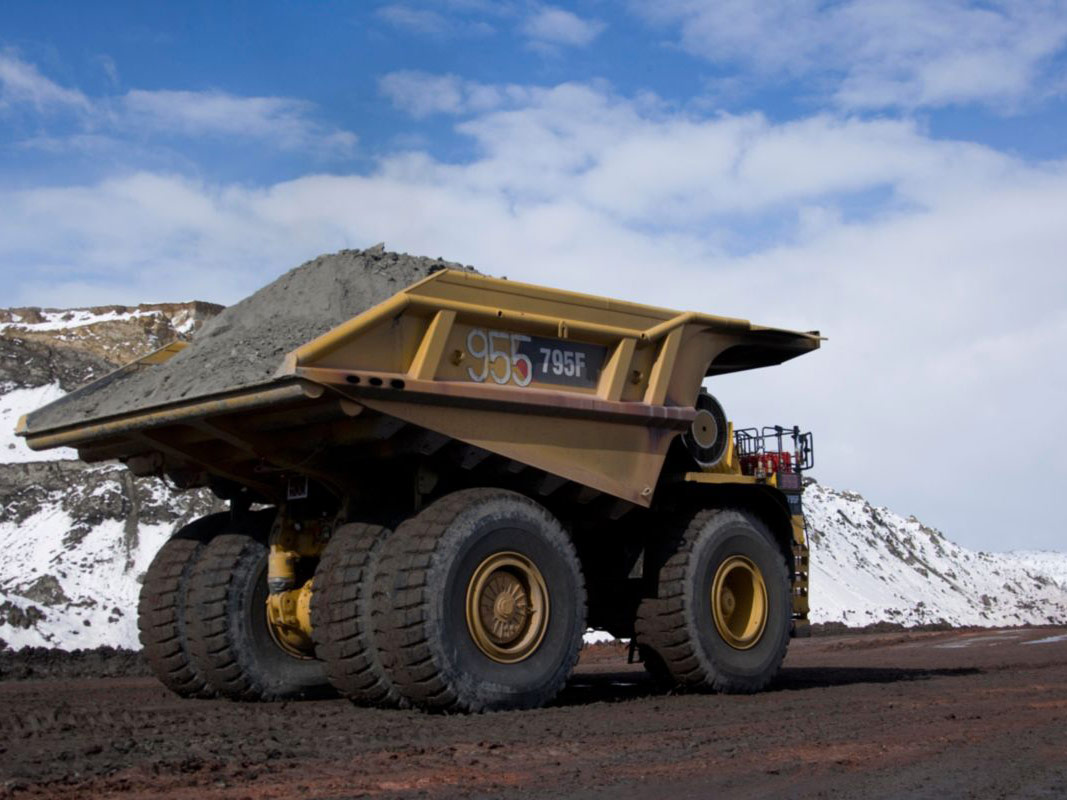

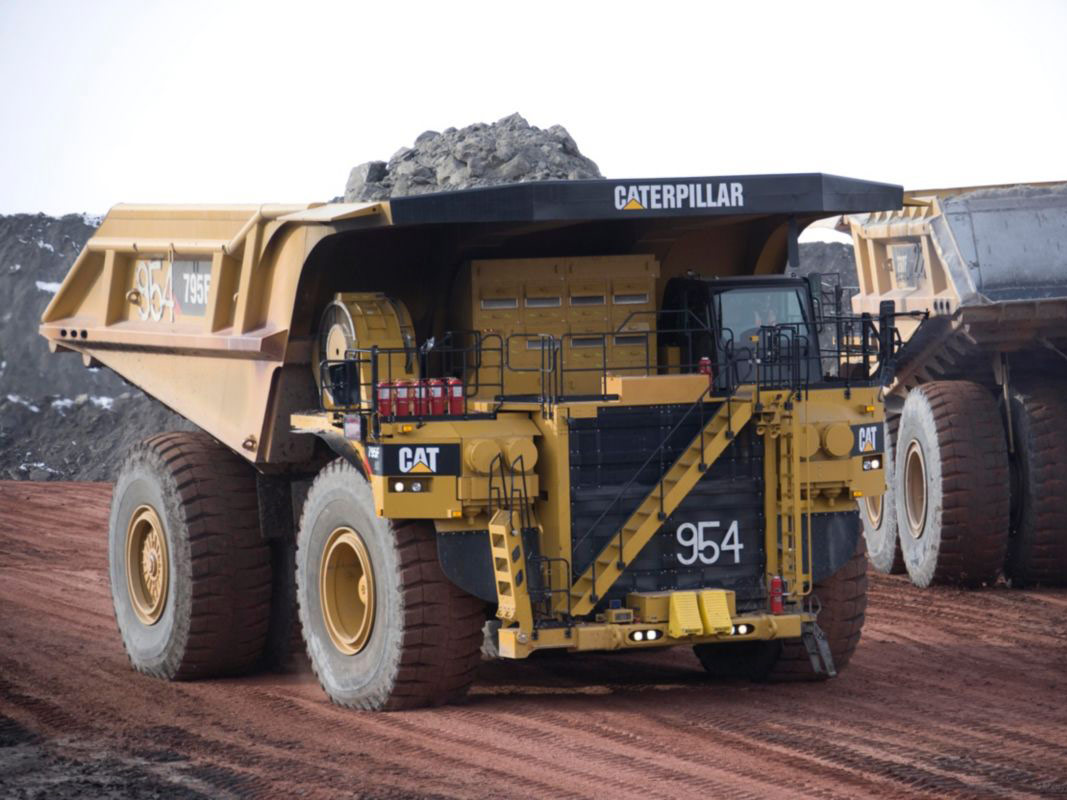

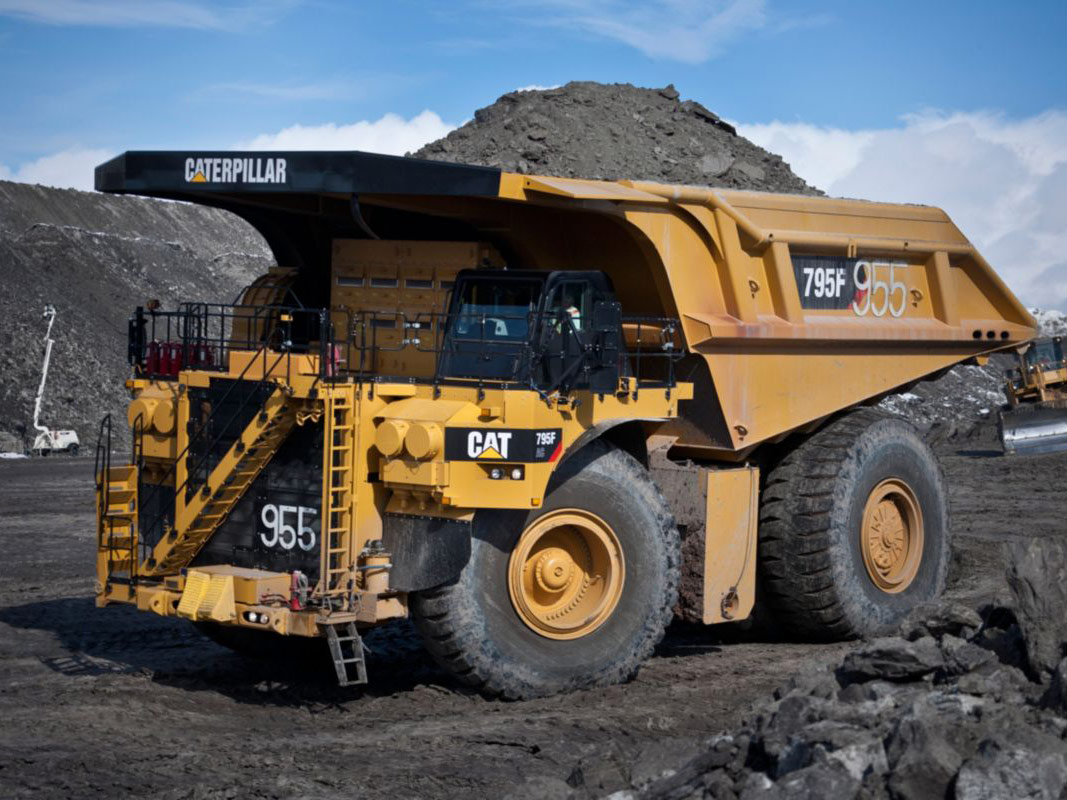

CAT® Mining Truck 795F AC for Electric Drive Surface Mining
For those applications and situations where you prefer an electric drive truck Caterpillar now offers the 795F AC. The Cat AC drive system provides you the best retarding, braking and control in the industry. Designed and manufactured by Caterpillar, the 795 is the first AC electric drive truck that is single sources from one manufacturer and supported by the best dealer network in the industry.
Share
Overview
For those applications and situations where you prefer an electric drive truck Caterpillar now offers the 795F AC. The Cat AC drive system provides you the best retarding, braking and control in the industry. Designed and manufactured by Caterpillar, the 795 is the first AC electric drive truck that is single sources from one manufacturer and supported by the best dealer network in the industry.
-
Nominal Payload Capacity
313.0 tonne -
Top Speed - Loaded
64.0 km/h
-
Steer Angle
34.0 Degre -
Turning Circle Clearance Diameter
38.7 m -
Turning Diameter - Front
34.0 m -
Steering Standards
SAE J1511 OCT90 ISO 5010:1992
-
Gross Machine Operating Weight (GMW)
570678.0 kg -
Gross Machine Operating Weight (GMW)
570678.0 kg -
Chassis Weight
202270.0 kg -
Body Weight Range
38 500-54 500 kg (84,900-120,000 lb)
-
Engine Model
Cat C175-16 -
Gross Power - SAE J1995
2536.0 kW -
Bore
175.0 mm -
Stroke
220.0 mm -
Displacement
85.0 L -
Net Power
2377.0 kW
-
Total Reduction Ratio
35:1
-
Effective Cylinder Stroke - Front
293.0 mm -
Effective Cylinder Stroke - Rear
141.0 mm -
Rear Axle Oscillation
±4.8°
-
Pump Flow - High Idle
935.0 L/min -
Relief Valve Setting - Raise
24500.0 kPa -
Body Raise Time - High Idle
19.0 Secon -
Body Lower Time - Float
20.0 Secon -
Body Power Down - High Idle
17.5 Secon
-
Fuel Tank (optional)
7192.0 L -
Cooling System
1100.0 L -
Crankcase
310.0 L -
Steering Tank
210.0 L -
Steering System (Includes Tank)
300.0 L -
Brake/Hoist Hydraulic Tank
508.0 L -
Brake/Hoist System (Includes Tank)
1500.0 L -
Final Drives, Each
341.0 L -
Fuel Tank
3596.0 L -
Cooling System
Variable speed, hydraulic cooling system
-
Blended Four Corner Retarding
Standard -
Dynamic Retarding Power
4750.0 kW -
Electric Retarding - Radial Grid Design with Brushless AC Fan Motor
4750 kW (6,370 hp) rated power -
Oil Cooled Brakes - Retarding Capable at All Speeds - Brake Surface - Front
132258.4 cm2 -
Oil Cooled Brakes - Retarding Capable at All Speeds - Brake Surface - Rear
198388.0 cm2 -
Oil Cooled Brakes - Retarding Capable at All Speeds - Outside Diameter
1067.0 mm -
Oil Cooled Brakes - Retarding Capable at All Speeds - Standards
J-ISO 3450 JAN88, ISO 3450:1996
-
Front Axle - Loaded
33.0 % -
Rear Axle - Loaded
67.0 % -
Front Axle - Empty
48.0 % -
Rear Axle - Empty
52.0 %
-
Heaped (SAE 2:1)
181-252 m3 (237-330 yd3)
-
Struck
121.5-211 m3 (159-276 yd3)
-
Standard Tires
Choices
-
Sound Standards
Standards
-
Controls
IGBT Inverter Technology, air cooled, pressurized cabinet with filtration -
Generator/Alternator
Brushless, remote mounted, dual bearing -
Wheel Motor
Rear axle mounted Cat AC induction
-
