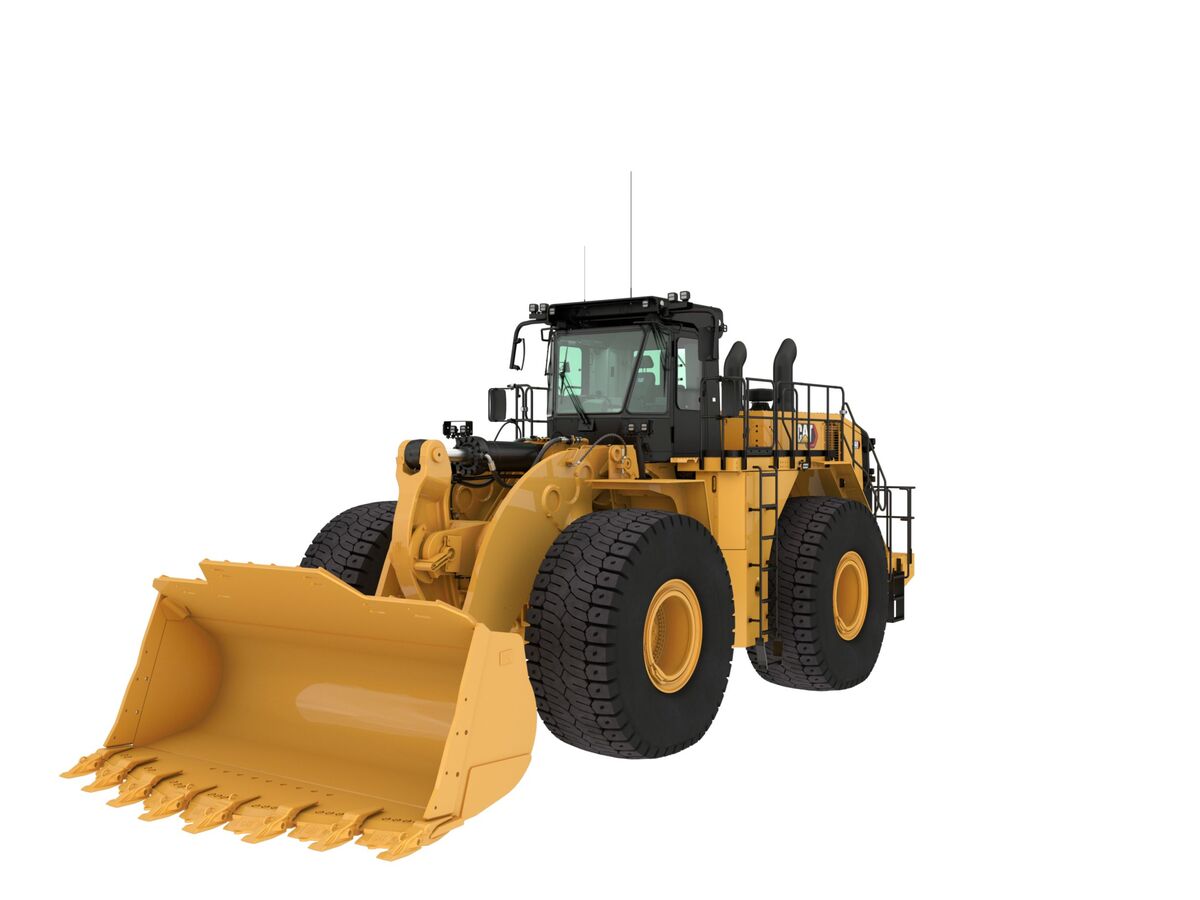

990 Wheel Loader
The Cat® 990 Wheel Loader helps you move more material in less time, at a low cost per ton, for a fast return on your investment. This machine offers significant fuel savings, low maintenance costs, and great productivity and durability to acheive multiple life cycles.
Share
Overview
The Cat® 990 Wheel Loader helps you move more material in less time, at a low cost per ton, for a fast return on your investment. This machine offers significant fuel savings, low maintenance costs, and great productivity and durability to acheive multiple life cycles.
-
Engine Power - ISO 14396:2002
586 kW -
Engine Model
Cat® C27 -
Emissions
Option 1 - U.S. EPA Tier 4 Final/EU Stage V -
Rated Speed
1800 r/min -
Gross Power - SAE J1995:2014
597 kW -
Net Power - SAE J1349:2011 - Standard Ambient
546 kW -
Net Power - SAE J1349:2011 - High Ambient
508 kW -
Emissions
Option 2 - Emits equivalent to U.S. EPA Tier 2 -
Rated Speed
1800 r/min -
Engine Power - ISO 14396:2002
561 kW -
Gross Power - SAE J1995:2014
571 kW -
Net Power - SAE J1349:2011 - Standard Ambient
521 kW -
Net Power - SAE J1349:2011 - High Ambient
483 kW -
Bore
137.2 mm -
Stroke
152.4 mm -
Displacement
27.03 l -
Peak Torque - 1,200 rpm
3557 N·m -
Torque Rise
18 % -
Note (1)
*Sound suppression equipped -
Note (2)
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. -
Note (3)
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. -
Note (4)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. -
Wheel Base
4600 mm
-
Note
Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake sytstem, exhaust system, and alternator. -
Note
Travel speeds based on Michelin 45/65R39 LD D2**L5 tires. -
Note
Cat U.S. EPA Tier 4 Final/EU Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. -
Note
Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. -
Note
Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires.
-
Transmission Type
Cat planetary power shift -
Forward - 1
7.4 km/h -
Forward - 2
13.2 km/h -
Forward - 3
23.3 km/h -
Reverse - 1
8.15 km/h -
Reverse - 2
14.6 km/h -
Reverse - 3
25.7 km/h -
Direct Drive - Forward 1
Lock-up disabled -
Direct Drive - Forward 2
13.2 km/h -
Direct Drive - Forward 3
23.3 km/h -
Direct Drive - Reverse 1
8.15 km/h -
Direct Drive - Reverse 2
14.6 km/h -
Direct Drive - Reverse 3
25.7 km/h
-
Operating Weight - Standard
80974 kg
-
Bucket Capacity Range
8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³) -
Rated Payload - Standard
15.9 t -
Rated Payload - High Lift
15.9 t -
Cat Truck Match - Standard
773-775 -
Cat Truck Match - High Lift
775-777
-
Lift/Tilt System - Circuit
Positive flow control -
Lift/Tilt System
Variable displacement piston -
Relief Valve Setting - Lift/Tilt
33000 kPa -
Cylinders, Double Acting - Lift, Bore and Stroke
235 mm × 1287 mm (9.3 in × 50.7 in) -
Cylinders, Double Acting - Tilt, Bore and Stroke
292.1 mm × 820 mm (11.5 in × 32.3 in) -
Pilot System
Open loop and pressure reducing -
Pilot Relief Setting
3500 kPa
-
Maximum Flow at 1,800 rpm
910 L/min
-
Rack Back
4.3 s -
Dump
2.9 s -
Lower Float Down
3.7 s
-
Raise
8.6 s -
Lower
3.7 s
-
Total Hydraulic Cycle Time - Empty Bucket
13.8 s
-
Steering System - Circuit
Pilot, load sensing -
Steering System - Pump
Piston, variable displacement -
Maximum Flow at 1,400 rpm
364 L/min -
Relief Valve Setting - Steering
34500 kPa -
Total Steering Angle
70°
-
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 2.7 kg (5.9 lb) of refrigerant which has a CO2 equivalent of 3.861 metric tonnes (4.256 tons).
-
Front
Fixed -
Rear
Trunnion -
Oscillation Angle
8.5°
-
Brakes
ISO 3450: 2011
-
Fuel Tank
1064 l -
Cooling System
208 l -
Engine Crankcase
75.7 l -
Transmission
110 l -
Differential - Final Drives - Front
271 l -
Differential - Final Drives - Rear
261 l -
Hydraulic System Factory Fill
795 l -
Hydraulic Tank - Implement and Hydraulic Fan
261 l -
Hydraulic Tank - Steering and Braking
132 l
-
Operator Sound Pressure Level (ISO 6396:2008)
72 dB(A) -
Machine Sound Power Level (ISO 6395:2008)
116 dB(A) -
Operator Sound Pressure Level (ISO 6396:2008)*
*72 dB(A) -
Machine Sound Power Level (ISO 6395:2008)*
114 dB(A) -
Operator Sound Pressure Level (ISO 6396:2008)
72 dB(A) -
Machine Sound Power Level (ISO 6395:2008)
116 dB(A) -
Operator Sound Pressure Level (ISO 6396:2008)*
72 dB(A) -
Machine Sound Power Level (ISO 6395:2008)*
114 dB(A)
-
Ground to Top of ROPS
5240 mm -
Ground to Top of Exhaust Stacks
5049 mm -
Ground to Top of Hood
3862 mm -
Ground to Bumper Clearance
1079 mm -
Maximum Overall Length
13084 mm -
Ground to Lower Hitch Clearance
596 mm -
Clearance at Maximum Lift
4044 mm -
Rack Back Angle at Ground Level
40.4° -
Rack Back Angle at Carry
48.8° -
Rack Angle at Maximum Lift
63.7° -
Dump Angle at Maximum Lift
45° -
Ground to Top of ROPS
5240 mm -
Ground to Top of Exhaust Stacks
5049 mm -
Ground to Top of Hood
3862 mm -
Ground to Bumper Clearance
1079 mm -
Maximum Overall Length
13820 mm -
Ground to Lower Hitch Clearance
596 mm -
Clearance at Maximum Lift
4521 mm -
Rack Back Angle at Ground Level
39.9° -
Rack Back Angle at Carry
49.3° -
Rack Angle at Maximum Lift
60.6° -
Dump Angle at Maximum Lift
51°
-
Rear Axle - Centerline to Bumper
3795 mm -
Front Axle Centerline to Bucket Tip
4689 mm -
Ground to Center of Front Axle
1290 mm -
B-Pin Height - Maximum Lift
6009 mm -
Maximum Overall Height - Bucket Raised
8281 mm -
Reach - Maximum Lift
2194 mm -
Rear Axle - Centerline to Bumper
3795 mm -
Front Axle Centerline to Bucket Tip
5425 mm -
Ground to Center of Front Axle
1290 mm -
B-Pin Height - Maximum Lift
6470 mm -
Maximum Overall Height - Bucket Raised
8742 mm -
Reach - Maximum Lift
2583 mm
