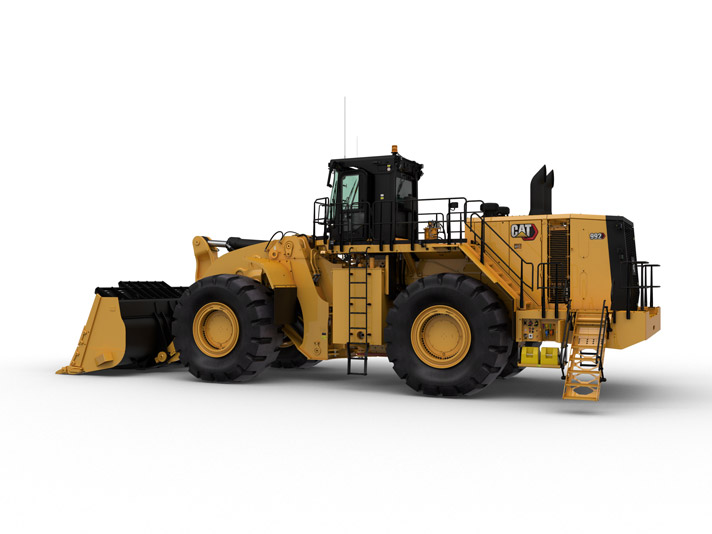

CAT® Wheel Loader 992 for Ultra-Class Surface Mining
Share
-
Net Power
607 kW -
Engine Model
Cat® C32B -
Emissions
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent -
Rated Speed
1750 rpm -
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC (Highly Regulated Country) - Standard
671 kW -
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC - High Ambient
699 kW -
Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC (Less Regulated Country) - Standard
676 kW -
Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC - High Ambient
704 kW -
Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - Standard
659 kW -
Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - High Ambient
687 kW -
Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - Standard
666 kW -
Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - High Ambient
694 kW -
Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - Standard
607 kW -
Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - High Ambient
607 kW -
Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - Standard
614 kW -
Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - High Ambient
614 kW -
Bore
145 mm -
Stroke
162 mm -
Displacement
32.1 l -
Peak Torque - SAE J1995 - Tier 4/HRC - Standard @ 1,200 rpm
4765 N·m -
Peak Torque - SAE J1995 - Tier 4/HRC - High Ambient @ 1,300 rpm
4820 N·m -
Peak Torque - SAE J1995 - Tier 2/LRC - Standard @ 1,200 rpm
4796 N·m -
Peak Torque - SAE J1995 - Tier 2/LRC - High Ambient @ 1,350 rpm
4841 N·m -
Wheel Base
5890 mm -
Wheel Base
5890 mm
-
Operating Weight
105882 kg
-
Rated Payload - Standard
23.1 t -
Rated Payload - Standard (Material Handler)
27.2 t -
Rated Payload - High Lift
20.4 t -
Rated Payload - High Lift (Material Handler)
24.5 t -
Bucket Capacity Range
11.5-24.5 m³ (15-32 yd³) -
Cat Truck Match - Standard
775/777/785 -
Cat Truck Match - High Lift
777/785
-
Bucket Capacities
11.5-24.5 m³ (15-32 yd³)
-
Transmission Type
Cat Planetary Powershift -
Forward - 1
7 km/h -
Forward - 2
11.9 km/h -
Forward - 3
20.5 km/h -
Direct Drive - Forward 1
Disabled -
Direct Drive - Forward 2
12.9 km/h -
Direct Drive - Forward 3
22.6 km/h -
Reverse - 1
7.5 km/h -
Reverse - 2
13 km/h -
Reverse - 3
22.4 km/h -
Direct Drive - Reverse 1
8 km/h -
Direct Drive - Reverse 2
14.2 km/h -
Direct Drive - Reverse 3
24.7 km/h
-
Lift/Tilt System - Circuit
Positive Flow Control -
Lift/Tilt System - Pump
Variable Displacement Piston -
Relief Valve Setting - Lift/Tilt
34500 kPa -
Lift Cylinder - Bore
235 mm -
Lift Cylinder - Stroke
1613 mm -
Tilt Cylinder - Bore
292 mm -
Tilt Cylinder - Stroke
1055 mm
-
Maximum Flow at 2,165 rpm
950 l/min
-
Rack Back
2.3 s -
Dump
2.6 s -
Total Hydraulic Cycle Time
17.1 s
-
Rack Back - High Lift
2.3 s -
Raise - High Lift
9 s -
Dump - High Lift
2.6 s -
Float Down - High Lift
3.2 s
-
Raise
9 s
-
Float Down
3.2 s
-
Fuel Tank
1460 l -
Cooling Systems
225 l -
Crankcase
120 l -
Transmission
195 l -
Differential - Final Drives - Front
365 l -
Differential - Final Drives - Rear
365 l -
Hydraulic System Factory Fill (Implement)
394 l -
Hydraulic Tank - Implement
228 l -
Hydraulic Factory Fill (Steering)
123 l -
Hydraulic Tank (Steering Tank Only)
99.5 l
-
Front
Fixed -
Rear
Trunnion -
Oscillation Angle
±9°
-
Brakes
ISO 3450:2011
-
Steering System - Circuit
Pilot, Load Sensing -
Steering System - Pump
Piston, Variable Displacement -
Maximum Flow at 1,400-1,850 rpm
265 l/min -
Total Steering Angle
80° -
Steering Cycle Times - Low Idle
4.9 s -
Steering Cycle Times - High Idle
3.1 s
-
Steering Cut Off Pressure
31000 kPa
-
Ambient Capability Hydraulically Driven Demand Fan - Standard
43 °C -
Ambient Capability, Hydraulically Driven Demand Fan - High
55 °C
-
Note
Machine Sound Level (ISO 6396:2008) - 116 dB(A) -
Note
Machine Sound Level (ISO 6396:2008) - 113 dB(A)
-
Ground to Top of Exhaust Stacks
5169 mm -
Ground to Top of ROPS
5571 mm -
Ground to Top of Hood
3983 mm -
Ground to Bumper Clearance
1145 mm -
Ground to Lower Hitch Clearance
666 mm -
Clearance at Maximum Lift
4630 mm -
Maximum Overall Length
15489 mm -
Ground to Top of Exhaust Stacks
5169 mm -
Ground to Top of ROPS
5571 mm -
Ground to Top of Hood
3983 mm -
Ground to Bumper Clearance
1145 mm -
Ground to Lower Hitch Clearance
666 mm -
Clearance at Maximum Lift
5256 mm -
Maximum Overall Length
15733 mm
-
Ground to Center of Front Axle
1308 mm -
Reach - Maximum Lift
2503 mm -
B-Pin Height - Maximum Lift
6948 mm -
Maximum Overall Height - Bucket Raised
9390 mm -
Rear Axle - Centerline to Bumper
4119 mm -
Front Axle Centerline to Bucket Tip
5480 mm -
Ground to Center of Front Axle
1308 mm -
Reach - Maximum Lift
2319 mm -
B-Pin Height - Maximum Lift
7465 mm -
Maximum Overall Height - Bucket Raised
9759 mm -
Rear Axle - Centerline to Bumper
4119 mm -
Front Axle Centerline to Bucket Tip
5724 mm
