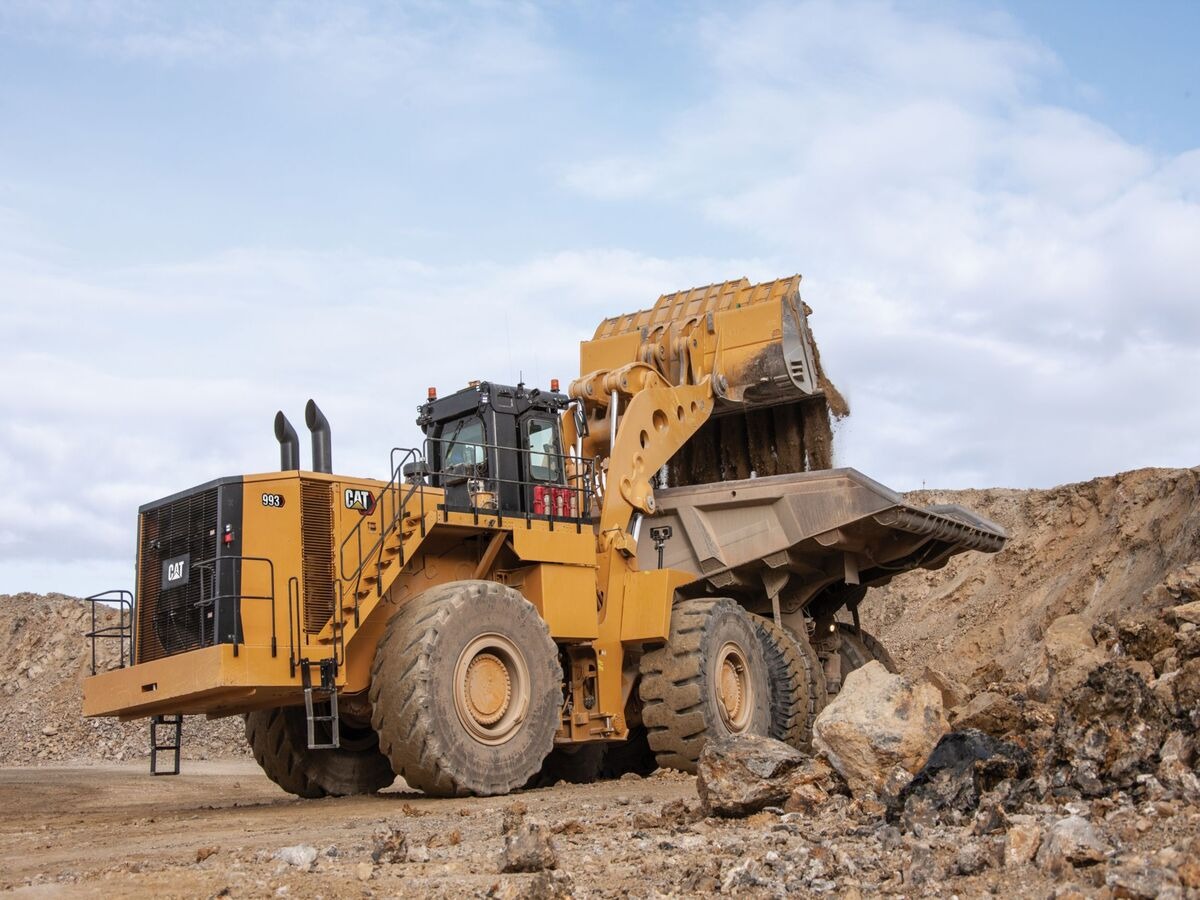

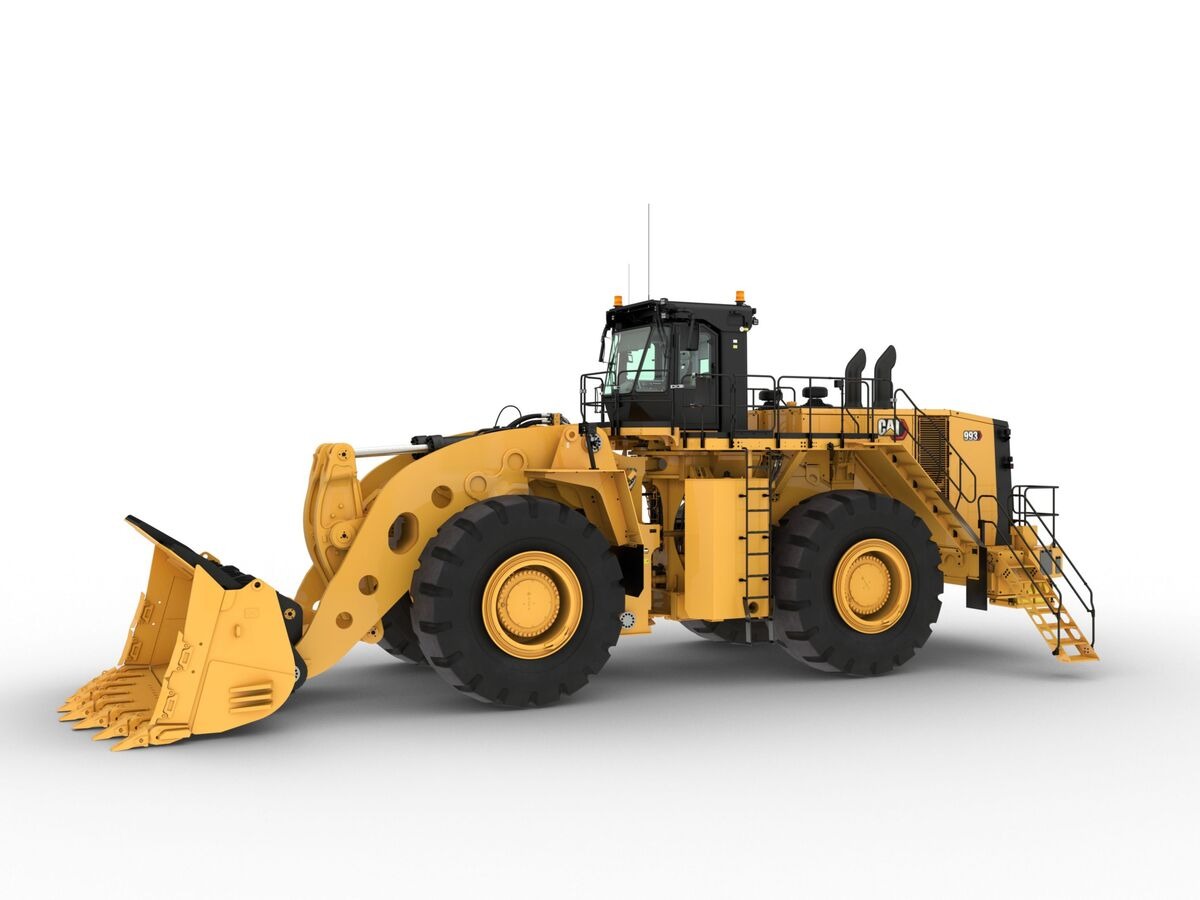

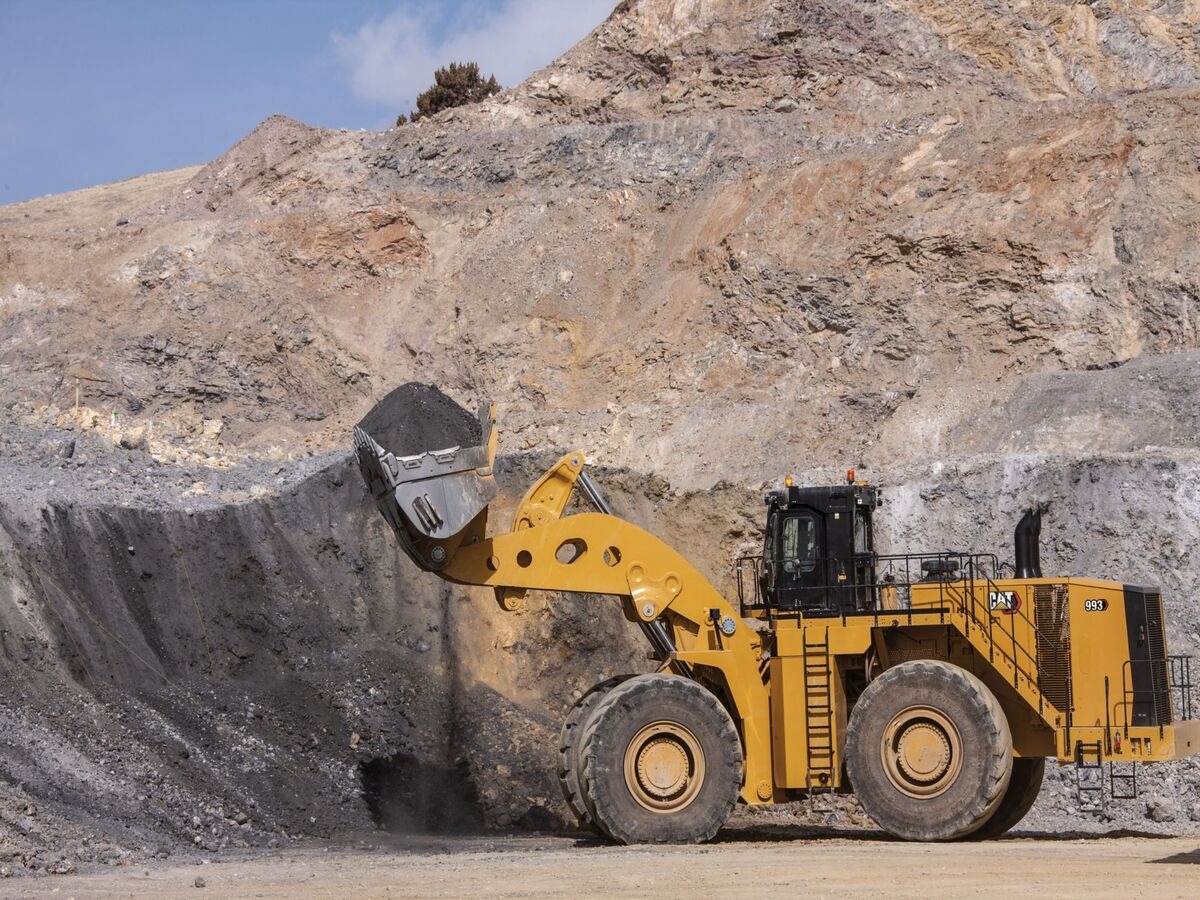

993 Wheel Loader
Like all Cat® wheel loaders, the 993 is designed with durability built in, ensuring maximum availability through multiple lifecycles. With optimized performance, the 993 allows you to more efficiently move material. Introduced in 2008, the success of the 993 is a testament to its heritage. Infused with Cat DNA, the roots of performance, durability, comfort and efficiency run deep.
Share
Overview
Like all Cat® wheel loaders, the 993 is designed with durability built in, ensuring maximum availability through multiple lifecycles. With optimized performance, the 993 allows you to more efficiently move material. Introduced in 2008, the success of the 993 is a testament to its heritage. Infused with Cat DNA, the roots of performance, durability, comfort and efficiency run deep.
-
Engine Model
Cat C32B -
Bore
145 mm -
Displacement
32.1 l -
Emissions
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent -
Gross Power - SAE J1995
775 kW -
Net Power - EEC 80/1269
726 kW -
Net Power - ISO 14396
764 kW -
Net Power - ISO 9249
726 kW -
Net Power - SAE J1349
719 kW -
Rated Speed
1800 r/min -
Stroke
162 mm -
Torque Rise
33% -
Bore
145 mm -
Displacement
32.1 l -
Emissions
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent -
Engine Model
Cat C32B -
Gross Power - SAE J1995
767 kW -
Net Power - EEC 80/1269
716 kW -
Net Power - ISO 14396
757 kW -
Net Power - ISO 9249
716 kW -
Net Power - SAE J1349
710 kW -
Rated Speed
1800 r/min -
Stroke
162 mm -
Torque Rise
33%
-
Peak Torque - 1,250 rpm
5470 N·m -
Peak Torque - 1,250 rpm
5470 N·m
-
Note
Standard ambient cooling. -
Note
Standard ambient cooling. -
Note
*High lift, 50/65-51 (364-6315) tires, standard cooling, 13.8 m3 (18 yd3 ) bucket (496-9912). -
Note
50/65-51 (364-6315) calculated speeds. -
Note
High Lift configuration. -
Note
High Lift configuration, calculated speeds.
-
Operating Weight - Tier 4 Final*
133668 kg -
Bucket Range
12.2-23.7 m3 (16.0-31.0 yd3) -
Cat Truck Match - Standard Lift
777 -
Cat Truck Match - High Lift
777, 785 -
Operating Weight - Tier 2 Equivalent*
133668 kg -
Rated Payload - High Lift
24.9 t -
Rated Payload - Standard Lift
27.2 t
-
Articulation Angle
43 °
-
Transmission Type
Cat Planetary Power Shift -
Forward - 1
6.8 km/h -
Forward - 2
11.9 km/h -
Forward - 3
20.5 km/h -
Reverse - 1
7.5 km/h -
Reverse - 2
13.1 km/h -
Reverse - 3
22.5 km/h -
Direct Drive - Forward 1
Lock-up disabled -
Direct Drive - Forward 2
13 km/h -
Direct Drive - Forward 3
22.8 km/h -
Direct Drive - Reverse 1
8 km/h -
Direct Drive - Reverse 2
14.2 km/h -
Direct Drive - Reverse 3
25.2 km/h
-
Cylinders - Lift/Tilt
Double-acting -
Lift Cylinder - Bore
267 mm -
Lift Cylinder - Stroke
1682 mm -
Lift/Tilt System - Circuit
Positive Flow Control -
Lift/Tilt System - Pump
Variable Piston -
Relief Valve Setting - Lift/Tilt
29500 kPa -
Tilt Cylinder - Bore
235 mm -
Tilt Cylinder - Stroke
1040 mm
-
Maximum Flow at 1,650 rpm
1180 L/min
-
Dump
1.8 s -
Lower Float Down
3.1 s -
Rack Back
2.4 s -
Total Hydraulic Cycle Time
17.2 s
-
Lower
3.8 s -
Raise
9.2 s
