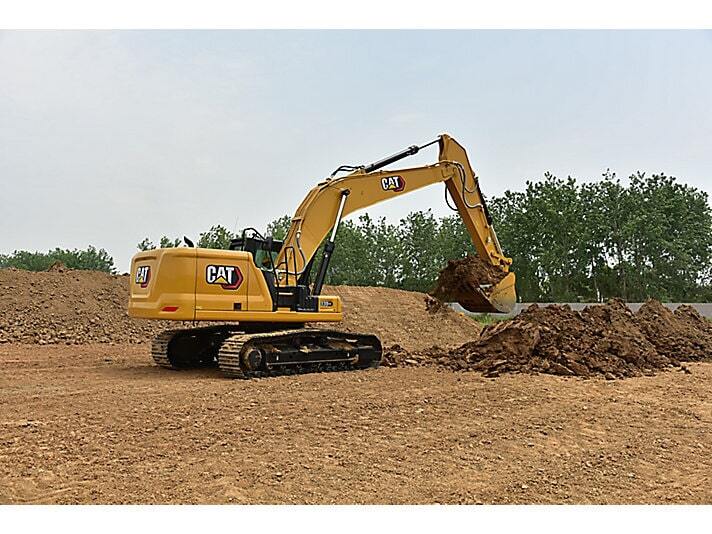

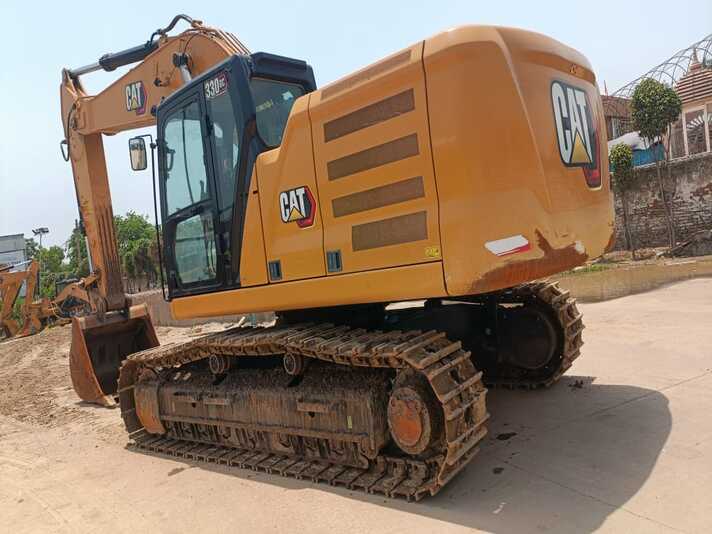

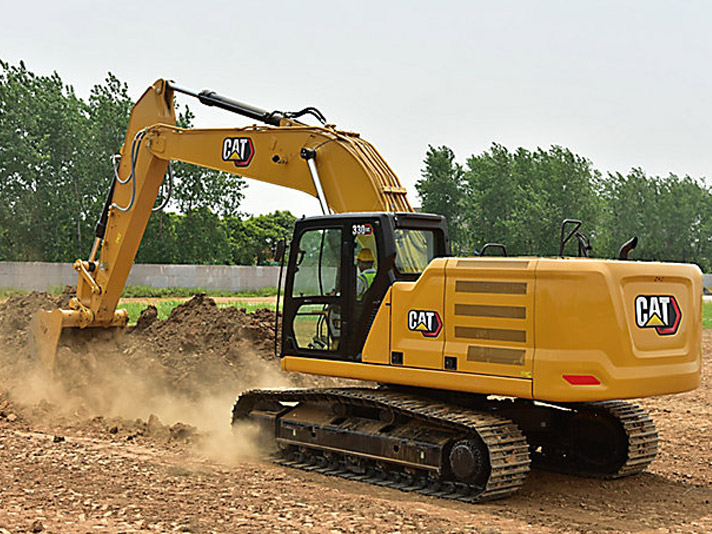

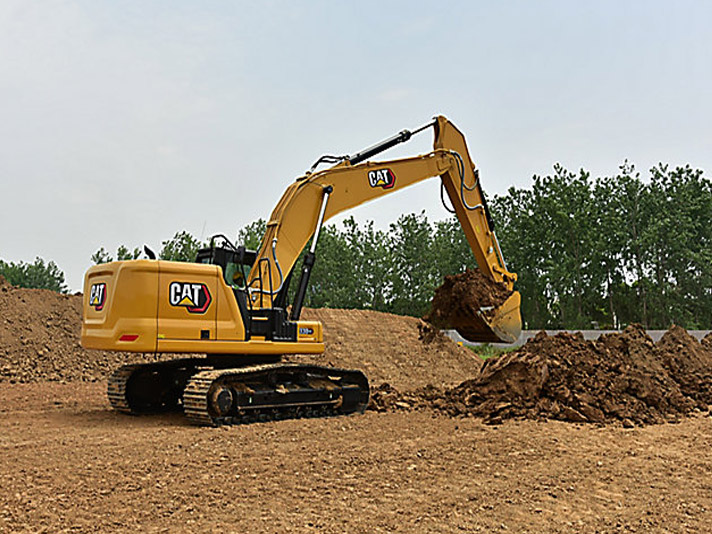

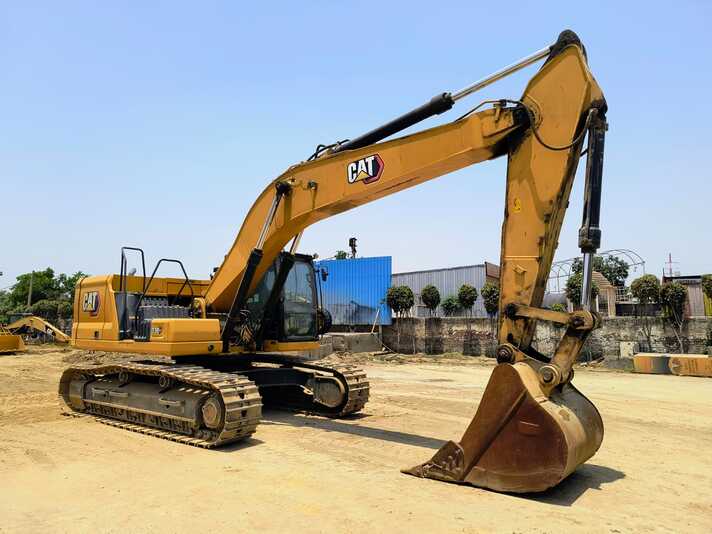

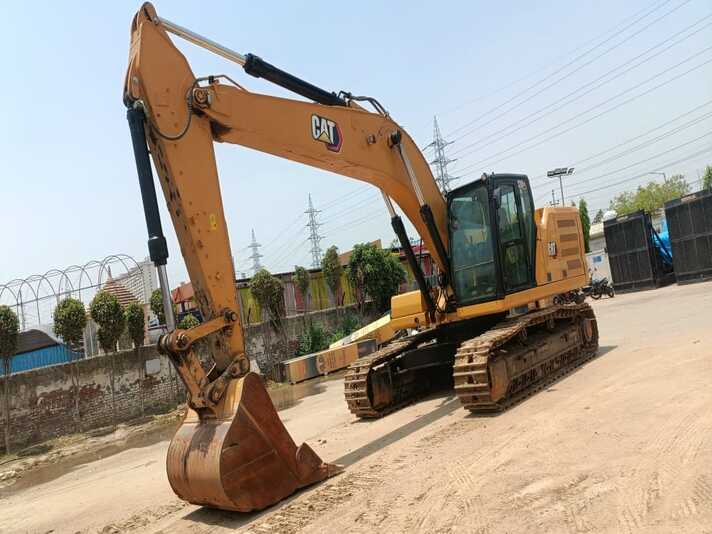

CAT® Hydraulic Excavator 330 GC

The Cat® 330 GC offers you the ideal balance of dependable performance, operator productivity features, and reduced costs. The Cat 330 GC is a smart choice for operations where high reliability and low-cost-per-hour performance are priorities.

Up To 12% less Fuel Consumption
The precise combination of larger hydraulic pumps, an electronic main control valve, and electronically controlled cooling fans delivers top performance while burning less fuel.

Cab Design for Safety
The ISO-certified ROPS cab is sound-suppressed, and the large windows provide all around visibility for a safer, quieter work environment.

Up To 25% Lower Maintenance Costs
With extended and more synchronized maintenance intervals, you get more done at a lower cost compared to the previous model. Low Operation Cost

Overview

The Cat® 330 GC offers you the ideal balance of dependable performance, operator productivity features, and reduced costs. The Cat 330 GC is a smart choice for operations where high reliability and low-cost-per-hour performance are priorities.

  • Net Power - ISO 9249
    157.8 kW
  • Engine Model
    Cat C7.1
  • Engine Power - ISO 14396
    159 kW
  • Bore
    105 mm
  • Stroke
    135 mm
  • Displacement
    Stroke
  • Ground Clearance
    490 mm

  • Main System - Maximum Flow
    560 l/min (148 gal/min)
  • Maximum Pressure - Equipment
    35000 kPa
  • Maximum Pressure - Travel
    35000 kPa
  • Maximum Pressure - Swing
    28400 kPa

  • Swing Speed
    11.5 r/min

  • Maximum Swing Torque
    82 kN·m

  • Operating Weight
    28400 kg

  • Fuel Tank Capacity
    474 l
  • Cooling System
    25 l
  • Engine Oil
    25 l
  • Swing Drive - Each
    10 l
  • Final Drive - Each
    5.5 l
  • Hydraulic System - Including Tank
    310 l
  • Hydraulic Tank
    147 l
  • Shipping Length
    10420 mm
  • Tail Swing Radius
    3130 mm
  • Counterweight Clearance
    1110 mm
  • Track Length
    4360 mm
  • Length to Center of Rollers
    3490 mm
  • Maximum Reach at Ground Level
    10690 mm
  • Maximum Cutting Height
    9980 mm
  • Maximum Loading Height
    6930 mm
  • Minimum Loading Height
    2280 mm
  • Maximum Vertical Wall Digging Depth
    5800 mm

  • Boom
    Reach 6.15 m (20.2 ft)
  • Stick
    Reach 3.2 m (10.5 ft)
  • Bucket
    HD 1.60 m³ (2.09 yd³)
  • Shipping Height - Top of Cab
    3050 mm
  • Handrail Height
    3050 mm
  • Transport Width
    3190 mm
  • Boom
    Reach 6.15 m (20.2 ft)
  • Stick
    Reach 3.2 m (10.5 ft)
  • Bucket
    HD 1.60 m³ (2.09 yd³)

  • Track Gauge
    2390 mm

  • Maximum Digging Depth
    7260 mm

  • Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
    7100 mm
  • Bucket Digging Force - ISO
    179 kN
  • Stick Digging Force - ISO
    126 kN
