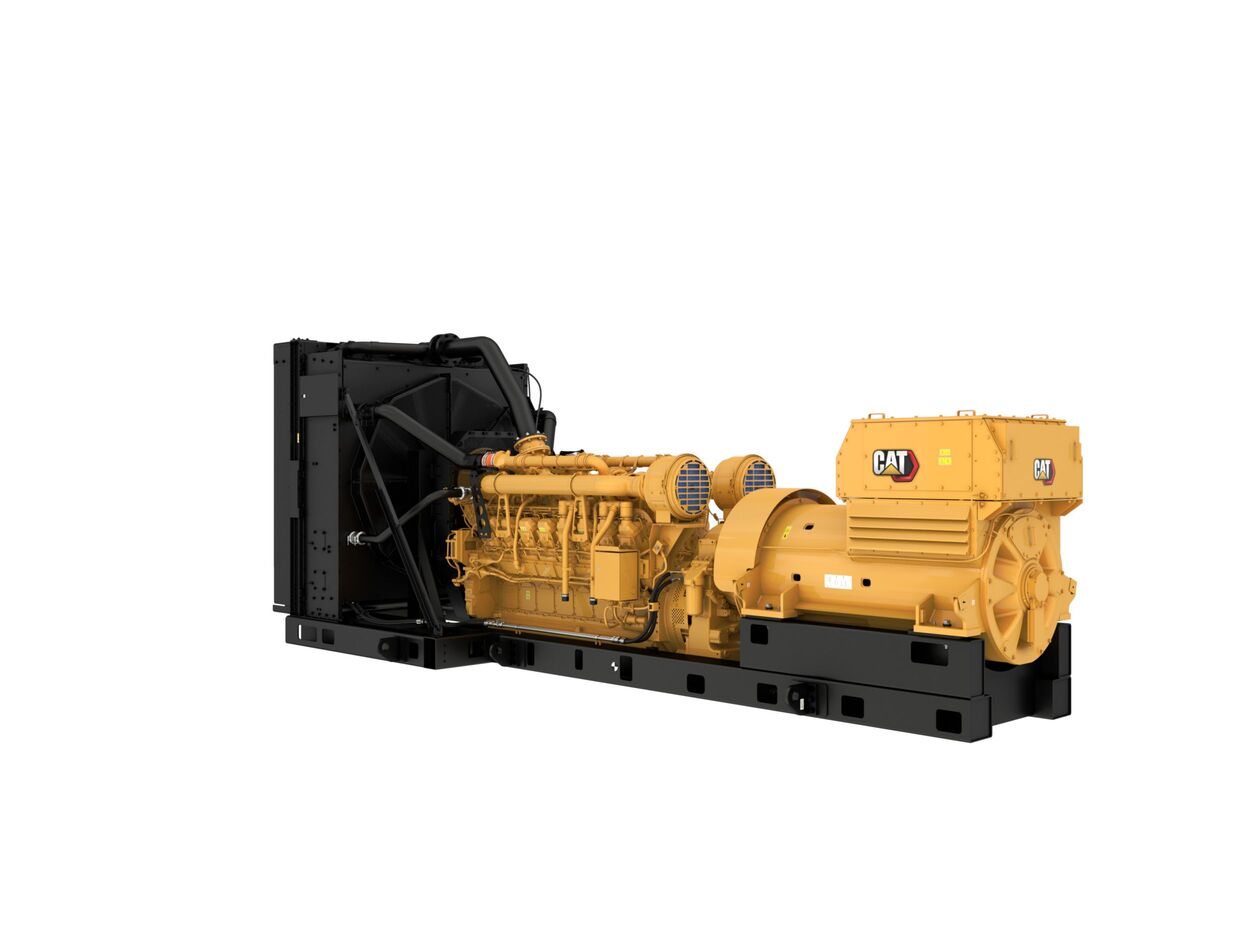

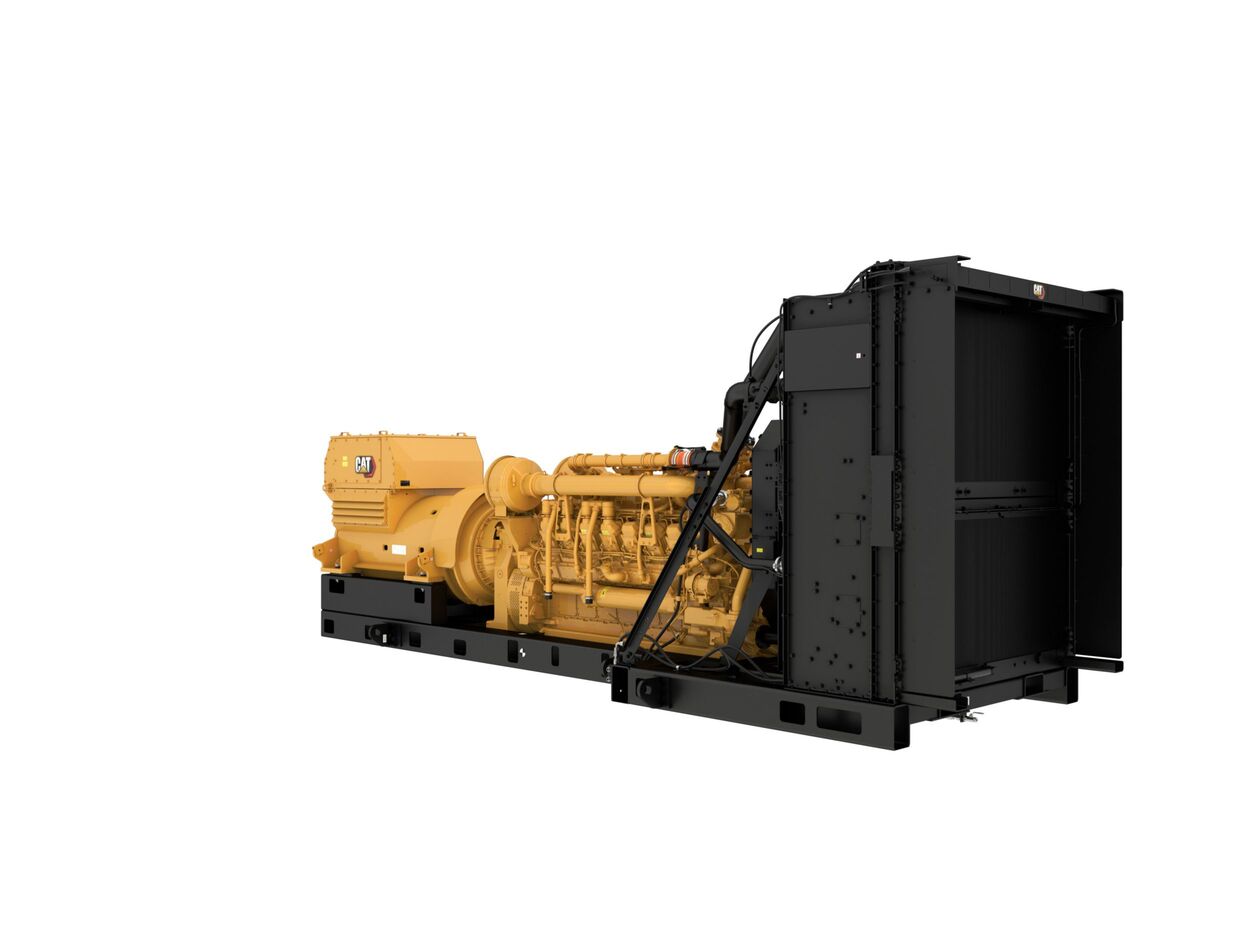

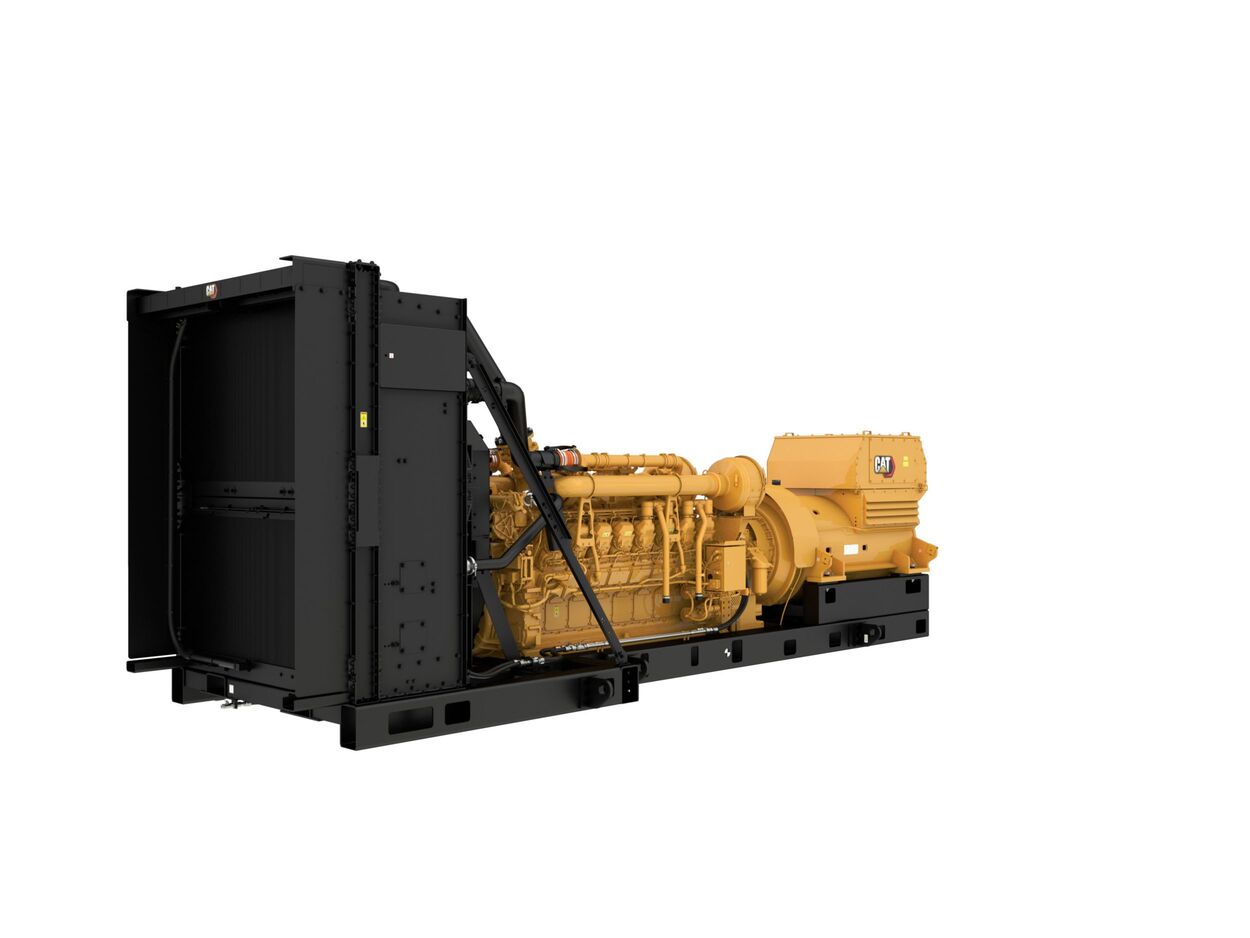

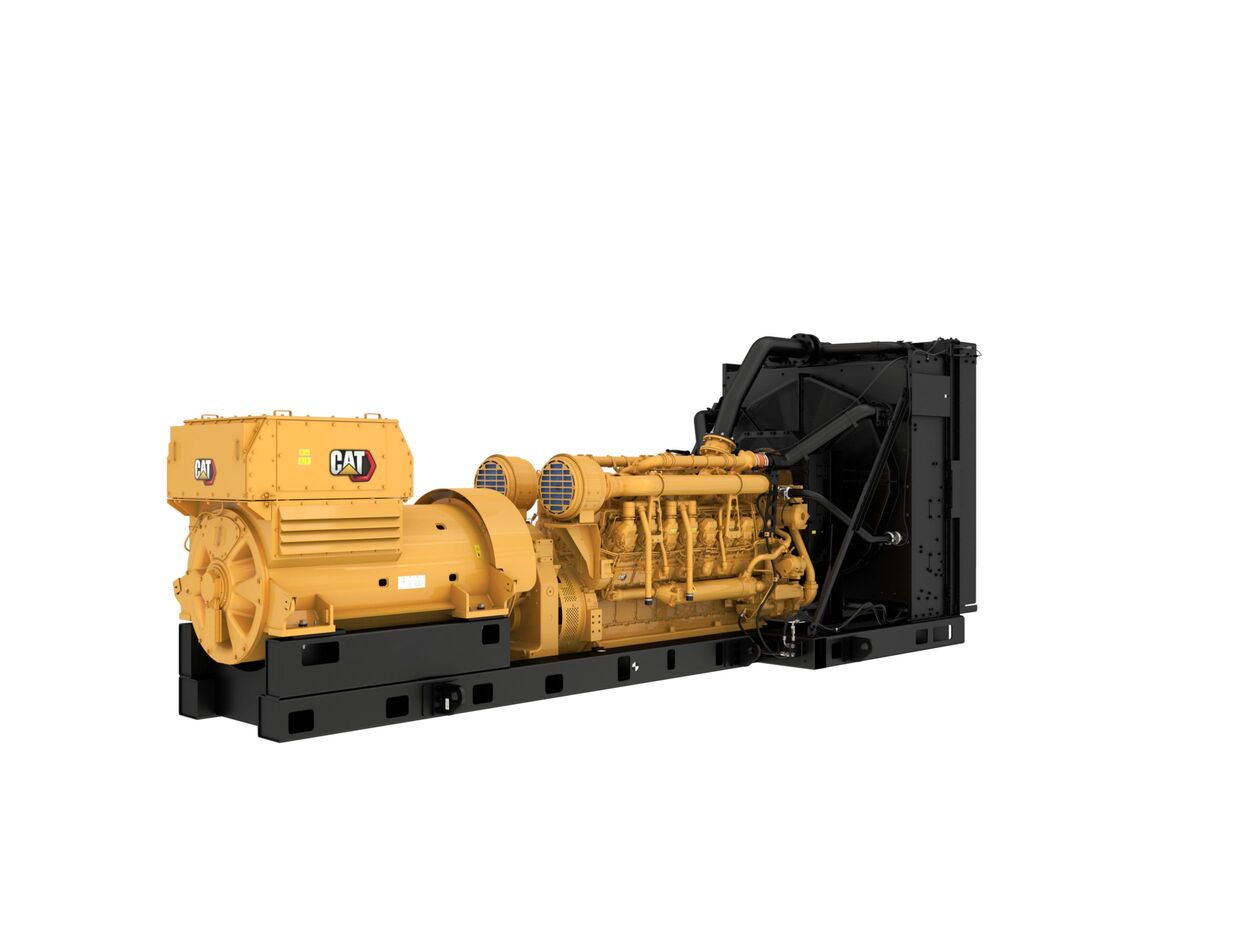

CAT® 3500 kVA Diesel Generator – 3516E GB
The 3516E diesel generator sets have been developed to meet your standby and mission critical applications and match your power standards. Producing reliable power (3000 – 3500 kVA at 50 Hz), each generator set has been designed to meet ISO 8528-5 transient response requirements, accept 100 % rated load in one step and accept >50% block road recovering within G2 limits. The generator is certified Tier 2 Equivalent, US EPA Stationary Emergency / Low NOx (1/2 TA Luft). The generator set offers a low fuel consumption system/ Low Emission version.
Benefits
- Over 4,000,000,000 Accumulated Operating Hours
- Proven performance in heavy-duty applications
- Weighs up to 19% less
- Reduced amount of structural support required
- Full Power up to 50°C Ambient
- Provides full power even on hottest days of the year
Share
Overview
The 3516E diesel generator sets have been developed to meet your standby and mission critical applications and match your power standards. Producing reliable power (3000 – 3500 kVA at 50 Hz), each generator set has been designed to meet ISO 8528-5 transient response requirements, accept 100 % rated load in one step and accept >50% block road recovering within G2 limits. The generator is certified Tier 2 Equivalent, US EPA Stationary Emergency / Low NOx (1/2 TA Luft). The generator set offers a low fuel consumption system/ Low Emission version.
-
Minimum Rating
3000 kVA -
Maximum Rating
3500 kVA -
Frequency
50 Hz -
Speed
1800 rpm -
Emissions / Fuel Strategy
Tier 2 Equivalent - 1800 rpm -
Voltage
380 to 11000 volts -
Duty Cycle
Standby, Mission Critical
-
Compression Ratio
14.7:1 -
Fuel System
Electronic Unit Injection -
Air Inlet
Air cleaner; single element canister type -
Aspiration
ATAAC -
Bore
170 mm -
Displacement
78.1 I -
Stroke
215 mm -
Engine Model
3516E, V-16, 4-Stroke Water-Cooled Diesel
-
Length
8513 mm -
Width
2460 mm -
Height
3342 mm -
Dry Weight - Genset
21600 kg(min), 23000 kg(max)
