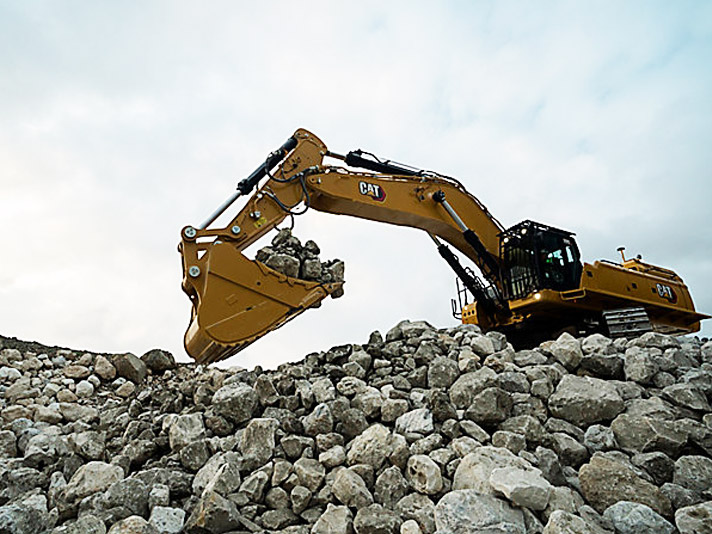

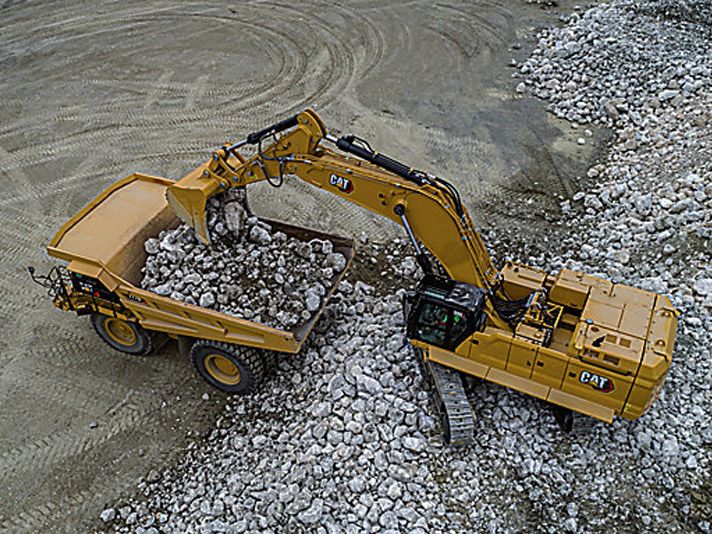

CAT® Hydraulic Excavator 395
More production and durability with less maintenance are what the 395 Next Generation Excavator will bring to your business.
Share
Overview
More production and durability with less maintenance are what the 395 Next Generation Excavator will bring to your business.
-
Net Power - ISO 9249
404 kW -
Engine Model
Cat C18 -
Engine Power - ISO 14396
405 kW -
Bore
145 mm -
Stroke
183 mm -
Displacement
18.1 l -
Swing Drive
24 l -
Ground Clearance
830 mm
-
Main System - Maximum Flow - Implement
1064 l/min -
Maximum Pressure - Equipment
37000 kPa -
Maximum Pressure - Equipment - Lift Mode
38000 kPa -
Maximum Pressure - Travel
35000 kPa -
Maximum Pressure - Swing
31000 kPa
-
Swing Speed
6.3 r/min
-
Maximum Swing Torque
362 kN·m
-
Operating Weight
94100 kg
-
Fuel Tank Capacity
1220 gal ( -
Cooling System
71 l -
Engine Oil
67 l -
Final Drive - Each
20 l -
Hydraulic System - Including Tank
740 l -
Hydraulic Tank
372 l -
Shipping Length
13980 mm -
Tail Swing Radius
4840 mm -
Counterweight Clearance
1640 mm -
Track Length
20.1 ft -
Maximum Reach at Ground Level
12260 mm -
Maximum Cutting Height
12370 mm -
Maximum Loading Height
7960 mm -
Minimum Loading Height
3660 mm -
Maximum Vertical Wall Digging Depth
4580 mm
-
Boom
Mass 7.25 m (23'9") -
Stick
Mass 2.92 m (9'7") -
Bucket
SDV 6.5 m3 (8.5 yd3) -
Shipping Height - Top of Cab
3670 mm -
Handrail Height
3750 mm -
Track Length to Center of Rollers
5120 mm -
Transport Width
3690 mm -
Boom
Mass 7.25 m (23'9") -
Stick
Mass 2.92 m (9'7") -
Bucket
SDV 6.5 m3 (8.5 yd3)
-
Track Gauge
3510 mm
-
Note
Track gauge undercarriage extended with 650 mm (26") shoes; transport width undercarriage retracted with 650 mm (26") shoes and no steps
-
Maximum Digging Depth
7190 mm
-
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
7050 mm -
Bucket Digging Force - ISO
497 kN -
Stick Digging Force - ISO
394 kN
