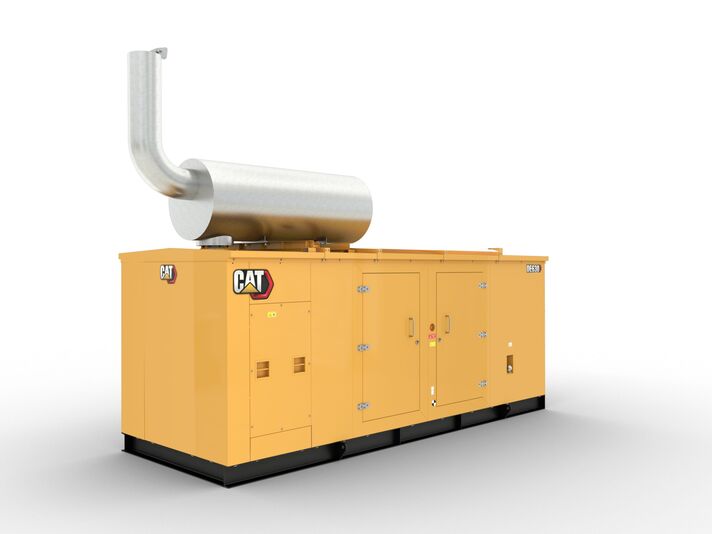

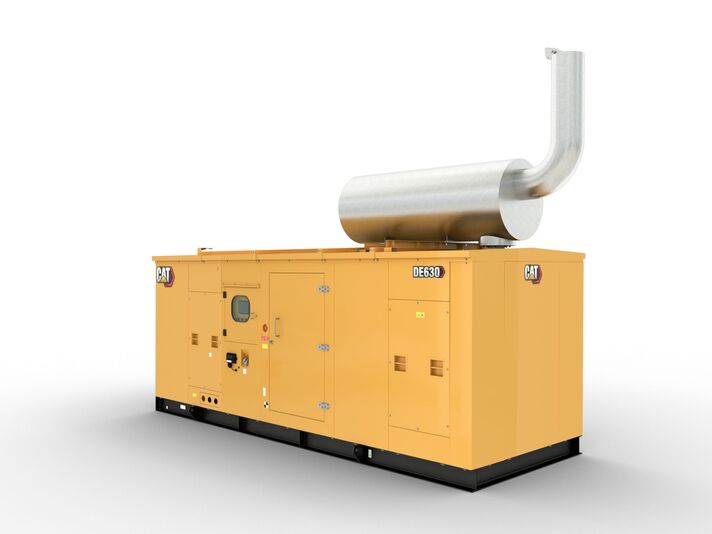

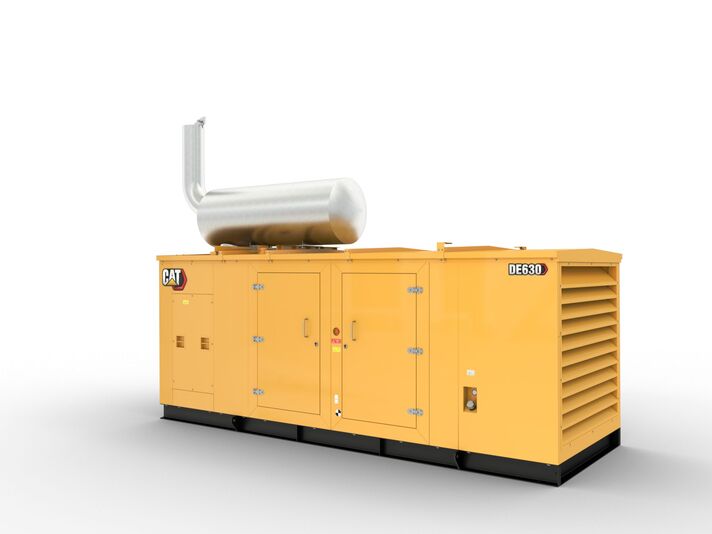

CAT 630 kVA Diesel Generator C18
The C18 diesel generator sets have been developed for your prime applications. Producing reliable power from 630 to 630 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The gensets are certified for latest India CPCB emission standards CPCB IV+ Emissions / Fuel Strategy
Benefits:
- Designed Specifically for India Regulations
- Remote Connectivity 24/7/365 Monitoring
- Cat Connect option ensures your generator set is always ready to start and perform as expected
- Integrated Cat® Product Link™ Control System
- Track Genset Health and Operation Parameters
- Genset Utilization and Performance Tracking
Share
Overview
The C18 diesel generator sets have been developed for your prime applications. Producing reliable power from 630 to 630 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The gensets are certified for latest India CPCB emission standards CPCB IV+ Emissions / Fuel Strategy .
-
Minimum Rating
630 kVA -
Maximum Rating
630 kVA -
Frequency
50 Hz -
Emissions / Fuel Strategy
India CPCB/MoEF -
Voltage
415 Volts -
Duty Cycle
Prime
-
Compression Ratio
18:1 -
Governor Type
Adem TM 6 -
Fuel System
MEUI -
Air Inlet
Heavy duty air cleane -
Aspiration
Air to Air Aftercooled -
Bore
145mm -
Displacement
18.1l -
Stroke
183 mm -
Engine Model
C18 ATAAC, 1-6,4 Stroke Diesel
