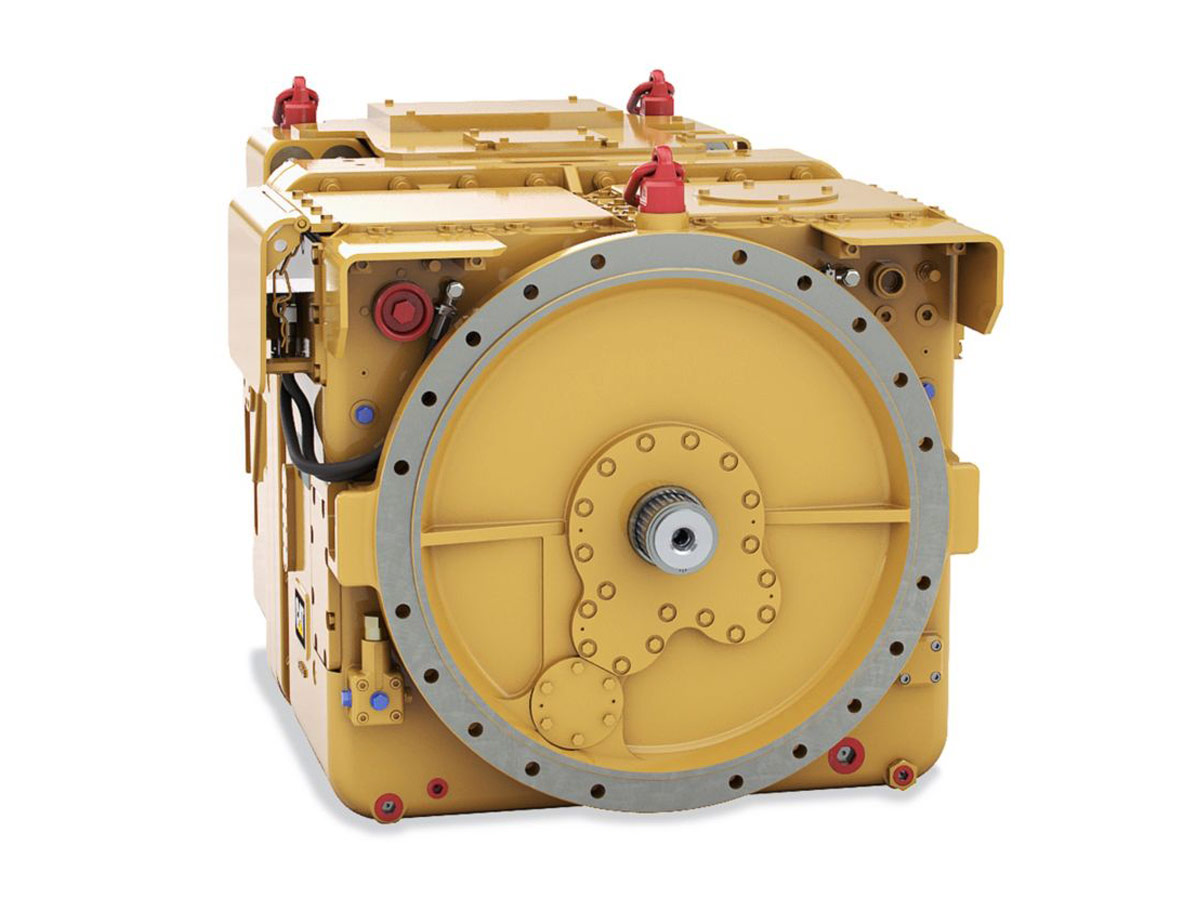

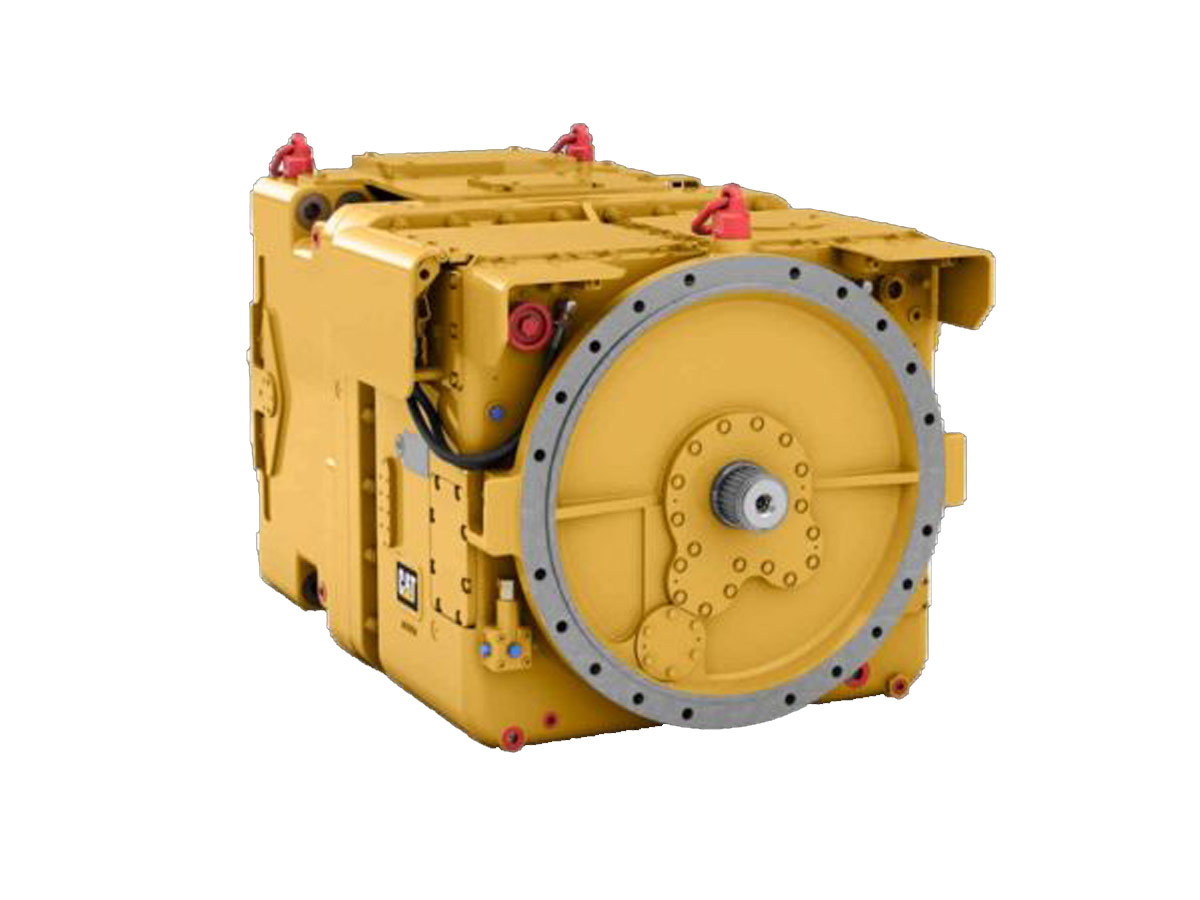

CAT® CST30 CST Drive System (Gearbox)
Cat® Controlled Start Transmission (CST) drive systems optimize the use of power for maximum production capacities. Ever more powerful systems require ever more horsepower, heavier chains and faster conveyor speed with maximum availability. What was needed was a truly intelligent drive system for face conveyors, which led our engineers to develop the Controlled Start Transmission (CST) drive system meeting the following requirements: • Currently available power up to 1200 kW (1,950 hp) per transmission unit • Safe startup of the face conveyor • Full utilization of the installed power • Highly durable components • Compact dimensions • High level of efficiency
Share
Overview
Cat® Controlled Start Transmission (CST) drive systems optimize the use of power for maximum production capacities. Ever more powerful systems require ever more horsepower, heavier chains and faster conveyor speed with maximum availability. What was needed was a truly intelligent drive system for face conveyors, which led our engineers to develop the Controlled Start Transmission (CST) drive system meeting the following requirements: • Currently available power up to 1200 kW (1,950 hp) per transmission unit • Safe startup of the face conveyor • Full utilization of the installed power • Highly durable components • Compact dimensions • High level of efficiency
-
Maximum Output Torque for a Short Duration (3 sec.)
300000.0 N·m -
Maximum Input Speed (motor speed)
1,500 rpm @ 50 Hz (1,800 rpm @ 60 Hz) -
Weight (without oil) - In-line Drive System
3900.0 kg
-
Input Shaft (cylindrical)
DIN 5480-W 100×4×30×24 -
Output Shaft with Internal Toothing
DIN 5480-N 220×10×30×20
-
Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K) -
Required Cooling Water
20.0 L/min
-
KP-30 CST - Height
900.0 mm -
KP-30 CST - Length
2280.0 mm -
KP-30 CST - Width
1180.0 mm -
P-30 CST - Height
900.0 mm -
P-30 CST - Length
1400.0 mm -
P-30 CST - Width
960.0 mm
-
Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC)
-
KP-30/P-30 CST
300000.0 N·m -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16
500 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21
500 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 24.4
500 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28
500 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33
500 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
435 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50
400 kW -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16
816 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21
816 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 24.4
816 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28
816 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33
816 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
710 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50
653 hp
-
KP-30 CST - Gearbox Weight (without oil)
5800.0 kg -
KP-30 CST - Oil Quantity
500.0 L -
P-30 CST - Gearbox Weight (without oil)
3900.0 kg -
P-30 CST - Oil Quantity
250.0 L
