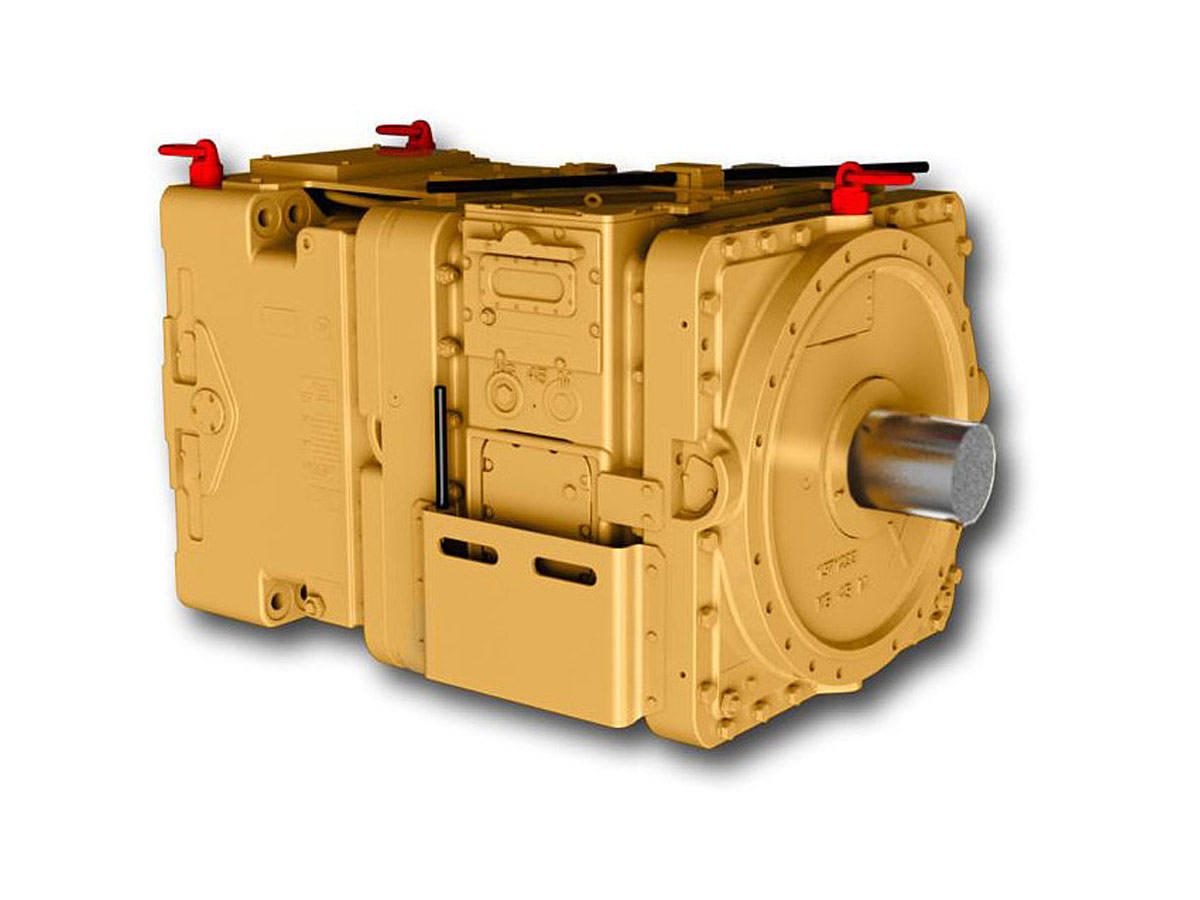

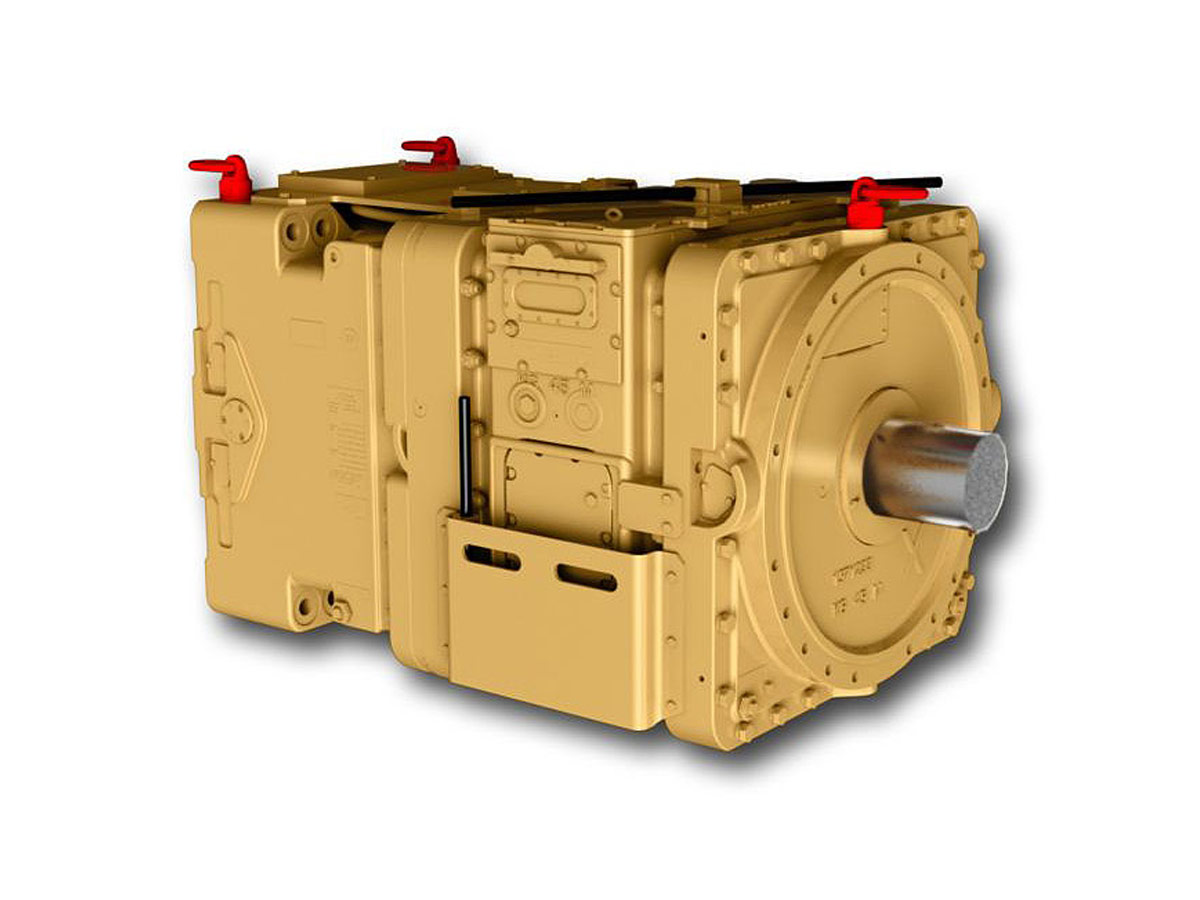

CAT® CST45 M CST Drive System (Gearbox)
Share
-
Maximum Output Torque for a Short Duration (3 sec.)
450000.0 N·m -
Maximum Input Speed (motor speed)
1,782 rpm -
Weight (without oil) - In-line Drive System
7200.0 kg
-
Input Shaft (cylindrical)
DIN 5480-W 120×4 -
Output Shaft with Internal Toothing
DIN 5480-N 260×10×30×24
-
Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K) -
Required Cooling Water Quantity
30.0 L/min
-
Height
1060.0 mm
-
Length
1697.0 mm
-
Width
1120.0 mm
-
Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC) and Plow Systems
-
P-45 M CST
450000.0 N·m -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16
800 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21
800 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28
800 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33
800 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
700 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45
540 kW -
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50
500 kW -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16
1,305 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21
1,305 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28
1,305 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33
1,305 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
1,142 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45
881 hp -
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50
816 hp
-
Gearbox Weight (without oil)
7200.0 kg -
Oil Quantity
320.0 L
