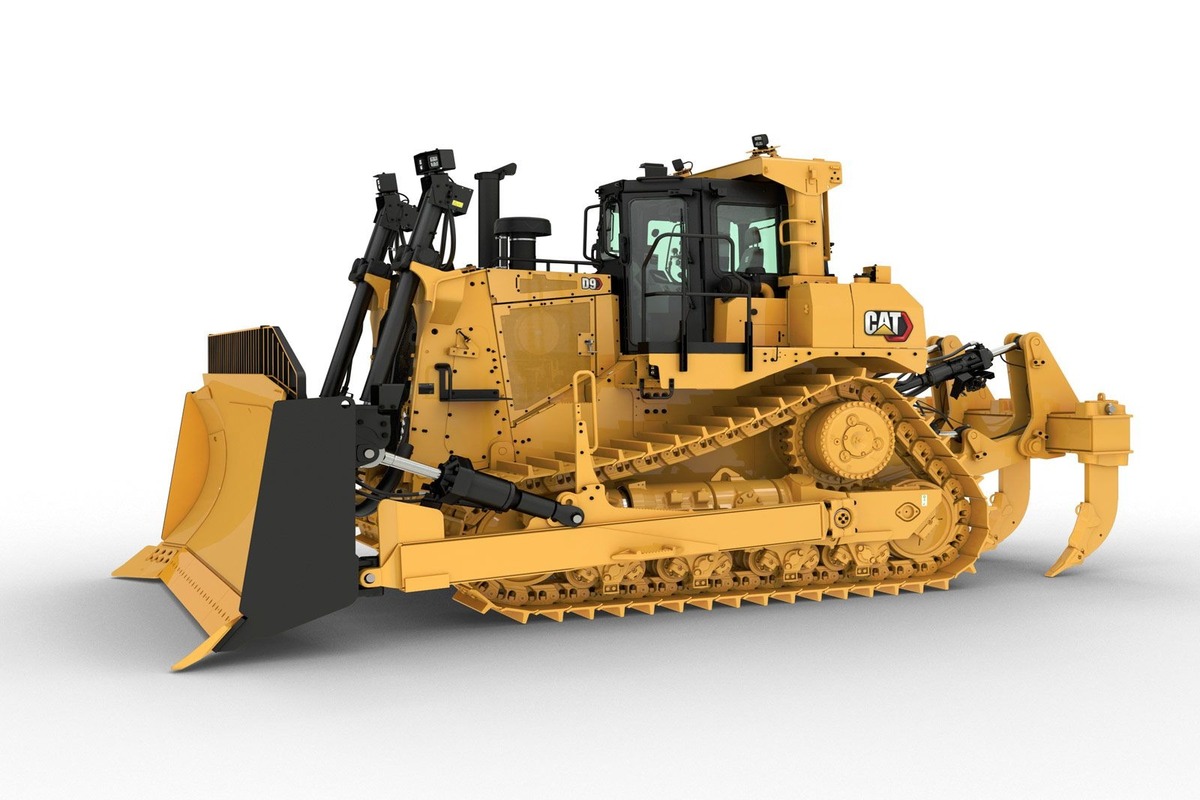

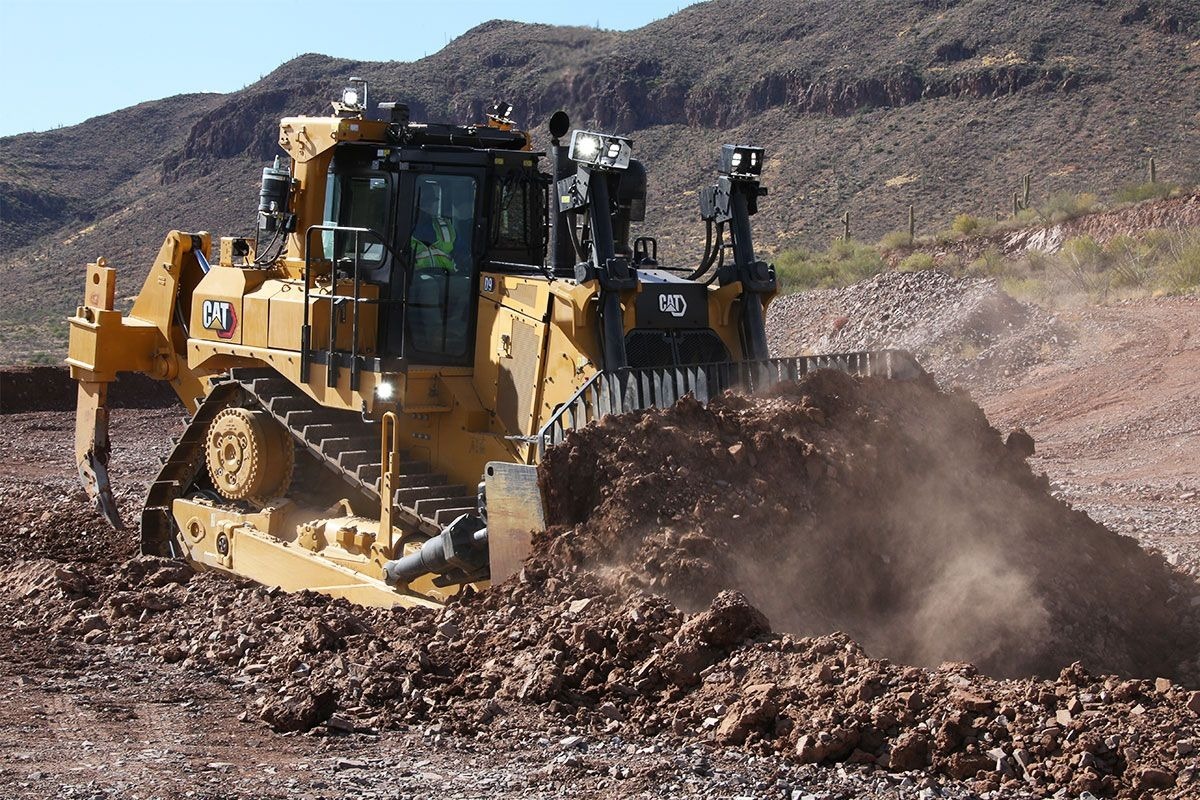

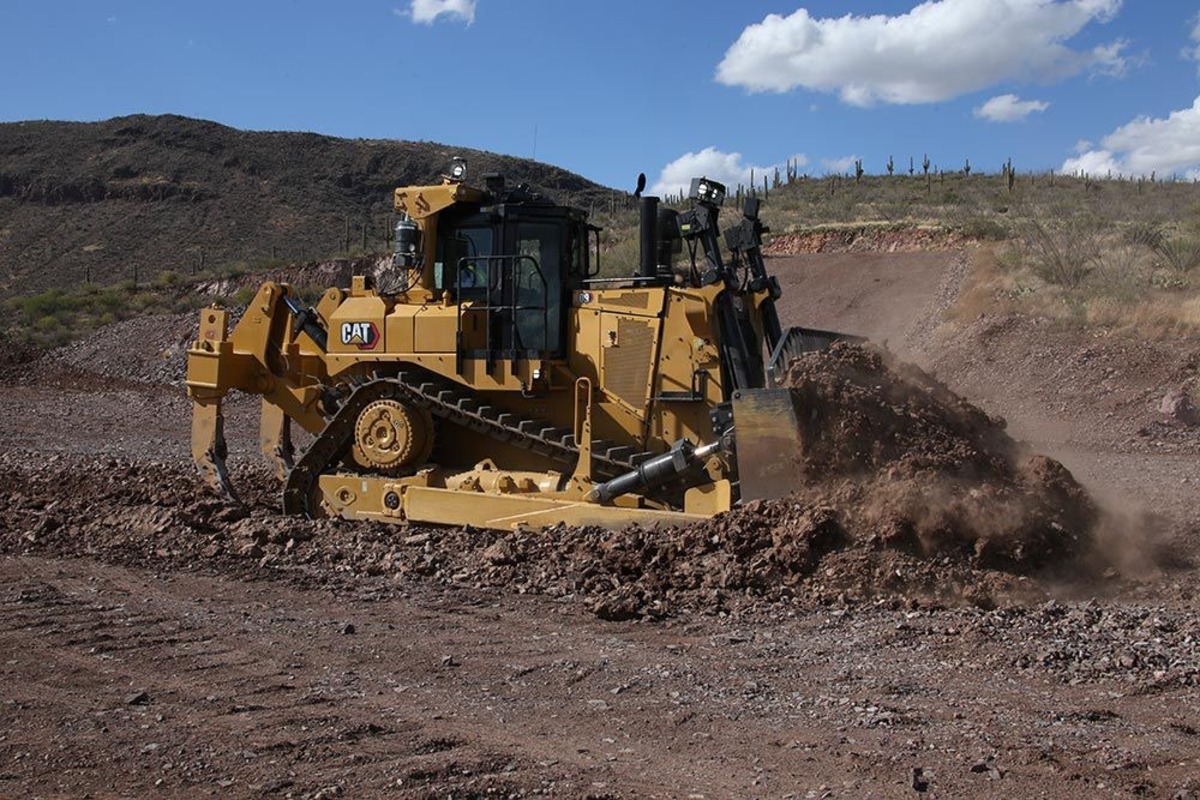

D9 Dozer
The Cat® D9 Dozer is a versatile machine designed to be used in a variety of applications, such as ripping overburden, production dozing, stockpiling, winching, site maintenance, fleet support and reclamation. It can be equipped with a number of blade options to meet site-specific needs. A highly reliable and fully integrated Cat machine, the D9’s components work together to ensure top performance, high availability and long life. Features like the new stator clutch torque converter boost efficiency and reduce fuel usage, and a number of onboard technology solutions further increase efficiency and performance. These improvements — and more — make the D9 a dozer that delivers a lower overall cost per unit of material moved.
Share
Overview
The Cat® D9 Dozer is a versatile machine designed to be used in a variety of applications, such as ripping overburden, production dozing, stockpiling, winching, site maintenance, fleet support and reclamation. It can be equipped with a number of blade options to meet site-specific needs. A highly reliable and fully integrated Cat machine, the D9’s components work together to ensure top performance, high availability and long life. Features like the new stator clutch torque converter boost efficiency and reduce fuel usage, and a number of onboard technology solutions further increase efficiency and performance. These improvements — and more — make the D9 a dozer that delivers a lower overall cost per unit of material moved.
-
Engine Model
Cat® C18 -
Bore
145 mm -
Stroke
183 mm -
Displacement
18.1 l -
Engine Power - ISO 14396
357 kW -
Emissions Rating
Fuel Optimized -
Emissions
U.S. EPA Tier 2 or Tier 3 equivalent -
Stroke
220 mm -
Note (1)
All engine ratings apply at 1,750 rpm. -
Note (2)
No derating required up to 4267 m (14,000 ft) altitude. -
Engine Model
Cat® C18 -
Bore
145 mm -
Engine Model
Cat® C175-20 -
Bore
145 mm -
Stroke
183 mm -
Emissions Rating
Fuel Optimized -
Displacement
18.1 l -
Stroke
220 mm -
Displacement
Stroke -
Engine Power - ISO 14396
349 kW -
Emissions
U.S. EPA Tier 4 / EU Stage V -
Note (1)
All Engine ratings apply at 1,750 rpm. -
Note (2)
No derating required up to 2499 m (8,200 ft). -
Note (1)
D9 Operation Weight includes hydraulic controls, blade tilt cylinder, coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU Blade, Single-Shank Ripper, 610 mm (24 in) ES shoes and operator. -
Note (2)
D9 Operation Weight includes base machine chassis with cab, pivot shaft, roller frames, track and ROPS. -
Note (2)
Power raise in both stages; power down capability in both stages. -
Note (1)
Steering pump output measured at 1,750 engine rpm and 30 000 kPa (4,350 psi). -
Note (2)
Implement pump output measured at 1,750 engine rpm and 20 000 kPa (2,900 psi). -
Note (3)
Fan pump output measured at 1,750 engine rpm and 17 000 kPa (2,470 psi) -
Ground Clearance
459 mm -
Note (2)
Variable speed, hydraulically driven, dual braking system, three-roller fairlead. -
Drawbar Height (Center of Clevis)*
763 mm -
Note (1)
*Includes grouser height for total dimensions on hard surfaces.
-
Engine Power - Net SAE J1349/ISO 9249
337 kW -
Engine Power - Gross SAE J1995
363 kW -
Engine Power - Gross SAE J1995
356 kW -
Engine Power - Net SAE J1349/ISO 9249
328 kW
-
Fuel Tank (Splash Fill)
963 l -
DEF Tank (Tier 4 only)
36 l -
Fuel Tank (Fast Fill)
939 l -
Powertrain
150 l -
Pivot Shaft Oil
30 l -
Hydraulic System Tank
89 l -
Note 3
All non-road Tier 4 Final diesel engines are required to use only ultra-low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. -
Note 4
Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
-
Cooling System
81.3 l -
Engine Crankcase*
36 l -
Final Drives (each)
15 l -
Roller Frames (each)
45 l
-
Note
*With oil filters. -
Note
* Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. -
Note
*Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. -
Note
*Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. -
Note
*Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. -
Note
* Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. -
Note
*Weight shown is base winch only. Does not include mounting arrangement, control arrangement, oil, or wire rope. With counterweight: 3700 kg (8,150 lb).
-
Note 2
Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULSTM or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
-
Operating Weight
49988 kg -
Shipping Weight
38271 kg -
ROPS
Rollover Protective Structure (ROPS) meets the following criteria ISO 3471:2008. -
FOPS
Falling Object Protective Structure (FOPS) meets the following criteria ISO 3449:2005 LEVEL II.
-
Pump Type
Piston-type geared to flywheel
-
Pump Output - Steering
363 L/min -
Fan Pump
80 L/min -
Tilt Cylinder Flow - Rod End Flow
200 L/min -
Tilt Cylinder Flow - Head End Flow
200 L/min -
Lift Cylinder Relief Valve Setting
26200 kPa -
Tilt Cylinder Relief Valve Setting
19300 kPa -
Ripper - Lift - Relief Valve Setting
26200 kPa -
Ripper - Pitch - Relief Valve Setting
26200 kPa -
Steering System - Pressure
40500 kPa -
Tank Capacity
89 l
-
Shoe Type
Extreme Service -
Width - Shoe
610 mm -
Shoes/Side
43 -
Grouser Height
84 mm -
Pitch
240 mm -
Track Gauge
2250 mm -
Ground Contact Area
4.23 m² -
Track Rollers/Side
8 -
Number of Carrier Rollers
1 per side (optional) -
Track Gauge
2250 mm
-
Length - Track on Ground
3470 mm -
Length - Track on Ground
3470 mm -
Overall Length - Basic Tractor
4910 mm
-
Steering Type
Differential -
Brake Type
Spring Applied Wet Disc -
Brake Diameter
393.7 mm -
Brake Count
8
-
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430) the system contains 2.1 kg of refrigerant which has a CO2 equivalent of 3.003 metric tonnes.
-
Sound
The average dynamic spectator sound power level when ISO 6395:2008 is used to measure the value for a machine is 116 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. NOTE: The dynamic sound power level uncertainty is +/-2 dB(A). -
Sound (1)
The average dynamic operator sound pressure level when ISO 6396:2008 is used to measure the value for an enclosed cab is 78 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurement was conducted with the cab doors and the cab windows closed. NOTE: The dynamic operator sound pressure level uncertainty is +/-2 dB(A). -
Sound (2)
Hearing protection may be needed when the machine is operated with an open operator station for extended periods, in a noisy environment, or with a cab that is not properly maintained.
-
1.0 Forward
3.5 km/h -
2.0 Forward
6.3 km/h -
3.0 Forward
11 km/h -
1.0 Reverse
4.4 km/h -
2.0 Reverse
7.8 km/h -
3.0 Reverse
13.6 km/h
-
Type
Planetary powershift -
Maximum Digging Depth
606 mm -
Maximum Digging Depth
606 mm -
Pryout Force
332 kN -
Pryout Force
331 kN
-
Blade Capacity (SAE J1265)
13.6 m³ -
Blade Width (over end bits)
4350 mm -
Ground Clearance at Full Lift
1422 mm -
Blade Weight
4802 kg -
Total Operating Weight* (with blade and single-shank ripper)
49988 kg -
Blade Capacity (SAE J1265)
16.6 m³ -
Blade Width (over end bits)
4680 mm -
Ground Clearance at Full Lift
1422 mm -
Blade Weight
5450 kg -
Total Operating Weight* (with blade and single-shank ripper)
50513 kg
-
Blade height
1934 mm -
Blade height
1934 mm
-
Maximum Tilt
940 mm -
Maximum Tilt
1014 mm
-
Maximum penetration force * (shank vertical)
158 kN -
Maximum penetration depth (standard tip)
1231 mm -
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole
882 mm -
Total Operating Weight* (with SU Blade and noted ripper)
49988 kg -
Maximum penetration force * (shank vertical)
172 kN -
Maximum penetration depth (standard tip)
1727 mm -
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole
817 mm -
Total Operating Weight* (with SU Blade and noted ripper)
50115 kg -
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole
879 mm
-
Number of pockets
1 -
Number of pockets
1 -
Number of pockets
3
-
Weight
4854 kg -
Weight
4981 kg -
Weight
5550 kg -
Oil Capacity
15 l -
Drum Width
320 mm
-
Maximum Penetration Force - Shank Vertical
154 kN -
Maximum Penetration - Standard Tip
798 mm -
Pry-Out Force - Multi-Shank Ripper with One Tooth
361 kN -
Total Operating Weight* - With SU-Blade and Ripper
50684 kg
-
Winch Model
PA 140VS -
Wire Cable Diameter - Recommended
28 mm -
Wire Cable Diameter - Optional
32 mm -
Maximum Drum Capacity - Recommended Cable Length
Wire Cable Diameter - Optional -
Maximum Drum Capacity - Optional Cable Length
62 m -
Wire Cable Ferrule Size - Outside Diameter
60 mm -
Wire Cable Ferrule Size - Length
70 mm
-
Weight*
1790 kg
-
Ground Clearance*
459 mm -
Width - Without Trunnions - Standard Shoe
2870 mm -
Width - Over Trunnions
3310 mm -
Height - FOPS Cab*
3820 mm -
Height - Top of Stack*
3876 mm -
Height - ROPS/Canopy*
4000 mm -
Length - Basic Tractor - With Drawbar
5242 mm -
Length - Basic Tractor - With Winch
5545 mm -
Length - With SU-Blade**
6601 mm -
Length - With U-Blade
6967 mm -
Length - With Single-Shank Ripper
6529 mm -
Length - With Multi-Shank Ripper
6538 mm -
Overall Length - SU-Blade/SS Ripper
8219 mm
