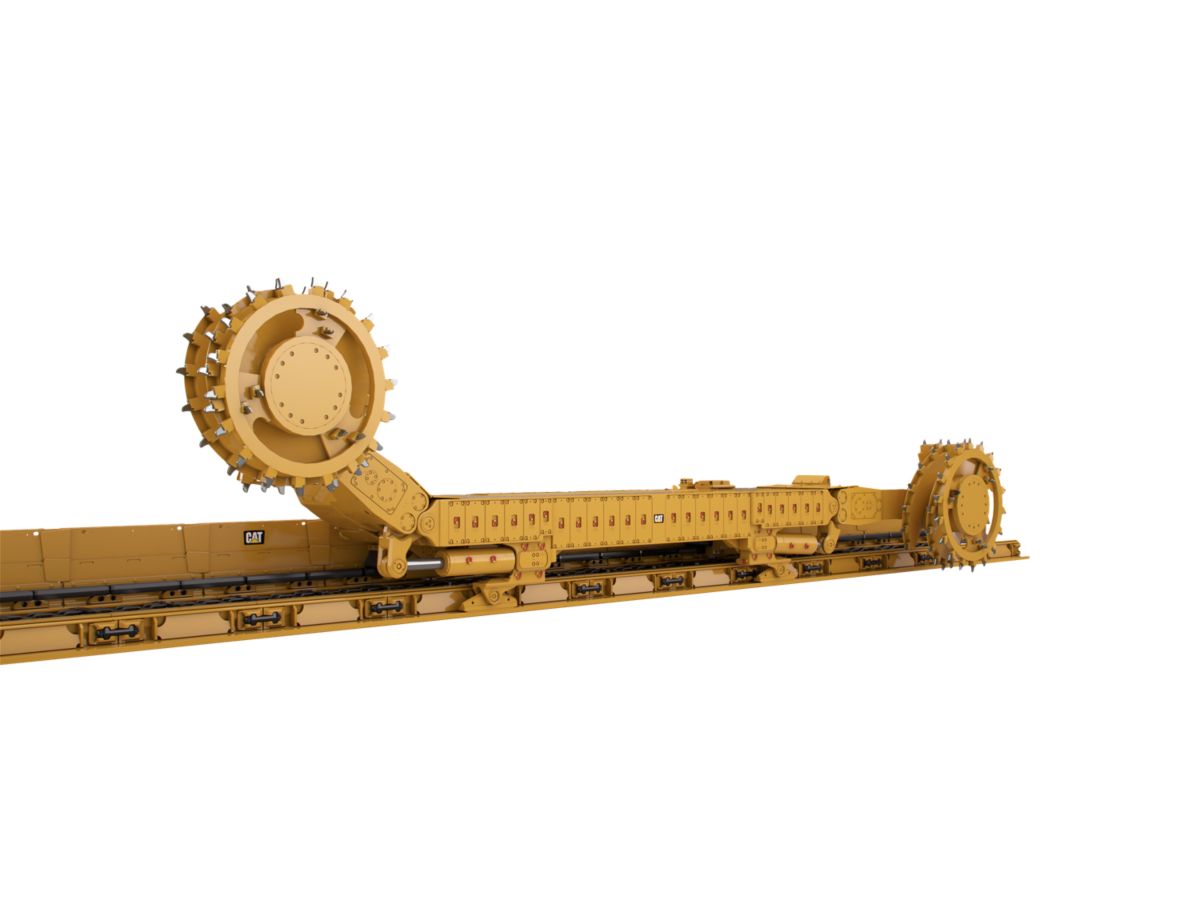

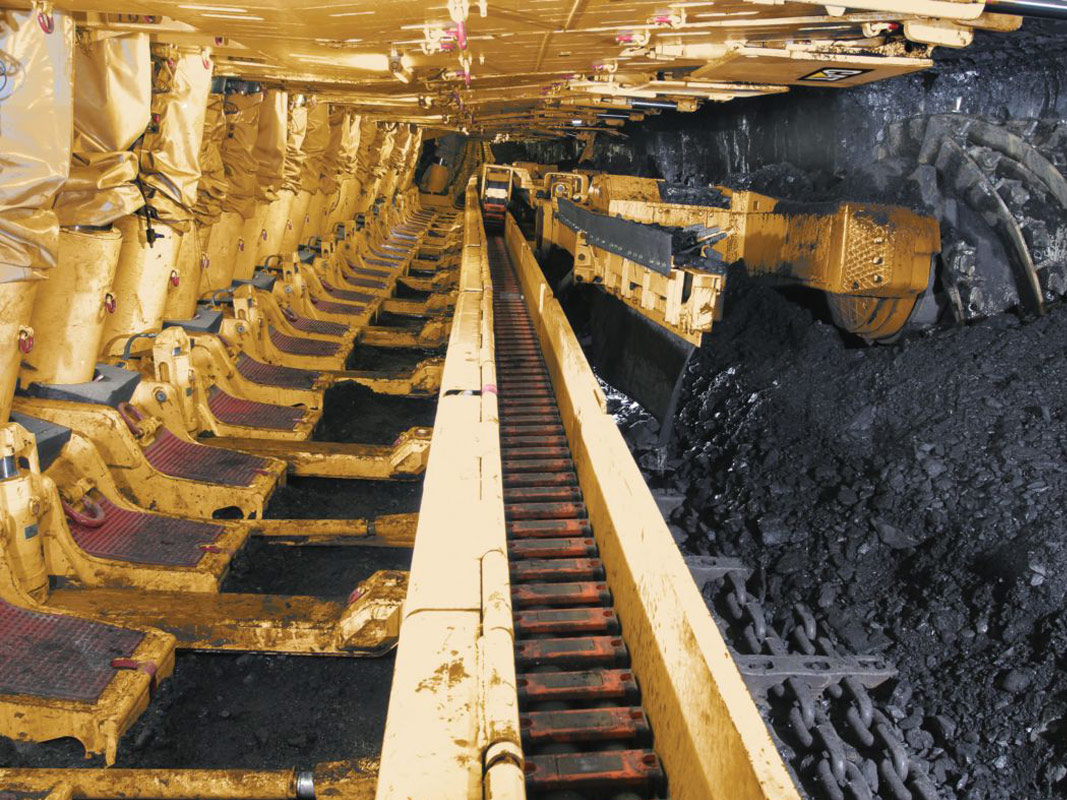

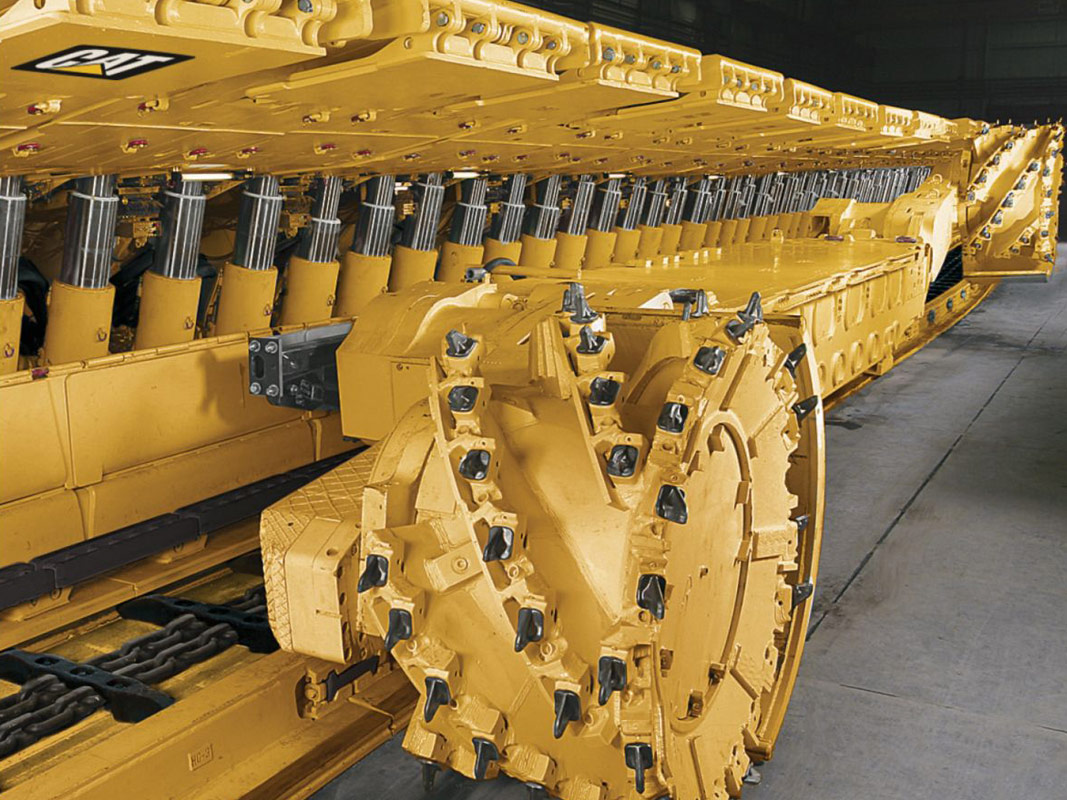

CAT® EL2000 Longwall Shearer in India
Your shearer is the most critical part of your longwall production process. That’s why high-performance longwall operations demand shearers that deliver the highest productivity, availability and reliability. Cat shearers were always designed to meet these demands. But Caterpillar has taken them to the next level.
SURVIVAL OF THE FITTEST – To do this, we invested heavily in refining our successful range of shearers. We started by reviewing and analyzing all more recent shearer installations and setting goals to improve productivity, availa¬bility and reliability. This was not a re design, but an evolution – keeping the best tried-and tested features of the existing design while using the latest findings from science and technology to improve features and add new ones.
SHEAR PERFORMANCE – With high-powered ranging arms and haulage units, Cat shearers cut and load up to 5000 tons (5,500 tons) per hour and more, depending on mining conditions. The unique, one-piece mainframe design offers maximum structural integrity and service life. The mainframe is available as a split unit in the event of transportation limitations. Featuring the superior Jumbo track shearer haulage system, the shearer also offers advanced integrated automation and communication options.
Share
Overview
Your shearer is the most critical part of your longwall production process. That’s why high-performance longwall operations demand shearers that deliver the highest productivity, availability and reliability. Cat shearers were always designed to meet these demands. But Caterpillar has taken them to the next level.
SURVIVAL OF THE FITTEST – To do this, we invested heavily in refining our successful range of shearers. We started by reviewing and analyzing all more recent shearer installations and setting goals to improve productivity, availa¬bility and reliability. This was not a re design, but an evolution – keeping the best tried-and tested features of the existing design while using the latest findings from science and technology to improve features and add new ones.
SHEAR PERFORMANCE – With high-powered ranging arms and haulage units, Cat shearers cut and load up to 5000 tons (5,500 tons) per hour and more, depending on mining conditions. The unique, one-piece mainframe design offers maximum structural integrity and service life. The mainframe is available as a split unit in the event of transportation limitations. Featuring the superior Jumbo track shearer haulage system, the shearer also offers advanced integrated automation and communication options.
-
Typical Machine Length
13.75 m -
Installed Power
1900 kW -
Haulage System
AC -
Applicable Minimum Pan Width
1032 mm -
Available Haulage Motors
2 × 125 kW (2 × 168 hp) -
Height Range
1.80-4.50 m (71-177 in) -
Machine Weight – Approximate
70 tonne -
Operating Voltages
2300V, 3300V, 4160V -
Haulage System
AC inverter drive -
Installed Power
Up to 1780 kW (Up to 2,387 hp) -
Haulage System
AC inverter drive -
Installed Power
Up to 1780 kW (Up to 2,387 hp) -
Coal Sizer
100 kW
-
Available Cutting Power
2 × 500 kW (2 × 671 hp); 2 × 620 kW (2 × 831 hp); 2 × 750 kW (2 × 1,006 hp) -
Body Height
520 mm -
Cutting Drum Diameter
1.40-2.30 m (55-91 in) -
Haulage Pull
Up to 920 kN/206,824 lbf (Up to 91 tonnes/100 tons) -
Haulage Speed
Up to 32 m/min (Up to 105 ft/min) -
Pump Motor
50 kW -
Available Cutting Power
2 x 500 kW (2 x 671 hp); 2 x 620 kW (2 x 831 hp); 2 x 750 kW (2 x 1,006 hp) -
Body Height
600.0 mm -
Cutting Drum Diameter
1600-2500 mm (63-98.5 in) -
Cutting Drum Speed
32.8, 37.4 and 45.2 rpm -
Haulage Motor
2 x 125 kW (2 x 168 hp) -
Haulage Pull
Up to 945 kN (96 tons) -
Haulage Speed
Up to 30.1 m/min (98.8 ft/min) -
Machine Weight (approximate)
70.0 tonne -
Minimum Pan Width
1032.0 mm -
Operating Voltage
3300.0 volts -
Pump Motor
30.0 kW -
Seam Range
1.8-4.5 m (71-177 in) -
Typical Machine Length (drum centers)
14155.0 mm -
Available Cutting Power
2 x 597 kW (2 x 800 hp); 2 x 746 kW (2 x 1,000 hp); 2 x 895 kW (2 x 1,200 hp) -
Body Height
600.0 mm -
Cutting Drum Diameter
1600-2500 mm (63-98.5 in) -
Cutting Drum Speed
39.4, 44.9 and 54.3 rpm -
Haulage Motor
2 x 125 kW (2 x 168 hp) -
Haulage Pull
Up to 1049 kN (107 tons) -
Haulage Speed
Up to 30 m/min (98.5 ft/min) -
Machine Weight (approximate)
78.0 tonne -
Minimum Pan Width
1032.0 mm -
Operating Voltage
4160.0 volts -
Pump Motor
30.0 kW -
Seam Range
1.8-4.5 m (71-177 in) -
Typical Machine Length (drum centers)
14082.0 mm
-
Type
This flameproof module contains the majority of the shearer electrical control and power distribution components. -
Type
High current carrying capacity of 400 amps and can accommodate trailing cables up to 185 mm2 (2.9 in2). -
Type
All internal chassis can be ‘bench built,’ tested and stored. -
Type
This unit also contains high voltage (HV) fuses, earth leakage and a visible disconnect. -
Type
An extremely powerful PMC Evo-S control system with state-of-the-art Ethernet communication and backup functionality. -
Type
This unit contains cutter motor contactors, circuit breakers, control transformer and current monitoring. -
Type
Box contains various low voltage (LV) circuit breakers which can be reset through the flame proof (FLP) cover, reducing downtime -
Type
This system monitors oil levels and temperatures, flows, pressures and vibration. -
Type
A comprehensive health monitoring system is available. -
Type
All hose assemblies are to ISO 6805 and proof tested to EN ISO 1402. -
Type
This shearer is available with onboard filtration, dust suppression spray bars, shearer clearers and ranging arm spray rings. -
Type
The hoses are assembled to Hose Assembly Standard DIN20066:201-10. -
Type
Quillshaft transmission protection -
Type
Integral water cooling @ 9 L/min (2 gal/min) -
Type
Integral monitoring transducers -
Type
Maximum oil capacity of 25 L (7 gal) -
Type
Transmission reduction of 137:1 -
Type
Maximum power rating 125 kW (168 hp) -
Type
This unit has a haulage motor rating of 125 kW (168 hp) -
Type
Transmission rating of 750 kW @ 37.4 rpm and above -
Type
Maximum drum diameter of 2500 mm (98 in) -
Type
Square drum hub (440 mm [17.3 in] across flats) -
Type
A robust cowl drive mechanism is also available on this model -
Type
Online vibration monitoring with VibraGuard -
Type
Available cutter motors - 500 kW, 620 kW and 750 kW, @ 50 Hz (800 hp, 1,000 hp and 1,200 hp, @ 60 Hz) -
Type
Choice of drum speeds -
Type
Complete with 32 mm (1.3 in) bore, through shaft PFF/PBF wet cutting -
Type
Integral monitoring transducers -
Type
Quillshaft transmission protection -
Type
Maximum oil capacity of 28 L (7 gal) in high speed compartment and 30 L (8 gal) in the epicyclic -
Type
PMC Evo-S control system allows the shearer to be operated even if the overall control system is not functioning. -
Type
The shearer is equipped with a state-of-the-art industry PC in a flame-proof housing with plenty of computing power. -
Type
State-of-the-art industry PC allows flexibility to upgrade to future features such as condition monitoring. -
Type
Unlike competitor systems, modularity of the longwall system & control allows the longwall to operate in “fault-tolerant” mode. -
Type
In other words, integrated automation does not prevent control via individual PLC’s in order to keep production up and running. -
Type
PMC Evo-S control system with state-of-the-art Ethernet communication and backup functionality. -
Type
This shearer has a state-of-the-art distributed automation system for the control, monitoring and protection of the shearer. -
Type
A Programmable Logic Controller (PLC) takes care of basic machine control tasks, ensuring that coal is produced. -
Type
Industry-leading Automation from the Pioneer of State-based Automation. -
Type
Its modular design allows it to be configured to meet individual control needs. -
Type
Suitable for all current rack type systems -
Type
Transmission rating of 125 kW (168 hp) -
Type
Maximum haulage pull 945 kN (107 tons) -
Type
Innovative and unique downdrive design -
Type
Removable modular top drive wheel assembly (cartridge) -
Type
Downdrive ratio 17T—23T—10T (two wheel configuration) -
Type
Trapping shoe with replaceable wear inserts, safe and easy to replace (unique to Caterpillar) -
Type
Fully removable, rehandable, modular gearbox -
Type
Module contains drive system circuit breaker and one 250 kW, 600V AC inverter drive, with regenerative braking module. -
Type
This flameproof module contains the main 253 kVA haulage transformer, power supplies and auxiliary transformer. -
Type
This model of shearer is available with headlights, cameras, methane monitoring, end displays and audible alarms. -
Type
All electrical material is designed and certified to IEC standards and also complies with other regional and national standards. -
Type
Operating system pressure of 260 bar (3,770 psi) -
Type
Integral monitoring transducers -
Type
For use with ISO 68 or ISO 100 hydraulic oils -
Type
Robust hydraulic reservoir of 165 L (43.6 gal) capacity -
Type
This unit has a pump motor rating of 30 kW @ 50 Hz (48 hp @ 60 Hz) -
Type
Fixed displacement pump, with a capacity of 50 L/min (13.21 gal/min) -
Type
Available with 6 section valve bank -
Type
All hose and hosing is in compliance with guideline MDG 41 and MSHA regulations. -
Type
The hoses are assembled to Hose Assembly Standard DIN20066:201-10. -
Type
All hose assemblies are to ISO 6805 and proof tested to EN ISO 1402. -
Type
Available with Machine Parking Brake -
Type
Available with Machine Position Encoder -
Type
Maximum protection of electrical boxes, providing the highest level of flameproof integrity -
Type
Improved access for maintenance and ease of overhaul and repair -
Type
Versatility of application due to fully modular construction -
Type
High structural integrity and absorption of all cutting and haulage forces, providing maximum protection for all major units -
Type
A split mainframe is available in case of transportation limitations
-
AFC Pan Width - Maximum
1342.0 mm -
AFC Pan Width - Minimum
1032.0 mm -
Cutting Heights - Maximum
4135.0 mm -
Cutting Heights - Minimum
1900.0 mm -
Height to Top of Machine Main Body
1495.0 mm -
Machine Height over Main Body
1495.0 mm -
Maximum Cutting Drum Overall Width
1150.0 mm -
Shearer Drum Undercut of Floor
718.0 mm -
Vertical Tunnel Clearance
649.0 mm -
AFC Pan Width - Maximum
1342.0 mm -
AFC Pan Width - Minimum
1032.0 mm -
Cutting Heights - Maximum
3930.0 mm -
Cutting Heights - Minimum
1800.0 mm -
Height to Top of Machine Main Body
1444.0 mm -
Machine Height over Main Body
1444.0 mm -
Maximum Cutting Drum Overall Width
1150.0 mm -
Shearer Drum Undercut of Floor
619.0 mm -
Vertical Tunnel Clearance
598.0 mm -
AFC Pan Width - Maximum
1342.0 mm -
AFC Pan Width - Minimum
1032.0 mm -
Cutting Heights - Maximum
4360.0 mm -
Cutting Heights - Minimum
2200.0 mm -
Height to Top of Machine Main Body
1571.0 mm -
Machine Height over Main Body
1571.0 mm -
Maximum Cutting Drum Overall Width
1150.0 mm -
Shearer Drum Undercut of Floor
793.0 mm -
Vertical Tunnel Clearance
725.0 mm -
AFC Pan Width - Maximum
1342.0 mm -
AFC Pan Width - Minimum
1032.0 mm -
Cutting Heights - Maximum
4570.0 mm -
Cutting Heights - Minimum
2500.0 mm -
Height to Top of Machine Main Body
1647.0 mm -
Machine Height over Main Body
1647.0 mm -
Maximum Cutting Drum Overall Width
1150.0 mm -
Shearer Drum Undercut of Floor
866.0 mm -
Vertical Tunnel Clearance
801.0 mm
-
Clearance from Drum to AFC Toeplate
300.0 mm -
Diameter of Shearer Cutting Drum
1900.0 mm -
Distance between Drums with Arms Horizontal
14155.0 mm -
Distance between Ranging Arm Hinge Points
8525.0 mm -
Distance between Trapping Shoe Centers
6056.0 mm -
Ranging Arm Cutting Drum Diameter
1900.0 mm -
Ranging Arm Length (hinge to drum)
2815.0 mm -
Clearance from Drum to AFC Toeplate
300.0 mm -
Diameter of Shearer Cutting Drum
1600.0 mm -
Distance between Drums with Arms Horizontal
14155.0 mm -
Distance between Ranging Arm Hinge Points
8525.0 mm -
Distance between Trapping Shoe Centers
6453.0 mm -
Ranging Arm Cutting Drum Diameter
1600.0 mm -
Ranging Arm Length (hinge to drum)
2815.0 mm -
Clearance from Drum to AFC Toeplate
300.0 mm -
Diameter of Shearer Cutting Drum
2200.0 mm -
Distance between Drums with Arms Horizontal
14155.0 mm -
Distance between Ranging Arm Hinge Points
8525.0 mm -
Distance between Trapping Shoe Centers
6612.0 mm -
Ranging Arm Cutting Drum Diameter
2200.0 mm -
Ranging Arm Length (hinge to drum)
2815.0 mm -
Clearance from Drum to AFC Toeplate
300.0 mm -
Diameter of Shearer Cutting Drum
2500.0 mm -
Distance between Drums with Arms Horizontal
14155.0 mm -
Distance between Ranging Arm Hinge Points
8525.0 mm -
Distance between Trapping Shoe Centers
6056.0 mm -
Ranging Arm Cutting Drum Diameter
2500.0 mm -
Ranging Arm Length (hinge to drum)
2815.0 mm
-
Maximum Machine Speed
28.56 m/min -
Pull at Maximum Speed
472.75 kN/106,278 lbf (48.40 tonnes/53.35 tons) -
Speed at Maximum Pull
14.28 m/min -
Total Machine Pull
945.51 kN/212,559 lbf (96.80 tonnes/106.70 tons)
-
Levels of Automation
State-based shearer automation “Navigator 2” -
Levels of Automation
Zone-based automation “Navigator 1” -
Levels of Automation
“Longwall Navigator” for improved face alignment and horizon control -
Levels of Automation
Integrated longwall automation with “Navigator 2 + 3”
