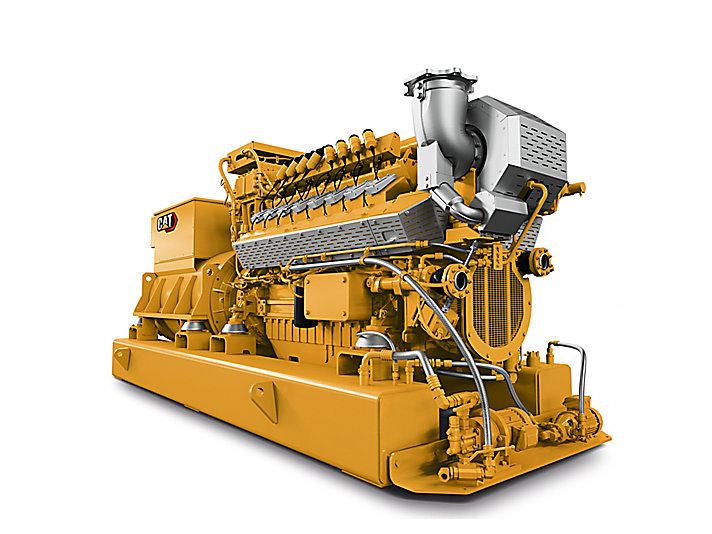

CAT® Natural Gas Generator CG132B-16
The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.<br>
Highly efficient with low operating and installation costs and lubricant consumption, the Cat CG132B gas generator set is available with outputs from 400kW to 800kW and comes with the Total Plant and Energy Management (TPEM) system.
Share
Overview
The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.<br>
Highly efficient with low operating and installation costs and lubricant consumption, the Cat CG132B gas generator set is available with outputs from 400kW to 800kW and comes with the Total Plant and Energy Management (TPEM) system.
-
Maximum Continuous Rating
800 kW @1.0pf -
Fuel Type
Natural Gas, Biogas -
Maximum Electrical Efficiency
43.5% / 42.6% -
Maximum Standby Rating
800 kW -
rpm
1500 / 1800 rpm
-
Frequency
50 / 60 Hz
-
Engine Model
CG132 -
Displacement
35 l -
Aspiration
TA -
Bore
132 mm -
Stroke
160 mm
-
Length
4200 mm
-
Width
1780 mm
-
Height
2150 mm
-
Dry Weight - Genset
8070 kg
