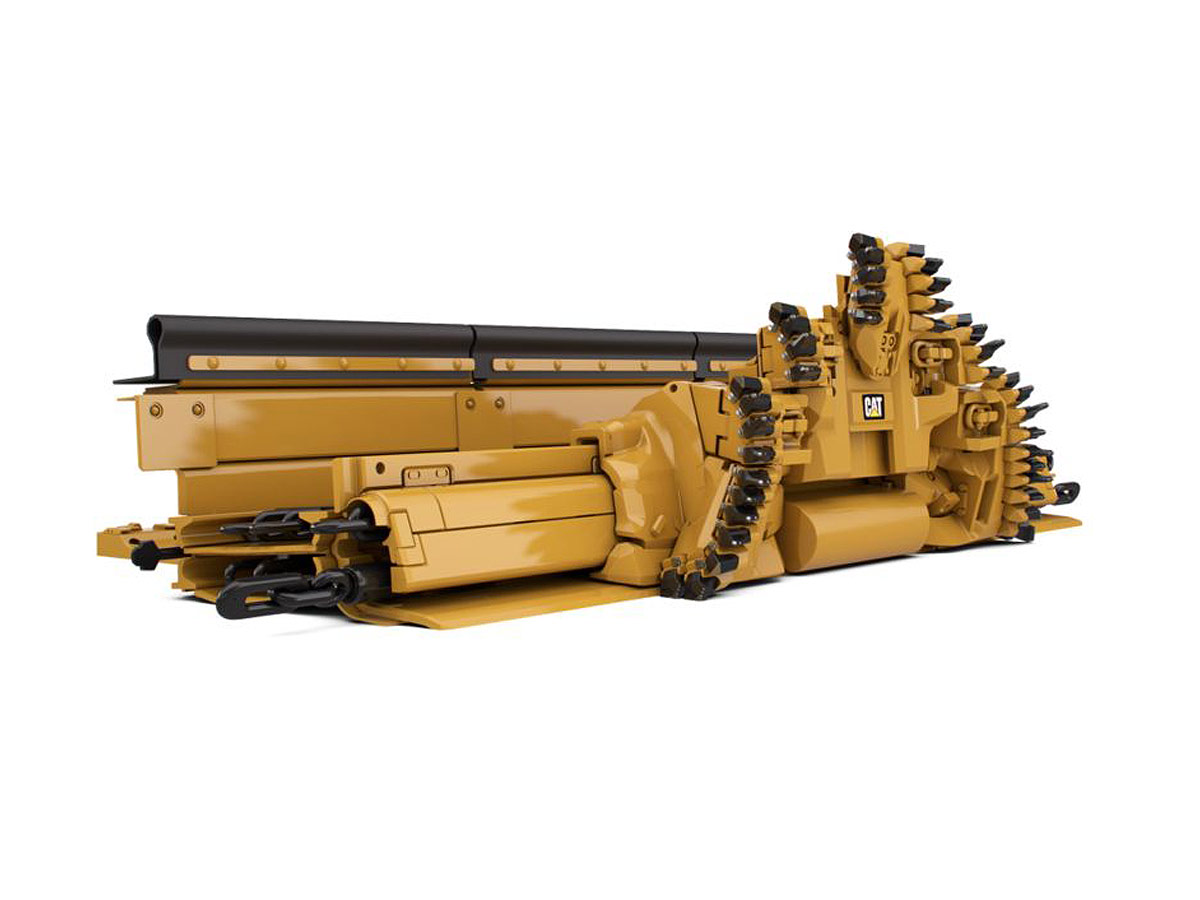

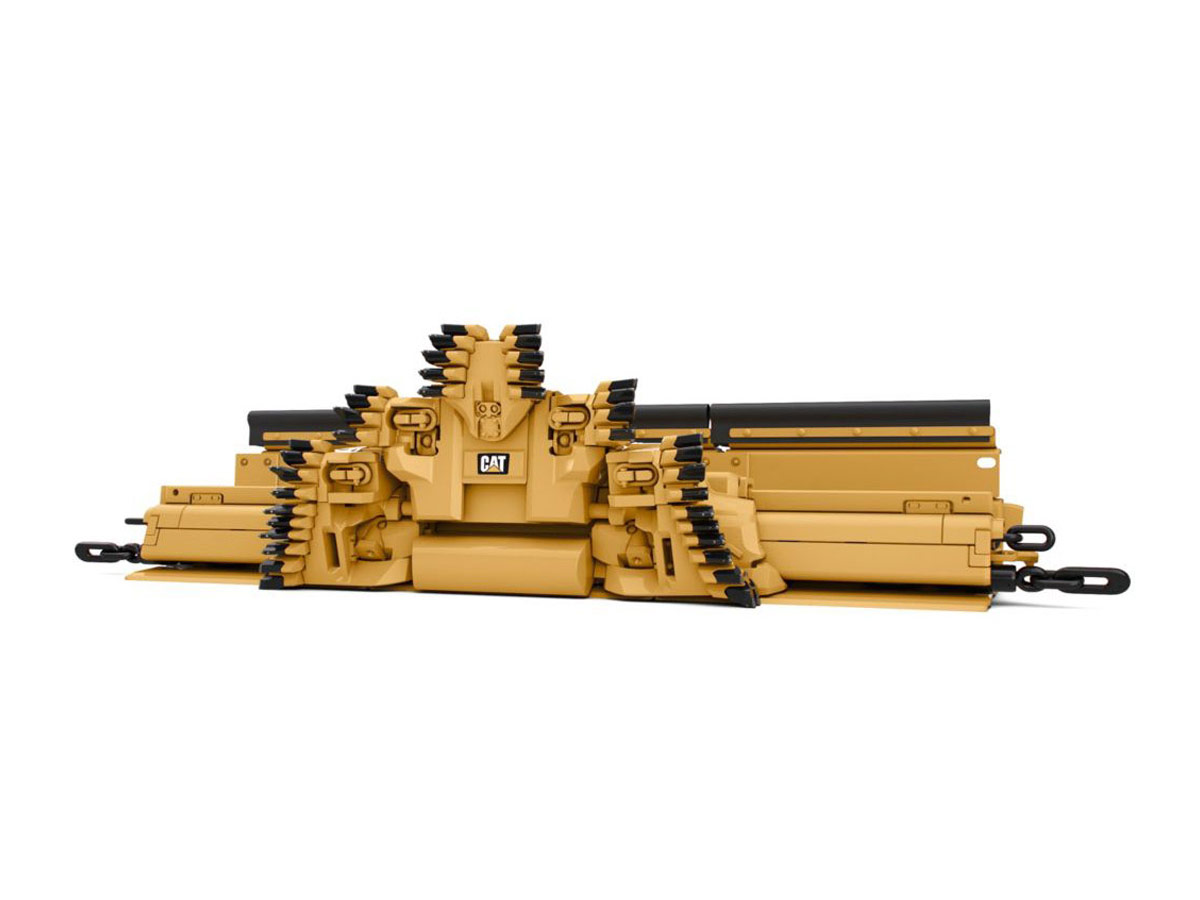

CAT® GH800 Plow System for Low & Medium Seams
Cat® Plows are the mining system of choice for low and medium seams – exceeding the performance of shearers and delivering rapid production.
Share
Overview
Cat® Plows are the mining system of choice for low and medium seams – exceeding the performance of shearers and delivering rapid production.
-
Coal Hardness
Soft - hard coal -
Maximum Cutting Depth
180.0 mm -
Maximum Seam Inclination
up to 60° -
Plow Body Height
0.9 m-2.0 m (35.5-79 in) -
Typical Cutting Height
1.0 m-2.0 m (39-79 in)
-
Maximum Installed Power
2 × 400 kW (2 × 540 hp) -
Maximum Plow Speed
3.0 m/s (600 fpm)
-
Bottom Bit Positions - Position 1
+12 mm (+0.04 ft) -
Bottom Bit Positions - Position 2
-10 mm (-0.03 ft) -
Bottom Bit Positions - Position 3
-20 mm (-0.06 ft) -
Bottom Bit Positions - Position 4
-34 mm (-0.11 ft) -
Cutting Depth
195.0 mm -
Maximum Drive Power
2 × 400 kW (2 × 536 hp) -
Mechanical Height Adjustment
180-300 mm (0.59-0.98 ft) -
Plow Heights (with gobside support) - Height 1
1570-1735 mm (5.15-5.69 ft) -
Plow Heights (with gobside support) - Height 2
1700-2000 mm (5.57-6.56 ft) -
Plow Heights - Height 1
800-1060 mm (2.62-3.47 ft) -
Plow Heights - Height 2
1020-1320 mm (3.34-4.33 ft) -
Plow Heights - Height 3
1285-1585 mm (4.21-5.20 ft) -
Plow Length - Single Plow
2712.0 mm -
Weights - Single Plow
4080-6630 kg (8,995-14,616 lb)
