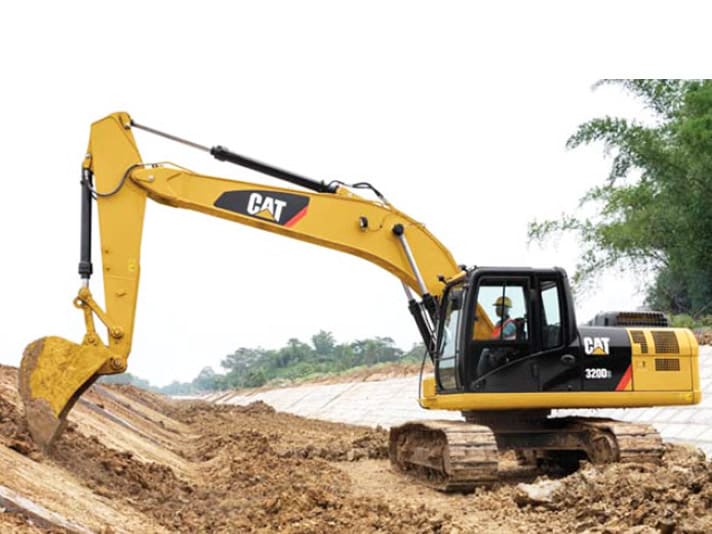

CAT Hydraulic Excavator 320D3

The Cat 320D3 Excavator balances productivity, efficiency and reliability to deliver you reliable, highly efficient, low-cost per-hour excavator solutions for a wide range of job site tasks. Work in comfort from its industry-leading cab with great visibility, controls and technology.

Up To 5% Lower Maintenance Costs
With 20% less refill oil volume than the earlier model and reduced frequency of refills increases uptime and reduce costs.

Up To 15% More Fuel Efficient
  • An optimized power train and improved hydraulic power deliver more work per unit of fuel compared to the earlier model.
  • Latest fuel efficient electro-hydraulic (EH) system minimize fuel use and increase engine efficiency.

Up To 7% More Hydraulic Power
New tandem hydraulic pumps provide more hydraulic power with less internal friction to increase overall efficiency.

Get a Quote Download Brochure

Overview

The Cat 320D3 Excavator balances productivity, efficiency and reliability to deliver you reliable, highly efficient, low-cost per-hour excavator solutions for a wide range of job site tasks. Work in comfort from its industry-leading cab with great visibility, controls and technology.

Up To 5% Lower Maintenance Costs
With 20% less refill oil volume than the earlier model and reduced frequency of refills increases uptime and reduce costs.

Up To 15% More Fuel Efficient
  • An optimized power train and improved hydraulic power deliver more work per unit of fuel compared to the earlier model.
  • Latest fuel efficient electro-hydraulic (EH) system minimize fuel use and increase engine efficiency.

Up To 7% More Hydraulic Power
New tandem hydraulic pumps provide more hydraulic power with less internal friction to increase overall efficiency.

Engine

Displacement
5.76 L
Bore
104 mm
Two selectable power modes
Standard
Stroke
113 mm
One-touch low idle with auto engine speed control
Standard
Two stage fuel fi ltration system with water separator and indicator
Standard
52° C (125° F) high-ambient cooling capacity
Standard
–32° C (–25° F) cold start capability
Optional
4000 m (13,120 ft) altitude capability
Standard
Radial seal air fi lter with double fi lter element
Standard
Engine air pre-fi lter
Optional
Biodiesel capability up to B20
Standard
Gross Power – ISO 14396/SAE J1995
100 kW
Net Power – ISO 9249/SAE J1349
85 kW
Engine RPM - Operation
1700 rpm
Engine RPM - Travel
1800 rpm
Engine Model
ALUW06DTI
Net Power - ISO 9249
92 kW
Net Power - ISO 9249 (DIN)
125 hp (met
Engine Model
ALUW06DTI
Engine Power - ISO 14396
100 kW
Engine Power - ISO 14396 (DIN)
136 hp (met
Bore
104 mm
Stroke
113 mm
Displacement
5.8 l
Biodiesel Capability
Up to B10
Emissions
Non-certified emission engine.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,700 rpm. Advertised power is tested per the specified standard in effect at the time
Ground Clearance
450 mm
Net Power - ISO 9249
92 kW
Net Power - ISO 9249 (DIN)
125 hp (met
Engine Model
ALUW06DTI
Engine Power - ISO 14396
100 kW
Engine Power - ISO 14396 (DIN)
136 hp (met
Bore
104 mm
Stroke
113 mm
Displacement
5.8 l
Biodiesel Capability
Up to B10
Emissions
Non-certified emission engine.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,700 rpm. Advertised power is tested per the specified standard in effect at the time
Ground Clearance
450 mm

Service Refill Capacities

Fuel Tank Size
410 L
Hydraulic System (Including Tank)
260 L
Engine Oil
18 L
Swing Drive (each)
6 L
Final Drive (each)
5 L
Cooling Systems
28 L
Fuel Tank Capacity
350 l
Cooling System
19 l
Engine Oil
18 l
Swing Drive - Each
6 l
Final Drive - Each
5 l
Hydraulic System - Including Tank
218 l
Hydraulic Tank
115 l
Shipping Length
9530 mm
Tail Swing Radius
2750 mm
Counterweight Clearance
1020 mm
Track Length
4250 mm
Length to Center of Rollers
3450 mm
Maximum Reach at Ground Level
9470 mm
Maximum Cutting Height
9250 mm
Maximum Loading Height
6290 mm
Minimum Loading Height
2590 mm
Maximum Vertical Wall Digging Depth
5720 mm
Fuel Tank Capacity
350 l
Cooling System
19 l
Engine Oil
18 l
Swing Drive - Each
6 l
Final Drive - Each
5 l
Hydraulic System - Including Tank
218 l
Hydraulic Tank
115 l
Shipping Length
9530 mm
Tail Swing Radius
2750 mm
Counterweight Clearance
1020 mm
Track Length
4250 mm
Length to Center of Rollers
3450 mm
Maximum Reach at Ground Level
9470 mm
Maximum Cutting Height
9250 mm
Maximum Loading Height
6290 mm
Minimum Loading Height
2590 mm
Maximum Vertical Wall Digging Depth
5720 mm

Dimensions

Track Gauge
2200 mm
Counterweight Clearance**
1020 mm
Boom
Reach 5.7 m
Stick
HD Reach 2.5 m
Bucket
GD 1.00 m3
Shipping Height (top of cab)
305 mm
Shipping Length
9460 mm
Tail Swing Radius
2750 mm
Track Length to Center of Rollers
3270 mm
Ground Clearance
450 mm
Transport Width – 600 mm (24") Shoes
2800 mm
Boom
HD Reach 5.7 m (18'8")
Stick
HD Reach 2.5 m (8'2")
Bucket
GD 1.14 m³ (1.49 yd³)
Shipping Height - Top of Cab
3050 mm
Handrail Height
3015 mm
Transport Width
2980 mm
Boom
HD Reach 5.7 m (18'8")
Stick
HD Reach 2.5 m (8'2")
Bucket
GD 1.14 m³ (1.49 yd³)
Boom
HD Reach 5.7 m (18'8")
Stick
HD Reach 2.5 m (8'2")
Bucket
GD 1.14 m³ (1.49 yd³)
Shipping Height - Top of Cab
3050 mm
Handrail Height
3015 mm
Transport Width
2980 mm
Boom
HD Reach 5.7 m (18'8")
Stick
HD Reach 2.5 m (8'2")
Bucket
GD 1.14 m³ (1.49 yd³)

Hydraulic System

Boom and stick regeneration circuit
Standard
Boom and stick drift reduction valve
Standard
Auto two-speed travel
Standard
Reverse swing damping valve
Standard
Fine swing control
Optional
Maximum Pressure - Travel
35000 kPa
Maximum Pressure – Equipment
35000 kPa
Hammer return fi lter circuit
Optional
Maximum Pressure - Swing
35000 kPa
High performance hydraulic return fi lter
Standard
Medium-pressure auxiliary circuit
Optional
Main System – Maximum Flow – Implement
400 L/min
Main System - Maximum Flow
429 l/min (113 gal/min)
Maximum Pressure - Equipment
35000 kPa
Maximum Pressure - Travel
35000 kPa
Maximum Pressure - Swing
25000 kPa
Main System - Maximum Flow
429 l/min (113 gal/min)
Maximum Pressure - Equipment
35000 kPa
Maximum Pressure - Travel
35000 kPa
Maximum Pressure - Swing
25000 kPa

Electrical System

Two 1,000 CCA maintenance free batteries
Standard
Halogen chassis light, left-hand boom light, cab lights
Standard

Working Ranges and Forces

Stick
HD Reach 2.5 m
Bucket
GD 1.00 m3
Maximum Digging Depth
6300 mm
Maximum Reach at Ground Level
9470 mm
Maximum Cutting Height
9250 mm
Maximum Loading Height
6290 mm
Minimum Loading Height
2590 mm
Maximum Depth Cut for 2440 mm (8'0") Level Bottom
5960 mm
Maximum Vertical Wall Digging Depth
5350 mm
Bucket Digging Force (ISO)
140 kN
Stick Digging Force (ISO)
118 kN
Bucket Digging Force (SAE)
124 kN
Stick Digging Force (SAE)
114 kN
Boom
Reach 5.7 m

Cab

Sound suppressed cab with viscous mounts
Standard
Full color 178 mm (7 in) LCD monitor
Standard
Mechanically adjustable seat with seatbelt
Standard
Openable skylight, openable upper windshield and removable bottom windshield
Standard
Auto bi-level air conditioner
Standard
Roll down sun screen
Optional
Control pattern changer
Optional

CAT Connect Technology

Cat Product Link
Standard

Boom and Stick

5.7 m (18'8") reach boom
Standard
2.5 m (8'2") heavy duty reach stick
Standard

Undercarriage and Structures

600 mm (24") triple grouser shoes (10 mm/0.4" thick)
Standard
600 mm (24") triple grouser shoes (8.5 mm/0.3" thick)
Optional
Grease lubricated track links
Standard
Tie down points on base frame
Standard
Center track guiding guard
Standard
Segmented track guiding guard
Optional
3700 kg (8,160 lb) counterweight
Standard

Service and Maintenance

Sampling ports for Scheduled Oil Sampling (S·O·SSM)
Standard
Single plane cooling arrangement
Standard
Radiator screen
Standard

Safety and Security

Rear window emergency exit
Standard
Two rearview mirrors
Standard
Hydraulic lock out lever
Standard
Ground level engine shutoff switch
Standard
Right-hand handrail and hand hold
Standard
Signaling/warning horn
Standard

Machine Weight

Operating Weight
20800 kg

Swing

Swing Speed
11.88 r/min
Swing Speed
11.88 r/min

Swing Mechanism

Maximum Swing Torque
62 kN·m
Maximum Swing Torque
62 kN·m

Weights

Operating Weight
21000 kg
Operating Weight
21000 kg

Turning Circle

Note
4.3 m (13'11") Long undercarriage, 5.7 m (18'8") HD Reach boom, 2.5 m (8'2") HD Reach stick, 1.14 m³ (1.49 yd³) GD bucket, 600 mm (24") triple grouser shoes and 3650 kg (8,050 lb) counterweight.
Note
4.3 m (13'11") Long undercarriage, 5.7 m (18'8") HD Reach boom, 2.5 m (8'2") HD Reach stick, 1.14 m³ (1.49 yd³) GD bucket, 600 mm (24") triple grouser shoes and 3650 kg (8,050 lb) counterweight.

Undercarriage

Track Gauge
2380 mm
Track Gauge
2380 mm

Ripper

Maximum Digging Depth
6300 mm
Maximum Digging Depth
6300 mm

Working Ranges & Forces

Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
5960 mm
Bucket Digging Force - ISO
135 kN
Stick Digging Force - ISO
118 kN
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
5960 mm
Bucket Digging Force - ISO
135 kN
Stick Digging Force - ISO
118 kN

The Cat 320D3 Excavator balances productivity, efficiency and reliability to deliver you reliable, highly efficient, low-cost per-hour excavator solutions for a wide range of job site tasks.

  • Up to 5% lower maintenance costs.
  • Up to 15% more fuel efficient.
  • Up to 7% more hydraulic power.

Use Less Fuel

  • The excavator uses up to 15 percent less fuel than the 320D2 in similar applications. Reduce fuel consumption further by 15 percent in Economy mode with no loss in lifting or digging forces.
  • Boom and stick regeneration circuits reduce fuel consumption by up to two percent while improving cycle times.
  • Use automatic engine speed control (AEC) during no-load or lightload conditions to automatically reduce engine speed to minimize fuel consumption.
  • New tandem hydraulic pumps provide seven percent more hydraulic power with less internal friction to increase overall effi ciency. Each pump can produce a maximum fl ow of 200 L/min (52.8 gal/min). Hydraulic system components are close together to minimize power loss from friction and pressure drops.
  • Standard one-touch low idle saves fuel by instantly reducing engine speed to 1,100 rpm at the push of a button. Return the engine speed to the throttle position by hitting the button again or simply moving the joysticks.

High Performance

  • Balance power and effi ciency using the open-center, negative fl ow control hydraulic system. Hydraulic cross-sensing makes full engine power always available from hydraulic pumps regardless of which function is used.
  • Expect reliable performance from the double-fi ltered low-pressure fuel system and antirust fuel tank that protects the engine from lower quality fuel.
  • Dig and lift from a stable platform created by the standard 3.7 ton (8,160 lb) counterweight and seven-roller undercarriage.
  • Add versatility by adding tool control to run a hammer or other tools requiring one-way fl ow. Order tool control with the machine or add it later with a dealer-installed kit.
  • Product Link™ comes standard so you can remotely monitor location, hours, and idle time on demand through the Visionlink® online interface.
  • The excavator has a high-ambient capability of 52° C (125° F) and cold start capability of –18° C (0° F). An optional –32° C (–25° F) cold start package is available.

Reliability You Expect from a CAT® Machine

  • A two-stage fi ltering system with integrated water separator protects the engine from particles larger than fi ve microns when fuel quality is less than ideal.
  • We designed the stick and boom structures using high-tensile steel fabricated into a large box section using internal baffl es to absorb torsional stress. The X-shaped, box-section carbody provides excellent resistance to torsional bending, dissipating stress throughout the base of the machine.
  • Traverse the job site on the Grease Lubricated Track (GLT) undercarriage. Undercarriage rollers are rebuildable and sealed to prevent dirt and debris causing internal wear. Grease lubricated links minimize internal bushing wear, reducing noise and increasing life up to 25 percent.
  • Robust bottom guards protect machine components that might be damaged while swinging. A thicker bottom guard plate is used under the pump compartment to protect the suction hose.
  • Hydraulic snubbers in the boom and stick cylinders dampen end-of-stroke impact prolonging the life of your machine.
  • Safety fuses protect critical electrical components. Thick braiding protects the colored, numbered electrical wires. Non-abrasive connectors keep wiring harnesses in place to prevent failure.
  • The capsule-type hydraulic return fi lter prevents contaminants from entering the system when hydraulic oil is changed. If the fi lter clogs, a warning is displayed on the monitor screen inside the cab.
  • The swing system uses a ball bearing to help absorb stresses caused by swing torque.
  • The standard, integrated idler guard helps maintain track alignment while traveling or working on the slopes.

Work in Comfort

  • The spacious cab provides excellent visibility from the operator’s seat to keep you aware of your surroundings – without bending or straining to see.
  • Critical machine information is always visible in the new highresolution 178 mm (7 in) monitor. Intuitive menus mean more time working and less time looking for information.
  • Work a full day with less fatigue using the ergonomically-designed pilot-operated joysticks matched to operator’s wrist and arm position. Joystick consoles can be adjusted, further improving operator comfort and productivity.
  • Automatic climate control helps maintain consistent cab temperature. Five outlets ensure proper air circulation to keep you comfortable regardless of outside temperatures.
  • Keep your phone or other personal electronics charged using the two standard 12V auxiliary power ports delivering up to 10 A of power.
  • Seat adjusts to accommodate a variety of operator size and weight. Wide adjustable armrests and retractable seatbelt are also included.
  • Standard Cab Equipment. To enhance operator comfort and productivity, the cab includes a lighter, drink holder, coat hook, service meter, literature holder, magazine rack and storage compartment.
  • There is plenty of room for you to store your gear. There are two storage locations at the rear of the right console and one space for your lunchbox behind the seat.

Designed-In Safety

  • The standard hydraulic lockout lever prevents operators from leaving the cab without fi rst isolating all hydraulic functions. When necessary, you can activate the ground level shut-off switch to stop the fuel to the engine and shut down the machine.
  • The machine provides you a safe work platform for all routine service and maintenance needs. Anti-skid plating with countersunk bolts reduces the potential for slippage and trip hazards.
  • A battery disconnect switch helps to deter theft by isolating the battery and enhances safety when servicing the machine.
  • A full-length fi rewall separates the engine from the hydraulic pump and offers protection in the event of an incident.
  • We designed the cab to provide excellent visibility from the operator’s seat. In addition, two standard mirrors help keep you aware of your surroundings.
  • The machine can be equipped with a Falling Object Guarding System (FOGS) guard that conforms to the ISO 10262:1998 standard. These guards are bolted directly to the cab shell.

Easy to Maintain

  • Lower your maintenance costs by up to fi ve percent with 20 percent less refi ll oil volume than the 320D2, an extended fi rst engine oil change interval (500 hours), and maintenance free batteries.
  • Easily maintain your machine. Most service locations are easily accessible at ground level to allow service and maintenance to get completed quickly and effi ciently. A service door on the right side of the upper structure allows ground-level access to the hydraulic pumps, hydraulic fi lters, and fuel fi lters.
  • Easily access the proven, high-effi ciency radial seal engine air fi lter behind the cab. The machine constantly monitors the engine air fi lter and will notify you, via the monitor, when service is required.
  • A remote greasing block on the boom allows the greasing of hardto-reach locations. A remote mounted greasing point on the swing bearing allows ease of service.
  • Robust service doors open wide for easy access to service points. Latches fi rmly hold the doors in the open position to prevent accidental closing while servicing – even on windy days. On the top of the machine, the large engine hood provides easy access to the engine and cooling compartments.
  • Routine cleaning is made easier with the single plane cooling package design.

This site uses and sets "cookies" on your computer to help make this website better by keeping the site reliable and secure, personalizing content and ads, providing social media features, and analysing how the site is used. You can learn more about these cookies by clicking here. By clicking 'I Accept', you are agreeing to our use of cookies.

I Accept
