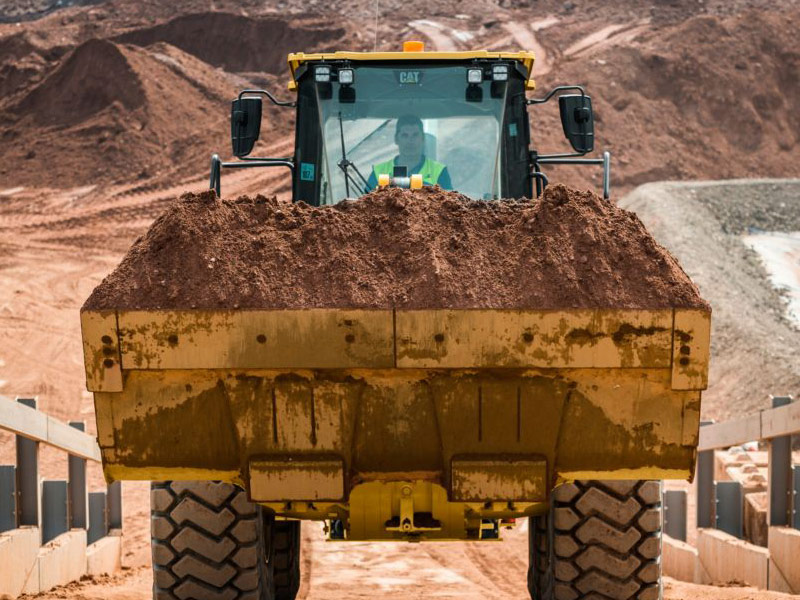

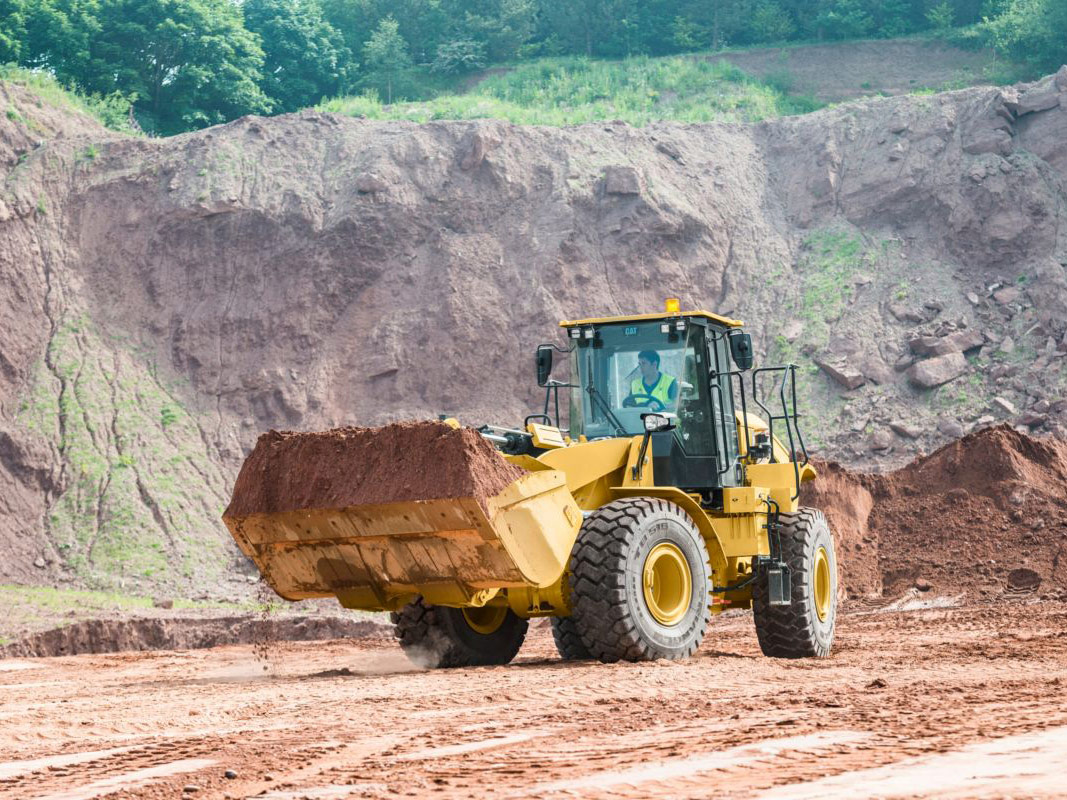

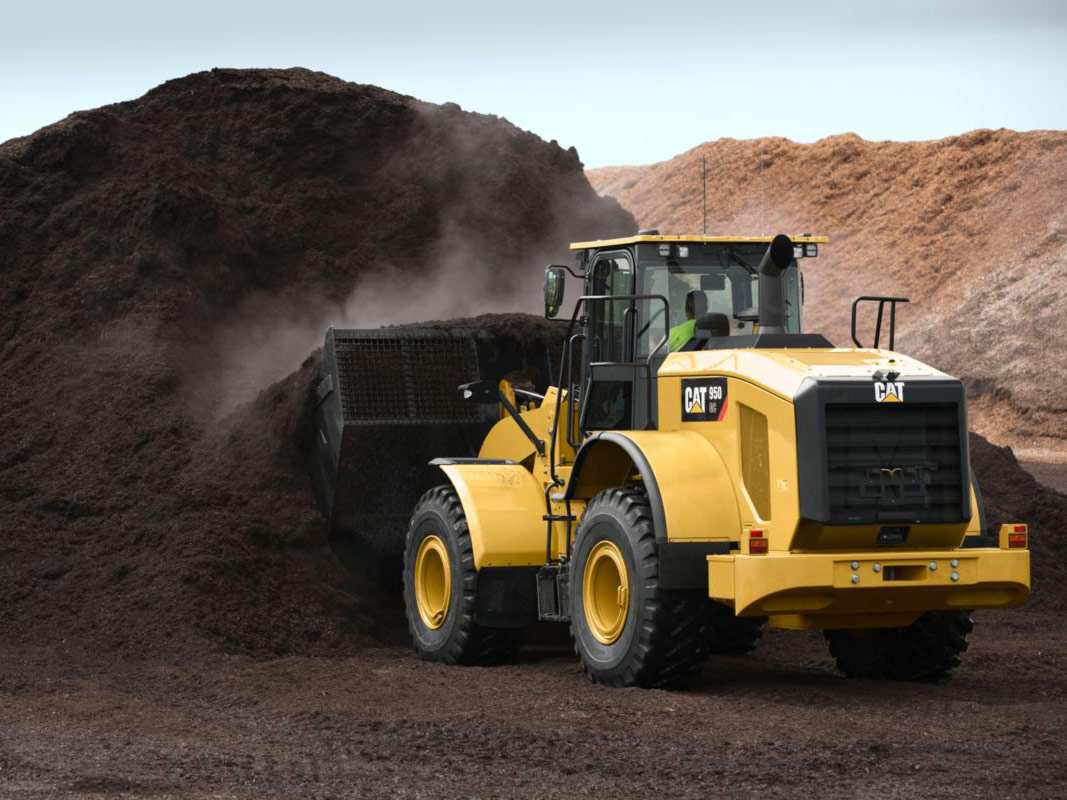

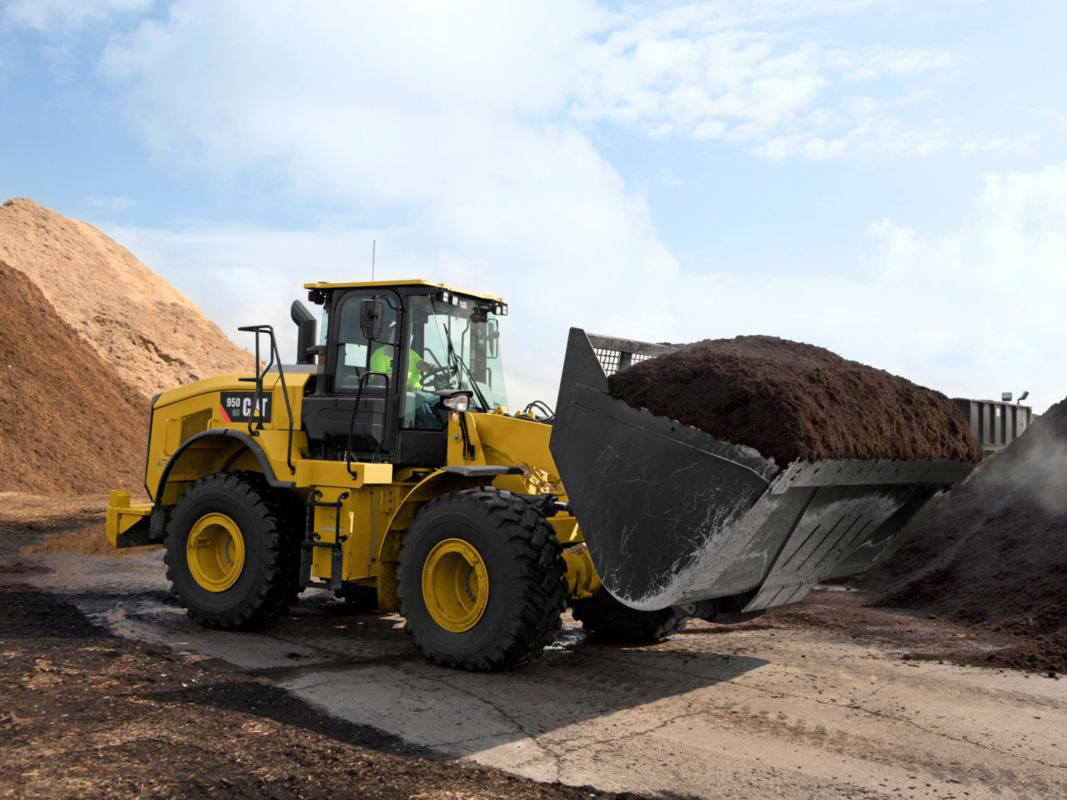

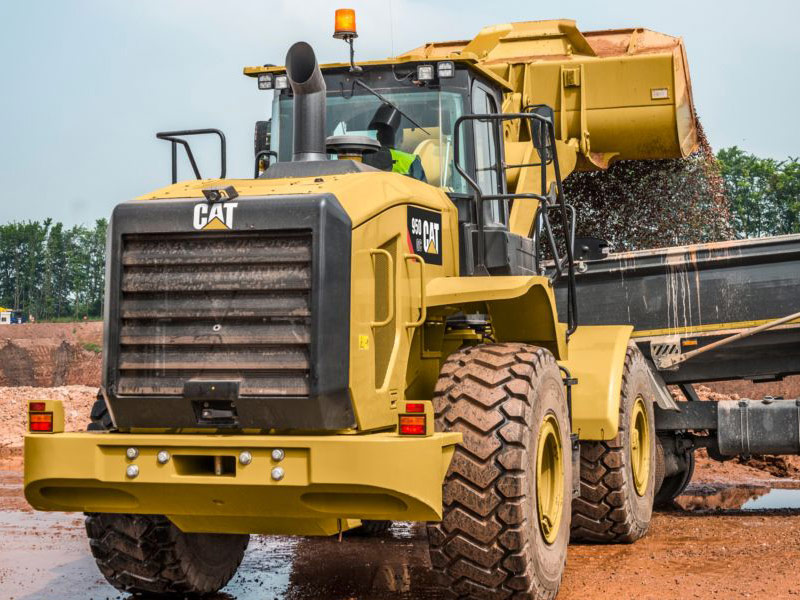

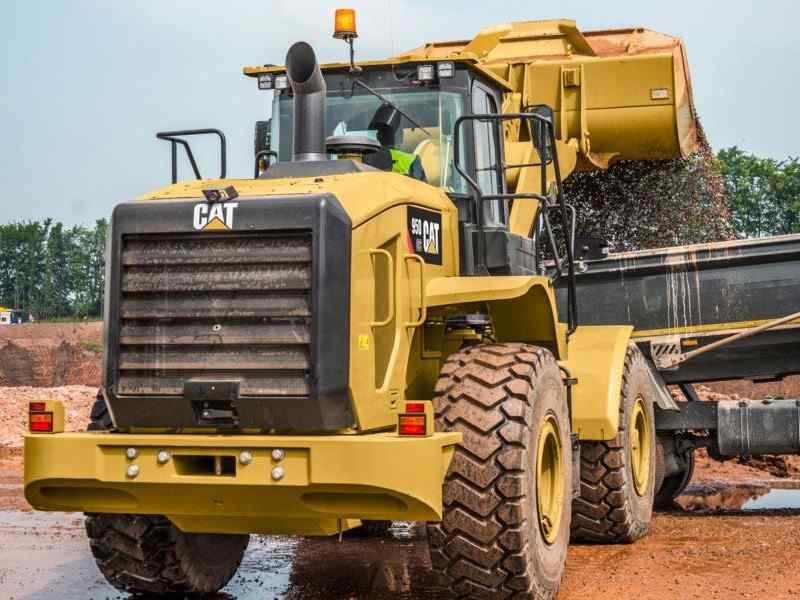

CAT Medium Wheel Loader 950 GC

The new Cat 950 GC Wheel Loader is designed specifically to handle all the jobs on your work site from material handling and truck loading, to general construction, to stockpiling. This machine is purpose-built to be just the right machine to get your everyday jobs done. Great machine performance combined with low owning and operating costs makes the 950 GC the right choice for your business. Meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.

Get a Quote

Overview

The new Cat 950 GC Wheel Loader is designed specifically to handle all the jobs on your work site from material handling and truck loading, to general construction, to stockpiling. This machine is purpose-built to be just the right machine to get your everyday jobs done. Great machine performance combined with low owning and operating costs makes the 950 GC the right choice for your business. Meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.

Engine

Net Power - ISO 9249
168 kW
Engine Model
Cat C7.1 ACERT
Max Power @ 1,700 rpm – SAE J1995
180 kW
Max Power @ 1,700 rpm – ISO 14396
179 kW
Displacement
7.01 L
Max Power @ 1,700 rpm – ISO 14396 (metric)
179 kW
Max Net Power @ 1,700 rpm – SAE J1349
168 kW
Max Net Power @ 1,700 rpm – ISO 9249
168 kW
Max Net Power @ 1,700 rpm – ISO 9249 (metric)
168 kW
Peak Gross Torque (1,400 rpm) – SAE J1995
1099 N·m
Peak Gross Torque (1,400 rpm) – ISO 14396
1092 N·m
Bore
105 mm
With Cooling Fan Speed at 70% of Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)**
73 dB(A)
With Cooling Fan Speed at 70% of Maximum Value: Exterior Sound Power Level (ISO 6395:2008)**
107 LWA***
Height to Top of Hood
2673 mm
Height to Top of Exhaust Pipe
3416 mm
Height to Top of ROPS
3458 mm
Ground Clearance
460 mm
B-Pin Height
4188 mm
Center Line of Rear Axle to Edge of Counterweight
2055 mm
Wheelbase
3300 mm
Center Line of Rear Axle to Hitch
1650 mm
Rack Back @ Maximum Lift
60 degrees
Rack Back @ Carry
45 degrees
Rack Back @ Ground
40 degrees
Lift Arm Clearance
3649 mm
Stroke
135 mm
Tipping Load – Full Turn: ISO 14397-1*
11006 kg
Tipping Load – Full Turn: Rigid Tires**
11737 kg
Breakout Force
154 kN

Weights

Operating Weight
18849 kg
Operating Weight
18849 kg

Buckets

Bucket Capacities
2.9-4.4 m³ (3.75-5.75 yd³)

Hydraulic System

Steering System Pump Type
Piston
Implement System: Maximum Pump Output @ 2,390 rpm
256 L/min
Implement System: Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min)
27900 kPa
Hydraulic Cycle Time – Total Cycle Time
9.4 Secon

Service Refill Capacities

Cooling System
50 L
Crankcase
18 L
Transmission
45 L
Differentials and Final Drives – Front
40 L
Differentials and Final Drives – Rear
38 L
Hydraulic Tank
112 L
DEF Tank
16 L
Fuel Tank Size
290 L

Transmission

Forward 1
7.3 km/h
Forward 2
12.8 km/h
Forward 3
22.8 km/h
Forward 4
36 km/h
Reverse 1
7.3 km/h
Reverse 2
12.8 km/h
Reverse 3
22.8 km/h

Sound

With Cooling Fan Speed at Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)
73 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Power Level (ISO 6395:2008)
109 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Pressure Level (SAE J88:2013)
76 dB(A)*

Turning Circle

Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.
Note
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note
**For machines in European Union countries and in countries that adopt the “EU Directives.”
Note
All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.
Note
***European Union Directive “2000/14/EC” as amended by “2005/88/EC.”
Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).
Note
For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound
Note
*Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Note
**Compliance to ISO (2007) 14397-1 Sections 1 thru 5.

Engine

C7.1 built on a proven block with a new injection system specifically designed for fuel available in emerging markets. The Engine Idle Management System (EIMS) minimizes fuel consumption by reducing engine rpm after a specified amount of idle time.

Operator Station

The spacious cab features easy and intuitive controls and excellent visibility. The cab provides a comfortable working environment for efficient all day operation. The complete operator interface has been designed with the operator in mind: easy to operate and simple to understand. The pilot-operated hydraulic implement controls deliver comfortable, low-effort operation.

The 950 GC cab offers an unmatched viewing area with a wide, flat, and distortion-free front windshield. Air conditioning and adjustable seat adds to operator comfort.

Hydraulics

Load sensing hydraulics produce flow and pressure for the implement system upon demand and only in amounts necessary to perform the needed work functions. This state of the art system results in low fuel consumption.. Operators will also notice an excellent power balance between rimpull and implements.

Serviceability

More reliable and durable power train. Our electrical and hydraulic service centers, along with additional key serviceability features, help make servicing customer machines and in-field component exchange quick, easy, and efficient. Grease fittings for difficult to reach components are grouped conveniently, allowing easy and quick preventive lubrication.

CAT® Product LinkTM

Cat Product Link is a telematics solution, deeply integrated into the machine systems, allowing you to monitor the overall health of your machine including location tracking, fuel consumption and more.

Structures

Caterpillar design and manufacturing techniques assure outstanding service life.

Maintenance and Service Points

All check and fill points are grouped at left hand side of the machine with flip open hood for easy access and service. Fewer lubrication points on loader and backhoe ends result in more machine uptime and less maintenance cost

Linkage

The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. The results are low fuel consumption and exceptional production capabilities.

Low Owning Cost Per Hour

Engine Idle Management System (EIMS), Auto Engine Idle Shutdown (EIS), variable speed fan and load sensing hydraulics help result in the low fuel consumption on this machine.

Easy to Operate and Maintain

Intuitive controls and excellent visibility provide a comfortable working environment for efficient all day operation. Grouped service points and sight gauges allow for easy daily maintenance.

One Machine, Many Jobs

Designed to handle all the jobs on your worksite from material handling and truck loading to general construction. This machine is purpose built to be just the right machine for your work.

Customer Support

Gainwell provides a wide range of services and solutions to meet the exact needs of your business. From pre purchase consultancy, ready parts delivery, maintenance to repair and rebuild, Gainwell is there with you every step of the way. See our services section for more detail.
