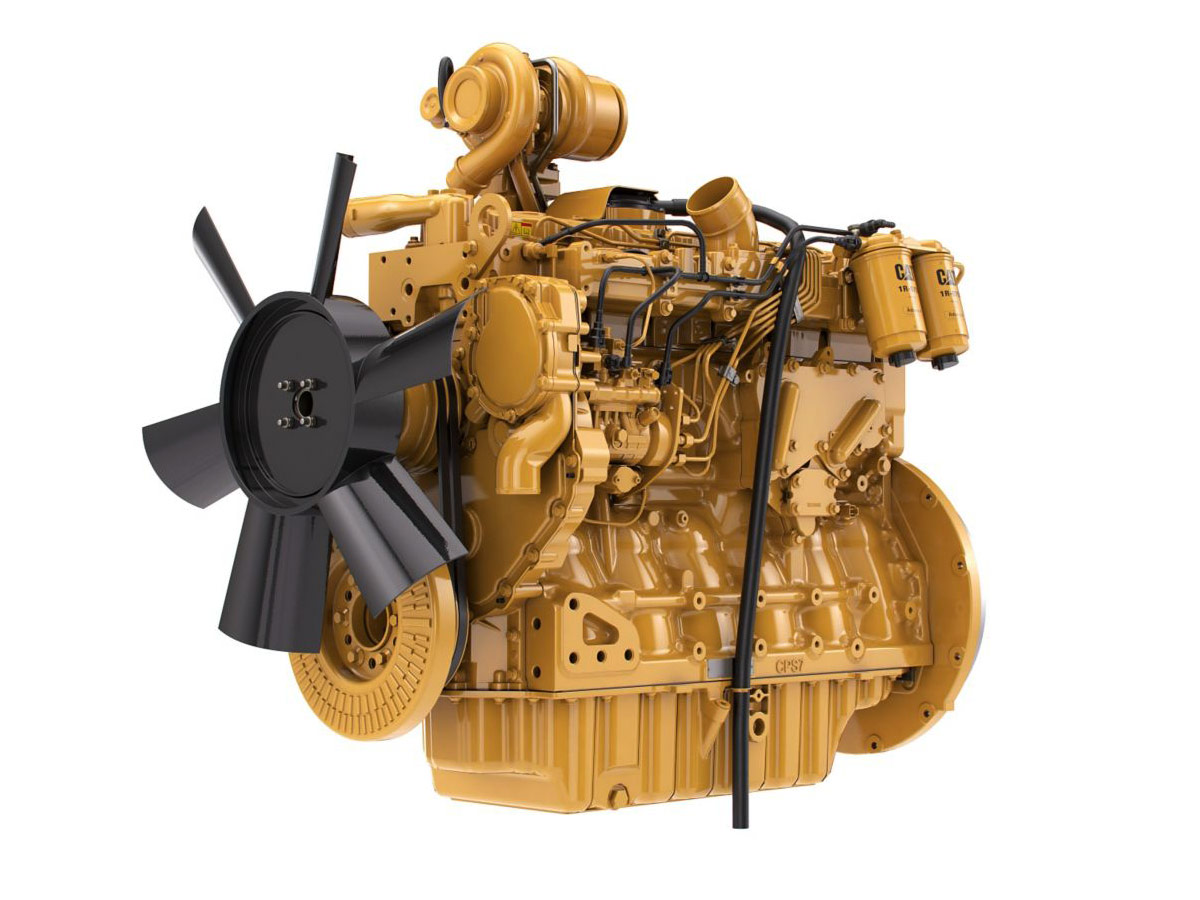

CAT Diesel Engine C7.1

The C7.1 Industrial Diesel Engine is offered in ratings from 129-225 bkW (172-302 bhp) @ 2200 rpm and meets U.S. EPA Tier 4 Final, EU Stage V emission standards. Industries and applications powered by C7.1 engines include: Agriculture, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment

Get a Quote

Overview

The C7.1 Industrial Diesel Engine is offered in ratings from 129-225 bkW (172-302 bhp) @ 2200 rpm and meets U.S. EPA Tier 4 Final, EU Stage V emission standards. Industries and applications powered by C7.1 engines include: Agriculture, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment

Power Rating

Minimum Power
172 HP
Maximum Power
320 HP
Maximum Torque
935 lb-ft @ 1400 rpm
Rated Speed
2200 rpm

General

Engine Configuration
In-Line 6
Combustion System
Direct Injection
Rotation (from flywheel end)
Counterclockwise
Bore
4.1 in
Stroke
5.3 in
Displacement
427.7 inĀ³
Aspiration
Turbocharged-Aftercooled (TA) or Series Turbocharged Aftercooled (TTA)
Compression Ratio
16.5:1
Aftertreatment
DOC+DPF+SCR

Emission Standards

Emissions
U.S. EPA & CARB Tier 4 Final, EU Stage V

Engine Dimensions - Approximate

Height
35.9 in
Length
41.9 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
1658 lb
Width
31.4 in

Aftertreatment Dimensions

Length
29 in
Width
30.3 in
Height
18.1 in
Diameter
13.3 in
Weight
236 lb

Installation

Boasting one of Caterpillar's most modular engine designs to date, the Cat C7.1 also features an engine-mounted aftertreatment that saves OEMs valuable time and space when installing into a wide variety of machines-especially industrial and construction applications. OEMs also enjoy a 20% length, 5% height and 40% weight reduction when downsizing from 9-liter platforms.

Advanced Features

The Cat C7.1 uses passive regeneration technology, so operators can continue to perform their toughest tasks, in the most severe environments, without having to wait on the engine.

Ideal Applications

Industrial, agricultural and construction applications such as: Pumps • Compressors • Chippers • Grinders • Asphalt paving equipment • Hydraulic power units • Bore rigs • Drill rigs • Tractors

Total Cost of Ownership

The benefits to downsizing are many, including an 18% decrease in overall fuel consumption when downsizing from a 6 cylinder engine. With an added 3-4% decrease in overall DEF consumption and EGR integration, the cost savings don't take long to add up.

Cat Dealer Product Support

Scheduled maintenance, five-year warranty, superior dealer service and a comprehensive global dealer support network-it's all standard with the Cat C7.1.

Safety

Validated with thousands of hours of field testing, the Cat C7.1 is built to meet Caterpillar's strict safety standards and customers' most demanding work sites throughout the world.
