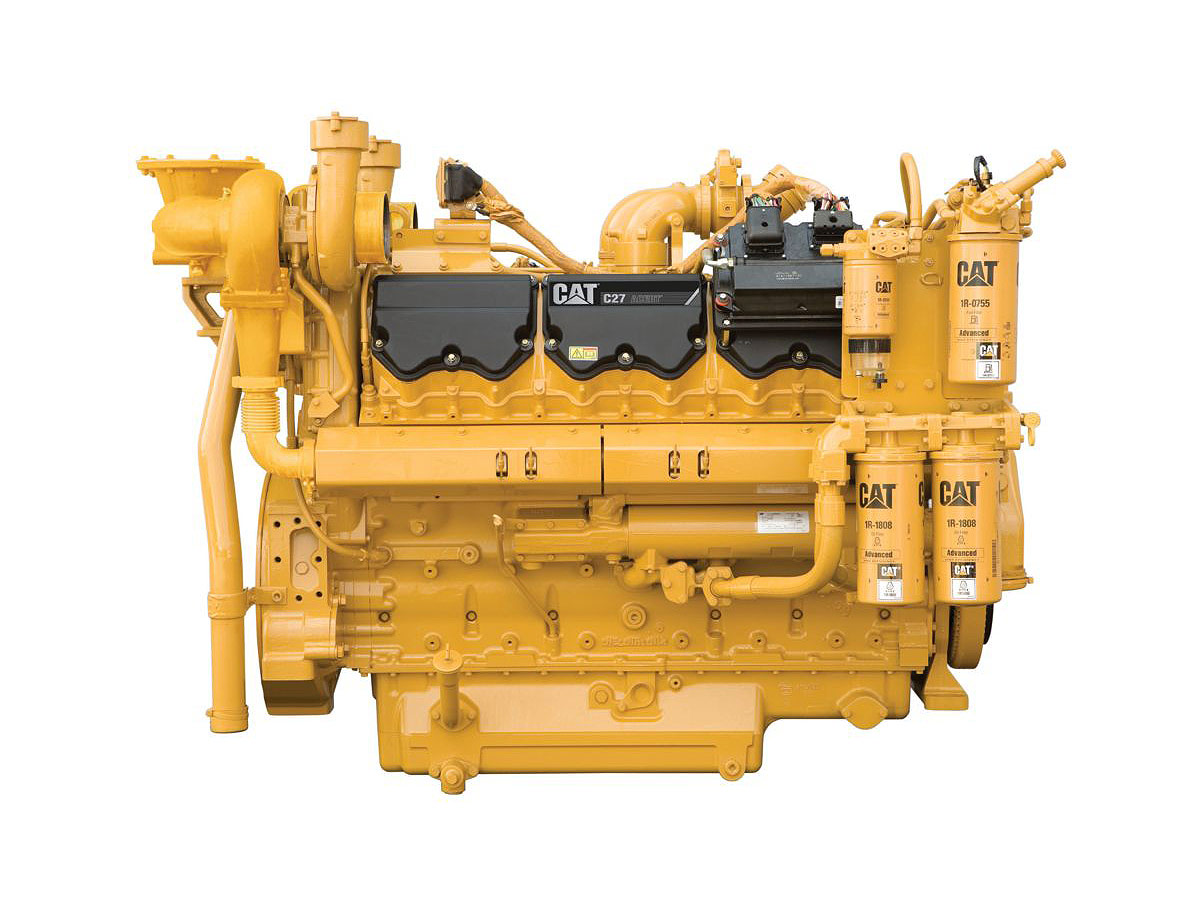

CAT C27 ACERT Land Mechanical Drilling Engine
Cat C27 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C27 ACERT engines to deliver excellent performance with low operating costs and emissions. This is an ideal engine for land mechanical drilling applications such as mud pump drives. Cat C27 ACERT™ Industrial Diesel Engine. Ratings: 597-858 bkW (800-1150 bhp) @ 1800-2100 rpm meet U.S. EPA Tier 2 equivalent emission standards.
Share
Overview
Cat C27 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C27 ACERT engines to deliver excellent performance with low operating costs and emissions. This is an ideal engine for land mechanical drilling applications such as mud pump drives. Cat C27 ACERT™ Industrial Diesel Engine. Ratings: 597-858 bkW (800-1150 bhp) @ 1800-2100 rpm meet U.S. EPA Tier 2 equivalent emission standards.
-
Minimum Rating
597.0 bkW -
Maximum Rating
858.0 bkW
-
Emissions
U.S. EPA Non-road Tier 2 -
Rated Speed
1800.0 RPM -
Bore
137.7 mm -
Stroke
152.4 mm -
Displacement
27.2 L -
Aspiration
Turbocharged-Aftercooled
-
Governor and Protection
ADEM A3 -
Engine Weight, net dry
2895.0 kg -
Oil Change Interval
250 -
Flywheel and Flywheel Housing
SAE No. 0 or SAE No. 1 -
Flywheel Teeth
136 (SAE 0), 113 (SAE 1)
-
Rotation (from flywheel end)
Counterclockwise
-
Minimum Cooling System (engine only)
54.9 L
-
Length
1918.0 mm
-
Width
1463.0 mm
-
Height
1321.0 mm
