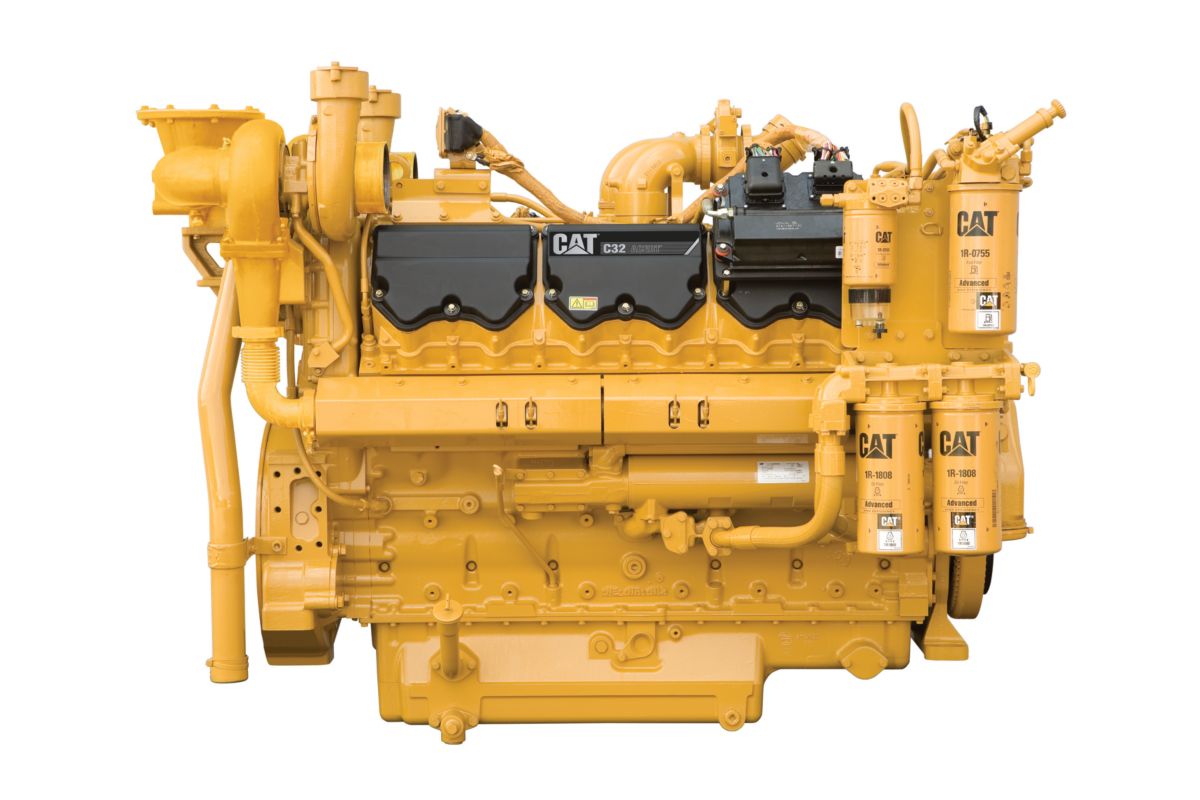

CAT Dry Manifold Engine C32 ACERT

Cat® C32 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C32 ACERT engines to deliver excellent performance with low operating costs and emissions. Equipment powered by C32 ACERT engines include well stimulation pumping, pump skids, nitrogen units, acidizing units, blenders, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. Cat C32 ACERT Industrial Diesel Engine. Ratings: 597-1119 bkW (800-1500 bhp) @ 1800-2100 rpm meet U.S. EPA Tier 2 equivalent and China Stage III emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.

Get a Quote

Overview

Cat® C32 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C32 ACERT engines to deliver excellent performance with low operating costs and emissions. Equipment powered by C32 ACERT engines include well stimulation pumping, pump skids, nitrogen units, acidizing units, blenders, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. Cat C32 ACERT Industrial Diesel Engine. Ratings: 597-1119 bkW (800-1500 bhp) @ 1800-2100 rpm meet U.S. EPA Tier 2 equivalent and China Stage III emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.

Generator Set Specifications

Minimum Rating
596.0 bkW
Maximum Rating
1118.0 bkW

Engine Specifications

Governor and Protection
ADEM A3
Flywheel and Flywheel Housing
SAE No. 0 or SAE No. 1
Flywheel Teeth
136

Engine

Aspiration
Turbocharged-Aftercooled
Displacement
32.1 L
Stroke
162.0 mm
Bore
145.0 mm
Emissions
EPA and CARB Non-Road Mobile Tier 2, IMO Tier II, China Stage III

General

Rotation (from flywheel end)
Counterclockwise

Generator Set Dimension

Length
1918.0 mm

Moldboard.

Width
1473.0 mm

Ripper

Height
1321.0 mm

Winch

Weight
2286.0 kg

Service Refill Capacities

Cooling System
55.0 L
