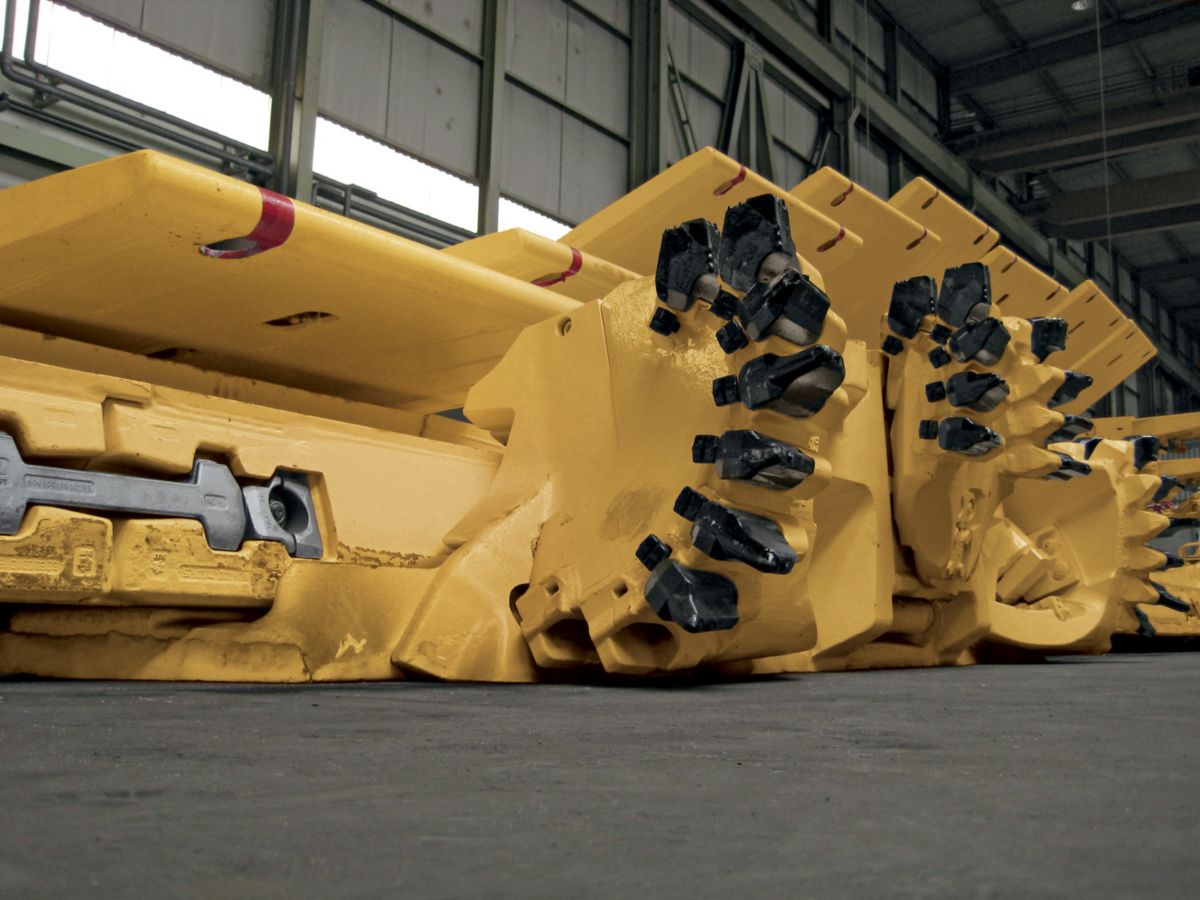

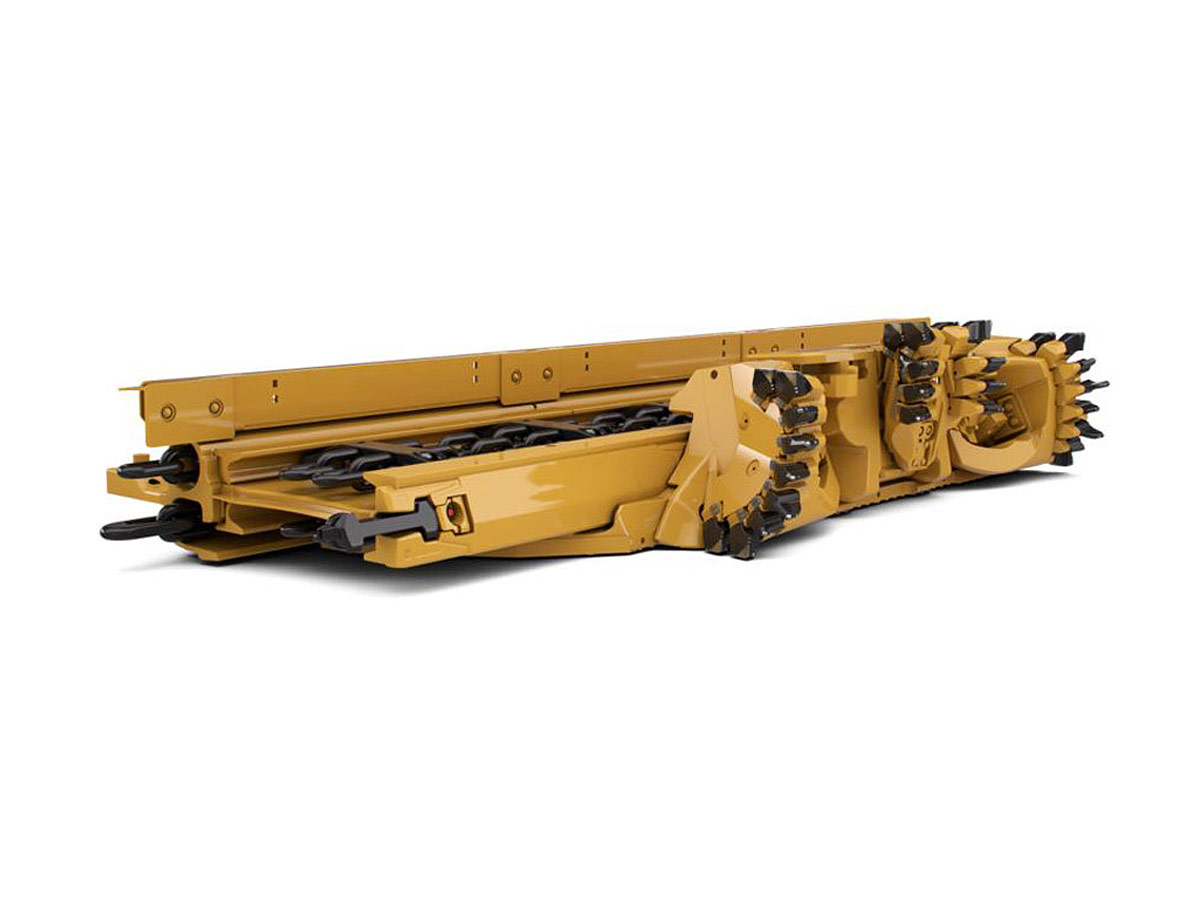

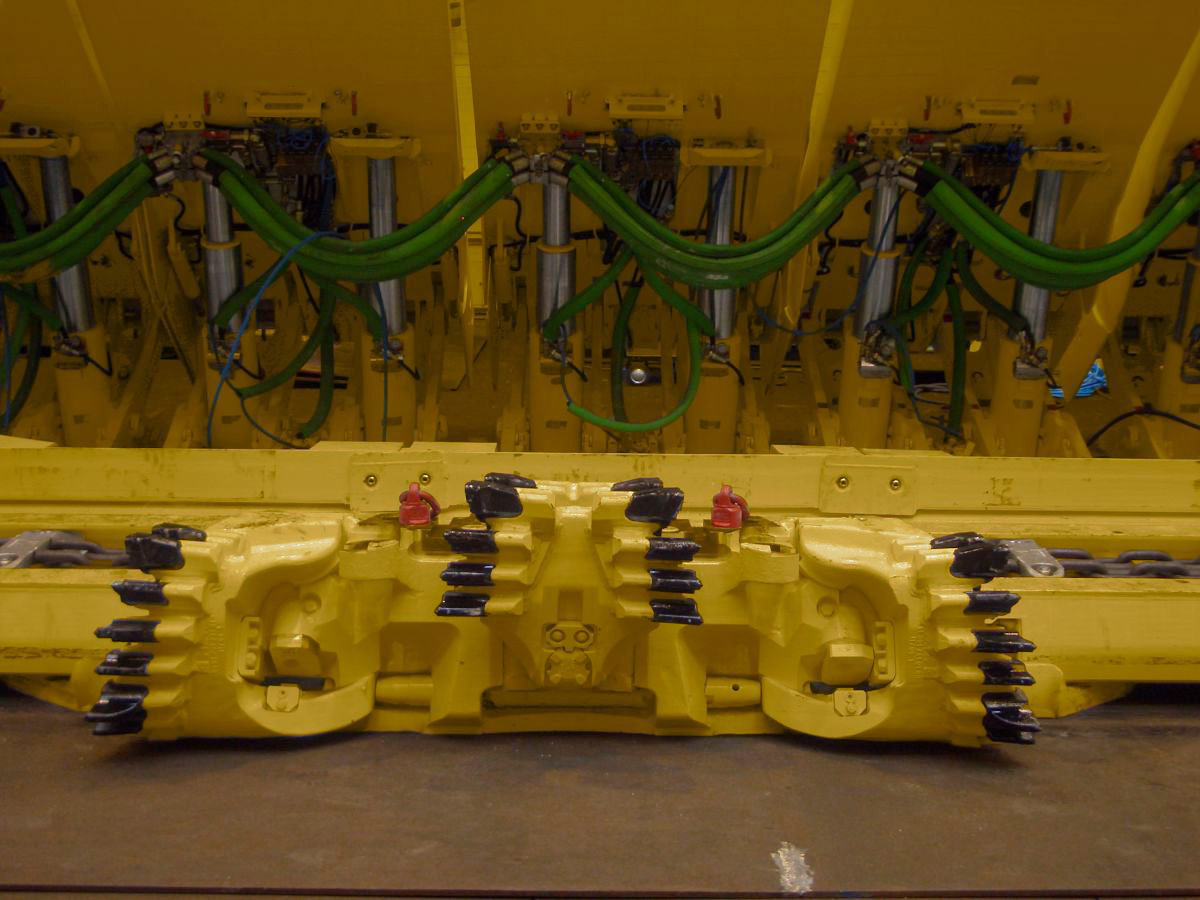

CAT® RHH800 Plow System for Low & Medium Seams
Cat® Plows are the mining system of choice for low and medium seams – exceeding the performance of shearers and delivering rapid production.
Share
Overview
Cat® Plows are the mining system of choice for low and medium seams – exceeding the performance of shearers and delivering rapid production.
-
Coal Hardness
Soft - hard coal -
Maximum Cutting Depth
190.0 mm -
Maximum Seam Inclination
up to 60° -
Plow Body Height
0.6 m-1.6 m (24-63 in) -
Typical Cutting Height
0.8 m-1.6 m (31.5-63 in) -
Maximum Cutting Depth
190.0 mm
-
Maximum Installed Power
2 × 400 kW (2 × 536 hp) -
Maximum Plow Speed
2.5 m/s (500 fpm)
-
Bottom Bit Positions - Position 1
+24 mm (+0.08 ft) -
Bottom Bit Positions - Position 2
-5 mm (-0.02 ft) -
Bottom Bit Positions - Position 3
-18 mm (-0.06 ft) -
Bottom Bit Positions - Position 4
-37 mm (-0.12 ft) -
Maximum Drive Power
2 × 400 kW (2 × 536 hp) -
Mechanical Height Adjustment
255-300 mm (0.83-0.98 ft) -
Plow Heights - Height 1
600-855 mm (1.97-2.81 ft) -
Plow Heights - Height 2
820-1120 mm (2.70-3.67 ft) -
Plow Heights - Height 3
1085-1385 mm (3.56-4.54 ft) -
Plow Heights - Height 4
1350-1650 mm (4.43-5.41 ft) -
Plow Length
2384.0 mm -
Weights
4400-6400 kg (9,700-14,109 lb)
