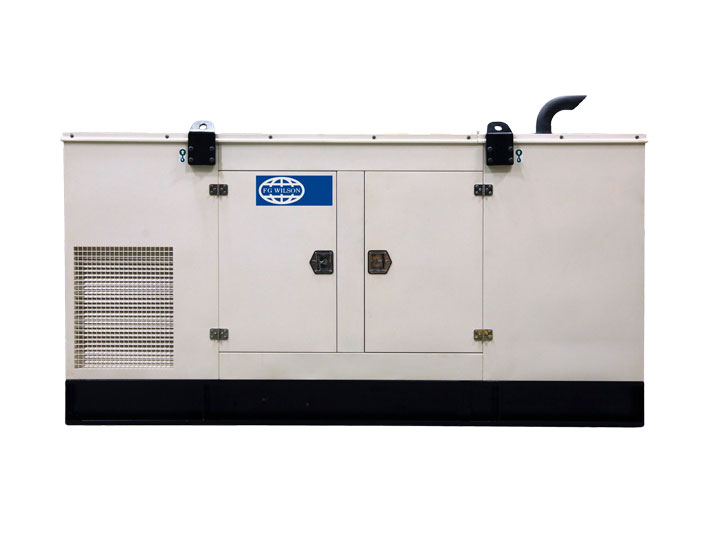

FG Wilson 160 kVA DG Set
Meets latest India CPCBII as per G.S.R 771(E) dated 11/12/2013 and its further amendments. Meets CPCB / MOEF norms as per G.S.R 371(T) dated 17/05/2002 and its further amendments.
Get a QuoteOverview
Meets latest India CPCBII as per G.S.R 771(E) dated 11/12/2013 and its further amendments. Meets CPCB / MOEF norms as per G.S.R 371(T) dated 17/05/2002 and its further amendments.
Engine Technical Data
Fuel System / Type
Mechanical / HSD
Lube Oil Spec
15W40 CH4
Lube Oil Capacity (l)
11.5
Engine Model
FBD6-6.8D1
Rated Power (kW)
170
Aspiration
TC-IC
Cooling Systems
Liquid Cooled
Cooling System Capacity (l)
22
Engine Speed (rpm)
1500
Governing
Mechanical A2
No of Cylinders
6
Bore / Stroke (mm)
107 / 126
Displacement (l)
6.8
Compression Ratio
17.5 : 1
Fuel Tank Capcity (l)
300
Generator Set Technical Data
RPM
1500
Power rating (kVA)
160
Canopy Length (mm)
4550
Canopy Width (mm)
1460
Canopy Height (mm)
2130
Fuel Consumption @ 100% Load (l/hr)
33.8
Generator Set Options
WH - Coolant Heater
Optional
PBCB - Static Battery Charger
Optional
AH1 - Alternator Space Heater
Optional
KWH - kWH with CT's
Optional
ELCB - ELCB & Earth Fault Relays
Optional
GE5 - Electronic Engine
Optional
GE9 - Electronic Engine
-
Alternator Technical Data
Alternator Model
G1R250MB
Excitation System
Brushless
Current amps (a)
222.4
No. of Bearings
1
Voltage Regulation
+/- 1%
Ingress Protection
IP23
Insulation Class
H
Control Panel Options
STDP - Standard Control Panel
Standard
AMFB - AMF Panel with Double Breaker
Optional
AMFS - AMF Panel with Single Breaker
Optional
ATSM - Auto Start Panel with Manual Breaker Closing
Optional
SYNC - Synchronising Panel 1
Optional
