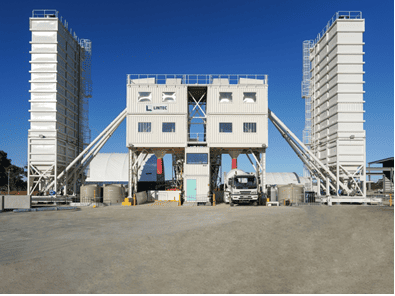

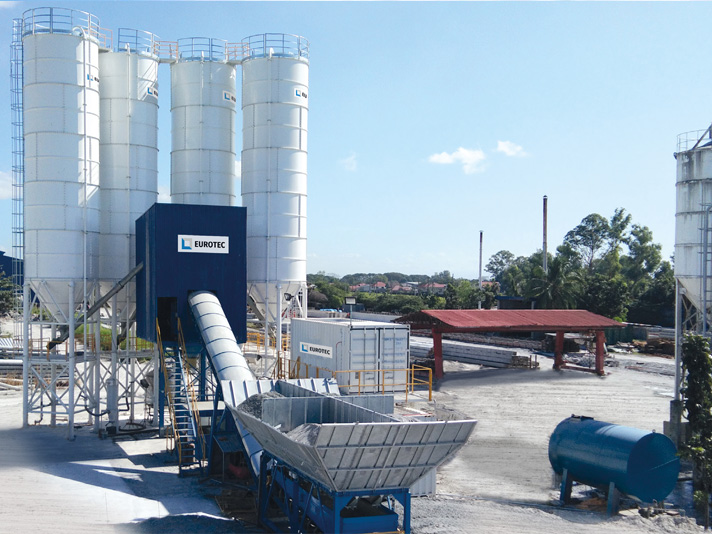

The Eurotec stationary concrete batching plants are perfect for long-term and larger scale projects that require greater volumes of concrete production, offering production capacities starting from 60m3/hr to 250m3/hr. These plants can produce specialised concrete mix designs to meet your specific project needs. The concrete plants can also be customised with additional plant features and advanced control systems. These plants are ideal for customers who demand the most cost-effective batching plant for high-quality concrete production.
Since 1919, Eurotec Concrete batching plants have been known to use cutting-edge German technology to produce high-quality concrete. Its product portfolio includes stationary and mobile concrete batching plants, specialist concrete cooling solutions, as well as with pavement-related technologies and machineries which can be found in job sites paving roads, highways, race tracks, dams, buildings and airport runways globally.
Backed by centuries of collective German expertise, our brands Lintec and Eurotec, provide powerful and innovative solutions that meet industry standards for environmental impact, recyclability and reusability. Our flagship premium Lintec containerized batching plants are industry-leading and built in 100% ISO certified seaworthy containers. Our staff provide exceptional pre- and after-sales customer service for thousands of prestigious infrastructure projects worldwide
Share
Facebook
X
Instagram
LinkedIn
Overview
The Concrete Batching plant comprised of below two models

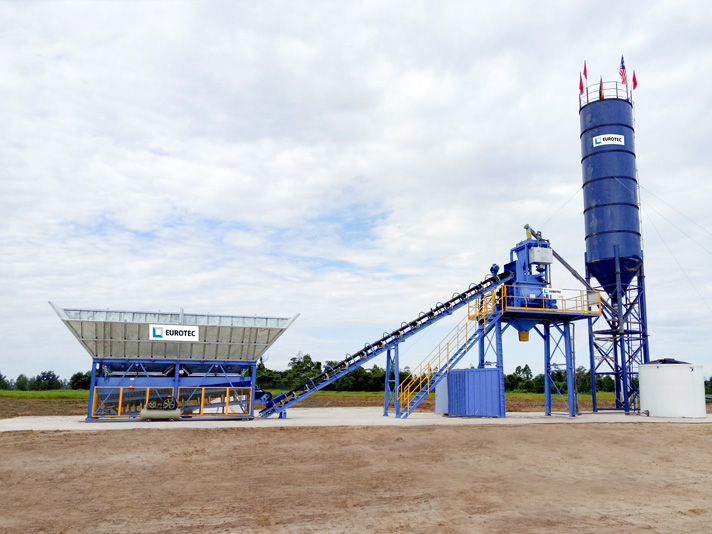

- QUADRANT BIN DESIGN: A modular and affordable series with quadrant-designed aggregate bins
- IN-LINE BIN DESIGN: A series with a customizable design that is with In-line bins.
| PLANT CAPACITY | 60 m3/hr | 75 m3/hr | 90 m3/hr |
|---|---|---|---|
| AGGREGATE BIN TYPE | QUADRANT | QUADRANT | QUADRANT |
| NUMBER OF BINS | 4 | 4 | 4 |
| TOTAL AGGREGATE BIN CAPACITY | 40 M3 | 40 M3 | 50 M3 |
| TYPE OF MIXER | TWIN-SHAFT / PLANETARY | TWIN-SHAFT / PLANETARY | TWIN-SHAFT / PLANETARY |
| MIXER CAPACITY IN LTR | 1500/1000 | 1875/1250 | 3000/2000 |
| MIXER MOTOR IN HP | 50 | 60 | 2 × 50 = 100 |
| AGGREGATE WEIGHING CONVEYOR | PLAIN BELT | PLAIN BELT | PLAIN BELT |
| AUXILIARY CONVEYOR BELT TYPE | CHEVRON | CHEVRON | CHEVRON |
| ADDITIVE WEIGHER | ONE NO | ONE NO | ONE NO |
| AIR COMPRESSOR HP | YES | YES | YES |
| CONTROL PANEL WITH CABIN | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC |

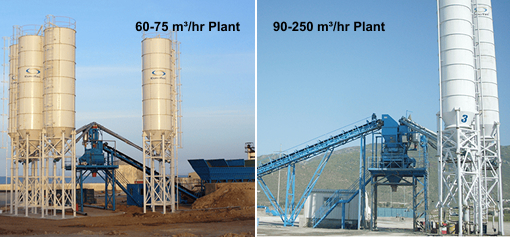

| PLANT DETAILS | 60 m3/hr | 75 m3/hr | 90 m3/hr | 120 m3/hr | 160 m3/hr | 200 m3/hr | 250 m3/hr |
|---|---|---|---|---|---|---|---|
| AGGREGATE BIN TYPE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| NUMBER OF BINS | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| TOTAL AGGREGATE BIN CAPACITY | 40 m3 | 40 m3 | 60 m3 | 80 m3 | 100 m3 | 100 m3 | 100 m3 |
| TYPE OF MIXER | TWIN-SHAFT / PLANETARY | TWIN-SHAFT / PLANETARY | TWIN-SHAFT / PLANETARY | TWIN-SHAFT | TWIN-SHAFT | TWIN-SHAFT | TWIN-SHAFT |
| MIXER CAPACITY IN LTR | 1500/1000 | 1875/1250 | 3000/2000 | 4500/3000 | 6000/4000 | 6750/4500 | 9000/6000 |
| MIXER MOTOR IN HP | 50 | 60 | 2 × 50 = 100 | 2 × 75 = 150 | 2 × 100 = 200 | 2 × 120 = 240 | 2 × 150 = 300 |
| AGGREGATE WEIGHING CONVEYOR | PLAIN BELT | PLAIN BELT | PLAIN BELT | PLAIN BELT | PLAIN BELT | PLAIN BELT | PLAIN BELT |
| AUXILIARY CONVEYOR BELT TYPE | CHEVRON | CHEVRON | CHEVRON | CHEVRON | CHEVRON | CHEVRON | CHEVRON |
| ADDITIVE WEIGHER | 1 NO | 1 NO | 1 NO | 2 NOS | 2 NOS | 2 NOS | 2 NOS |
| ADDITIVE WEIGHER | YES | YES | YES | YES | YES | YES | YES |
| CONTROL PANEL WITH CABIN | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC |
TWIN SHAFT MIXER
- EUROTEC twin-shaft mixer, 100% manufactured in Italy.
- Over 10,000 mixers currently in operations worldwide.
- The internal layout of the mixer paddles allows the mixer to batch mix even the most challenging of mix designs including zero slump and other ready-mix concrete, precast, roller compacted concrete (RCC), heavy concrete & high-performance concrete.
- They are truly designed for plants that will produce large volumes with high mixing intensity.

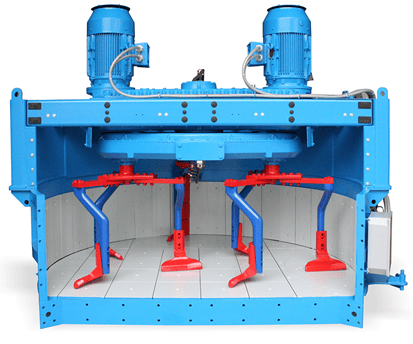

PLANETARY MIXER
- This mixer is designed to mix a wide range of materials, including high-performance concrete, precast concrete, ceramics, glass, and more.
- With its unique rotating mixing stars, this mixer ensures thorough and uniform distribution in every batch.
- More homogeneity is obtained due to the compulsory mixing action.
- Quick mixing cycles, which shorten batch durations and enhance productivity.

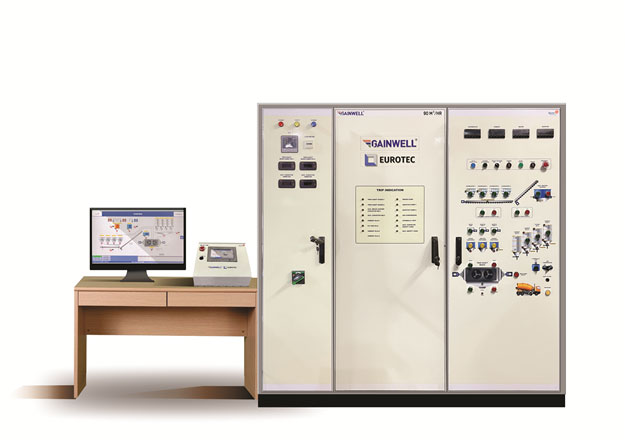

CONTROL PANEL
- PLC based control system with SCADA reporting system.
- Unlimited numbers of concrete recipes (mix designs).
- Wide choice and user wise reporting formats.
- Automatic material-in-air compensation for accurate and consistent dosing.
- Diagnostic displays to ease of trouble shooting.
- Easy operating console and user-friendly home screen with live animated color graphics.
- Standard electrical sequence interlocks for safety.
