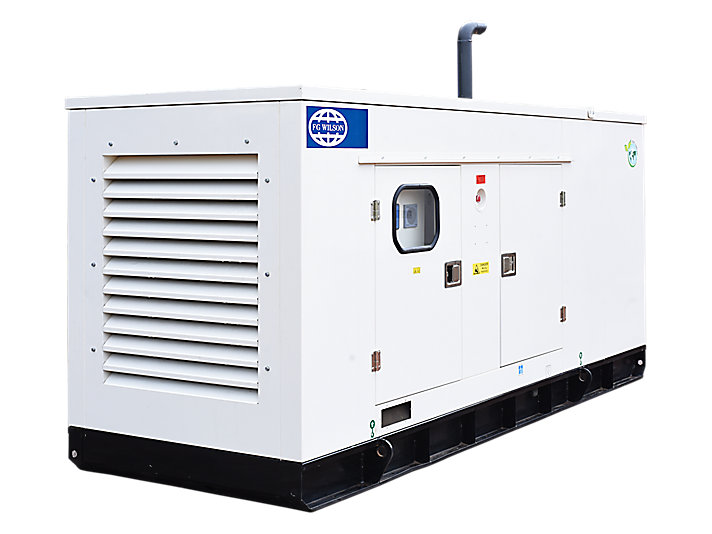

FG Wilson 125 kVA-2A DG Set

Meets latest India CPCBII as per G.S.R 771(E) dated 11/12/2013 and its further amendments. Meets CPCB / MOEF norms as per G.S.R 371(T) dated 17/05/2002 and its further amendments.

Get a Quote Download Brochure

Overview

Meets latest India CPCBII as per G.S.R 771(E) dated 11/12/2013 and its further amendments. Meets CPCB / MOEF norms as per G.S.R 371(T) dated 17/05/2002 and its further amendments.

Generator Set Technical Data

Fuel Consumption @ 100% Load (l/hr)
28.8

Alternator Technical Data

Alternator Model
G1R250SD
Current amps (a)
175
No. of Bearings
1
Insulation Class
H

Engine Technical Data

Engine Model
AL6DTIDG6
Rated Power (kW)
100
Aspiration
TA
Cooling Systems
Liquid Cooled
Cooling System Capacity (l)
22.5
Engine Speed (rpm)
1500
Governing
Electronic A0
No of Cylinders
6
Bore / Stroke (mm)
104 / 113
Compression Ratio
16.5 : 1
Fuel Tank Capcity (l)
260
Fuel System / Type
Rotary FIP / Diesel
Lube Oil Spec
15W40
Lube Oil Capacity (l)
18
