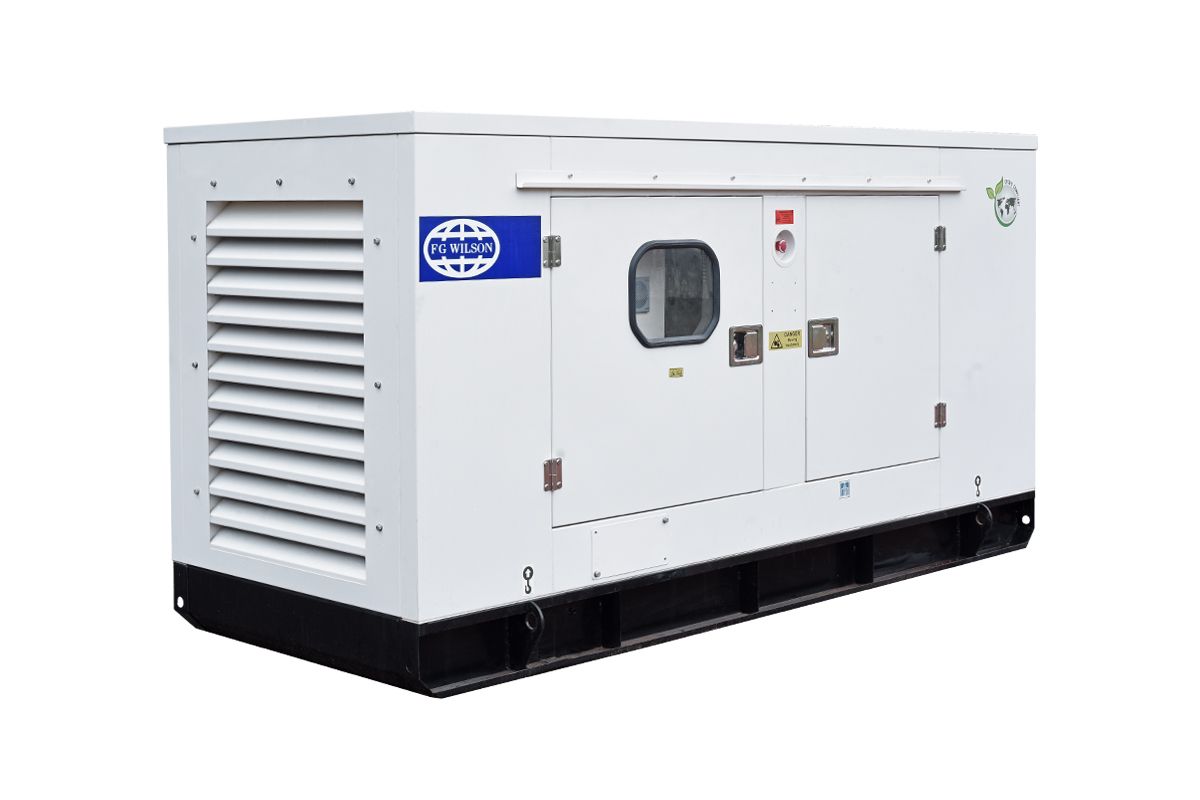

FG Wilson 62.5 kVA-2A DG Set

Meets latest India CPCBII as per G.S.R 771(E) dated 11/12/2013 and its further amendments. Meets CPCB / MOEF norms as per G.S.R 371(T) dated 17/05/2002 and its further amendments.

Get a Quote

Overview

Meets latest India CPCBII as per G.S.R 771(E) dated 11/12/2013 and its further amendments. Meets CPCB / MOEF norms as per G.S.R 371(T) dated 17/05/2002 and its further amendments.

Generator Set Technical Data

Fuel Consumption @ 100% Load (l/hr)
14.8

Alternator Technical Data

Alternator Model
LSAP 42.3 K
Current amps (a)
87
No. of Bearings
1
Insulation Class
H

Engine Technical Data

Engine Model
AL4CTIDG5
Rated Power (kW)
50
Aspiration
TA
Cooling Systems
Liquid Cooled
Cooling System Capacity (l)
13.5
Engine Speed (rpm)
1500
Governing
Mechanical A1
No of Cylinders
4
Bore / Stroke (mm)
104 / 113
Compression Ratio
16.5 : 1
Fuel Tank Capcity (l)
155
Fuel System / Type
Inline FIP / Diesel
Lube Oil Spec
15W40
Lube Oil Capacity (l)
9
