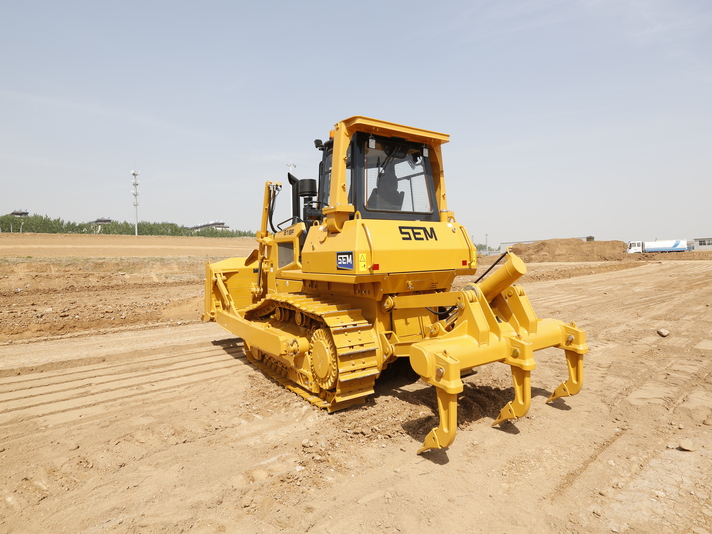

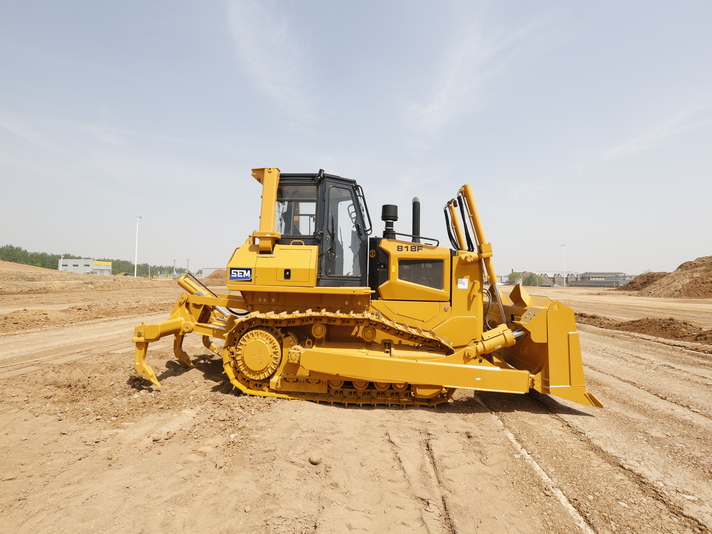

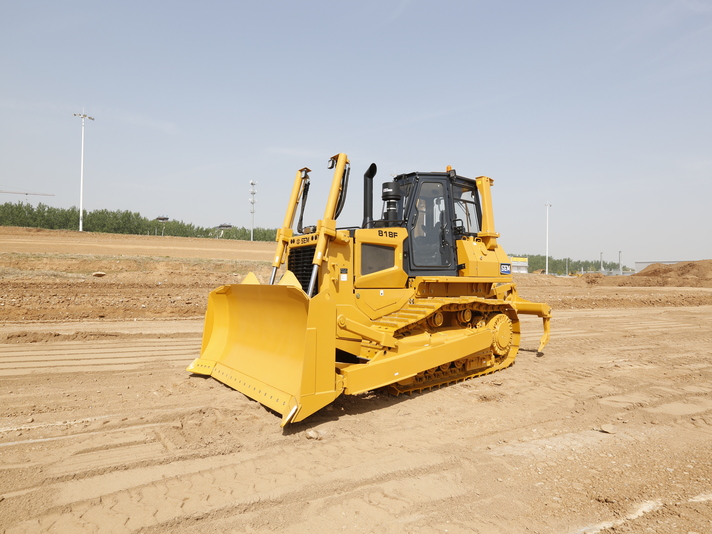

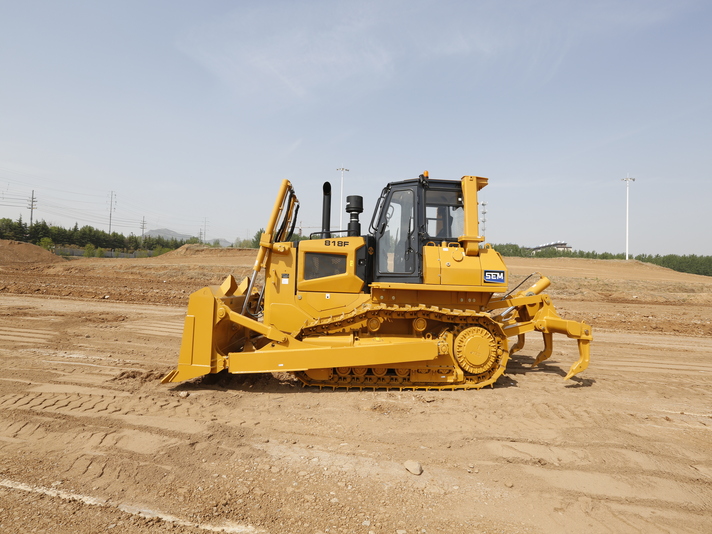

SEM Track Type Tractor 818F

The SEM818F is the answer to all your ripping, landscaping, clearance, slot dozing, leveling, earth moving, site prepping and finishing work questions for a variety of applications ranging from construction to mining.

Engineered for demanding work, the 818F features an innovative, Caterpillar-designed world-class, dual-path electronic control hydrostatic drive system that combined with the Rexroth variable displacement piston pump and motors delivers 7% to 25% more advanced traction force than competitors, maintenance free undercarriage components for lower maintenance costs and longer life and a comfortable operator cabin that has 10% more space than industry leading models amongst others.

Get a Quote Download Brochure

Overview

The SEM818F is the answer to all your ripping, landscaping, clearance, slot dozing, leveling, earth moving, site prepping and finishing work questions for a variety of applications ranging from construction to mining.

Engineered for demanding work, the 818F features an innovative, Caterpillar-designed world-class, dual-path electronic control hydrostatic drive system that combined with the Rexroth variable displacement piston pump and motors delivers 7% to 25% more advanced traction force than competitors, maintenance free undercarriage components for lower maintenance costs and longer life and a comfortable operator cabin that has 10% more space than industry leading models amongst others.

Engine

Rated Power
1900r/min
Engine Power – ISO 14396
140kW/188hp
Rated Speed
1900r/min
Model
WD10G190E214

Undercarriage

Ground Pressure
57 Kpa

Hydraulic System

Type
Gear Pump, Pilot Control
Implement Hydraulic System Pressure
19 mPa

General Data

Operating Weight
1950 Kg

Undercarrige

Track Shoe Width
510 mm
Track Shoe Quantity
37
Track Roller Quantity
6
Carrier Roller Quantity
2

Powertrain

Type
Dual-path, closed loop electronically controlled hydrostatic drive system
Travel Speed-F/R
Infinitely variable speed: Forward 0-8 Km/h, Reverse 0-10 Km/h
Steering & Brake
Hydrostatic steering; wet, multi-disc brake, Bellville spring actuated and hydraulically released
