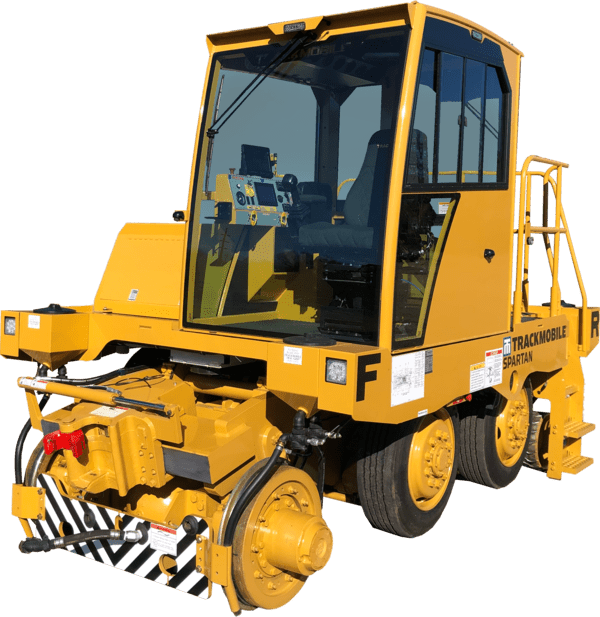

The Spartan is Trackmobile’s answer to smaller operations. This unit is perfect for lower duty cycle applications where reliability is critical, Spartan quickly gets the job done safely and efficiently. Equipped with many of the same features as the larger Trackmobile units, Spartan operators enjoy the same dependable performance and ergonomically designed cab to ensure operator comfort.
Get a Quote Download BrochureThe Spartan is Trackmobile’s answer to smaller operations. This unit is perfect for lower duty cycle applications where reliability is critical, Spartan quickly gets the job done safely and efficiently. Equipped with many of the same features as the larger Trackmobile units, Spartan operators enjoy the same dependable performance and ergonomically designed cab to ensure operator comfort.
| Maximum Tractive Effort | |
|---|---|
| Double Coupled | 26,000 lbs [11,793 kg] |
| Single Coupled | 21,750 lbs [9,866 kg] |
| Dimensions / Performance | ||
|---|---|---|
| On Rail | On Road | |
| Wheel Base | 119” [3,023 mm] | 59” [1,498.6 mm] |
| Rail & Road Clearance | 4.12” [104.6 mm] | 10.84” [275 mm] |
| Rail & Road Height | 121” [3,073 mm] | 127.3” [3,233 mm] |
| Length | 173.25” [4,401 mm] | |
| Width | 104” [2,641 mm] | |
| Weight | 30,760 lbs [13,953 kg] | |
| Rail Gauge | AAR Standard 56.5” [1,435 mm] | |
| Centerline to Cab Side | 52.8” [1,341.1 mm] | |
| Centerline to Non-Cab Side | 50.2” [1,275.1 mm] | |
| Speeds (Forward & Reverse) | ||
|---|---|---|
| On Rail | On Road | |
| Low | 2.0 mph [3.2 km/h] | 1.2 mph [1.9 km/h] |
| 2nd Gear | 4.2 mph [6.8 km/h] | 2.5 mph [4.0 km/h] |
| 3rd Gear | 10.2 mph [16.4 km/h] | 6.0 mph [9.7 km/h] |
