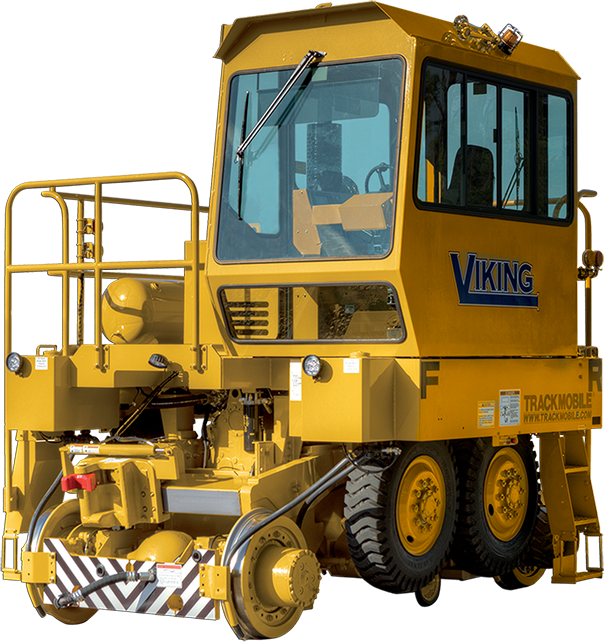

Trackmobile Viking

The Viking is Trackmobile’s most nimble capacity model. Perfect for lower duty cycle applications where reliability is critical, Viking quickly gets the job done safely and efficiently. Equipped with many of the same features as the Hercules, Viking operators enjoy the same dependable performance and ergonomically designed cab to ensure operator comfort.

Get a Quote Download Brochure

Overview

The Viking is Trackmobile’s most nimble capacity model. Perfect for lower duty cycle applications where reliability is critical, Viking quickly gets the job done safely and efficiently. Equipped with many of the same features as the Hercules, Viking operators enjoy the same dependable performance and ergonomically designed cab to ensure operator comfort.

Maximum Tractive Effort
Double Coupled 42,689 lbs [19,363 kg]
Single Coupled 27,014 lbs [12,253 kg]
Dimensions / Performance
On Rail On Road
Wheel Base 121” [3,073 mm] 59.5” [1,511 mm]
Rail & Road Clearance 3.5” [88.9 mm] 9.3” [236.2 mm]
Rail & Road Height 148.8” [3,779 mm] 159.4” [4,049 mm]
Length 152” [3,860 mm]
Width 126.5” [3,213 mm]
Weight 34,360 lbs [15,585 kg]
Rail Gauge AAR Standard 56.5” [1,435 mm]
Centerline to Cab Side 65.4” [1,661 mm]
Centerline to Non-Cab Side 61.1” [1,552 mm]
Speeds (Forward & Reverse)
On Rail On Road
Low 2.4 mph [3.9 km/h] 1.5 mph [2.4 km/h]
2nd Gear 4.0 mph [6.4 km/h] 2.5 mph [4.0 km/h]
3rd Gear 8.0 mph [12.8 km/h] 5.1 mph [8.2 km/h]
4th Gear 13.6 mph [21.9 km/h] 8.7 mph [14.0 km/h]
