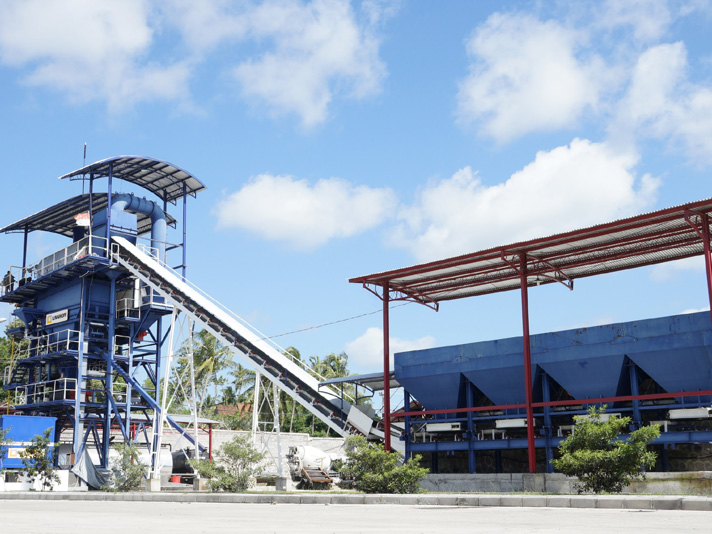

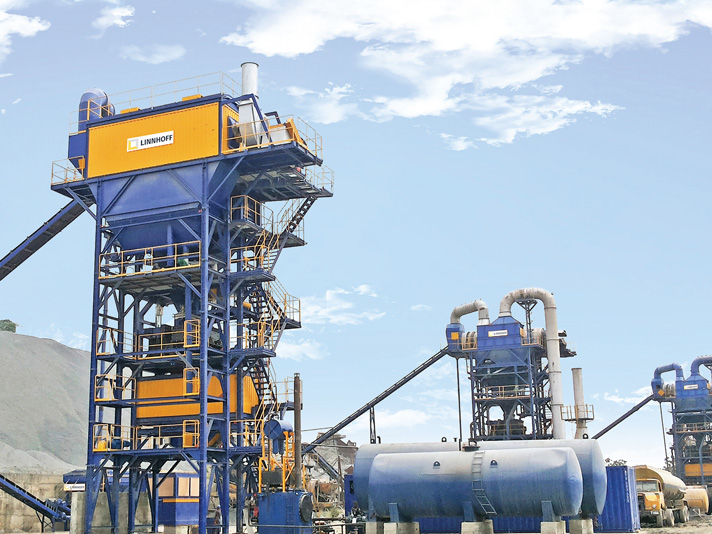

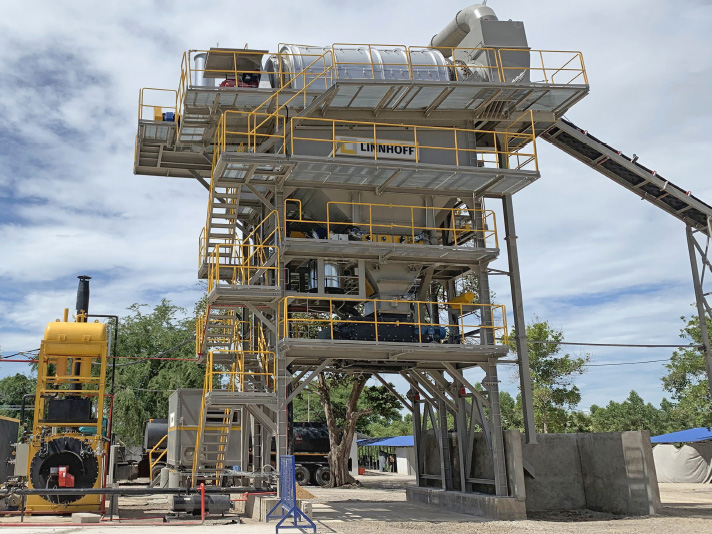

Linnhoff DRX DurableMix Asphalt Batching Plant

Linnhoff DRX DurableMix Asphalt Batching Plant is specially designed with Double Screen Drum for the most effective screening. The DRX features factory-fabricated modular structure for quick setup and dismantling.

As a compact asphalt mixing plant, it is suitable for medium to long-term projects or commercial sales.

Get a Quote Download Brochure

Specifications

Overview

FEATURES

Cold Feed Hoppers

Feeder belt is equipped with shaft-mounted, invertercontrolled motor.
Sand hopper is equipped with vibrator.

Double Screen Drum

Unique dual-purpose Screen Drum combining drying and screening of aggregates in a single drum.
Screens are configured for easy maintenance.

Hot Mineral Bins

Located directly below the drum to maximise conductive heat from the Screen Drum and Main Burner.
Each compartment accomamodates generous capacity, providing sufficient aggregates for batching.

Weighing Systems

Individual weigher with load cells for aggregates, filler and bitumen.

Twin-shaft Mixer

Robust twin-shaft Mixer is equipped with synchronized spur gear and specially designed mixer arms and paddles for shorter mixing time and quality homogeneous hot mix asphalt.

Baghouse Filter

Utilising ambient-air cleaning system to ensure that the exhaust gas and dust are filtered before clean gas is discharged into the atmosphere.

Recuperated Filler Silo

For collecting filtered dust particles to be recycled.

Control Cabin

Control cabin is insulated and dust-proof.
Automated PLC system with manual override.

SPECIFICATIONS

Model	DRX 1500DS	DRX 2000DS
Capacity*	120 tph	160 tph
Batch Cycle Time	45-55 sec.	45-55 sec.
Aggregate Temp. Increase	150 °C	150 °C
Exhaust Gas Temperature	90-140 °C	90-140 °C
Number of Hoppers	4 units	5 units
Volume of Each Hopper	9 m ³	9 m ³
Total Screening Area	28 m ²	43 m ²
Number of Screen Compartments	4 folds	5 folds
Type of Fuel	Diesel/Heavy Oil/Gas	Diesel/Heavy Oil/Gas
Burner Capacity	7.25 MW	10 MW
Hot Mineral Bins Capacity	20 ton	32 ton
Aggregate Weigher Capacity	1500 kg	2500 kg
Filler Weigher Capacity	250 kg	300 kg
Bitumen Weigher Capacity	150 kg	250 kg
Mixer Capacity	1500 kg	2500 kg
Filter Area	450 m ²	528 m ²
Optional Equipment
Rapid Setup Steel Foundations
Bitumen Tank
Foreign Filler Silo
Hot Storage Silo

*Capacity as per standard plant performance based on 3% moisture content.

NB: Specifications are subject to technical modifications.
