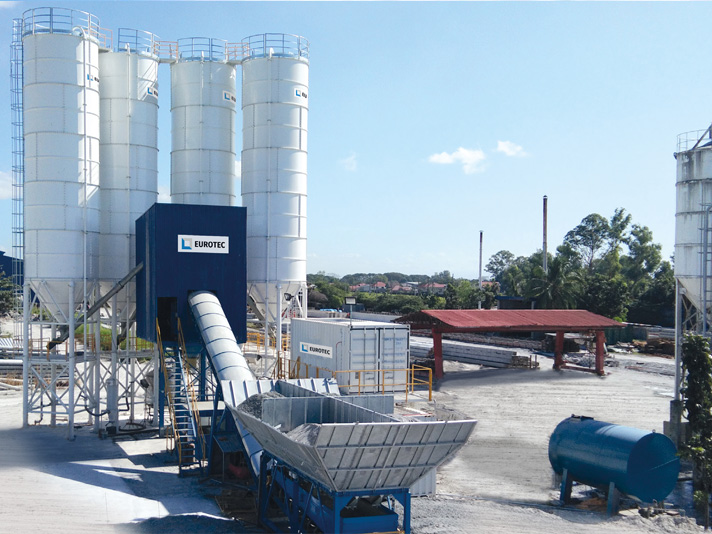

The Eurotec stationary concrete batching plants are perfect for long-term and larger scale projects that require greater volumes of concrete production, offering production capacities starting from 60m3/hr to 250m3/hr. These plants can produce specialised concrete mix designs to meet your specific project needs. The concrete plants can also be customised with additional plant features and advanced control systems. These plants are ideal for customers who demand the most cost-effective batching plant for high-quality concrete production.
Since 1919, Eurotec Concrete batching plants have been known to use cutting-edge German technology to produce high-quality concrete. Its product portfolio includes stationary and mobile concrete batching plants, specialist concrete cooling solutions, as well as with pavement-related technologies and machineries which can be found in job sites paving roads, highways, race tracks, dams, buildings and airport runways globally.
Backed by centuries of collective German expertise, our brands Lintec and Eurotec, provide powerful and innovative solutions that meet industry standards for environmental impact, recyclability and reusability. Our flagship premium Lintec containerized batching plants are industry-leading and built in 100% ISO certified seaworthy containers. Our staff provide exceptional pre- and after-sales customer service for thousands of prestigious infrastructure projects worldwide.

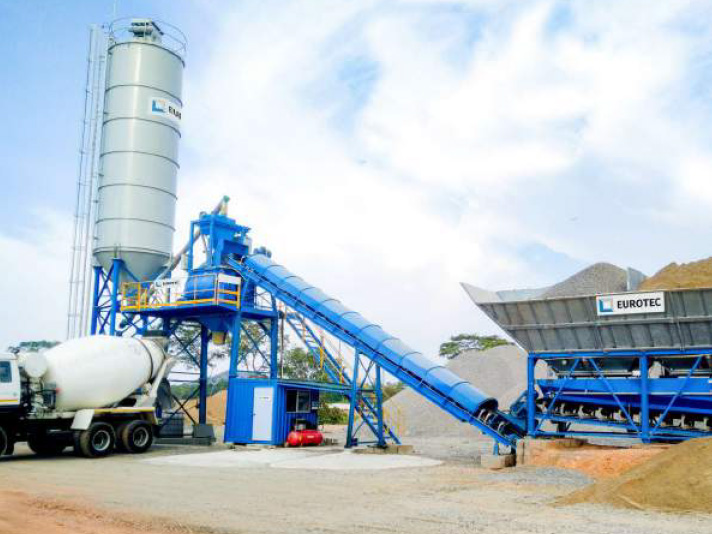

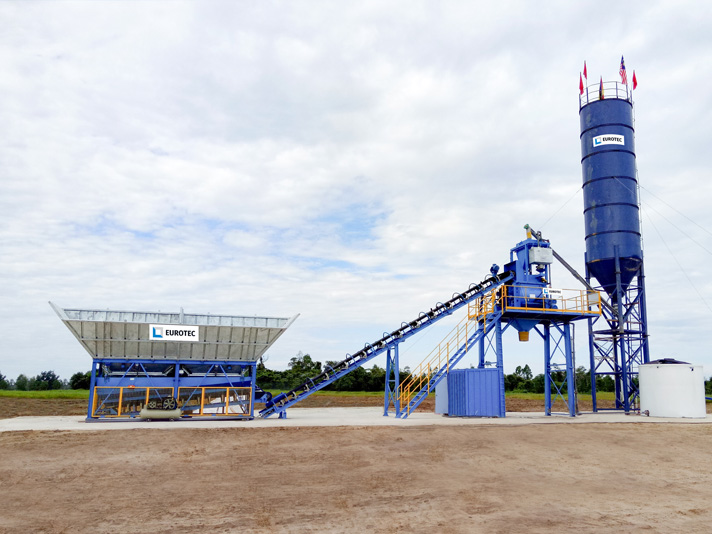

A modular and affordable series with quadrant-designed aggregate bins. The Eurotec Concrete Batching Plant series is designed with both modular and affordability in mind. The modular design allows for easy transportation, fast installation and dismantling upon completion of a project. The plants have outputs ranging from 60m3/hr to 90m3/hr
| PLANT CAPACITY | 60 m3/hr | 75 m3/hr | 90 m3/hr |
|---|---|---|---|
| AGGREGATE BIN TYPE | QUADRANT | QUADRANT | QUADRANT |
| NUMBER OF BINS | 4 | 4 | 4 |
| TOTAL AGGREGATE BIN CAPACITY | 40 M3 | 40 M3 | 50 M3 |

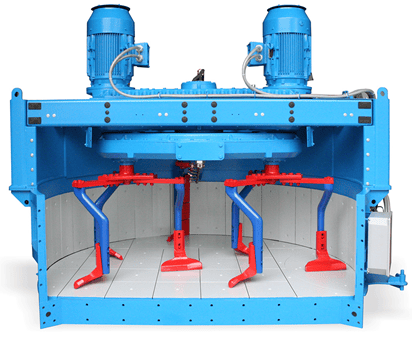

| TYPE OF MIXER | TWIN-SHAFT / PLANETARY | TWIN-SHAFT / PLANETARY | TWIN-SHAFT / PLANETARY |
| MIXER CAPACITY IN LTR | 1500/1000 | 1875/1250 | 3000/2000 |
| MIXER MOTOR IN HP | 50 | 60 | 2 × 50 = 100 |
| AGGREGATE WEIGHING CONVEYOR | PLAIN BELT | PLAIN BELT | PLAIN BELT |
| AUXILIARY CONVEYOR BELT TYPE | CHEVRON | CHEVRON | CHEVRON |
| ADDITIVE WEIGHER | ONE NO | ONE NO | ONE NO |
| AIR COMPRESSOR HP | YES | YES | YES |

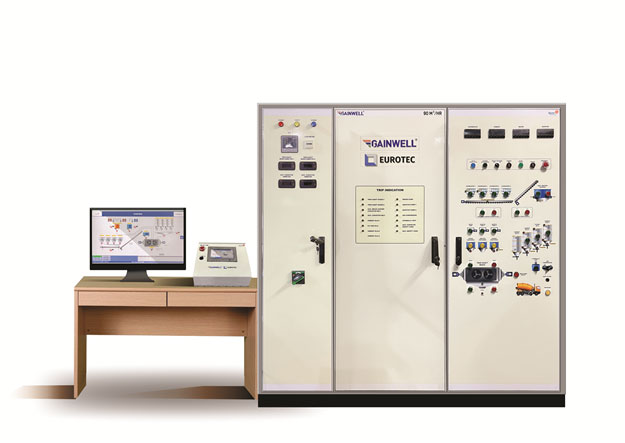

| CONTROL PANEL WITH CABIN | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC | PLC BASED FULLY AUTOMATIC |

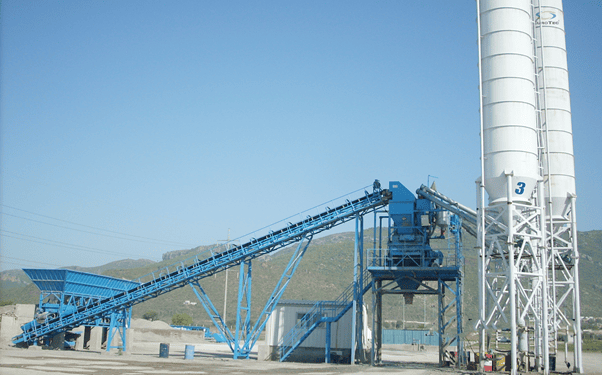

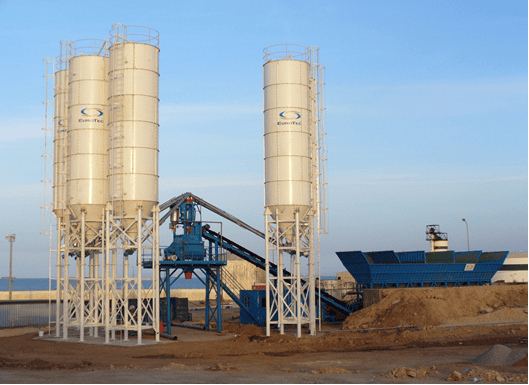

The highly automated EUROTEC In-line series is the solution for big concrete needs. Featuring models capable of producing up to 250m3/hr of ready-mix concrete, this series effectively addresses the requirements of projects that necessitate thousands of cubic meters daily. At the same time, it maintains accuracy in ensuring the quality of concrete. The In-line series can be customized to suit the requirements of any major project.
| PLANT DETAILS | 60 m3/hr | 75 m3/hr | 90 m3/hr | 120 m3/hr | 160 m3/hr | 200 m3/hr | 250 m3/hr |
|---|---|---|---|---|---|---|---|
| AGGREGATE BIN TYPE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| NUMBER OF BINS | 4 | 4 | 4 | 4 | 4 | 5 | 6 |
| TOTAL AGGREGATE BIN CAPACITY | 40 m3 | 40 m3 | 60 m3 | 80 m3 | 100 m3 | 100 m3 | 100 m3 |
| TYPE OF MIXER | TWIN-SHAFT / PLANETARY | TWIN-SHAFT / PLANETARY | TWIN-SHAFT / PLANETARY | TWIN-SHAFT | TWIN-SHAFT | TWIN-SHAFT | TWIN-SHAFT |
| MIXER CAPACITY IN LTR | 1500/1000 | 1875/1250 | 3000/2000 | 4500/3000 | 6000/4000 | 6750/4500 | 9000/6000 |
| MIXER MOTOR IN HP | 50 | 60 | 2 × 50 = 100 | 2 × 75 = 150 | 2 × 100 = 200 | 2 × 120 = 240 | 2 × 150 = 300 |
| AGGREGATE WEIGHING CONVEYOR | PLAIN BELT | PLAIN BELT | PLAIN BELT | PLAIN BELT | PLAIN BELT | PLAIN BELT | PLAIN BELT |
| AUXILIARY CONVEYOR BELT TYPE | CHEVRON | CHEVRON | CHEVRON | CHEVRON | CHEVRON | CHEVRON | CHEVRON |
| ADDITIVE WEIGHER | 1 NO | 1 NO | 1 NO | 2 NOS | 2 NOS | 2 NOS | 2 NOS |
| AIR COMPRESSOR | YES | YES | YES | YES | YES | YES | YES |
| CONTROL PANEL WITH CABIN | PLC BASED FULLY AUTOMATIC | ||||||
