Repair Option

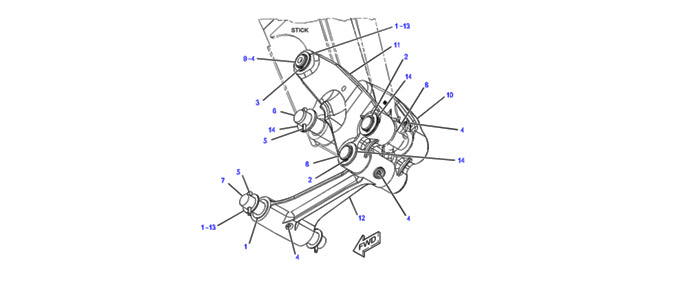

24 Back Hoe Bucket Pin & Bearing Replacement

Repair Indicators

  • Excess play
  • Excess Grease
  • Structural crack
  • Abnormal Noise
  • Machine Hours
  • Machine Repair History

Features and Benefits

  • Correct Performance Problems
  • Reseal Leaks – Prevent Further Damage
  • Use CAT genuine Parts
  • Increase in Productivity

Job Scope

  • Remove and Install required components for Repair
  • Replace Pin & bearing
  • Change – grease
  • Check Operation

Available at Extra Cost

  • Reconditon/ Replace Link and Guide
  • Welding and Machining
  • Replace/Repair any part not covered in the repair specification
  • Oil / Grease

Require Tools

  • Service Engineer Tool kit
  • Special tool for Bearing removint & Pressing tools
  • Sledge hammer

Repair Parts

Part No. Part Name Qty. Group No. Package Cost Job No. Total Labour Models
9R0162 Bearing Sleeve 2 2889074     8 424Series1 & 424B
1680480 Bearing Sleeve 2
9R0162 Bearing Sleeve 2
9R0147 Bearing Sleeve 2
1545280 Pin 1
1545279 Pin 1
9R0158 Washer 4
9R1510 Washer 4
3B5319 Washer 4
  • Prices valid for 30 days from the date of Quotation. Gainwell has the right to change price at any time without any prior notice.
  • Taxes extra as applicable at the time of Invoicing.
  • Job No. includes required parts and standerd labour hrs.
