Repair Option

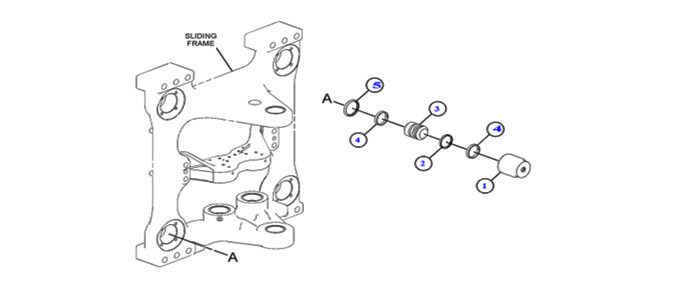

424 Sliding Frame Clamp Cylinder Seal Replacement

Repair Indicators

  • Oil Leakage
  • Piston un lock
  • Cylinder Noise
  • Machine Hours
  • Machine Repair History

Features and Benefits

  • Correct Performance Problems
  • Reseal Leaks – Prevent Further Damage
  • Use CAT genuine Parts
  • Increase in Productivity

Job Scope

  • Remove and Install required components for Repair
  • Replace all Seals
  • Top up Oil as necessary (Oil to be provided by Customer)
  • Check Operation

Available at Extra Cost

  • Reconditon/ Replace Piston, Cylinder and cover plate
  • Welding and Machining
  • Replace/Repair any part not covered in the repair specification
  • Oil

Require Tools

  • Service Engineer Tool kit

Repair Parts

Part No. Part Name Qty. Group No. Package Cost Job No. Total Labour Models
4190372 Seal Piston 1 2843225/3556759     8 JRB00725 up & JRC…. Series & up to JRN01319 machines
2818133 Ring wear 2 2843225/3556759     8
7K9205 Seal 1 2843225/3556759     8
4402838 Clamp Cyl Kit 1 2843225/3556759     8 424Series1 & 424B (All )
4325881 Seal Piston 1 3976739     8 JRN01320 UP
4325882 Ring wear 2 3976739     8
7K9205 Seal 1 3976739     6

  • Prices valid for 30 days from the date of Quotation. Gainwell has the right to change price at any time without any prior notice.
  • Taxes extra as applicable at the time of Invoicing.
  • Job No. includes required parts and standerd labour hrs.
