Repair Option

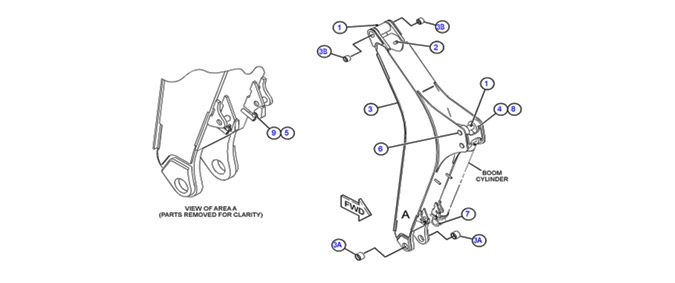

424 Stick, Boom and Swing frame Pin & Bearing Replacement

Repair Indicators

  • Excess play
  • Excess Grease
  • Structural crack
  • Abnormal Noise
  • Machine Hours
  • Machine Repair History

Features and Benefits

  • Correct Performance Problems
  • Pin & Bearing Replacement- Prevent Further Damage
  • Use CAT genuine Parts
  • Increase in Productivity

Job Scope

  • Remove and Install required components for Repair
  • Replace Pin & bearing
  • Change – grease
  • Check Operation

Available at Extra Cost

  • Reconditon/ Replace Cylinder
  • Welding and Machining
  • Replace/Repair any part not covered in the repair specification
  • Oil / Grease

Require Tools

  • Service Engineer Tool kit
  • Special tool for Bearing removint & Pressing tools
  • Sledge hammer

Repair Parts

Part No. Part Name Qty. Group No. Package Cost Job No. Total Labour Models
9R9475 Bearing Sleeve 2 2843193 / 4201093     16 424Series1 JRB00750 UP & All JRC & JRN
2975117 Pin 1
1240360 Washer 3
8T5092 Bolt 1
6V7687 Nut 1
2372252 Bearing Sleeve 2
3658332 Pin 2
2370944/3658331 Bearing Sleeve 2
2370945 Bearing Sleeve 2
9R8390 Washer 8
8T4139 Bolt 2

  • Prices valid for 30 days from the date of Quotation. Gainwell has the right to change price at any time without any prior notice.
  • Taxes extra as applicable at the time of Invoicing.
  • Job No. includes required parts and standerd labour hrs.
