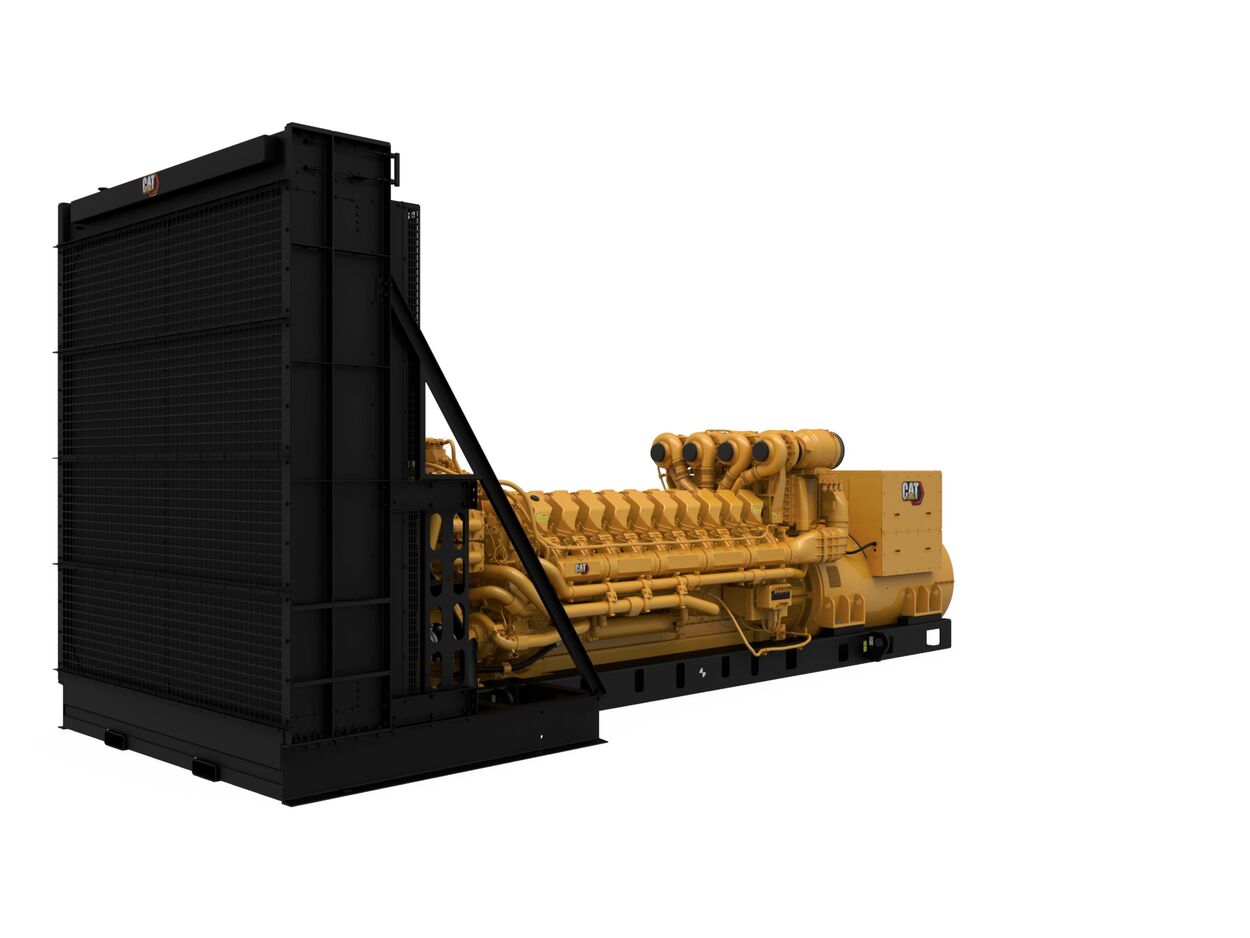

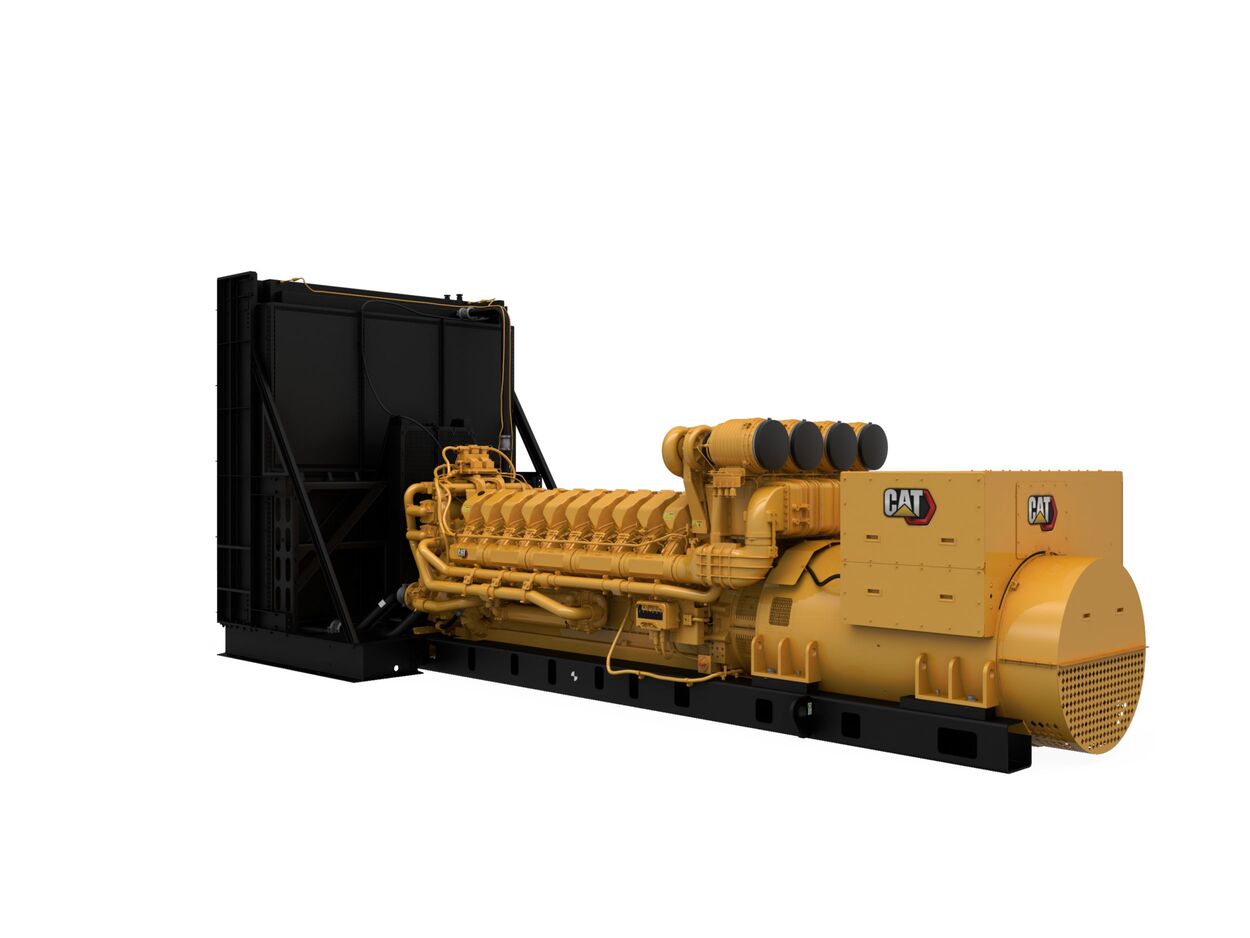

CAT 3900 kVA Diesel Generator C175-20

Producing reliable power from 3150 - 4000 kVA in 50 Hz, our C175-20 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is optimized for low fuel consumption or low emissions.

Benefits

  • Over 20,000,000 Operating hours at Global locations
  • Over 3000 units in the field
  • Highest Rated Tier 4 Product available on the market

Get a Quote Download Brochure

Overview

Producing reliable power from 3150 - 4000 kVA in 50 Hz, our C175-20 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is optimized for low fuel consumption or low emissions.

Generator Set Specifications

50 Hz Prime Rating
3600(no fan)/3500 kVA
50 Hz Standby Rating
4000(no fan)/3900 kVA
Minimum Rating
4000 kVA
Maximum Rating
3150 kVA
Frequency
50 Hz
Speed
1500 RPM
Emissions / Fuel Strategy
Low Fuel, Low Emissions
Voltage
3300 to 11000 Volts
Duty Cycle
Standby, Mission Critical, Prime, Continuous

Engine Specifications

Compression Ratio
15.3:1
Governor Type
ADEM@ A4
Fuel System
Common Rail
Air Inlet
4 x Single element canister air cleaners with service indicator(s).
Aspiration
Turbo Aftercooled
Bore
175 mm
Displacement
105.8 I
Stroke
220 mm
Engine Model
C175-20 SCAC, V-20, 4-Stroke Water-Cooled Diesel

Generator Set Dimensions

Length
6642.8 mm(min),8397 mm(max)
Width
2170.2 mm(min),8397 mm(min)
Height
2224.3 mm(min),3827 mm(max)
Dry Weight - Genset
25000 kg(min),30000 kg(max)
