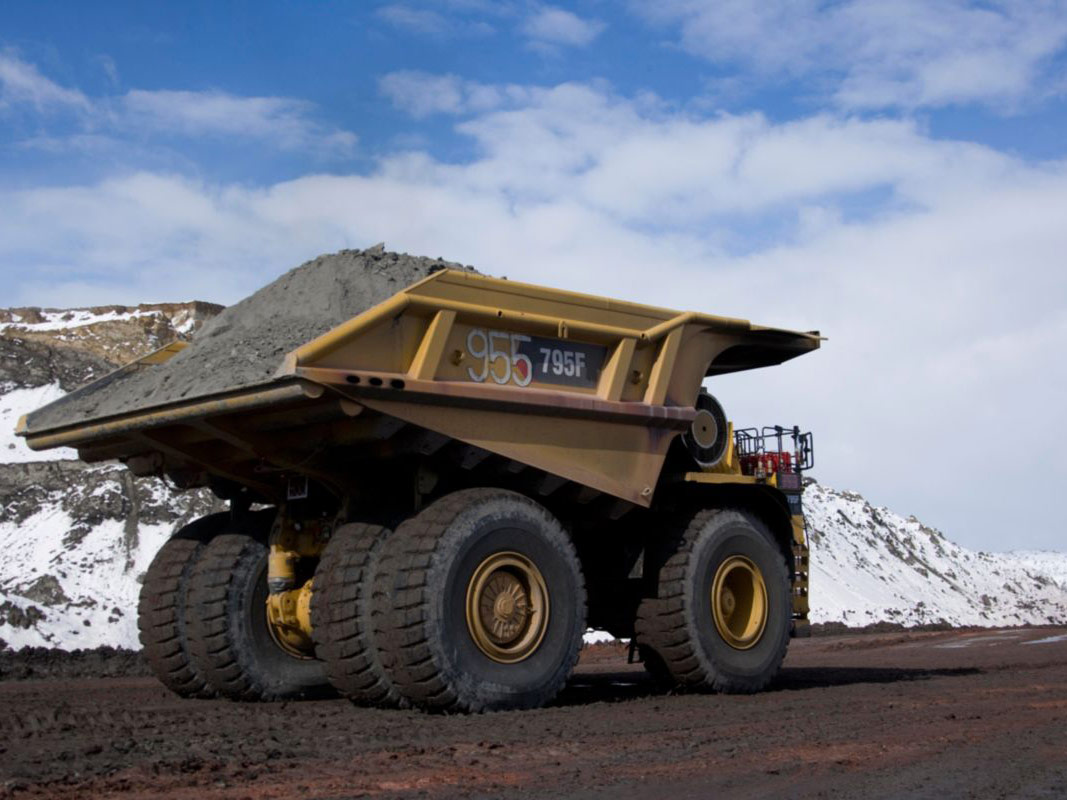

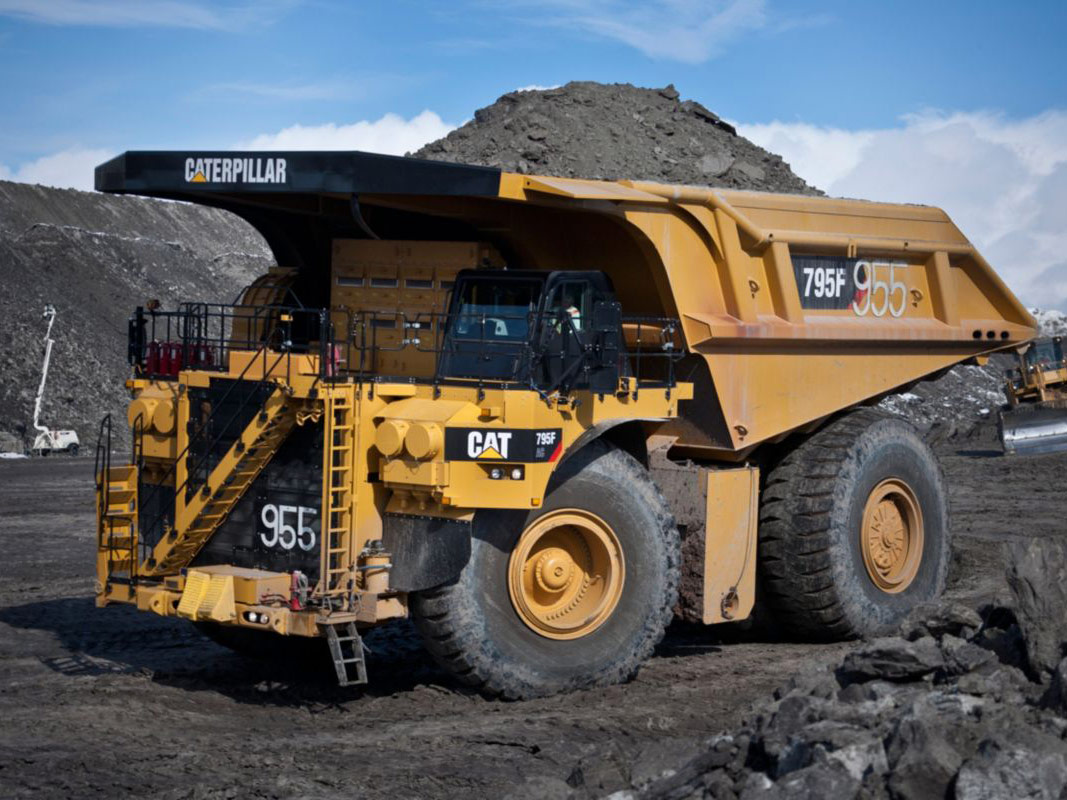

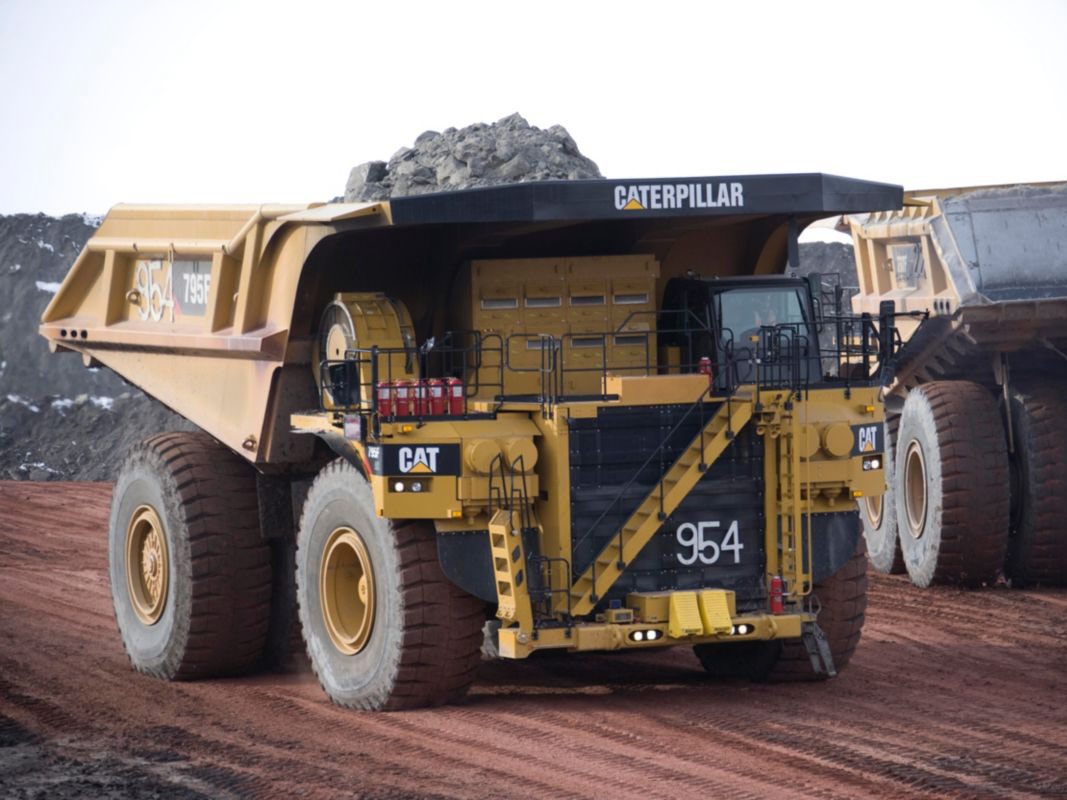

CAT Mining Trucks 795F AC

For those applications and situations where you prefer an electric drive truck Caterpillar now offers the 795F AC. The Cat AC drive system provides you the best retarding, braking and control in the industry. Designed and manufactured by Caterpillar, the 795 is the first AC electric drive truck that is single sources from one manufacturer and supported by the best dealer network in the industry.

Compare

Get a Quote

Specifications

Overview

Operating Specifications

Nominal Payload Capacity

313.0 tonne

Top Speed - Loaded

64.0 km/h

Steering

Steer Angle

34.0 Degre

Turning Circle Clearance Diameter

38.7 m

Turning Diameter - Front

34.0 m

Steering Standards

SAE J1511 OCT90 ISO 5010:1992

Weights - Approximate

Gross Machine Operating Weight (GMW)

570678.0 kg

Gross Machine Operating Weight (GMW)

570678.0 kg

Chassis Weight

202270.0 kg

Body Weight Range

38 500-54 500 kg (84,900-120,000 lb)

Engine

Engine Model

Cat C175-16

Gross Power - SAE J1995

2536.0 kW

Bore

175.0 mm

Stroke

220.0 mm

Displacement

85.0 L

Net Power

2377.0 kW

Final Drives

Total Reduction Ratio

35:1

Suspension

Effective Cylinder Stroke - Front

293.0 mm

Effective Cylinder Stroke - Rear

141.0 mm

Rear Axle Oscillation

±4.8°

Body Hoists

Pump Flow - High Idle

935.0 L/min

Relief Valve Setting - Raise

24500.0 kPa

Body Raise Time - High Idle

19.0 Secon

Body Lower Time - Float

20.0 Secon

Body Power Down - High Idle

17.5 Secon

Service Refill Capacities

Fuel Tank (optional)

7192.0 L

Cooling System

1100.0 L

Crankcase

310.0 L

Steering Tank

210.0 L

Steering System (Includes Tank)

300.0 L

Brake/Hoist Hydraulic Tank

508.0 L

Brake/Hoist System (Includes Tank)

1500.0 L

Final Drives, Each

341.0 L

Fuel Tank

3596.0 L

Cooling System

Variable speed, hydraulic cooling system

Braking System

Blended Four Corner Retarding

Standard

Dynamic Retarding Power

4750.0 kW

Electric Retarding - Radial Grid Design with Brushless AC Fan Motor

4750 kW (6,370 hp) rated power

Oil Cooled Brakes - Retarding Capable at All Speeds - Brake Surface - Front

132258.4 cm2

Oil Cooled Brakes - Retarding Capable at All Speeds - Brake Surface - Rear

198388.0 cm2

Oil Cooled Brakes - Retarding Capable at All Speeds - Outside Diameter

1067.0 mm

Oil Cooled Brakes - Retarding Capable at All Speeds - Standards

J-ISO 3450 JAN88, ISO 3450:1996

Weight Distributions - Approximate

Front Axle - Loaded

33.0 %

Rear Axle - Loaded

67.0 %

Front Axle - Empty

48.0 %

Rear Axle - Empty

52.0 %

Capacity - MSD II - 100% Fill Factor

Heaped (SAE 2:1)

181-252 m3 (237-330 yd3)

Capacity - Dual Slope - 100% Fill Factor

Struck

121.5-211 m3 (159-276 yd3)

Tires

Standard Tires

Choices

Sound

Sound Standards

Standards

AC Drive System

Controls

IGBT Inverter Technology, air cooled, pressurized cabinet with filtration

Generator/Alternator

Brushless, remote mounted, dual bearing

Wheel Motor

Rear axle mounted Cat AC induction

ROPS

ROPS Standards

Standards
