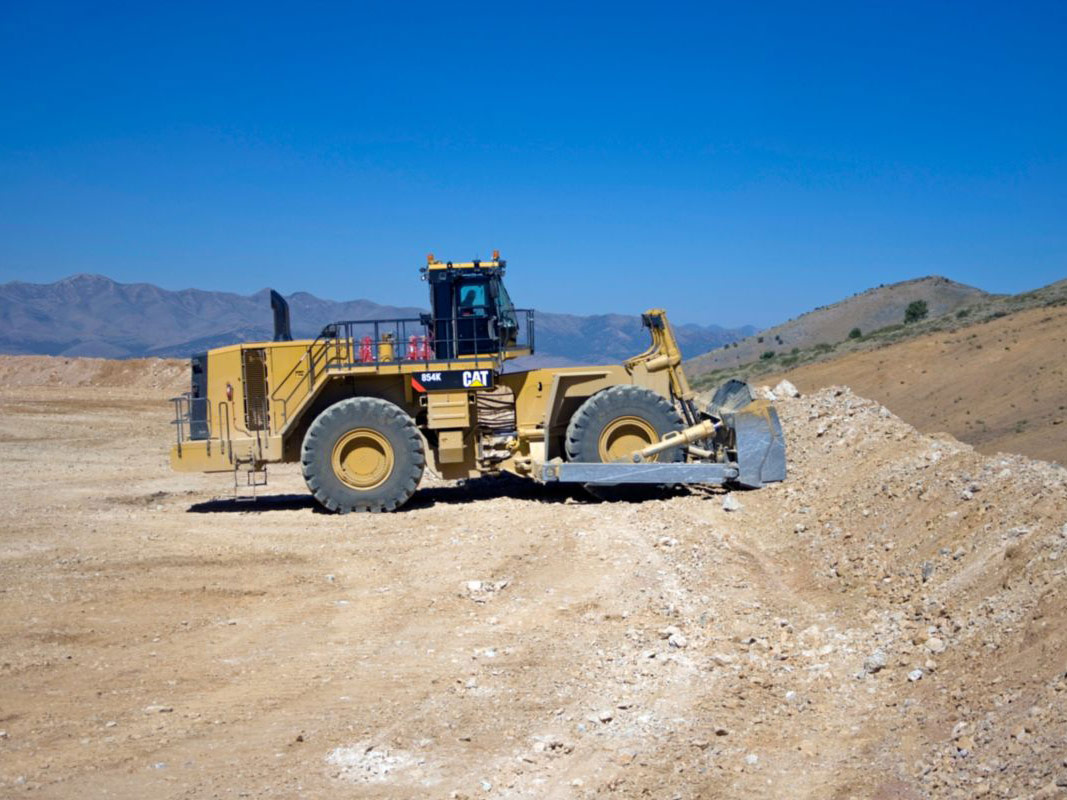

CAT Wheel Dozer 854K

Cat Large Wheel Dozers are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. Engineered for your demanding work in large dozing applications, the 854K Wheel Dozer is the largest in the Cat Wheel Dozer line and is an ideal match for large mining operations, power generating utilities, the general contracting industry and wherever mobility, versatility and compaction is needed.

Get a Quote


Cat Large Wheel Dozers are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. Engineered for your demanding work in large dozing applications, the 854K Wheel Dozer is the largest in the Cat Wheel Dozer line and is an ideal match for large mining operations, power generating utilities, the general contracting industry and wherever mobility, versatility and compaction is needed.


Engine Model
Cat® C32 ACERT™
Gross Power
676.0 kW
145.0 mm
162.0 mm
32.1 L
Torque Rise
30.0 %
Emissions (Tier 2 Equivalent): Gross Power - SAE J1995
676.0 kW
Emissions (Tier 2 Equivalent): Net Power ISO - 9249
607.0 kW
Emissions (U.S. EPA Tier 4 Final): Gross Power - SAE J1995
671.0 kW
Emissions (U.S. EPA Tier 4 Final): Net Power ISO - 9249
607.0 kW
Peak Torque @ 1,200 rpm
4242.0 N·m
Rated Speed
1750.0 RPM
Ground Clearance
691.0 mm
Height to Top of Exhaust Pipe
5234.0 mm
Height to Top of Hood
3984.0 mm
Height to Top of ROPS
5590.0 mm
5890.0 mm


Operating Weight
101720.0 kg
Operating Weight - Ripper
109420.0 kg
FOPS meets SAE J231 JAN81 and ISO 3449:1992 Level II criteria.
ROPS meets SAE J11040 APR88, ISO 3471:2008 and ISO 3471:1994 criteria.


Converter Drive - Forward 1
7.1 km/h
Converter Drive - Forward 2
12.4 km/h
Converter Drive - Forward 3
21.2 km/h
Converter Drive - Reverse 1
7.7 km/h
Converter Drive - Reverse 2
13.5 km/h
Converter Drive - Reverse 3
23.5 km/h
Direct Drive - Forward 2
13.0 km/h
Direct Drive - Forward 3
22.8 km/h
Direct Drive - Reverse 1
8.0 km/h
Direct Drive - Reverse 2
14.3 km/h
Direct Drive - Reverse 3
25.1 km/h
Direct Drive - Forward 1
Lock-up disabled
Transmission Type
Cat Planetary Power Shift

Hydraulic System - Implement

Relief Valve Setting
34500.0 kPa


Hydraulic Output at 1,850 rpm and 6900 kPa (1,000 psi)
470.0 L/min
Minimum Turning Radius (over bucket)
9550.0 mm

Hydraulic System - Steering

Total Steering Angle
82.0 Degre

Service Refill Capacities

Fuel Tank - Standard
1562.0 L
Cooling System
200.0 L
120.0 L
169.0 L
Differentials and Final Drives - Front
369.0 L
Differentials and Final Drives - Rear
342.0 L
Hydraulic System - Implement and Brakes (Tank Only)
326.0 L
Hydraulic System - Steering and Engine Cooling Fan (Tank Only)
290.0 L
Fuel Tank - Ripper
1335.0 L

Air Conditioning System

Air Conditioning
Standard air conditioning system contains environmentally friendly R134a refrigerant


Cat cab with separate ROPS/FOPS is standard in North America, Europe and Japan.
SAE J11040 APR88, ISO 3471:2008, ISO 3471:1994
Sound Performance
The dynamic operator sound pressure level is 71 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab.
Sound Performance
The exterior sound pressure level for the standard machine measured at a distance of 15 m (49.2 ft) is 87 dB(A).
Sound Performance
Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment.
Sound Performance
The operator sound exposure Leq measured according to work cycle procedures specified in ANSI/SAE J1166 FEB08 is 71 dB(A).


Oscillating at ±10 degrees
Maximum Single-Wheel Rise and Fall
573.0 mm


Meets ISO 3540:1996

Hydraulic System - Lift/Tilt

Cylinder, Double-acting: Lift, Bore and Stroke
177 mm × 1760 mm (0.58 ft × 5.8 ft)
Cylinder, Double-acting: Tilt and Tip, Bore and Stroke
267 mm × 286 mm (0.88 ft × 0.94 ft)
Output at 1,850 rpm and 6900 kPa (1,000 psi)
610.0 L/min
Relief Valve Setting - Lift (Large Pump)
22675.0 kPa
Relief Valve Setting - Tilt (Small Pump)
24560.0 kPa
Cylinder, Double-acting: Lift, Bore and Stroke
184 mm × 454 mm (0.60 ft × 1.5 ft)
Output at 1,850 rpm and 6900 kPa (1,000 psi)
212.0 L/min

Model: 854K (Tier 2)

Serial Number Prefix
Serial Number Prefix

Operating Specifications

Blade Capacities
25 to 45 m3 (33 to 58 yd3)

Hydraulic System - Ripper (Optional)

Main Relief Pressure
19325.0 kPa


Center Line of Front Axle to Hitch
2945.0 mm
Center Line of Rear Axle to Edge of Bumper
4195.0 mm

Dimensions (Approximate)

Center Line of Rear Axle to Edge of Ripper Mount
4200.0 mm
Departure Angle
14.0 Degre
Length with Blade and Ripper on Ground
15604.0 mm
Length with Blade on Ground
13405.0 mm
Maximum Ripper Depth
681.0 mm
Maximum Ripper Raise
1189.0 mm
Width Between Outside Tines
3102.0 mm
Width Between Tines
1551.0 mm


Best built for the toughest conditions.

Robust Structures

Your bottom line is improved by highly durable structures that achieve multiple life cycles and withstand the toughest loading conditions.

  • Full box-section rear frame resists torsional shock and twisting forces.
  • Castings in the engine end frame are used in high stress areas to spread high loads.
  • Cast axle pivot mounting areas better disperse stress loads for increased structural integrity.
  • 90 percent of the machine structure is robotically welded to provide highly consistent welds and increased strength.


Your key to maximum uptime and productivity is our purpose built front and rear frames.

  • Full box-section frames absorb torsional forces during dozing, maintaining alignment for hitch pins and drive line.
  • Spread hitch design features double tapered roller bearings and hardened pins that resist both horizontal and vertical loads.
  • Enhance strength in key pin areas through the use of one piece castings.

Push Beam and Push Arm Dozer Arrangement

To ensure long life and reliability, solid one piece push beams are through-width, not merely attached to the side of the frame. In corner dozing, stresses are transferred and absorbed through a larger portion of the frame.

Power Train

Move material more efficiently with improved power and control.

Steering and Transmission Integrated Control System (STIC™)

Experience maximum responsiveness and control with STIC that combines directional selection, gear selection and steering into a single lever.

  • Simple side-to-side motion turns machine right or left, minimizing operator movements.
  • Easy to operate finger controlled gear selection.
  • Smoother, faster cycles and less operator fatigue through the use of low effort integrated controls.

Cat Planetary Powershift Transmission

Building your success begins with a best-in-class transmission designed specifically for mining applications.

  • Consistent, smooth shifting and efficiency through integrated electronic controls.
  • Long life and reliability through heat treat gear and metallurgy.
  • Three forward and three reverse speeds to match your application.

Cat C32 ACERT Engine

Durability and efficiency at the heart of your 854K comes from the Cat C32 engine with ACERT technology. Optimum performance is built in through the use of a 12?cylinder, four-stroke design.

  • On-demand performance through the use of turbochargers and aftercoolers.
  • High Torque Rise - 33% torque rise ensures high lugging forces during dozing.
  • Extended engine life through lower rpm ratings.
  • Quick engine response through the use of electronic engine controls.
  • U.S. EPA Tier 4 Final rating available for highly regulated regions.

Impeller Clutch Torque Converter (ICTC) and Rimpull Control System (RCS)

Lower your cost per ton utilizing advanced ICTC and RCS for modulated rimpull.

  • Reduce tire slippage and wear by modulating rimpull from 100 to 25 percent while depressing left pedal. After 25 percent rimpull is achieved the left pedal applies the brake.
  • Reduce the potential for wheel slippage without reducing hydraulic efficiency with RCS.
  • Improve fuel efficiency in certain applications with our lock-up clutch torque converter providing direct drive.


Productivity enabling you to move more and make more.

Electro Hydraulic Controls

Operators increase productivity with our responsive implements feature.

  • Operate comfortably through electronically controlled hydraulic cylinder stops.
  • Handle easy-to-use soft detent controls.

Blade Response

Improve operator efficiency by matching the speed of the blade movement to your application.

  • Three different speeds: Standard, Fine and Fast.
  • Easily configured through the advisor display.
  • Only affects blade raise and lower functions.

Steering System

Confident loader operation starts with precise machine control enabled by the 854K’s load sensing hydraulic steering system.

  • Increase efficiency with our variable displacement piston pumps.
  • Achieve precise positioning for easy loading in tight areas with 40 degrees of steering articulation.
  • Enhance operator comfort with integrated steering and transmission control functions.

Filtration System

Benefit from extended performance and reliability of your hydraulic system with our advanced filtration system.

  • Lift/tilt case drain filters.
  • Lift/tilt high pressure screens.
  • Steering case drain filters.
  • Steering high pressure screens.
  • Hydraulic case drain filters.
  • Front pump drive lube filter.
  • Front and rear brake oil screens.

Operator Station

Best-in-Class operator comfort and ergonomics.

Your operators can work more efficiently and stay comfortable with our customer-inspired cab features.

Entry and Exit

Enter and exit the cab easily and safely with these newly designed, ergonomic features.

  • Two side access points.
  • Fold up STIC steer/arm rest.
  • Reduced access stairway angles.

Cat Comfort Series III Seat

Enhance comfort and reduce operator fatigue with Cat Comfort Series III seat.

  • High back design and extra thick, contoured cushions.
  • Air suspension system.
  • Easy-to-reach seat levers and controls for six way adjustments.
  • Seat-mounted implement pod and STIC steer that moves with the seat.
  • 76 mm (3 in) wide retractable seat belt.

Trainer Seat

Safely train other operators in comfort with our standard training seat.

  • 76 mm (3 in) wide, retractable seat belt.
  • Fold-down design with molded drink tray and storage.


Your operator’s productivity is enhanced with our clean, comfortable cab environment.

  • Experience reduced vibrations from viscous cab mounts and seat air suspension.
  • Maintain desired cab temperature with automatic temperature controls.
  • Pressurized cab with filtered air.
  • Sound level reduced to a quiet 71 dB(A).

Technology Solutions

Greater productivity through Integrated Electronic Systems.

The 854K electronic systems have been completely integrated to function as one machine. This integration creates a smart machine and more informed operator, maximizing the productivity of both.


We have worked hard to help our customers and operators perform at their best through our Vital Information Management System (VIMS 3G).

  • Easy-to-view Advisor Display features a large screen.
  • Intuitive operation and easy navigation with our enhanced user interface.
  • Decrease service time by keeping operators informed about machine system malfunction or operation.

Operator Profile

Operator comfort begins with personalized machine feature settings. Through our Advisor Display, an operator can instantly recall personalized profiles.

  • Store up to 10 separate operator profiles through Advisor.
  • Decrease setup time between operators by recalling personalized screen layouts.

Cat MineStar System

Work more productively.

Cat MineStar System is the industry’s broadest suite of integrated mine operations and mobile equipment management technologies, configurable to suit your operation’s needs. Its capability sets - Fleet, Terrain, Detect, Health and Command - contain a range of technologies that let you manage everything from fleet assignment and condition monitoring to remote and autonomous control. The 854K can take advantage of many of these advanced technologies, some of which are standard out of the factory.


Fleet provides comprehensive, real-time machine tracking, assignment and productivity management, giving you a comprehensive overview of all operations from anywhere in the world.

Terrain for Loading

Terrain with your 854K enables high-precision management of loading operations through the use of guidance technology. It increases 854K’s productivity and provides you real-time feedback for improved efficiency.


Detect helps increase operator awareness, enhancing safety at your operation. It includes a range of capabilities designed to assist the operator with areas of limited visibility around fixed and mobile equipment.


Health delivers critical event-based machine condition and operating data for your entire fleet. It includes comprehensive equipment health and asset monitoring capabilities, with a wide range of diagnostic, analytic and reporting tools.


Making your safety our priority.

We are constantly improving our products in an effort to provide a safe work environment for the operator and those who work on your job site.

Machine Access

  • Wider stairs with reduced stair angles provide a safe means for operators getting on and off the 854K.
  • Walkways with non-skid surfaces and integrated lock out/tag out points are designed into the service areas.
  • Windshield cleaning platforms provide safe and convenient access for the operator.
  • Maintain three points of contact at all times through ground level or platform accessible service areas.
  • Emergency egress access.


  • Optional pull-down window shade and optional heated mirrors ensure extended visibility for safe operation.
  • Cat Detect with Object Detection System (rearview camera and radar) or Vision (rearview camera) option increases operator awareness around the machine.
  • Standard HID lights provide excellent workspace visibility.
  • Cab mounted LED warning beacons.

Operator Environment

  • Low vibrations to the operator with viscous cab mounts and seat air suspension.
  • Low interior sound levels.
  • Operator training seat facilitates safe new operator training.
  • Standard 76 mm (3 in) seat belts on the operator seat and operator training seat.

Powered Access System

The Cat powered access system allows easier access to the primary stairs by improving ingress and egress to and from the rear platform.

  • Safe, ergonomic access system.
  • All operators have adequate space when using the wide stairway.
  • Operators maintain three-point contact when using full handrails on each side.
  • Raise lower platform from cab level or ground.
  • Occupants can quickly exit with a conveniently located emergency release valve if the loader becomes inoperable.


Enabling high uptime by reducing your service time.

We can help you succeed by ensuring your 854K has design features to reduce your downtime.

  • Longer service intervals on fluids and filters.
  • Safe and convenient service with ground level or platform access and grouped service points.
  • Swing-out doors on both sides of the engine compartment provide easy access to important daily service checks.
  • Ecology drains for ease of service and prevention of spilling potential environmental contaminants.
  • Centralized remote pressure taps.
  • Reduce downtime with VIMS system notifications so your operators and technicians can resolve any problems before failure.

Customer Support

Your Cat dealers know how to keep your mining machines productive.

Legendary Cat Dealer Support

A valued partner, your Cat dealer is available whenever you need them.

  • Preventive maintenance programs and guaranteed maintenance contracts.
  • Best-in-class parts availability.
  • Improve your efficiency with operator training.
  • Genuine Cat Remanufactured parts.


Conserving natural resources for generations ahead.

Sustainable Benefits

The 854K is designed to maximize efficiency and productivity while conserving natural resources.

  • Engine Idle Shutdown can help you save fuel by avoiding unnecessary idling.
  • Reduce waste to the environment with our maintenance free or extended maintenance batteries.
  • Built for multiple lives, the Cat 854K is one of the most rebuilt products. To assist with maximizing machine life, Caterpillar provides a number of sustainable options such as our Reman and Certified Rebuild programs. In these programs, reused or remanufactured components can deliver cost savings of 40 to 70 percent, which lowers operating cost while benefiting the environment.
  • Caterpillar offers retrofit packages to bring new features to older machines, maximizing your resource. And, when you go through the Cat Certified Rebuild program, these retrofit kits are part of the rebuild process.


Dependable dozing with blades designed for your application.

Dependable Blades

Maximize your productivity with the right blade for your dozer application.

  • High strength, pressed rib construction.
  • Large Cat Track-Type Tractor bolt on cutting edges and bottom wear plates.
  • Optimized widths and capacities for excellent dozing and rolling characteristics.

Coal Blade

• Increase your productivity with a Cat coal blade designed to retain load control and a large capacity for lighter materials.

Semi-U Blade

Featuring the characteristics of the S and U blades into one package for increased capacity while retaining excellent spreading characteristics of a straight blade.

Heavy-Duty Semi-U

For unmatched durability in high wear applications the Semi-U blade feature:

  • Hardox 400 Liner plate and side plates
  • Additional reinforcements on the bottom of the blade


Maximum versatility for your job site.


Add more flexibility to your wheel dozer.

  • Ripping overburden can make removal easier.
  • Thin coal seams can be ripped and removed without blasting when used in conjunction with a track-type tractor.
  • Use for haul road maintenance to keep hauling efficiency high.
  • Quiet machine operation for 24 hour job sites.


Responsive hydraulic system and low effort cab controls for precise ripping.

  • Electro hydraulic controls for quiet efficient operation.
  • Intuitive proportional rocker switch for easy control of the ripper depth.


Common components are designed to reduce downtime. Ripper shanks and hydraulic cylinders are shared with other Caterpillar products.


Robust ripper structures and a reinforced rear frame for maximum uptime.

  • Full width mounting plate to provide torsional stiffness.
  • Internal reinforcement of rear frame to withstand the additional ripping loads.
  • Ripper frame and beam are designed to match the width of the machine.

This site uses and sets "cookies" on your computer to help make this website better by keeping the site reliable and secure, personalizing content and ads, providing social media features, and analysing how the site is used. You can learn more about these cookies by clicking here. By clicking 'I Accept', you are agreeing to our use of cookies.

I Accept
