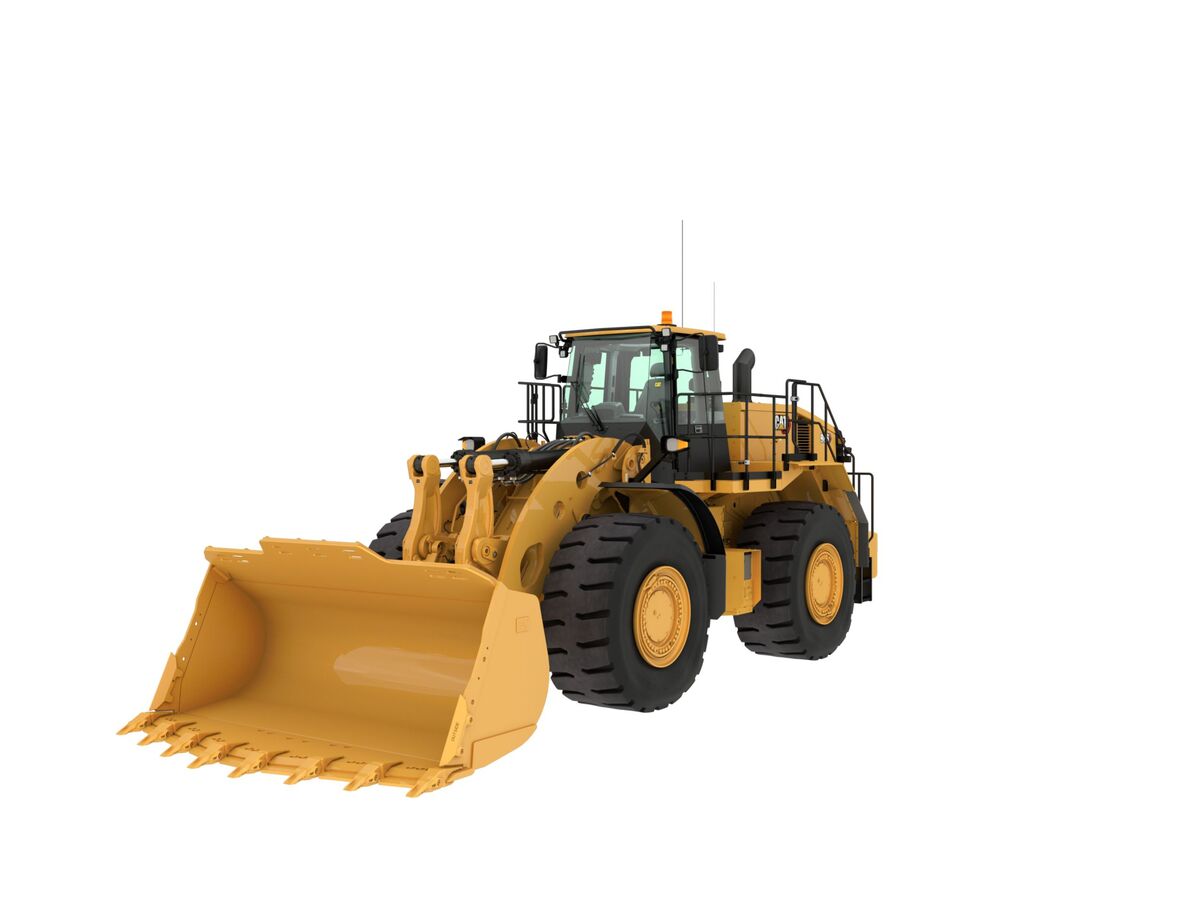

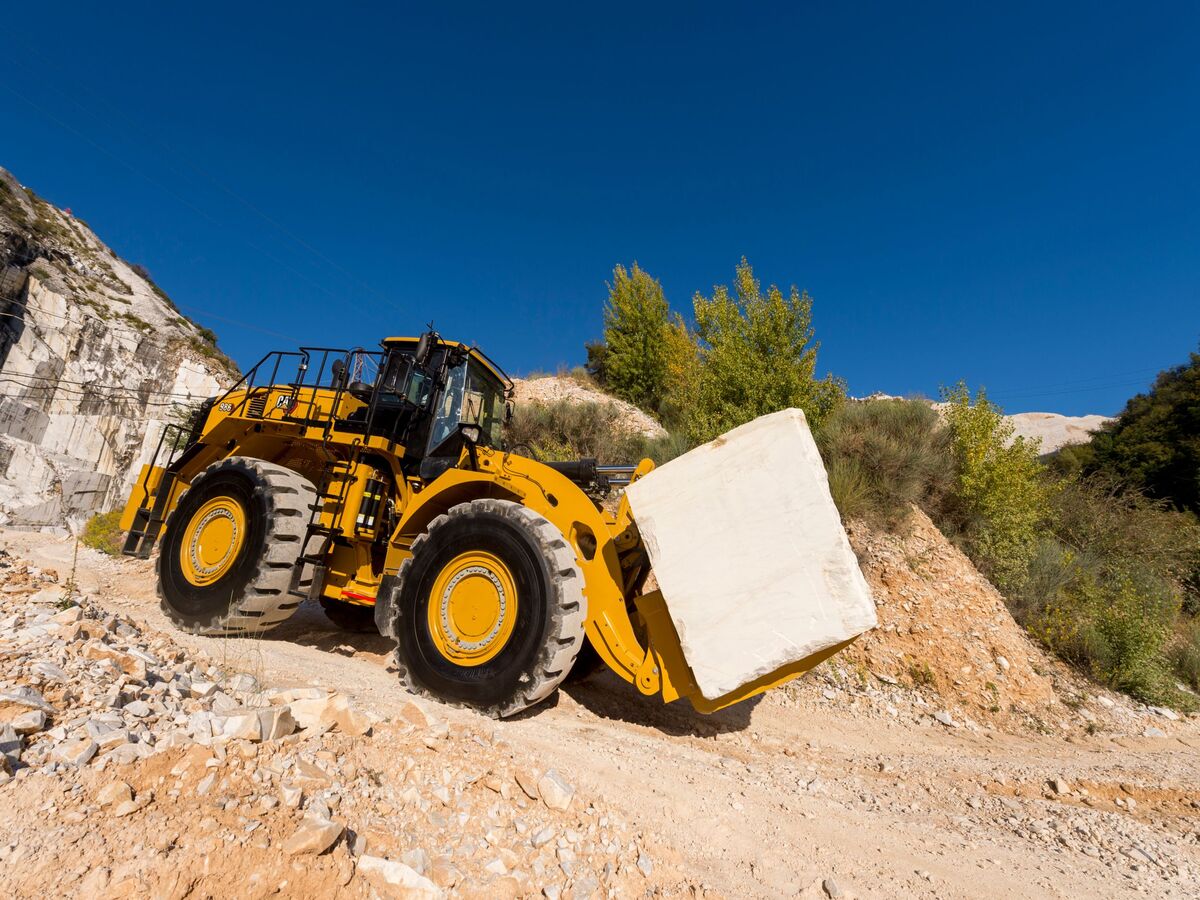

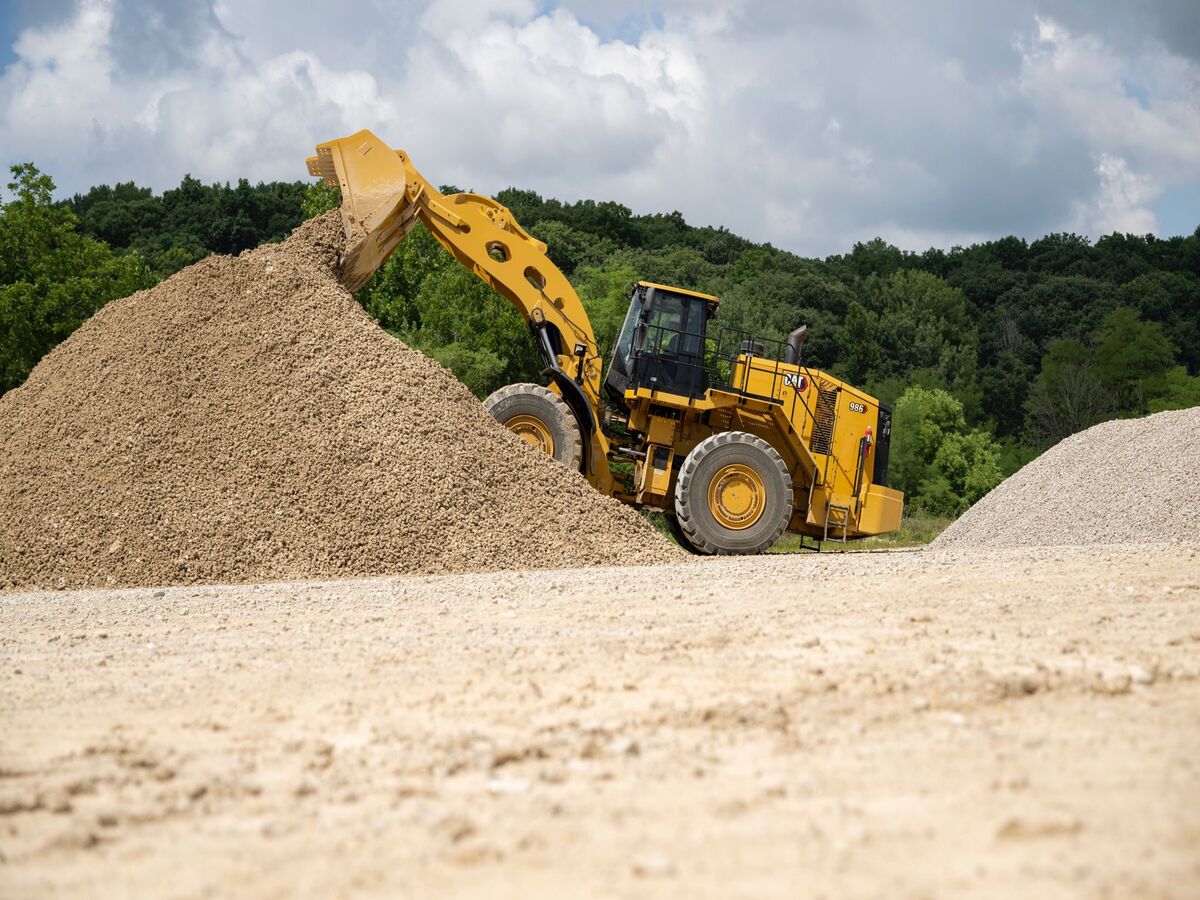

986 Wheel Loader

Cat® Large Wheel Loaders are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. The 986 builds upon this legacy of durability, performance, safety, operator comfort, serviceability and sustainability.

Compare

Get a Quote Download Brochure

Specifications

Overview

Engine

Engine Power - ISO 14396:2002

335 kW

Engine Model

Cat® C15

Peak Power Speed

1600

Gross Power - SAE J1995:2014

340 kW

Net Power - SAE J1349:2011

278 kW

Rated Speed

2000

Rated Speed - 2,000 rpm - EEC 80/1269

278 kW

Rated Speed - 2,000 rpm - ISO 9249

278 kW

Bore

137 mm

Stroke

171.5 mm

Displacement

15.2 l

Peak Torque (1,200 rpm) - SAE J1995:2014

2411 N·m

Torque Rise

16%

Note (1)

Two engine emission options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

Note (2)

Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.

Note (1)

* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”

Note (2)

** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.

Note (3)

The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.

Note (4)

The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.

Note (5)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Note (1)

* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”

Note (2)

** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.

Note (3)

The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.

Note (4)

The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.

Note (5)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Wheel Base

3810 mm

Wheel Base

3810 mm

Wheel Base

3810 mm

Wheel Base

3810 mm

Weights

Operating Weight - Standard

44355 kg

Operating Specifications

Bucket Capacity Range

5.0-10.3 m³ (6.5-13.5 yd³)

Operating Weight - High Lift

47175 kg

Rated Payload - Standard (Quarry Face)

10 t

Rated Payload - Loose Material (Standard)

12.7 t

Rated Payload - High Lift (Quarry Face)

10 t

Rated Payload - Loose Material (High Lift)

11 t

Cat Truck Match - Standard

770/735/740/745

Cat Truck Match - High Lift

772/773

Transmission

Transmission Type

Cat planetary power shift

Forward - 1

7.3 km/h

Forward - 2

12.2 km/h

Direct Drive - Forward 2

12.7 km/h

Direct Drive - Forward 3

22 km/h

Direct Drive - Forward 4

39 km/h

Reverse - 1

7.6 km/h

Reverse - 2

13.6 km/h

Direct Drive - Reverse 2

14.1 km/h

Direct Drive - Reverse 3

25 km/h

Direct Drive - Reverse 4

40.8 km/h

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit

Load Sense

Lift/Tilt System - Pump

2 × 110 cc variable displacement

Relief Valve Setting - Lift/Tilt

27900 kPa

Lift Cylinder - Bore

190 mm

Lift Cylinder - Stroke

1138 mm

Tilt Cylinder - Bore

170 mm

Tilt Cylinder - Stroke

722 mm

Hydraulic System – Lift/Tilt

Maximum Flow at 2,165 rpm

470 L/min

Hydraulic Cycle Time

Rack Back

4.5 s

Dump

3.5 s

Lower Float Down

4.3 s

Total Hydraulic Cycle Time

21.3 s

Body Hoist

Raise

9 s

Lower

5.2 s

Hydraulic System - Steering

Steering System - Circuit

Load Sense

Steering System - Pump

Piston, variable displacement

Maximum Flow at 1,400 rpm

200 L/min

Total Steering Angle

70°

Hydraulic System – Steering

Steering Cut Off Pressure

27600 kPa

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).

Axles

Front

Fixed

Rear

Trunnion

Oscillation Angle

±12.5°

Oscillation Angle - Chain Arrangement

±8.5°

Standards

Brakes

ISO 3450:2011

ROPS/FOPS

ROPS/FOPS meet ISO 3471:2008 (ROPS) and ISO 3449:2005 Level II (FOPS)

Service Refill Capacities

Fuel Tank

535 l

Fuel Tank - Short Lift

481 l

Cooling Systems

100 l

Crankcase

34 l

Diesel Exhaust Fluid Tank

23 l

Transmission

75 l

Axle Oil - Differentials and Final Drives - Front

186 l

Axle Oil - Differentials and Final Drives - Rear

170 l

Hydraulic System Factory Fill

330 l

Hydraulic System - Tank Only

130 l

Sound Performance - Tier 4 Final / Stage V

Operator Sound Pressure Level (ISO 6396:2008)

73 dB(A)

Machine Sound Power Level (ISO 6395:2008)

113 dB(A)

Operator Sound Pressure Level (ISO 6396:2008)*

72 dB(A)

Machine Sound Power Level (ISO 6395:2008)**

110 dB(A)

Operator Sound Pressure Level (ISO 6396:2008)

74 dB(A)

Machine Sound Power Level (ISO 6395:2008)

113 dB(A)

Operator Sound Pressure Level (ISO 6396:2008)*

73 dB(A)

Machine Sound Power Level (ISO 6395:2008)**

110 dB(A)

Dimensions – Standard Lift (Approximate)

Ground to Top of ROPS

4100 mm

Ground to Top of Exhaust Stacks

4060 mm

Ground to Top of Hood

3270 mm

Ground to Lower Hitch Clearance

459 mm

Clearance at Maximum Lift

3079 mm

Maximum Overall Length

11143 mm

Ground to Top of ROPS

4100 mm

Ground to Top of Exhaust Stacks

4060 mm

Ground to Top of Hood

3270 mm

Ground to Lower Hitch Clearance

459 mm

Clearance at Maximum Lift

3538 mm

Maximum Overall Length

11591 mm

Ground to Top of ROPS

4100 mm

Ground to Top of Exhaust Stacks

4060 mm

Ground to Top of Hood

3270 mm

Ground to Lower Hitch Clearance

459 mm

Reach at Maximum Lift

2437 mm

Clearance at Maximum Lift

3259 mm

B-Pin Height at Maximum Lift

4566 mm

Maximum Overall Height, Bucket Raised

6359 mm

Rear Axle Center Line to Bumper

3132 mm

Maximum Overall Length

10671 mm

Ground to Top of ROPS

4100 mm

Ground to Top of Exhaust Stacks

4060 mm

Ground to Top of Hood

3270 mm

Ground to Lower Hitch Clearance

459 mm

B-Pin Height at Maximum Lift

4566 mm

Rear Axle Center Line to Bumper

3132 mm

Maximum Overall Length

10776 mm

Dimensions - Standard Lift - Approximate

Ground to Center of Front Axle

978 mm

Reach - Maximum Lift

2175 mm

B-Pin Height - Maximum Lift

4912 mm

Maximum Overall Height - Bucket Raised

6817 mm

Rear Axle - Centerline to Bumper

3132 mm

Front Axle Centerline to Bucket Tip

4201 mm

Ground to Center of Front Axle

978 mm

Reach - Maximum Lift

2248 mm

B-Pin Height - Maximum Lift

5371 mm

Maximum Overall Height - Bucket Raised

7276 mm

Rear Axle - Centerline to Bumper

3132 mm

Front Axle Centerline to Bucket Tip

4649 mm

Front Axle Centerline to Bucket Tip

3729 mm

Front Axle Centerline to Bucket Tip

3834 mm

Dimensions (Approximate) - Standard Lift Linkage

Ground to Fuel Tank Clearance

691 mm

Ground to Fuel Tank Clearance

691 mm

Ground to Fuel Tank Clearance

691 mm

Ground to Fuel Tank Clearance

691 mm

Turning Circle

Note

All dimensions are approximate.
Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.

Note

All dimensions are approximate.
Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.

Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket

Ground to Center of Rear Axle

978 mm

Ground to Center of Rear Axle

978 mm
