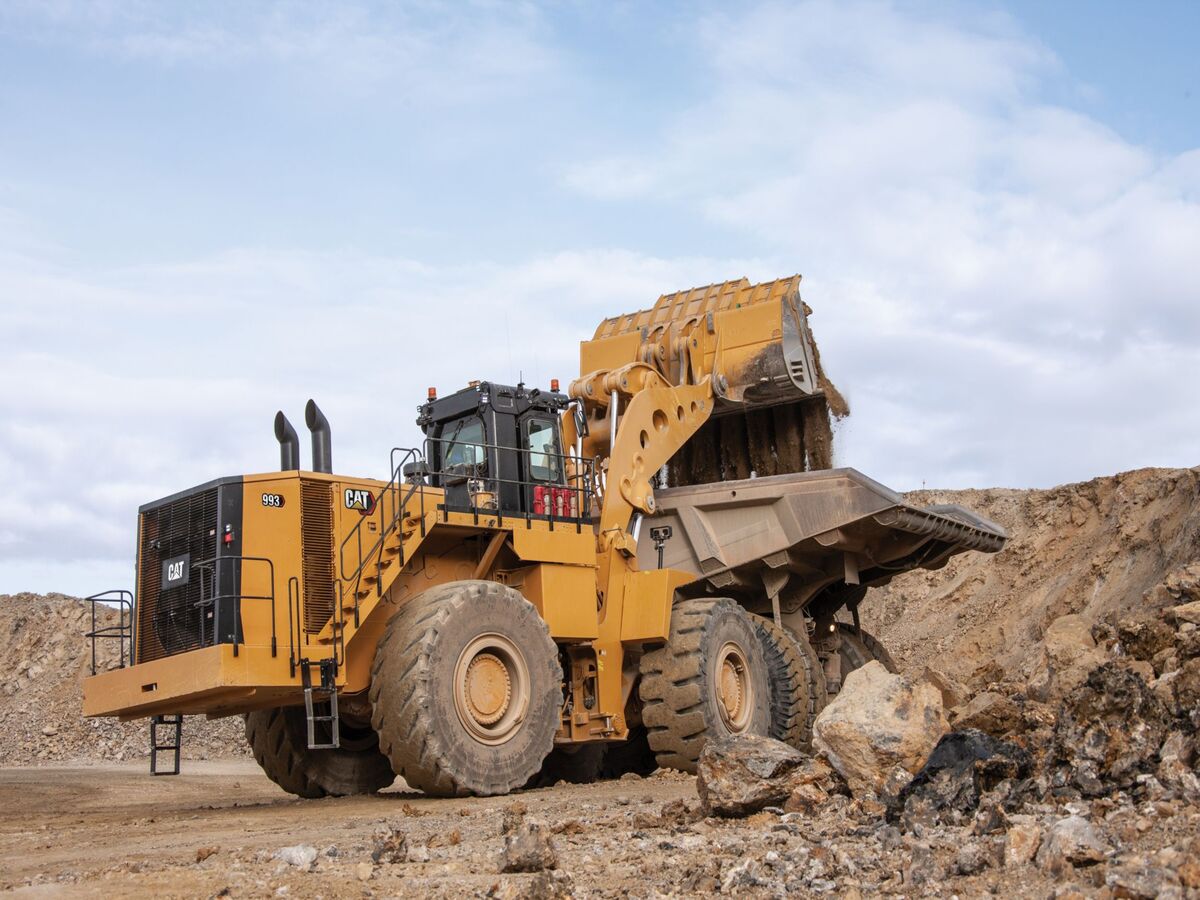

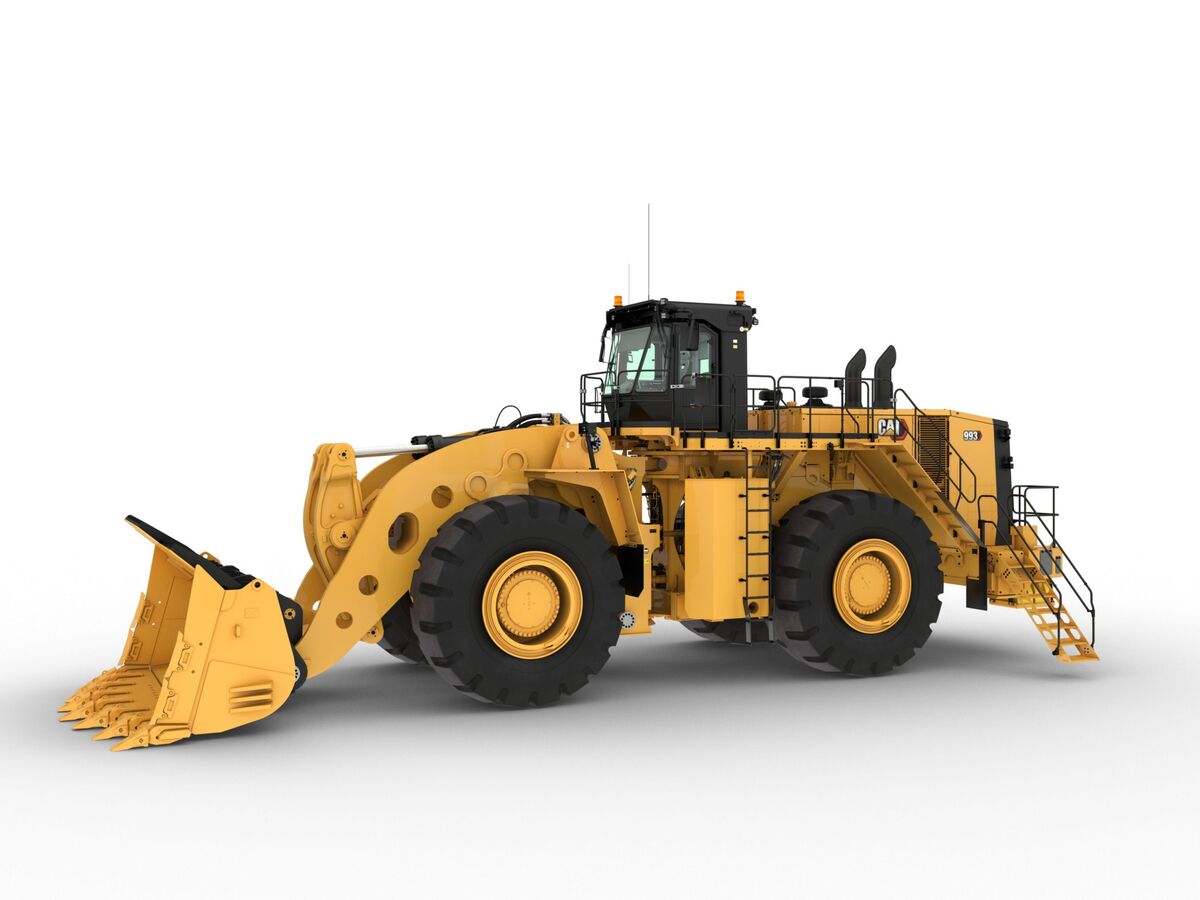

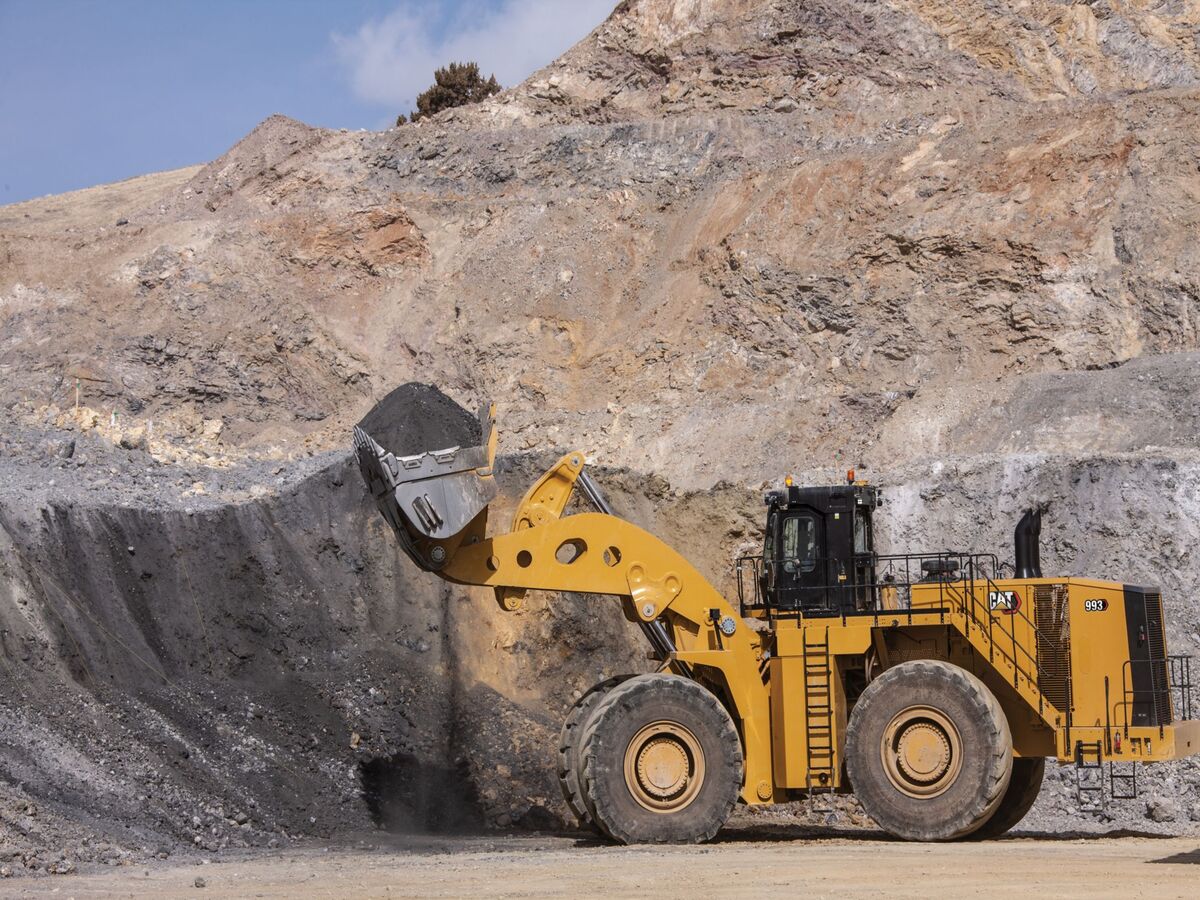

993 Wheel Loader

Like all Cat^® wheel loaders, the 993 is designed with durability built in, ensuring maximum availability through multiple lifecycles. With optimized performance, the 993 allows you to more efficiently move material. Introduced in 2008, the success of the 993 is a testament to its heritage. Infused with Cat DNA, the roots of performance, durability, comfort and efficiency run deep.

Compare

Get a Quote Download Brochure

Specifications

Overview

Engine

Engine Model

Cat C32B

Bore

145 mm

Displacement

32.1 l

Emissions

U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent

Gross Power - SAE J1995

775 kW

Net Power - EEC 80/1269

726 kW

Net Power - ISO 14396

764 kW

Net Power - ISO 9249

726 kW

Net Power - SAE J1349

719 kW

Rated Speed

1800 r/min

Stroke

162 mm

Torque Rise

33%

Bore

145 mm

Displacement

32.1 l

Emissions

U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent

Engine Model

Cat C32B

Gross Power - SAE J1995

767 kW

Net Power - EEC 80/1269

716 kW

Net Power - ISO 14396

757 kW

Net Power - ISO 9249

716 kW

Net Power - SAE J1349

710 kW

Rated Speed

1800 r/min

Stroke

162 mm

Torque Rise

33%

Engine - Tier 4 Final

Peak Torque - 1,250 rpm

5470 N·m

Peak Torque - 1,250 rpm

5470 N·m

Turning Circle

Note

Standard ambient cooling.

Note

Standard ambient cooling.

Note

*High lift, 50/65-51 (364-6315) tires, standard cooling, 13.8 m3 (18 yd3 ) bucket (496-9912).

Note

50/65-51 (364-6315) calculated speeds.

Note

High Lift configuration.

Note

High Lift configuration, calculated speeds.

Operating Specifications

Operating Weight - Tier 4 Final*

133668 kg

Bucket Range

12.2-23.7 m3 (16.0-31.0 yd3)

Cat Truck Match - Standard Lift

777

Cat Truck Match - High Lift

777, 785

Operating Weight - Tier 2 Equivalent*

133668 kg

Rated Payload - High Lift

24.9 t

Rated Payload - Standard Lift

27.2 t

Turning Dimensions

Articulation Angle

43 °

Transmission

Transmission Type

Cat Planetary Power Shift

Forward - 1

6.8 km/h

Forward - 2

11.9 km/h

Forward - 3

20.5 km/h

Reverse - 1

7.5 km/h

Reverse - 2

13.1 km/h

Reverse - 3

22.5 km/h

Direct Drive - Forward 1

Lock-up disabled

Direct Drive - Forward 2

13 km/h

Direct Drive - Forward 3

22.8 km/h

Direct Drive - Reverse 1

8 km/h

Direct Drive - Reverse 2

14.2 km/h

Direct Drive - Reverse 3

25.2 km/h

Hydraulic System - Lift/Tilt

Cylinders - Lift/Tilt

Double-acting

Lift Cylinder - Bore

267 mm

Lift Cylinder - Stroke

1682 mm

Lift/Tilt System - Circuit

Positive Flow Control

Lift/Tilt System - Pump

Variable Piston

Relief Valve Setting - Lift/Tilt

29500 kPa

Tilt Cylinder - Bore

235 mm

Tilt Cylinder - Stroke

1040 mm

Hydraulic System – Lift/Tilt

Maximum Flow at 1,650 rpm

1180 L/min

Hydraulic Cycle Time

Dump

1.8 s

Lower Float Down

3.1 s

Rack Back

2.4 s

Total Hydraulic Cycle Time

17.2 s

Body Hoist

Lower

3.8 s

Raise

9.2 s
