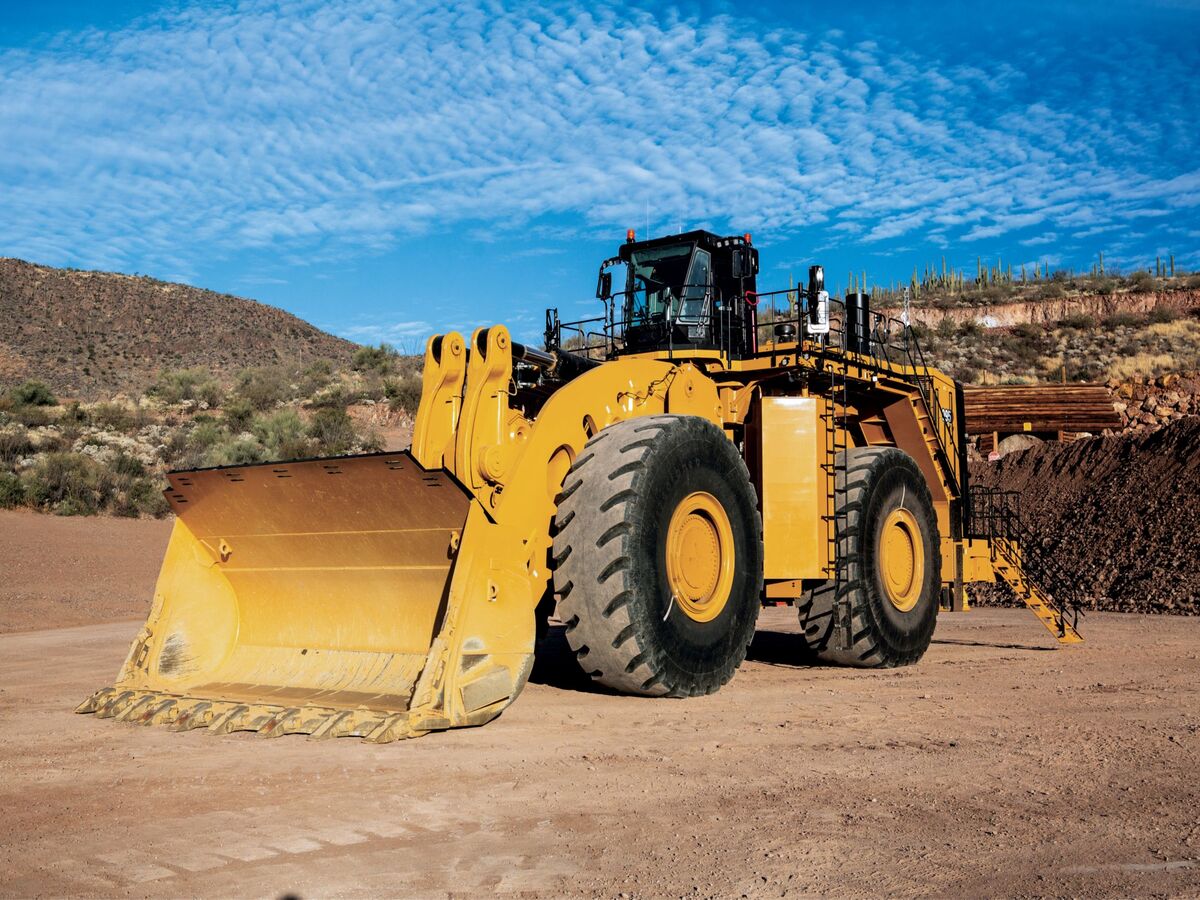

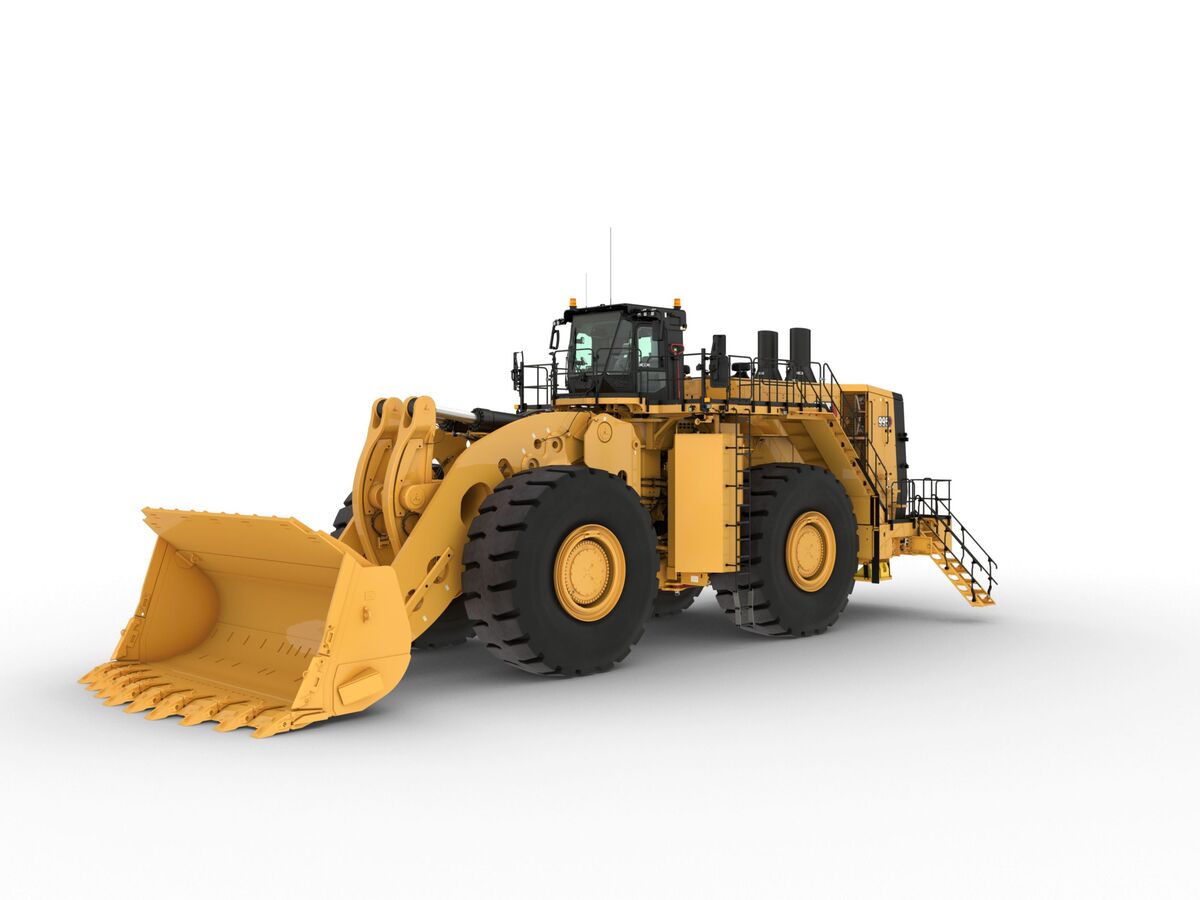

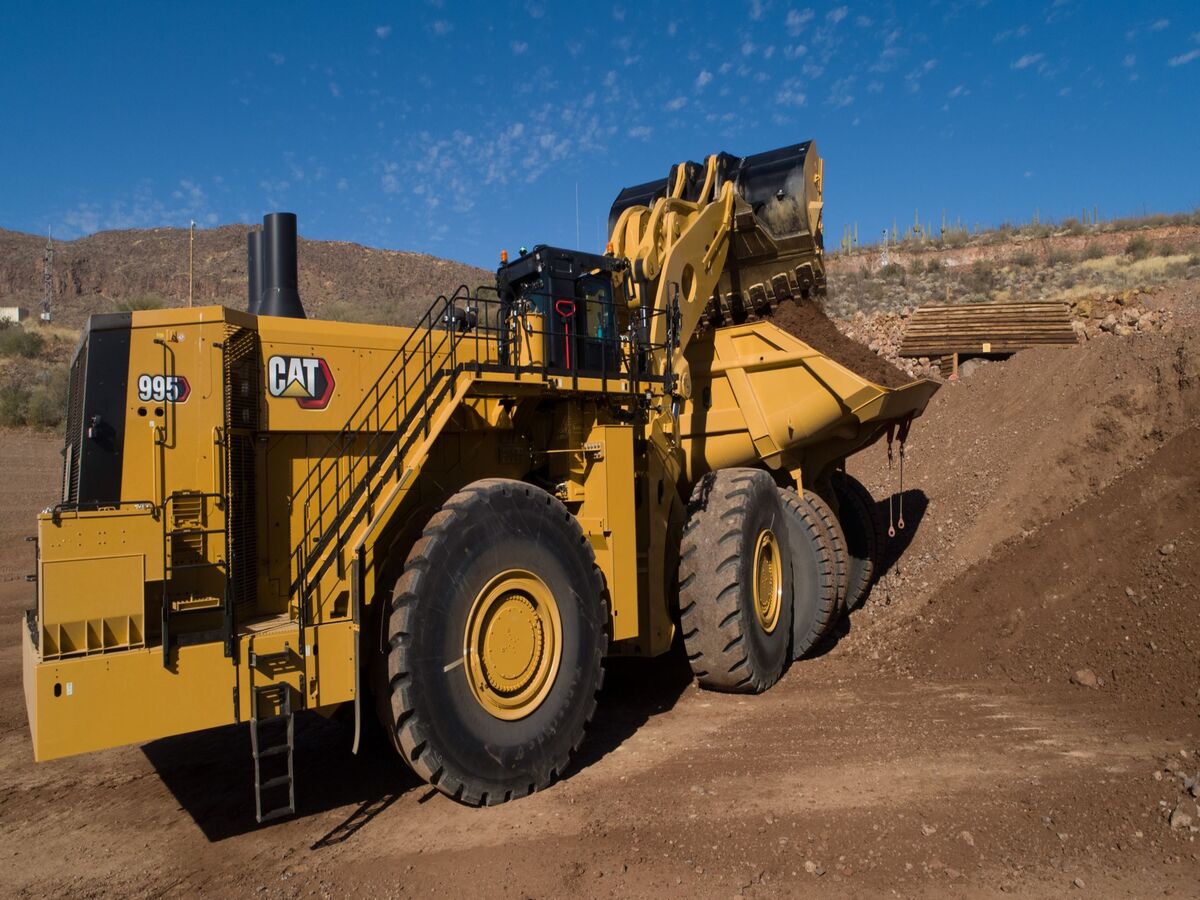

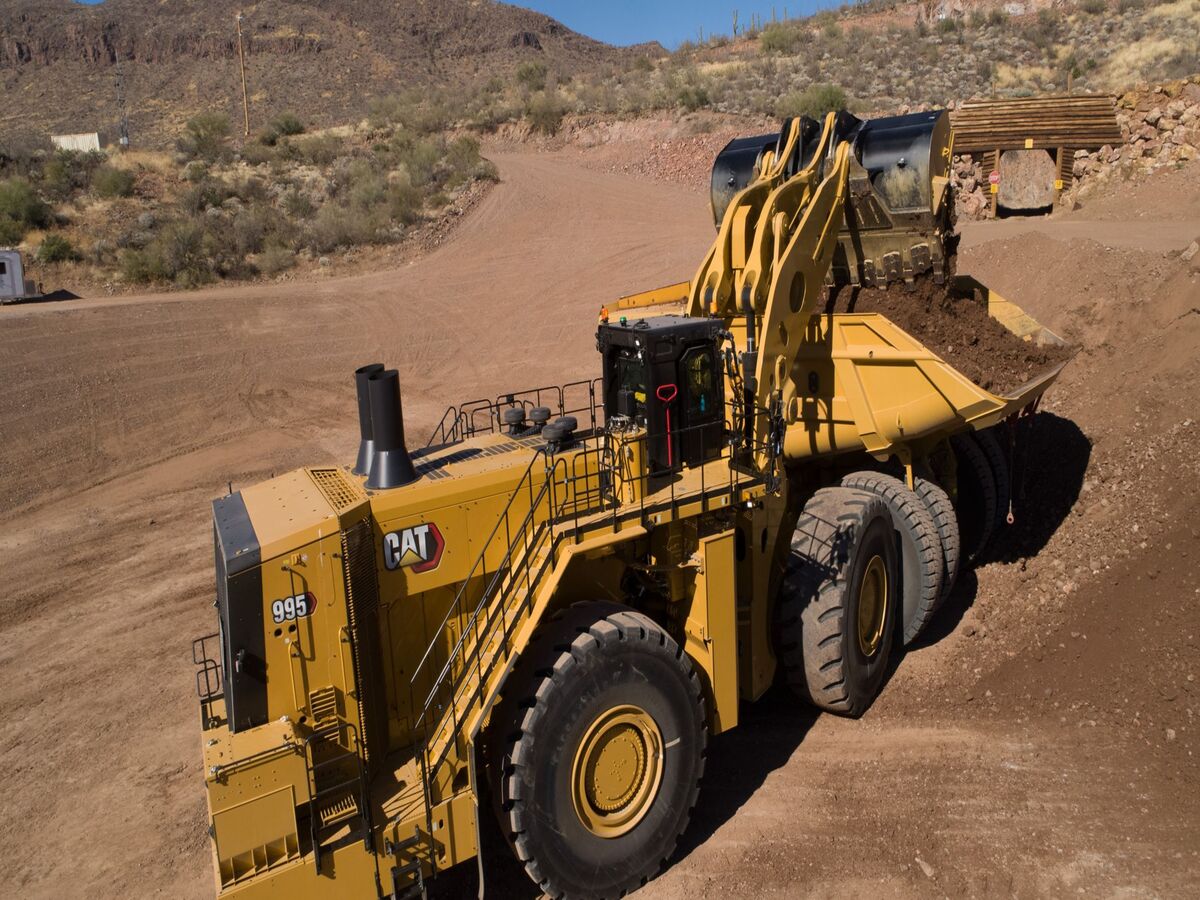

995 Wheel Loader

Built to the same size as the 994K but offering a higher rated payload, the new Cat® 995 Wheel Loader gives you greater productivity and performance while using less fuel. It offers a one-pass reduction when loading Cat 785, 789 and 793 Mining Trucks — increasing production and efficiency up to 33% when loading the 785, up to 25% when loading the 789, and up to 20% with the 793. The 995 demonstrates 21% higher efficiency and 24% more production than the 994K in equal operating mode thanks to a higher rated payload and 6% increase in hydraulic force. In Enhanced Eco Mode, the 995 demonstrates up to a 30% increase in efficiency and an 11% reduction in hourly fuel consumption versus the 994K in throttle lock mode, which translates to 23% less CO2 per unit of material moved. It also offers a more comfortable operator environment and is infused with new technology features that allow additional gains in efficiency.

Get a Quote Download Brochure

Overview

Built to the same size as the 994K but offering a higher rated payload, the new Cat® 995 Wheel Loader gives you greater productivity and performance while using less fuel. It offers a one-pass reduction when loading Cat 785, 789 and 793 Mining Trucks — increasing production and efficiency up to 33% when loading the 785, up to 25% when loading the 789, and up to 20% with the 793. The 995 demonstrates 21% higher efficiency and 24% more production than the 994K in equal operating mode thanks to a higher rated payload and 6% increase in hydraulic force. In Enhanced Eco Mode, the 995 demonstrates up to a 30% increase in efficiency and an 11% reduction in hourly fuel consumption versus the 994K in throttle lock mode, which translates to 23% less CO2 per unit of material moved. It also offers a more comfortable operator environment and is infused with new technology features that allow additional gains in efficiency.

Engine

Engine Model
Cat® 3516E
Emissions
U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent
Engine Power - ISO 14396
1377 kW
Gross Power - SAE J1995:2014
1394 kW
Net Power - SAE J1349 - Standard Ambient
1297 kW
Net Power - SAE J1349 - High Ambient
1265 kW
Bore
170 mm
Stroke
215 mm
Displacement
78.1 l
Peak Torque - 1,200 rpm - SAE J1995
11591 N·m
Torque Rise
39%
Note (1)
The power ratings apply when tested under the reference conditions for the specified standard.
Note (2)
The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler.
Note (3)
The gross power advertised is with the fan at maximum speed.
Wheel Base
6800 mm
Wheel Base
6800 mm

Weights

Operating Weight - Standard
246651 kg

Operating Specifications

Operating Weight - High Lift
248421 kg
Rated Payload - Standard Lift (Low to Moderate Digging Resistance)
54.4 t
Rated Payload - Standard Lift (Moderate to High Digging Resistance)
45.3 t
Rated Payload - High Lift (Low to Moderate Digging Resistance)
49.9 t
Rated Payload - High Lift (Moderate to High Digging Resistance)
45.3 t
Cat Truck Match - Standard
785/789
Cat Truck Match - High Lift
789/793/794
Bucket Capacity Range
17.2-43.6 m3 (22.3-57 yd3)

Turning Circle

Note
*Please contact your local dealer to determine if your application is suitable for this increased rated payload.
Note
Travel speeds based on 58/85-57 tires.
Note
*Not available on Tier 4 Final/Stage V machines. Not available in all regions.
Note
The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note
The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note
Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.
Note
Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.

Transmission

Transmission Type
Cat Planetary Power Shift
Forward - 1
7.4 km/h
Forward - 2
12.9 km/h
Forward - 3
21.9 km/h
Reverse - 1
8.1 km/h
Reverse - 2
14.1 km/h
Reverse - 3
24 km/h
Direct Drive - Forward 1
Lock-up disables
Direct Drive - Forward 2
14 km/h
Direct Drive - Forward 3
24.5 km/h
Direct Drive - Reverse 1
Lock-up disables
Direct Drive - Reverse 2
15.5 km/h
Direct Drive - Reverse 3
27 km/h

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit
Positive Flow Control
Lift/Tilt System - Pump
Variable Displacement Piston
Relief Valve Setting - Lift/Tilt
34500 kPa
Cylinders, Double Acting - Lift, Bore and Stroke
370 × 1713 mm (14.6 × 67.4 in)
Cylinders, Double Acting - Tilt, Bore and Stroke
310 × 1086 mm (12.2 × 42.8 in)
Pilot System
Open Loop and Pressure Reducing

Hydraulic System – Lift/Tilt

Maximum Flow at 1,700 rpm Engine Speed
2047 L/min

Hydraulic Cycle Time

Rack Back
4.9 s
Dump
3.1 s
Lower Float Down
4.2 s

Body Hoist

Raise
12.6 s

Service Refill Capacities

Fuel Tank - Standard
3240 l
Cooling System
520 l
Engine Crankcase
288 l
Transmission
416 l
Differential - Final Drives - Front
833 l
Differential - Final Drives - Rear
757 l
Hydraulic Tank - Implement and Hydraulic Fan
1022 l
Hydraulic Tank - Steering and Braking
379 l

Complete System Fill

Fuel Tank - With 24 hr Attachment
5350 l

Dimensions – Standard Lift (Approximate)

Oil Renewal System (ORS)*
75.7 l
Clearance at Maximum Lift
6039 mm
Dump Angle at Maximum Lift
–50.0 degrees
Ground to Bumper Clearance
1355 mm
Ground to Center of Axles
1830 mm
Ground to Lower Hitch Clearance
898 mm
Ground to Top of Exhaust Stacks
7067 mm
Ground to Top of Hood
5682 mm
Ground to Top of ROPS
7119 mm
Maximum Overall Length
19693 mm
Rack Angle at Maximum Lift
59.5 degrees
Clearance at Maximum Lift
6896 mm
Dump Angle at Maximum Lift
–50.0 degrees
Ground to Bumper Clearance
1355 mm
Ground to Center of Axles
1830 mm
Ground to Lower Hitch Clearance
898 mm
Ground to Top of Exhaust Stacks
7067 mm
Ground to Top of Hood
5682 mm
Ground to Top of ROPS
7119 mm
Maximum Overall Length
20388 mm
Rack Angle at Maximum Lift
59.4 degrees

Axles

Front
Fixed
Rear
Trunnion
Oscillation Angle

Standards

Brakes
ISO 3450:2011

Cooling System

Ambient Capability Hydraulically Driven Demand Fan - Standard
43 °C
Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent)
55 °C
Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final)
53 °C

Sound Performance - Standard

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent
74 dB(A)
Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent
73 dB(A)

Sound Performance - Suppression

Machine Sound Level (ISO 6395:2008)
119 dB(A)
Machine Sound Level (ISO 6395:2008)
117 dB(A)

Hydraulic System - Steering

Steering System - Circuit
Pilot, Load Sensing
Steering System - Pump
Piston, Variable Displacement
Total Steering Angle
80 degrees
Steering Cycle Times - Low Idle
7.6 s
Steering Cycle Times - High Idle
4.3 s

Dimensions - Standard Lift - Approximate

B-Pin Height - Maximum Lift
8800 mm
Front Axle Centerline to Bucket Tip
6688 mm
Maximum Overall Height - Bucket Raised
11966 mm
Rack Back Angle - Carry
47.7 degrees
Rack Back Angle - Ground Level
39.7 degrees
Reach - Maximum Lift
2946 mm
Rear Axle - Centerline to Bumper
6205 mm
Width - Over Tires - With Bulge
5758 mm
B-Pin Height - Maximum Lift
9657 mm
Front Axle Centerline to Bucket Tip
7383 mm
Maximum Overall Height - Bucket Raised
12823 mm
Rack Back Angle - Carry
53.5 degrees
Rack Back Angle - Ground Level
45 degrees
Reach - Maximum Lift
2884 mm
Rear Axle - Centerline to Bumper
6205 mm
Width - Over Tires - With Bulge
5760 mm

Sound

Tread Width
4300 mm
Tread Width
4300 mm
