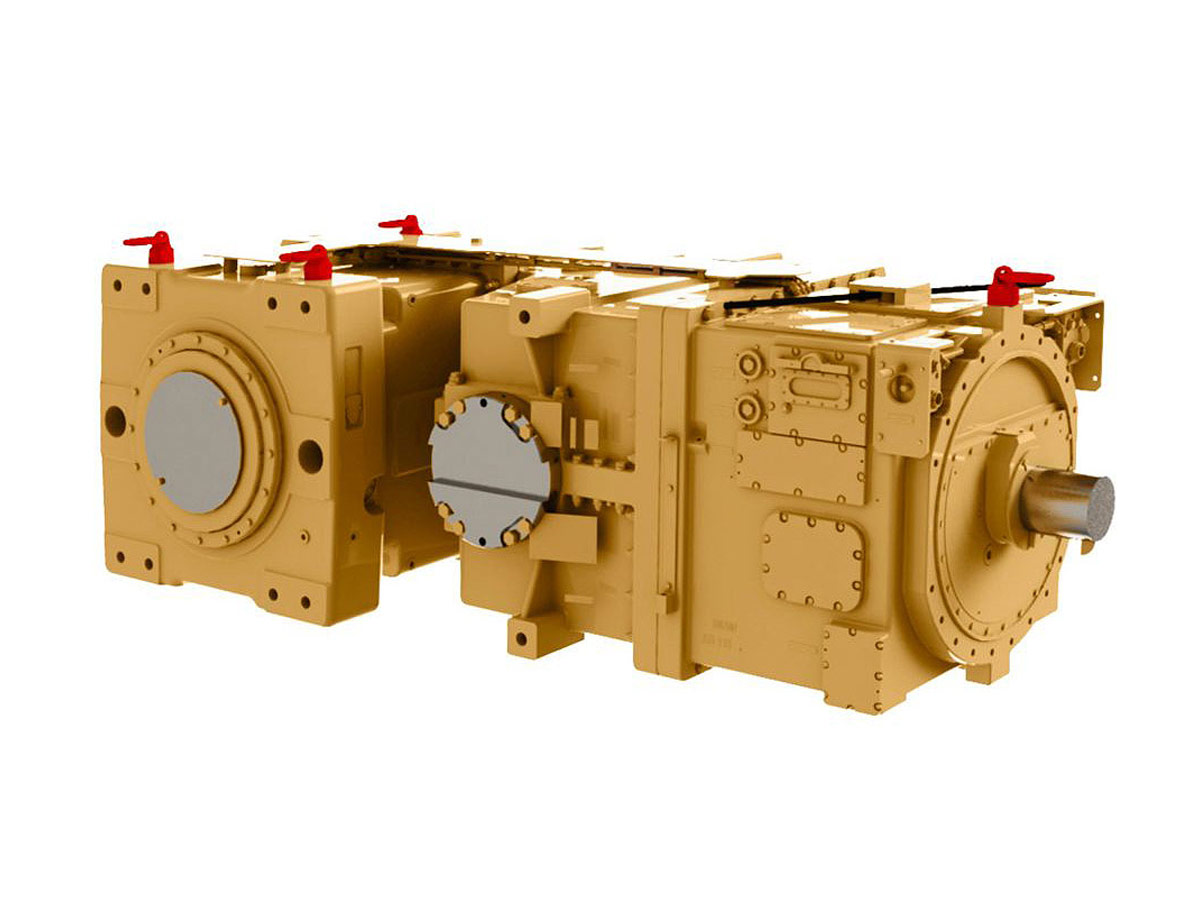

CAT Gearbox CST115

N

Get a Quote

Overview

N

Specifications

Maximum Output Torque for a Short Duration (3 sec.)
1150000.0 N·m
Maximum Input Speed (motor speed)
1,782 rpm
Weight (without oil) - In-line Drive System
16400.0 kg

Shaft Design

Input Shaft (cylindrical)
DIN 5480-W 140×4
Output Shaft with Internal Toothing
DIN 5480-N 360×10

Requirements of Cooling Water

Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K)
Required Cooling Water Quantity
90.0 L/min

Dimension

KP-115 CST - Height
1300.0 mm
KP-115 CST - Length
3600.0 mm
KP-115 CST - Width
2029.0 mm
P-115 CST - Height
1300.0 mm
P-115 CST - Length
2811.0 mm
P-115 CST - Width
1400.0 mm

Typical Application

Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC)

Maximum Output Torque (for 3 sec) Tmax [N·m]

KP-115 CST/P-115 CST
1150000.0 N·m
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
1800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 46
1800 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
2,937 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 46
2,480 hp

Capacity

KP-115 CST - Gearbox Weight (without oil)
23980.0 kg
KP-115 CST - Oil Quantity
1300.0 L
P-115 CST - Gearbox Weight (without oil)
16400.0 kg
P-115 CST - Oil Quantity
700.0 L
