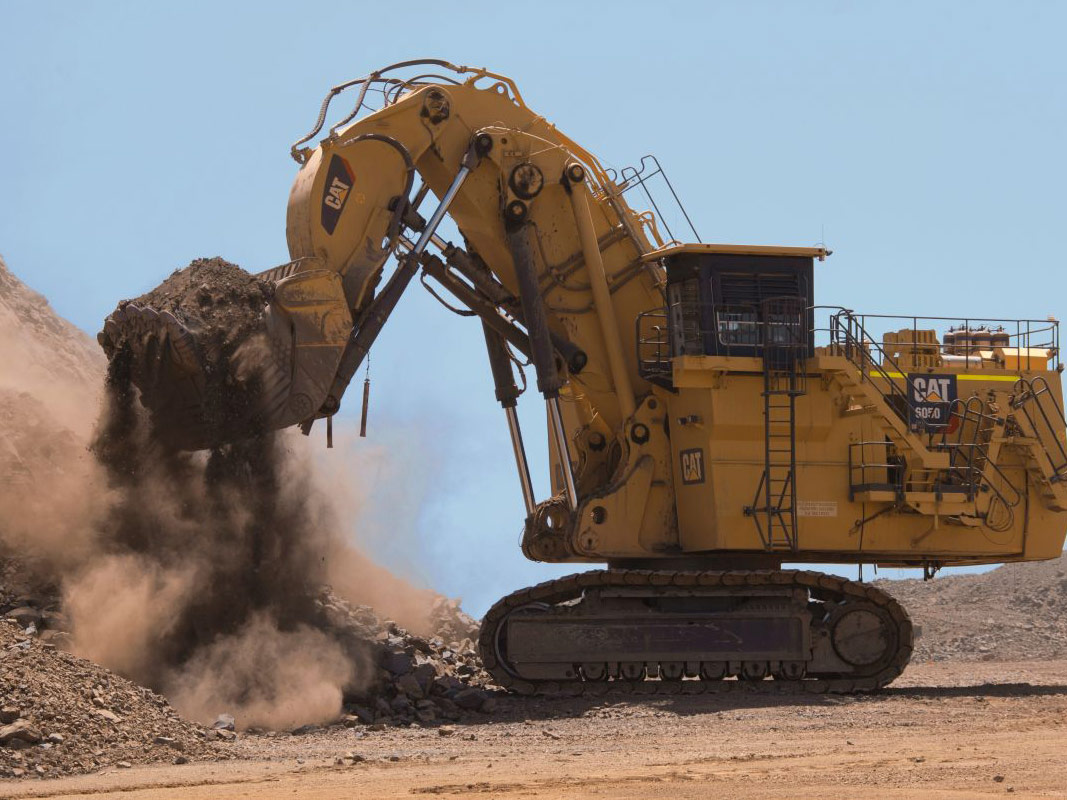

CAT Hydraulic Shovel 6050/6050 FS

We understand the challenges you face, the importance of reliability, and the relationship between uptime and productivity. That’s why we continually strive to produce the safest, most reliable and productive hydraulic mining shovels possible. Offering the widest payload range of any manufacturer in the industry, the ability to optimally pair with our popular line of mining trucks, and the support of our world-class Cat dealer network, we are uniquely positioned to partner with you to help achieve your productivity targets. We understand what matters to you. Our hydraulic mining shovels are built with you in mind. Because in mining, every day matters and every load counts.

Get a Quote

Overview

We understand the challenges you face, the importance of reliability, and the relationship between uptime and productivity. That’s why we continually strive to produce the safest, most reliable and productive hydraulic mining shovels possible. Offering the widest payload range of any manufacturer in the industry, the ability to optimally pair with our popular line of mining trucks, and the support of our world-class Cat dealer network, we are uniquely positioned to partner with you to help achieve your productivity targets. We understand what matters to you. Our hydraulic mining shovels are built with you in mind. Because in mining, every day matters and every load counts.

General Data

Engine Output - SAE J1995
Cummins K1500E - 1880 kW (2,520 hp); Cummins QSK38 - 1880 kW (2,520 hp)
Standard Bucket Capacity
Face Shovel (heaped 2:1) - 26.0 m3 (34.0 yd3); Backhoe (heaped 1:1) - 28.0 m3 (36.6 yd3)

Weights

Operating Weight
Face Shovel - 528 tonnes (582 tons); Backhoe - 537 tonnes (592 tons)

Diesel Engines

Alternators
2 × 175A each
Make and model
2 × Cummins K1500E
Make and model
2 × Cummins QSK38

Electrical System (diesel drive)

Batteries in series/parallel installation
6 × 210 Ah - 12V each; 630 Ah - 24V in total

Front End

Components
Thirteen (13) LED service lights
Components
Battery isolation relays
Components
Emergency stop switches accessible from ground level, in engine module and in operator’s cab
Components
Ten (10) LED high-brightness working flood lights - Eight (8) for working area - Two (2) for rear end
Components
Two (2) LED high-brightness access flood lights
Components
Additional high-capacity water separator
Components
Two-stage fuel filter including water separator
Components
Pre-lube starting system
Components
Eliminator with centrifuge for engine oil filtration
Components
Hydraulically driven radiator fan with electronically controlled fan speed
Components
Heavy-duty air filters with automatic dust evacuation
Components
Microprocessed engine control
Components
All running surfaces of sprockets, idlers, rollers and pad links, as well as teeth contact areas of sprocket and pad links, are hardened
Components
Acoustic travel alarm
Components
Cast double-grouser combined pad links with bushings connected by hardened full floating pins
Components
Bottom rollers are connected to the automatic lubrication system
Components
Fully hydraulic, self-adjusting track tensioning system with membrane accumulator
Components
Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Components
Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head and armrests
Components
Under roof mounted heating ventilating and air conditioning system
Components
Windshield with parallel intermittent wiper/washer
Components
All-round safety glass, armored windshield and sliding side window
Components
FOPS (rock guard; approved according to DIN ISO 3449) integrated into cab structure
Components
Fold-away auxiliary seat with safety belt
Components
External sun shields at side and rear windows
Components
Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
Components
Joystick controls integrated in independently adjustable seat consoles
Components
Robust instrument panel including large colored BCS screen with transflective technology
Components
Emergency rescue seat
Components
Emergency ladder mounted to the A-frame
Components
Machine access via retractable boarding ladder, hydraulically operated
Components
Roller blinds at all windows
Components
Additional high-capacity water separator
Components
Hydraulically driven radiator fan with electronically controlled fan speed
Components
Eliminator with centrifuge for engine oil filtration
Components
Pre-lube starting system
Components
Microprocessed engine control
Components
Heavy-duty air filters with automatic dust evacuation
Components
Two-stage fuel filter including water separator
Components
Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers

Electrical System

System Voltage
24V

Engine

Aspiration
Turbocharged and aftercooled
Bore
159.0 mm
Displacement
37.8 L
Emissions
U.S. EPA Flex
Stroke
159.0 mm
Engine Model
2 × Cummins K1500E or 2 × Cummins QSK 38
Gross Power - SAE J1995
1880.0 kW
Net Power - SAE J1349
1880.0 kW
Aspiration
Turbocharged and aftercooled
Bore
159.0 mm
Displacement
37.8 L
Emissions
U.S. EPA Flex
Stroke
159.0 mm
Features
Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Features
Fan speed and flow of oil to the coolers are thermostatically controlled
Features
Extremely high cooling efficiency to ensure optimum oil temperature
Main Pumps
4 × variable flow axial piston pumps
Features
Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
Features
Closed-loop swing circuit with torque control
Features
Hydraulic braking of the swing motion by counteracting control
Features
All raceways and the internal gearing of swing ring supplied by automatic central lubrication system

Service Refill Capacities

Fuel Tank Capacity
10700.0 L
Fuel Tank Capacity
10700.0 L

Diesel Engines - Version 1 - Cummins K1500E Tier 1

Maximum altitude without deration - above sea level
2438.0 m
No. of cylinders (each engine)
12
Total rated gross power SAE J1995
1880 kW 1,800 min-1 (2,520 hp 1,800 min-1)
Total rated net power ISO 3046/1
1880 kW 1,800 min-1 (2,520 hp 1,800 min-1)
Total rated net power SAE J1349
1880 kW 1,800 min-1 (2,520 hp 1,800 min-1)
Maximum altitude without deration - above sea level
3200.0 m
No. of cylinders (each engine)
12
Total rated gross power SAE J1995
1880 kW 1,800 min-1 (2,520 hp 1,800 min-1)
Total rated net power ISO 3046/1
1880 kW 1,800 min-1 (2,520 hp 1,800 min-1)
Total rated net power SAE J1349
1880 kW 1,800 min-1 (2,520 hp 1,800 min-1)

Operating Weight

6050 FS - Ground pressure
25.9 N/cm2 (37.5 psi)
6050 FS - Note
Other track pads available on request
6050 FS - Operating weight
527600.0 kg
6050 FS - Standard track pads
1400.0 mm
6050 - Ground pressure
26.3 N/cm2 (38.1 psi)
6050 - Note
Other track pads available on request
6050 - Operating weight
537000.0 kg
6050 - Standard track pads
1400.0 mm

Operating Specifications

Bucket Payload - Backhoe
50.0 tonne
Bucket Payload - Front Shovel
47.0 tonne
Operating Weight - Backhoe
537.0 tonne
Operating Weight - Front Shovel
528.0 tonne

Turning Circle

Note
Electric drive option available (1600 kW) on 6050 AC/6050 AC FS

Attachments

All buckets (FS and BH) are equipped with a wear package consisting of:
- Special liner material covering main wear areas inside and outside of bucket - Lip shrouds between teeth
Shovel attachment with unique TriPower kinematics ensuring the following main features:
- Automatic roll-back limiter to prevent material spillage - Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features:
- Horizontal automatic constant-angle bucket guidance - Vertical automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features:
- Constant boom momentum throughout the entire lift arc - Crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of:
- Wing shrouds on side walls - Heel shrouds at bottom edges

Ripper

Type
Inspection hole in booms
Type
Catwalks with rails at booms
Type
Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type
Guards for shovel cylinders (FS)
Type
Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type
Booms and sticks are stress-relieved after welding
Type
Booms and sticks are torsion-resistant, welded box design of high tensile steel with massive steel castings at pivot areas
Type
Power limit control by Pump Management System
Type
Squirrel cage induction motor
Type
Custom-made electric motor with increased gap between rotor and stator to withstand severe mining conditions
Type
Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times
Type
System failures displayed by Board Control System
Type
Grease filters (200 ?m) between service station and container, as well as directly behind grease pump
Type
Connected to the lube system are: - pivot points of attachment, bucket and cylinders - bottom rollers of undercarriage
Type
Connected to the lube system are: - raceways of the swing roller bearing - two greasing pinions for the internal gearing of the swing ring
Type
Special wear packages for highly abrasive materials on request

Retractable Service Station

Installation
Retractable service station installed underneath the engine module and easily accessible from ground.

Electric Motor – 6030 AC/6030 AC FS

Frequency
50 Hz (60 Hz on request)
Output
1600.0 kW
Rated current IN
174 A (at 6.6 kV)
Revolutions
1,500 min-1 (1,800 min-1 at 60 Hz)
Starting current
350% of IN (197% of IN optional)
Voltage
6.6 kV ± 10% (other on request)

Automatic Lubrication System

Capacity of grease container
1000.0 L

Undercarriage

Bottom Rollers (each side)
6
Gradeability of travel drives - maximum
50.0 %
Maximum tractive force
2576.0 kN
Parking Brakes
Wet multiple disc brake, spring-applied/hydraulically released
Support Rollers (each side)
2 plus a skid plate in between
Track Pads (each side)
39
Travel Drives (each side)
1 planetary transmission with 2 two-stage axial piston motors
Travel Speed: 1st Stage (maximum)
1.6 km/h
Travel Speed: 2nd Stage (maximum)
2.3 km/h
Parking Brakes
Wet multiple disc brake, spring-loaded/hydraulically released

Operator’s Cab

Board Control System (BCS) Features:
Electronic monitoring & data logging system for vital signs & service data of engines, hydraulic systems & lubrication systems
Internal dimensions - Height
2150.0 mm
Internal dimensions - Length
2200.0 mm
Internal dimensions - Width
1600.0 mm
Operator’s eye level - approximately
7.6 m

Hydraulic Oil Cooling

Diameter of fans
4 × 1170 mm (4 × 46 in)
Oil flow of cooling pumps - AC version
4 × 491 L/min (4 × 130 gal/min)
Oil flow of cooling pumps - Diesel version
4 × 488 L/min (4 × 129 gal/min)

Hydraulic System with Pump Managing System

Hydraulic tank capacity - AC version - approximately
5000.0 L
Hydraulic tank capacity - Diesel version - approximately
5500.0 L
Main pumps - Maximum oil flow - AC version
4 × 933 L/min (4 × 246 gal/min)
Main pumps - Maximum oil flow - Diesel version
4 × 912 L/min (4 × 241 gal/min)
Maximum pressure, attachment
300.0 bar
Maximum pressure, swing pumps
350.0 bar
Maximum pressure, travel
340.0 bar
Swing pumps - AC version
3 × reversible swash plate pumps
Swing pumps - Diesel version
4 × reversible swash plate pumps
Swing pumps - Maximum oil flow - AC version
3 × 491 L/min (3 × 131 gal/min)
Swing pumps - Maximum oil flow - Diesel version
4 × 351 L/min (4 × 93 gal/min)
Total volume of hydraulic oil - AC version - approximately
7300.0 L
Total volume of hydraulic oil - Diesel version - approximately
7800.0 L

Bucket

Bucket Capacity - Backhoe (heaped 1:1)
28.0 m3
Bucket Capacity - Front Shovel (heaped 2:1)
26.0 m3

Swing System

Maximum swing speed - AC version
4.0 RPM
Maximum swing speed - Diesel version
3.8 RPM
Swing Drives
4 compact planetary transmissions with axial piston motors
Swing Ring
Triple-race roller bearing with sealed internal gearing

Drive Systems

Balanced Combination of Power and Efficiency

Meeting Your Site Specific Needs with a Choice of Robust Drive System Options

Giving you the option to choose the drive system best suited for your operation, the Cat 6050/6050 FS can be equipped with either two diesel engines for greater mobility, or an electric drive for better efficiency.

Reliable Diesel Engines

Delivering durable, reliable power that will keep your 6050/6050 FS producing, the diesel engines currently in use were developed for mining and routinely achieve high uptime in mining applications. Two different engine models are available; one for countries with more regulated emissions, and another for countries with less regulated emissions.

Efficient Electric Drive System on 6050 AC/6050 AC FS

Providing a lower cost-per-ton alternative to diesel powered hydraulic mining shovels, our electric drive option maintains the ruggedness you need and offers superior availability since no refueling and less service is required. The 6050 AC/6050 AC FS is the ideal solution for operations that do not require a great deal of mobility and value a low cost-per-ton model.

Twin-engine Concept

Stay Up and Running More Consistently

Keep Producing and Ensure the Safety of Your Operators, Even During Single Engine Loss

You will realize enhanced safety, greater uptime, more productivity, and better serviceability as a result of our twin engine concept.

Enhanced Safety

The ability to move your shovel to a safe area for repair, away from highwalls, blast zones, or other safety hazards, is still possible with the use of a single engine.

Greater Uptime and More Productivity

65% of full production can still be achieved with the use of a single engine. This is due to the shovel’s continued ability to exert maximum digging forces, to lower the front attachment without requiring engine power (i.e., pressure-free), and to recuperate energy via its closed-loop swing circuit.

Better Serviceability

Troubleshooting is greatly simplified and expedited with the ability to compare one engine versus the other.

TriPower System

Superior Digging Capability and Bucket Fill Factors

Dig More Effectively with Our Unique TriPower Front Shovel Design

You will experience safer, easier and faster front shovel operation with TriPower, a system proven on over a thousand Cat hydraulic mining shovels worldwide. Generating superior mechanical leverage and control, our FS configured hydraulic mining shovels utilize a unique boom design that employs rotatable triangular rockers. This design facilitates quicker cycle times, increased effective lifting force, constant boom momentum, automatic constant bucket angle, and automatic roll-back limiter.

Quicker Cycle Times

- Faster lifting speeds are achieved, because the design enables the use of smaller-diameter boom cylinders.

Increased Effective Lifting Force

- Design transfers digging forces into the superstructure, creating supporting boom momentum in addition to momentum that is generated hydraulically.

Constant Boom Momentum

- Allows smaller boom cylinders for higher lifting speed. - Keeps lifting speed constant. - Enables the shovel to lift a single load along the entire digging distance. - No retracting of stick cylinders is required, ensuring that all hydraulic pumps are supplying the boom-up function.

Automatic Constant Bucket Angle

- Material spillage is avoided during boom lifting, because the filled bucket automatically maintains a constant bucket angle. - On conventional kinematics the operator has to control manually the bucket position during lifting which cut in half the available oil flow for the boom cylinders.

Automatic Roll-back Limiter

- Preventing material spillage back on to the operator’s cab and machine superstructure, our system ensures that the bucket is always in a safe position, without operator control/manipulation, when it is at maximum height. - The boom cylinder continues to receive maximum oil flow, because the operator does not need to activate the bucket cylinder.

Hydraulic System

Easy Serviceability and Greater Productivity

Straightforward, Safe System Maintenance

Ensuring neat organization for safe operation, easy inspection, and fast service, and reducing the number of hoses needed, the main valve block is located on top of the boom.

Faster Cycle Times

Faster cycle times are realized, because float valves are used to lower the boom instead of engaging pumps. This facilitates faster boom movements and allows other operating functions to occur simultaneously, such as bucket curl and stick in/out.

Greater Control

Your operators will experience greater control with our five circuit hydraulics, allowing for two cylinder motions, two travel motions, and swing to be controlled simultaneously.

Independent Oil Cooling System

More Effective Oil Cooling for Extended Component Life

Protect and Extend the Life of Your Hydraulic Components and Seals

Providing a more efficient means of cooling, particularly in demanding applications, our unique independent oil cooling system will extend the life of your hydraulic mining shovel’s components.

More Efficient Oil Cooling

Our system is independent of return oil, achieving efficiency through the utilization of dedicated pumps that provide cooling capacity as needed, whether the engine is idling or under load. That means optimum oil temperature is being maintained, even while your operator waits for the next truck to load. Competitive hydraulic mining shovels only provide cooling when the machine is working and the engine is under load. Additional efficiency is achieved via our thermostatically controlled radiator fan speed. The fans do not run until oil temperature exceeds a temperature of 50° C (122° F), saving energy.

Optimal Oil Temperature Maintained

The highly efficient oil cooling system ensures that the oil temperature is only 25° C to 30° C (45° F to 54°F) higher than the ambient temperature. Thus the hydraulic oil working temperature remains within the optimal operating viscosity range of 50° C to 70° C (122° F to 158° F).

Pump Managing System

Enhanced Efficiency, Component Life, and Control Response

Experience Improved Machine Control and Component Life, while Reducing Fuel Consumption and Noise Emission, with Our Intelligent Pump Managing System

Delivering optimal performance, our pump managing system continuously evaluates actual engine and hydraulic operating values against set values, and adjusts pump output accordingly. This results in efficient use of the engine for greater productivity. Pump managing system advantages include:

  • Best possible utilization of engine output and engine overload avoidance via electronic load limit regulation
  • Less energy consumption and less thermal load on hydraulic oil with zero oil flow regulation for main pumps
  • Less fuel consumption and lower noise emission via automatic RPM reduction
  • Reduced component wear and lower noise emission with automatic oil flow reduction for closing/opening of bucket clam
  • Protection of components with automatic oil flow reduction if hydraulic and/or engine coolant temperature exceed set maximum
  • Improved operator control response via on-demand pump flow

Closed-loop Swing Circuit

More Efficient Energy Use and Faster Boom Lift Motion During Swing

Load More Material, at Lower Cost, with the Energy Recovery Capability of Our Closed-loop Swing System

Delivering faster cycle times and improved energy efficiency, while also generating less heat, our closed-loop swing circuit provides distinct advantages over competitive machines utilizing open-circuit swing systems.

Greater Efficiency Via Energy Recovery

Kinetic energy captured during the swing motion is fed back into the system during deceleration, providing more power to drive the main and auxiliary pumps. Energy is saved during deceleration, because braking occurs via counteracting controls, as opposed to throttles used in open circuit swing systems.

Energy Savings During Acceleration

Energy is saved during acceleration via torque control, providing a pressure balance valve that controls the swing pump against pressure in the closed-loop swing circuit, ensuring that only the minimum necessary oil flow is utilized at any given time.

Faster Cycle Times

Faster boom lift motion during swing is achieved with our closed-loop swing system, increasing overall productivity.

Operator’s Cab

Ensuring the Safety and Comfort of Your Operators

Get Peak Operator Performance with Our Safe and Comfortable Operator’s Cab

We understand that the most important factor in your hydraulic shovel’s effectiveness is the performance of its operator. To help make their workday as productive as possible, we’ve incorporated safety and comfort features into the 6050/6050 FS operator’s cab.

Protection for Your Operator; Every Day, Every Shift

  • Safety glass is used for all cab windows, and armored glass for the windshield.
  • Operator’s seat is equipped with an integrated safety switch that automatically neutralizes the hydraulic controls when the operator leaves the seat.
  • Position of cab module, approximately 7.6 m (24 ft 11 in) high, provides excellent visibility of the digging and loading areas.
  • Cab meets Falling Object Protection System (FOPS) and DIN ISO 3449 standards.

Supporting Peak Operator Performance with Comfort Features

  • Pneumatically cushioned, multi-adjustable operator’s seat.
  • Large, transflective color display provides vital machine monitoring and diagnostic data for convenient troubleshooting and service assistance.
  • Enhanced control response and servo adjustment capability via electro-hydraulic servo control.

Electronic Control System

Operate with Confidence

Enhanced Control Response and Optimized Hydraulic Engine Load Management

Help your team meet productivity and performance standards with our intuitive, informative on-board electronics.

Electro-hydraulic Servo Control - Enhanced Control Response

The system relays actuating signals from the joysticks, delivering fast and precise machine reactions that reduce operator fatigue.

Electro-hydraulic Servo Control - Increased Up-time

Up-time is increased as a result of simplified troubleshooting and advanced diagnostic capabilities.

Electro-hydraulic Servo Control - Greater Operator Comfort

Easier setting of servo control characteristics allow operators to adjust to their preference.

Electro-hydraulic Servo Control - Clean and Quiet Cab Environment

No hydraulic lines are present in the cab or the cab module, ensuring a clean arrangement with less noise emission.

Cat MineStar System and Technology Solutions

Evolving Your Mine for Greater Safety and Productivity

Helping You Enhance Safety and Productivity Through Technology

Aimed at enhancing the productivity and profitability of your hydraulic mining shovel, we currently offer a combination of Cat MineStar System offerings and Cat hydraulic mining shovel technology solutions.

Cat MineStar System

Helping you achieve your goals for enhanced mine site safety, improved efficiency, reduced operating costs, and greater profitability, the Cat MineStar System provides the most comprehensive suite of mining technology products in the industry. It consists of a number of configurable capability sets - Fleet, Terrain, Detect, Health, and Command - that allow you to scale the system to your mine site needs. Cat MineStar System helps you manage everything from material tracking to sophisticated real-time fleet management, machine health systems, autonomous equipment, and more. The Cat 6050/6050 FS is currently able to utilize three of the Cat MineStar System capability sets:

  • Fleet - Fleet provides real-time machine tracking, assignment and productivity management, providing a comprehensive overview of all your asset operations from anywhere in the world.
  • Terrain - Terrain enables high-precision management of drilling, dragline, grading and loading operations through the use of guidance technology. It increases machine productivity and provides you real-time feedback for improved efficiency.
  • Detect
- Detect provides equipment operators with enhanced awareness for increased site safety, using a combination of radars, an in-cab display, and multiple cameras. The remaining Cat MineStar System capability sets are currently under development for the Cat hydraulic mining shovel product line.

Hydraulic Mining Shovel Technology Solutions - Monitoring and Diagnostic System

Enhancing diagnostic capabilities and providing detailed troubleshooting functions, our Board Control System uses sensors throughout the machine to monitor operating data, record faults, and notify the operator audibly and visually. This promotes the earliest possible detection of faults and allows for timely maintenance planning and assistance for speedy repair.

Loading/Hauling Efficiency

Move More Material with Optimal Pass Match Pairings

Achieve Targeted Loading/Hauling Production with Perfectly Paired Cat Hydraulic Mining Shovels and Mining Trucks

For full truck payloads with minimum loading time, an efficient loading/hauling system begins with an optimized equipment match. Cat hydraulic mining shovels are matched with Cat mining trucks to maximize volume of material moved at the lowest operating cost per ton.

Front Attachment Options and Structures

Bolstering Your Investment with Robust and Durable Structures

Rugged Front Attachment Options Designed and Fabricated to Withstand Your Extreme Mining Conditions

To extend service life and ensure that your shovel keeps producing, our front shovel attachment structures are designed for durability and dependability. Extended performance in the harsh mining conditions you face daily is accomplished through selection of high-strength steels and rugged castings, joined and thermally stress-relieved, to help you achieve your productivity targets.

Front Attachment Structures Include:

  • Heavy castings at all pivot points
  • Better flow of forces and less welding seams, as top chords are made of one bend plate
  • Entire boom and stick are stress relieved after welding
  • Welding procedures allow for internal welding (double prep weld)

Swing System

Longer Component Life for Better Swing System Reliability

More Reliable Swing Component Life

Extending component life and ultimately improving machine uptime, our swing system includes a triple-race swing roller bearing with internal gearing connected to an automatic lubrication system. For added reliability, all lube lines are located inside the roller bearing for maximum protection.

Service Friendly

Easier maintenance is afforded by the free accessibility of swing gears and rotary distributor.

Undercarriage

Tough and Long-lasting

Less Wear and Tear on Crawler Components

Extending track life and improving overall machine reliability, our undercarriages are engineered with extensive use of finite element analysis, steel structures are optimized, travel motors are well-protected by strong cover plates and hinged door covers, and a unique robust track chain incorporates a combined pad/link design. Further extending track life, a state-of-the-art track tensioning system with membrane accumulator automatically adapts the tensioning of the tracks, depending upon operating conditions.

Safety

Designed with Your Safety as Our Top Priority

Sharing your commitment to safety, and driven by our commitment to Zero Harm, we work tirelessly to design the safest machines possible to protect your most important asset; your employees. Some examples of the safety-enhancing features of the Cat 6050/6050 FS hydraulic mining shovel include the following:

Machine Access

  • Hydraulically operated boarding ladder with emergency lowering via nitrogen accumulator ensures that ladder remains operational even when engines shut off.
  • Machine swing and propel capability is switched-off when ladder is in down position.

Precise Bucket Control

• Minimizing the potential for material spill on to the attachment or cab, the TriPower automatic roll-back limiter prevents the bucket from being curled back too far.

Operator Environment

  • Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat.
  • FOPS and DIN ISO 3449 safety standards integrated into cab structure.
  • Safety glass windows, armored windshield and sliding side window.

Emergency Shut-offs

  • An easily accessible, standard shut-off switch located in the cab shuts down the electrical system in case of emergencies.
  • Additional shut-off switches are located on the machine, in the machine house or accessible from the ground with pull ropes.

Serviceability

Designed to Get You Back to Work Fast

Lowering your operating costs and maximizing your hydraulic mining shovel’s uptime and productivity is of supreme importance to us. To that end, we’ve made vital components more accessible and designed simpler systems to make maintenance activities quicker and easier.

Open, Spacious Access to Components

  • Facilitating easier maintenance, exceptional accessibility is provided to systems like the swing motor, swing gearbox and rotary distributor in the well organized superstructure. The engine is accessible from three sides.
  • Easily accessed by walkways on both sides, the boom-mounted main valve block, a feature unique to Cat hydraulic mining shovels, provides a clean layout and reduces the number of hoses leading from the superstructure to the attachment.

Simple Hydraulic System with Main Valve Block Positioned on Boom

  • Ensuring neat organization for safe operation, easy inspection and fast service, the design of our hydraulic system significantly reduces the total number of frequently moving hoses from the superstructure to the attachment.
  • Longer hose life via improved routing in accordance with MDG design standards.

Easy Ground-level Fuel and Fluid Replenishment

• Quick fuel and fluid replenishment is made easy with a retractable service station underneath the engine module, accessible at ground-level.

Improved Drive Train Troubleshooting

• Twin-engine design facilitates trouble shooting of drive trains, as one engine can be compared to the other.

Customer Support

Stay Up and Running with Service and Support from Our Unmatched Global Network

Commitment Makes the Difference

Cat dealers offer a wide range of solutions, services and products that help you lower costs, enhance productivity and manage your operation more efficiently. From the time you select a piece of Cat equipment until the day you trade or sell it, the support you get from your Cat dealer makes the difference.

Dealer Capability

Cat dealers provide the level of support you need, on a global scale. Dealer expert technicians have the knowledge, experience, training and tooling necessary to handle your repair and maintenance needs, when and where you need them.

Product Support

When Cat products reach the field, they are supported by a worldwide network of parts distribution facilities, dealer service centers and technical training facilities to keep your equipment up and running. Cat customers rely on prompt, dependable parts availability through our global dealer network, ready to meet your needs 24/7.

Service Support

Every piece of Cat equipment is designed and built to provide maximum productivity and operating economy throughout its working life. Cat dealers offer a wide range of service plans that will maximize uptime and return on your investment, including:

  • Preventive Maintenance Programs
  • Diagnostic Programs, such as Scheduled Oil Sampling and Technical Analysis
  • Rebuild and Reman Option
  • Customer Support Agreements

Application Awareness

Operating and maintenance costs are influenced by many application and site-specific factors, such as: material density and fragmentation, payload, bench height, truck positioning, ground conditions, amount of travelling and maintenance. Your Cat dealer can provide you with an understanding of the effects application characteristics and operating techniques have on maintenance and operating costs.

Operation

Your Cat dealer can arrange training programs to help operators improve productivity, decrease downtime, reduce operating costs and enhance safety.

Sustainability

Higher Standards for a Better Tomorrow

Meeting the needs of today without compromising the needs of tomorrow is the goal for all Cat machinery. The commitment to helping you operate safely and sustainably is affirmed in the production of the 6050/6050 FS hydraulic mining shovel.

Cat Hydraulic Mining Shovel Sustainability:

  • Electric Power Option - Produces less emissions, heat, and sound, and avoids disposal/replenishment of engine oil and oil filters.
  • Energy Recovery - Emit less heat and improve energy efficiency via the energy recovery capability of the closed-loop swing circuit.
  • Rebuilds
- Decrease your energy use and material consumption with a machine that’s designed to be rebuilt.

This site uses and sets "cookies" on your computer to help make this website better by keeping the site reliable and secure, personalizing content and ads, providing social media features, and analysing how the site is used. You can learn more about these cookies by clicking here. By clicking 'I Accept', you are agreeing to our use of cookies.

I Accept
