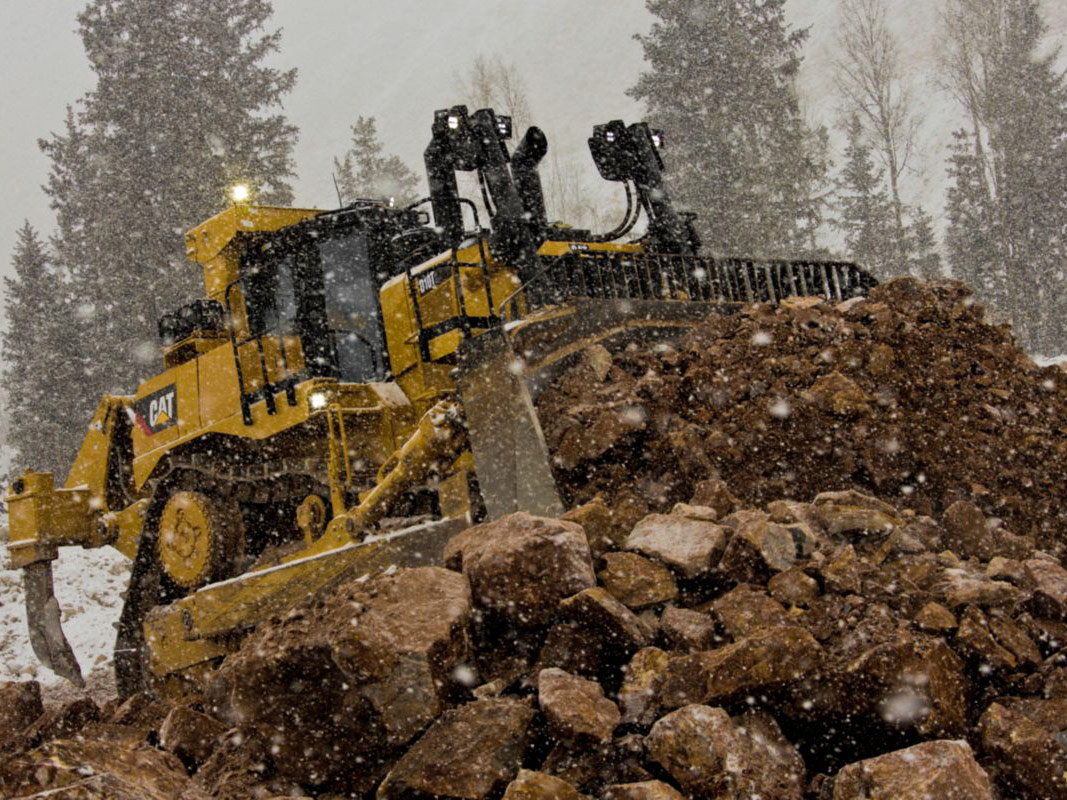

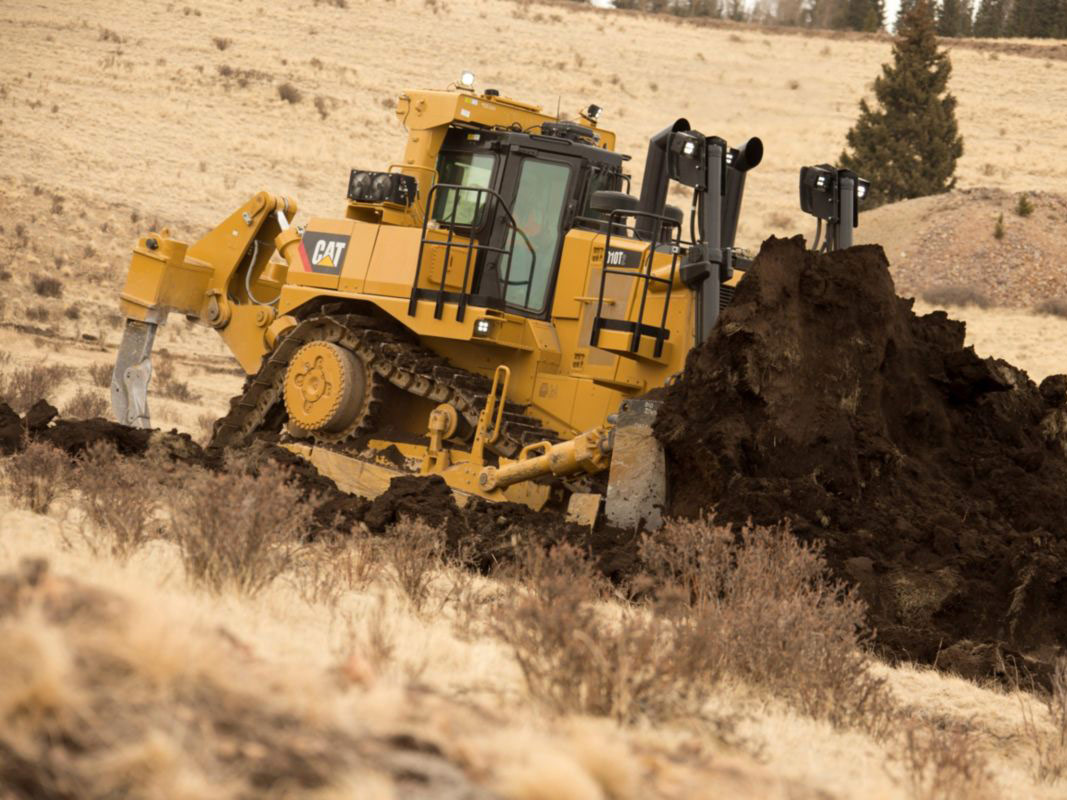

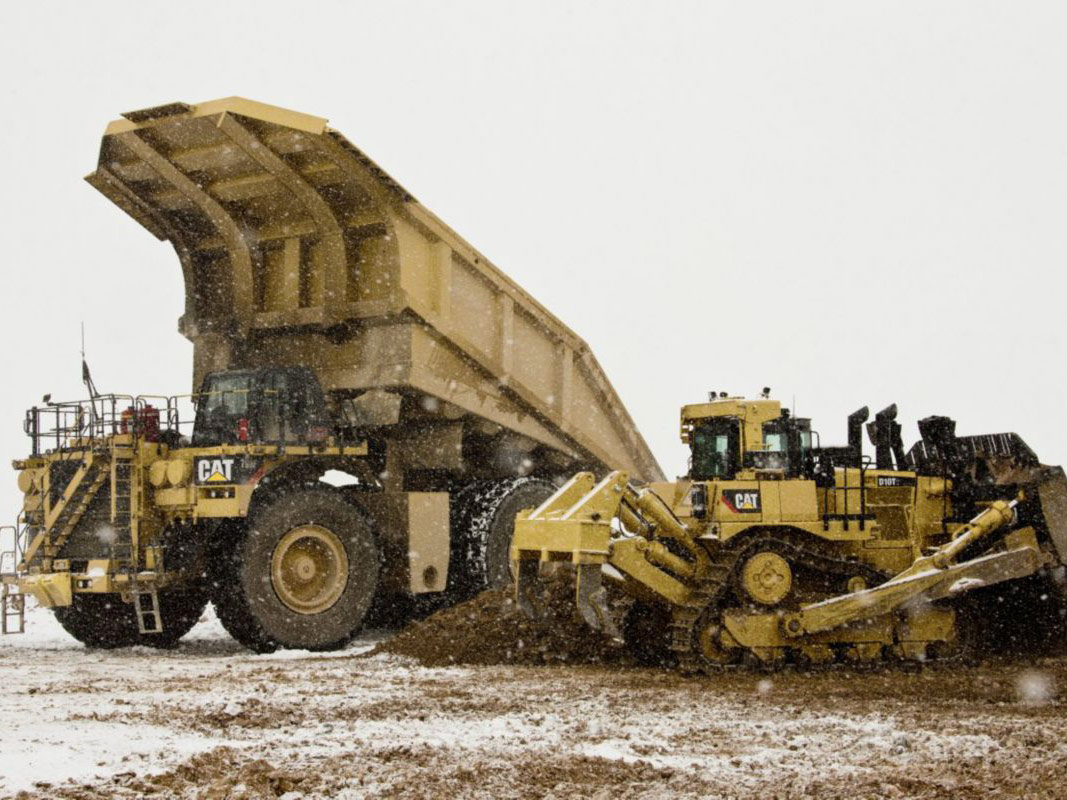

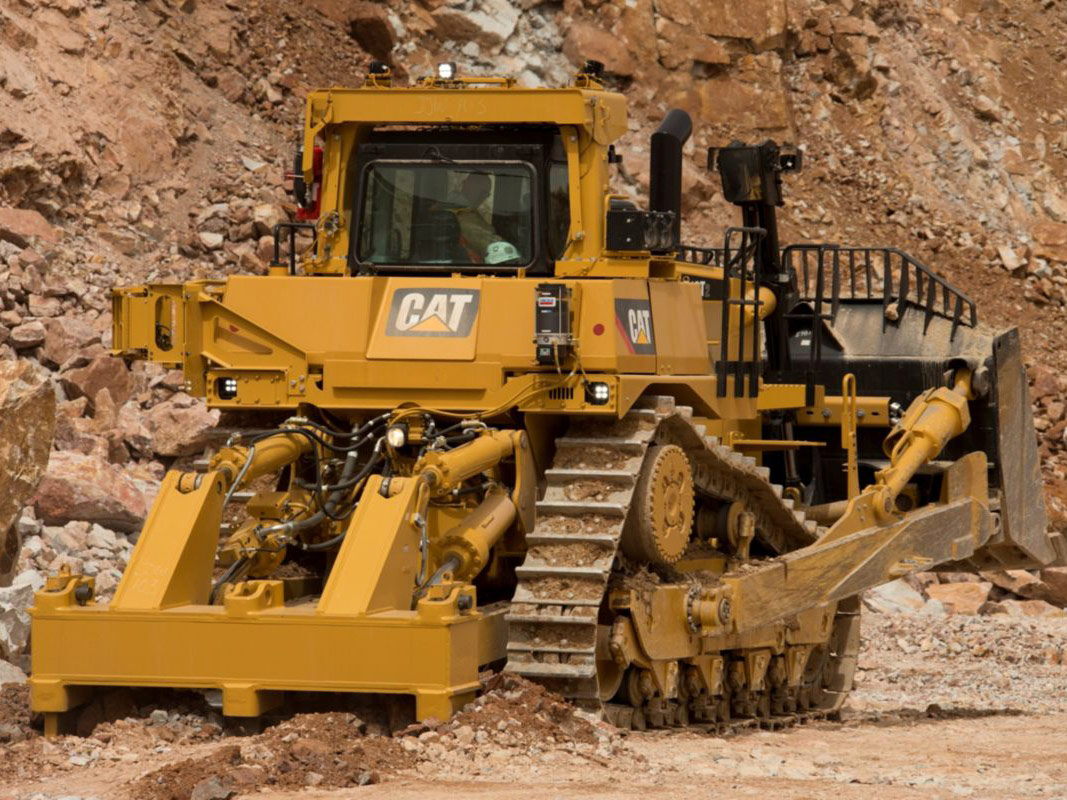

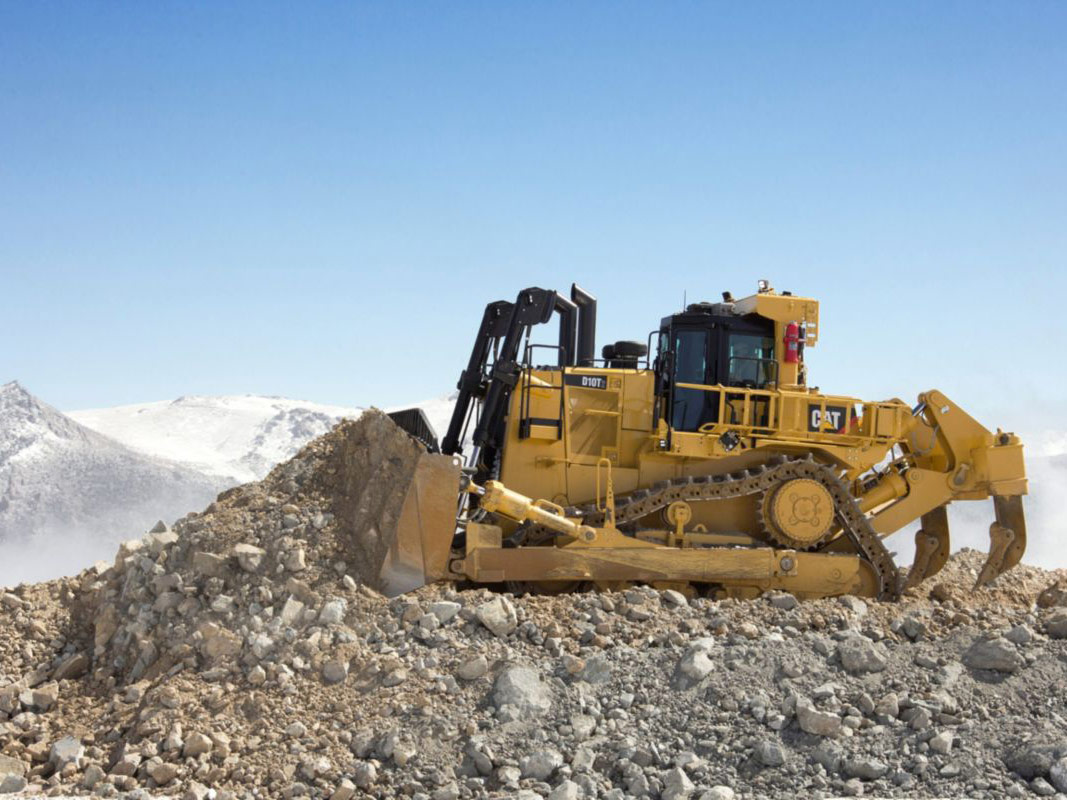

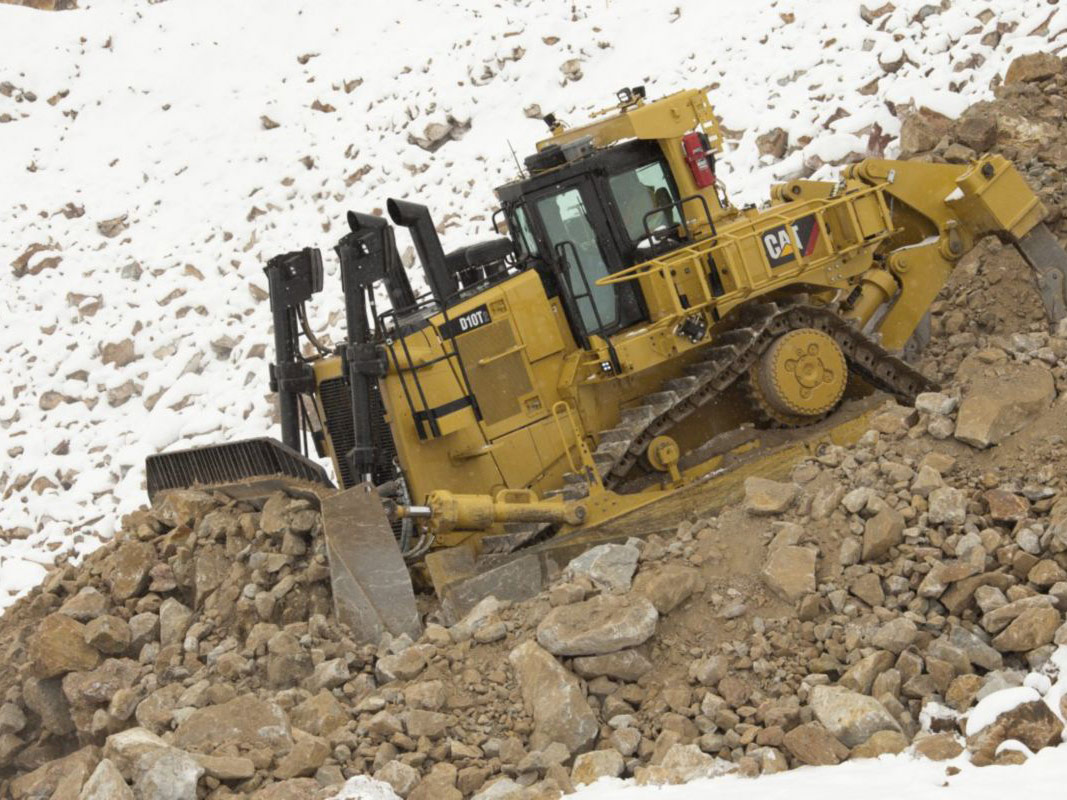

CAT Track Type Tractor D10T2

Over the years, the D10 dozer has proven itself to be a highly productive and versatile machine. It is flexible enough to be used on heavy construction sites and robust enough to be used on mine sites. Continuing the D10T’s legacy, Cat customers can count on the D10T2’s superior performance, long life, ease of operation and world-class service from the global Cat dealer network to be the backbone of their operation.

Compare

Get a Quote

Specifications

Overview

Engine

Engine Model

Cat® C27 ACERT™

Flywheel Power

447.0 kW

Bore

137 mm

Stroke

152.0 mm

Displacement

27.0 L

Engine Power – Gross SAE J1995* (FWD/REV)

471/571 kW (632/766 hp)

Engine Power – ISO 14396 (FWD/REV)

462/562 kW (620/754 hp)

Engine Power – Net SAE J1349/ISO 9249 (FWD/REV)

447/538 kW (600/722 hp)

Ground Clearance

725 mm

Emissions

U.S. EPA Tier 4 Final

Net SAE J1349/ISO 9249 (FWD/REV)

447/538 kW (600/722 hp)

Net SAE J1349/ISO 9249 DIN (FWD/REV)

608/732 hp

Engine Power – Net SAE J1349/ISO 9249 DIN (FWD/REV)

608/732 hp

Turning Circle

Note

*Excludes all fan losses.

Note

*With oil filters.

Note

*Includes grouser height for total dimensions on hard surfaces.

Note

Engine ratings apply at 1,800 rpm.

Note

Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.

Note

No derating (in FWD gears) required up to 4572 m (15,000 ft) altitude.

Note

D10T2 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm/24 in ES shoes, and operator.

Note

D10T2 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm/24 in ES shoes.

Note

Pump output measured at 1,800 rpm engine speed.

Note

Electro-hydraulic pilot valves assist operations of ripper and dozer controls.

Note

Complete system consists of pump, tank with filter, oil cooler, valves, lines, and control levers.

Weights

Operating Weight

70171.0 kg

Shipping Weight

49793.0 kg

FOPS

Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.

ROPS

Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.

Undercarriage

Shoe Type

Extreme Service (ES)

Width of Shoe

610.0 mm

Shoes/Side

Grouser Height

93.0 mm

Pitch

260.0 mm

Track Gauge

2550.0 mm

Ground Contact Area

4.74 m2

Track Rollers/Side

Number of Carrier Rollers

1 per side (optional)

Length of Track on Ground

3880 mm

Track Gauge

2550.0 mm

Length of Track on Ground

3880 mm

Transmission

1 Forward

4.0 km/h

2 Forward

7.2 km/h

3 Forward

12.7 km/h

1 Reverse

5.2 km/h

2 Reverse

9.0 km/h

3 Reverse

15.8 km/h

Transmission Clutch Diameter

434.3 mm

Ripper

Type

3-speed planetary powershift

Service Refill Capacities

Fuel Tank

1190 L

Cooling System

180 L

Engine Crankcase*

68 L

Power Train

230.0 L

Final Drives (each)

23.0 L

Roller Frames (each)

64.0 L

Pivot Shaft Compartment

33.0 L

Hydraulic Tank

131.0 L

Hydraulic System

Pump Type

Variable displacement piston

Hydraulic Controls

Bulldozer Relief Valve Setting

28000.0 kPa

Tilt Cylinder Relief Valve Setting

20300.0 kPa

Ripper (Lift) Relief Valve Setting

28000.0 kPa

Ripper (Pitch) Relief Valve Setting

28000.0 kPa

Combined Pump Output (Implement)

380.0 L/min

Standards

Sound

The exterior sound pressure level for the standard machine (ISO 6395) is 115 dB(A)/111 dB(A) (sound suppressed).

Sound

The operator equivalent sound pressure level (ISO 6396) is 77 dB(A)/74 dB(A) (sound suppressed).

Steering and Brakes

Hydraulically Applied Multiple-disc Steering Clutch

392.0 mm

Spring Applied Multiple-disc Brake

392.0 mm

Dimensions (Approximate)

Height (FOPS Cab)*

4098.0 mm

Height (ROPS/Canopy)*

4406.0 mm

Height (Top of Stack)*

4356.0 mm

Length Basic Tractor with Drawbar

5598 mm

Length with Multi-Shank Ripper

7241.0 mm

Length with SU-Blade

7416.0 mm

Length with Single-Shank Ripper

7081.0 mm

Length with U-Blade

7750.0 mm

Overall Length SU-Blade and SS Ripper

9158.0 mm

Overall Length Basic Tractor

5324 mm

Width over Trunnions

3736.0 mm

Width without Trunnions (610 mm/24 in ES)

3292.0 mm

Ground Clearance*

725 mm

Drawbar Height (Center of Clevis)

864.0 mm

Track Roller Frame

Oscillation

351.0 mm

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (3.0 tons).
