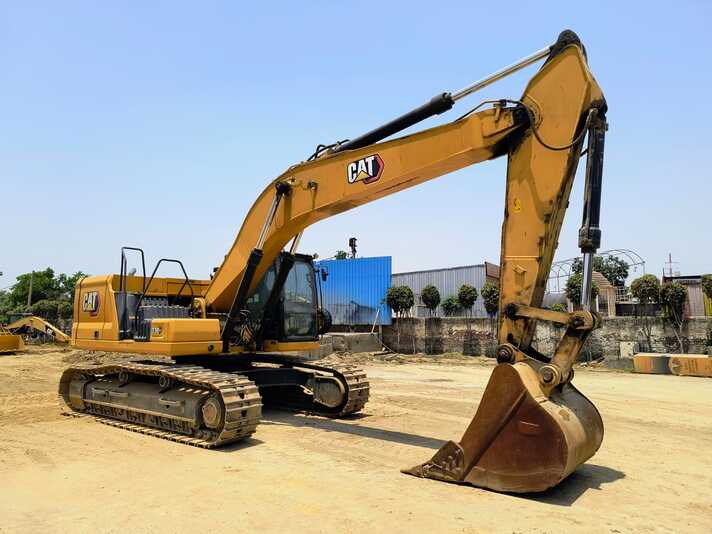

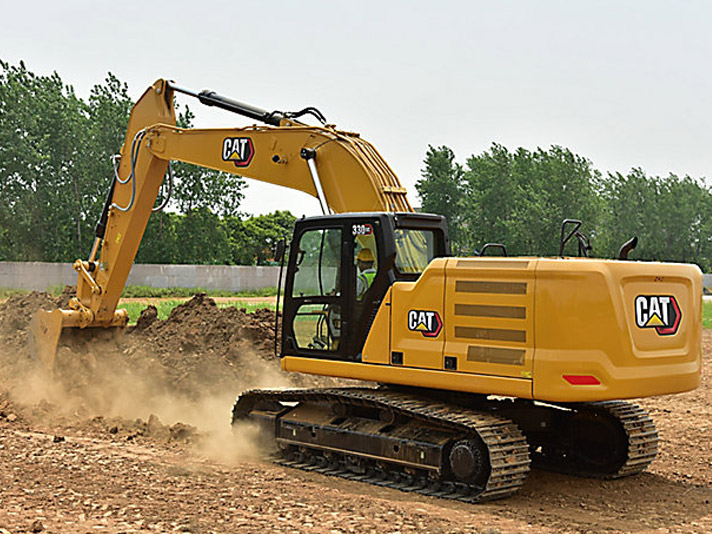

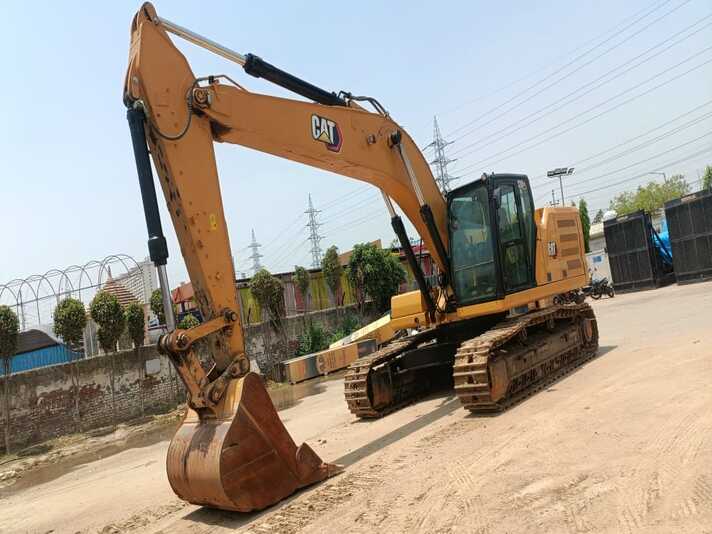

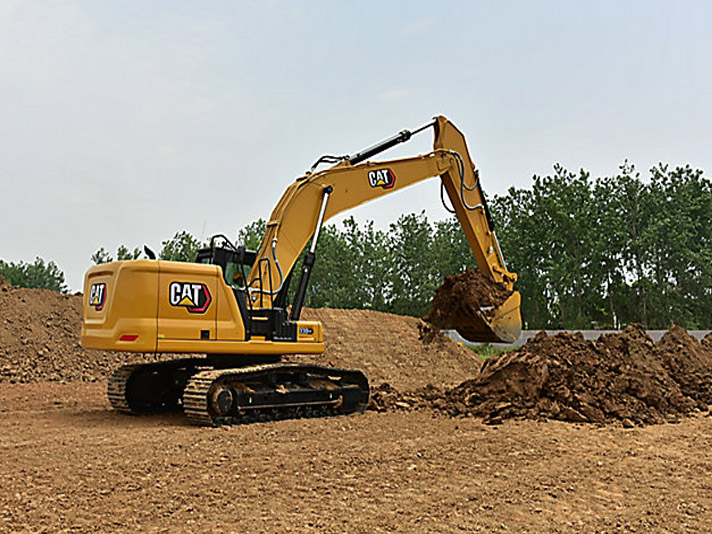

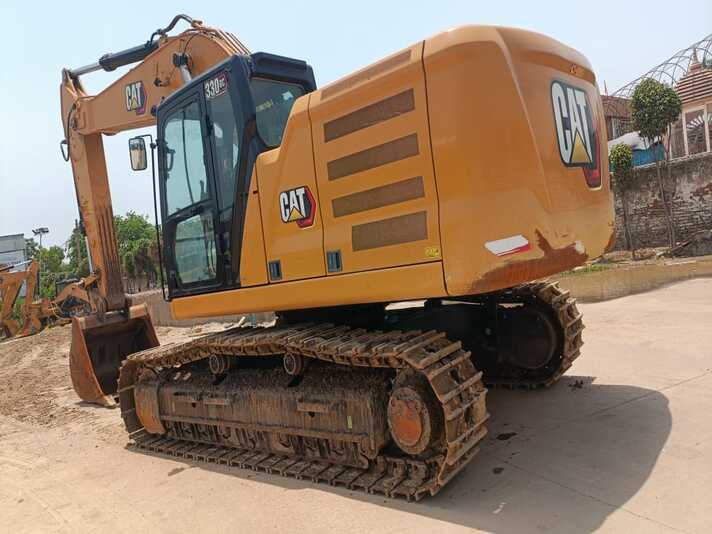

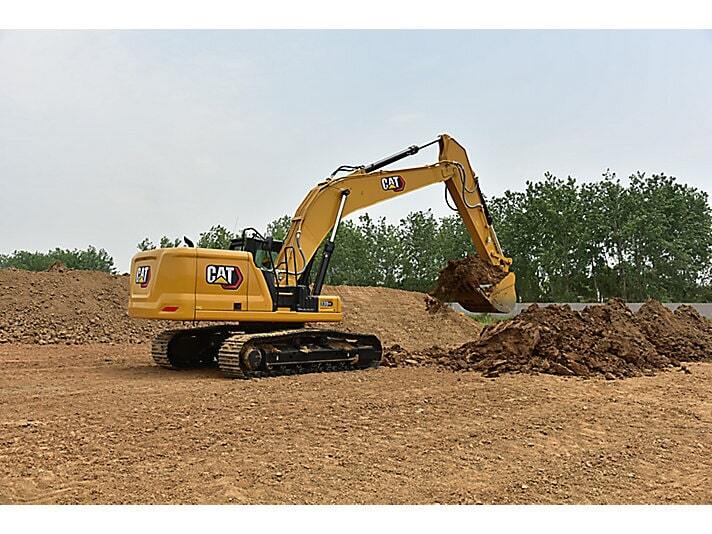

CAT Hydraulic Excavator 330GC

The Cat 330 GC offers you the ideal balance of dependable performance, operator productivity features, and reduced costs. The Cat 330 GC is a smart choice for operations where high reliability and low-cost-per-hour performance are priorities.

Get a Quote Download Brochure

Overview

The Cat 330 GC offers you the ideal balance of dependable performance, operator productivity features, and reduced costs. The Cat 330 GC is a smart choice for operations where high reliability and low-cost-per-hour performance are priorities.

Engine

Net Power - ISO 9249
157.8 kW
Engine Model
Cat C7.1
Engine Power - ISO 14396
159 kW
Bore
105 mm
Stroke
135 mm
Displacement
7.01 l
Ground Clearance
490 mm

Hydraulic System

Main System - Maximum Flow
560 l/min (148 gal/min)
Maximum Pressure - Equipment
35000 kPa
Maximum Pressure - Travel
35000 kPa
Maximum Pressure - Swing
28400 kPa

Swing

Swing Speed
11.5 r/min

Swing Mechanism

Maximum Swing Torque
82 kN·m

Weights

Operating Weight
28400 kg

Service Refill Capacities

Fuel Tank Capacity
474 l
Cooling System
25 l
Engine Oil
25 l
Swing Drive - Each
10 l
Final Drive - Each
5.5 l
Hydraulic System - Including Tank
310 l
Hydraulic Tank
147 l
Shipping Length
10420 mm
Tail Swing Radius
3130 mm
Counterweight Clearance
1110 mm
Track Length
4360 mm
Length to Center of Rollers
3490 mm
Maximum Reach at Ground Level
10690 mm
Maximum Cutting Height
9980 mm
Maximum Loading Height
6930 mm
Minimum Loading Height
2280 mm
Maximum Vertical Wall Digging Depth
5800 mm

Dimensions

Boom
Reach 6.15 m (20.2 ft)
Stick
Reach 3.2 m (10.5 ft)
Bucket
HD 1.60 m³ (2.09 yd³)
Shipping Height - Top of Cab
3050 mm
Handrail Height
3050 mm
Transport Width
3190 mm
Boom
Reach 6.15 m (20.2 ft)
Stick
Reach 3.2 m (10.5 ft)
Bucket
HD 1.60 m³ (2.09 yd³)

Undercarriage

Track Gauge
2390 mm

Ripper

Maximum Digging Depth
7260 mm

Working Ranges & Forces

Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
7100 mm
Bucket Digging Force - ISO
179 kN
Stick Digging Force - ISO
126 kN
