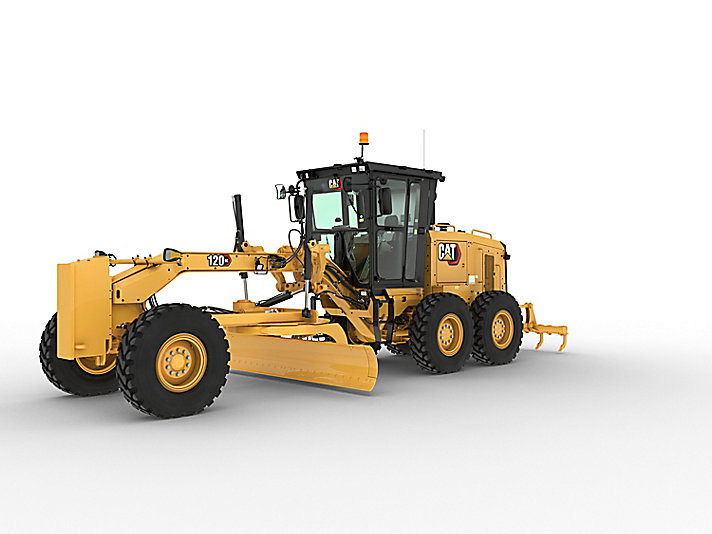

CAT Motor Grader 120 GC

The Cat® 120 GC motor grader is easy to own and operate. A demand fan and standard ECO mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent precision using lever controls from the comfort of the all new cab.

Get a Quote Download Brochure

Overview

The Cat® 120 GC motor grader is easy to own and operate. A demand fan and standard ECO mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent precision using lever controls from the comfort of the all new cab.

Engine

Net Power - ISO 9249/SAE J1349
128 kW
Torque Rise - ISO 9294
21%
Displacement
4.4 l
Stroke
127 mm
Note (1)
Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner,
Emissions
Meets India CEV Stage V emission standards
Bore
105 mm
Engine Model
Cat® C4.4

Power Rating

Maximum Torque
738 N·m

Engine - U.S. EPA Tier 4 Interim Certified

Derating Altitude
3000 m

Machine Weight

Weight*
16100 kg

Moldboard.

Width
2402 mm
Blade Width
3.7 m
End Bit - Width
6 mm
Arc Radius
413 mm

Turning Circle

Note
*Typically equipped with push block and ripper.

Dimensions

Length of Machine*
9941 mm

Dimensions & Weights

Maximum Height
3787.8 mm

Winch

Throat Clearance
112 mm

Moldboard

Cutting Edge Width
152 mm

Working Tool

Blade height
580 mm

Blade Range

Moldboard Sideshift - Right
663 mm
Circle Centershift - Right
656 mm
Maximum Lift Above Ground
410 mm
Blade Tip Range - Forward
40°
Blade Tip Range - Backward
5°
Maximum Depth of Cut
775 mm
Circle Centershift - Left
656 mm
Moldboard Sideshift - Left
512 mm

Service Refill Capacities

Fuel Tank
269 l
Hydraulic System
55 l
Transmission
17 l
Engine Crankcase
7.6 l
Diesel Exhaust Fluid Tank (Tier 4 Only)
12 l
Circle Drive with Slip Clutch
7 l
Circle Drive without Slip Clutch
1.5 l
Cooling System
39 l
