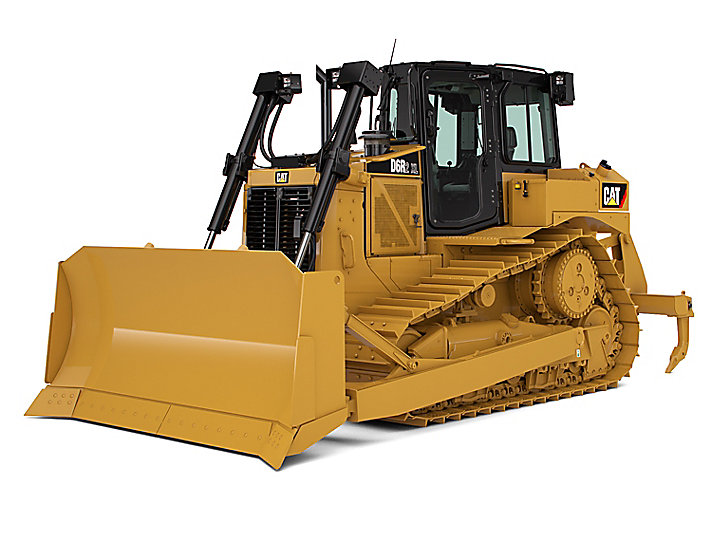

The Cat D6R2 dozer comes to your job site backed by more than 100 years of track-type tractor leadership. Caterpillar designs and builds the integrated engine and power train to work together so you experience maximum productivity, efficiency and reliability. Features like two-pump hydraulics and differential steering bring you a new level of versatility and maneuverability. From rugged structures to operator comfort, the D6R2 is a world-class dozer built to help you produce the highest quality work in a variety of applications.
Get a QuoteThe Cat D6R2 dozer comes to your job site backed by more than 100 years of track-type tractor leadership. Caterpillar designs and builds the integrated engine and power train to work together so you experience maximum productivity, efficiency and reliability. Features like two-pump hydraulics and differential steering bring you a new level of versatility and maneuverability. From rugged structures to operator comfort, the D6R2 is a world-class dozer built to help you produce the highest quality work in a variety of applications.
An updated cab provides greater visibility and comfort to help your operators work more productively. Single twist tiller control and optional automatic machine settings help reduce operator effort for greater efficiency.
A Cat C9 ACERT engine gives you the horsepower you need to doze through tough conditions. The new two-pump hydraulic system means you can count on simultaneous blade response and steering performance for greater precision and maneuverability. Differential Steering increases the speed of one track while slowing the other one down to give you exceptional turning, even with a full blade load.
Caterpillar elevated sprocket design offers added durability and optimum machine balance. Forestry, Waste Handling, and Cold Weather arrangements offer added features and protection to take on especially harsh environments.
D6R2 controls are ergonomically designed for low-effort and ease of operation.
Precise controls on the Cat C9 ACERT engine optimize power and fuel effi ciency while reducing emissions.
The proven, electronically controlled transmission features three speeds forward and three speeds reverse. The Auto Shift option adds two gear speeds for fi ve working speeds forward and four working speeds reverse. Large diameter, high capacity, oil-cooled clutches provide higher torque capacity and increase service life. Modular components offer easy service access.
A larger fan and updated aluminum bar plate cooling system is more effi cient than the previous model and gives you better cooling capability to handle high ambient conditions.
Differential Steering increases the speed of one track while slowing the other one down to give you exceptional turning, even with a full blade load. This provides greater maneuverability and faster cycle times. You also get better load capacity, power and speed control in soft underfoot conditions.
New dedicated implement and steering pumps mean you can count on simultaneous blade response and steering performance. This gives you precision and maneuverability that is especially benefi cial for working in close quarters on construction sites or land clearing.
Field-proven system senses load and uses a variable displacement piston pump to continuously adjust implement hydraulic power for maximum effi ciency.
A single stage torque divider sends 70 percent of engine torque through a converter and the other 30 percent through a planetary gear set so you get more power to the ground.
The foundation of every Cat dozer is a rugged mainframe built to absorb high impact shock loads and twisting forces. Castings add strength to the main case and equalizer bar saddle.
A modular design allows easy installation and removal of major components for service/rebuild.
The pinned pivot shafts connect the mainframe and roller frames for independent oscillation. This provides strength and excellent ground clearance. The machine is able to better follow
ground contours for maximum traction and operator comfort.
L-shaped push arms give you an advantage over diagonal brace designs by bringing the blade closer to the machine. This gives you better balance, maneuverability and blade penetration. The design also gives you lateral stability and better cylinder positions for constant pryout capability regardless of blade height. The trunnion joint design requires no adjustments to keep the blade tight.
Dozer blades are manufactured from high tensile strength steel,with a robust multi-cell design to stand up to the most severe applications. The moldboard is highly abrasion resistant to prevent wear-through. Hardened bolt-on cutting edges and end bits give you better penetration and can be rotated and/or replaced for even longer blade service life. Semi-Universal, Straight and Angle Blades are available, as well as special blades for landfi ll and land clearing applications.
The elevated sprocket design helps protect major components from harsh impacts and provides a modular design for convenient service. The operator has excellent sight lines to the blade, sides and back of the machine. The center of gravity remains low, offering excellent stability, balance and traction.
Heavy Duty undercarriage, with lifetime lubricated track/carrier rollers and idlers, is standard on the D6R2. The components are designed for extended wear life in abrasive or high impact conditions like forestry, side slopes or working in rocky terrain. Or, choose SystemOne™ undercarriage (XL and LGP tractors) designed to work and wear as a system for longer life and lower
costs in abrasive or low/moderate impact applications.
A broad choice of track shoe designs and widths help you further optimize your machine for performance and longer life.
LINK technologies, like Product Link™*, are deeply integrated into your machine and wirelessly communicate key information, including location, hours, fuel usage, idle time and event codes.
Manage equipment with real-time data and performance information to help make timely, decisions that can boost job site effi ciency and productivity, and lower costs. Analysis and
scheduling tools help you track routine maintenance and plan for service procedures. And if a problem arises, operators can quickly assess the issue and take appropriate action to minimize service costs and downtime.
Whether you’re in your office or on the job site, you can easily access data about your machine or fleet via the online VisionLink user interface from your computer or mobile device.
* Product Link/VisionLink mobile not available in all areas. Please consult your Cat dealer.
GRADE technologies combine digital design data and in-cab guidance to help you reach target grade quickly and accurately, with minimal staking and checking. That means you’ll be more productive, complete jobs faster, in fewer passes, using less fuel, at a lower cost.
AccuGrade is an optional dealer-installed grade control system that provides automated blade slope and elevation control, improving productivity and accuracy by up to 50 percent over conventional methods. Real-time in-cab guidance indicates precisely where to work and how much to cut or fi ll, helping operators work more confi dently and get to grade faster, in fewer passes, using less material, fuel, and costs. Choose from 2D laser systems for flat planes and slopes, and 3D satellite (GNSS) for large complex designs or total station (UTS) control for fi ne and fi nish grading. 3D systems eliminate staking, checking, and ground crews, making the job site safer and more cost effective.
The D6R2 is designed for ease of repair and maintenance so you can spend less time on service and more time on the job.
To make daily inspections and routine maintenance more convenient,service points are grouped and sight gauges let you inspect fl uid levels at a glance. Service point locations are consistent across Cat tractor models to help save you even more time. High effi ciency fuel filters have water-in-fuel sensors to add to fuel system robustness.
Updated design places the alternator in an elevated location for added protection, especially in wet, sandy conditions.
The air conditioning condenser is now mounted externally on top of the cab. This increases heating/ventilation/air conditioning capability, while improving engine cooling and serviceability.
EM Solutions lets you take control of your fleet with a solution specific to your equipment management needs. Comprehensive equipment management – combined with the knowledge and expertise of your Cat dealer – can provide ways to help you achieve gains that go straight to your bottom line.
Consisting of five levels of support, from remote access to equipment data to complete, proactive management of your fleet, EMSolutions allows you to choose the amount of support that’s right for you.
